Topping E30 II DAC

Color
Black
Silver
E30II

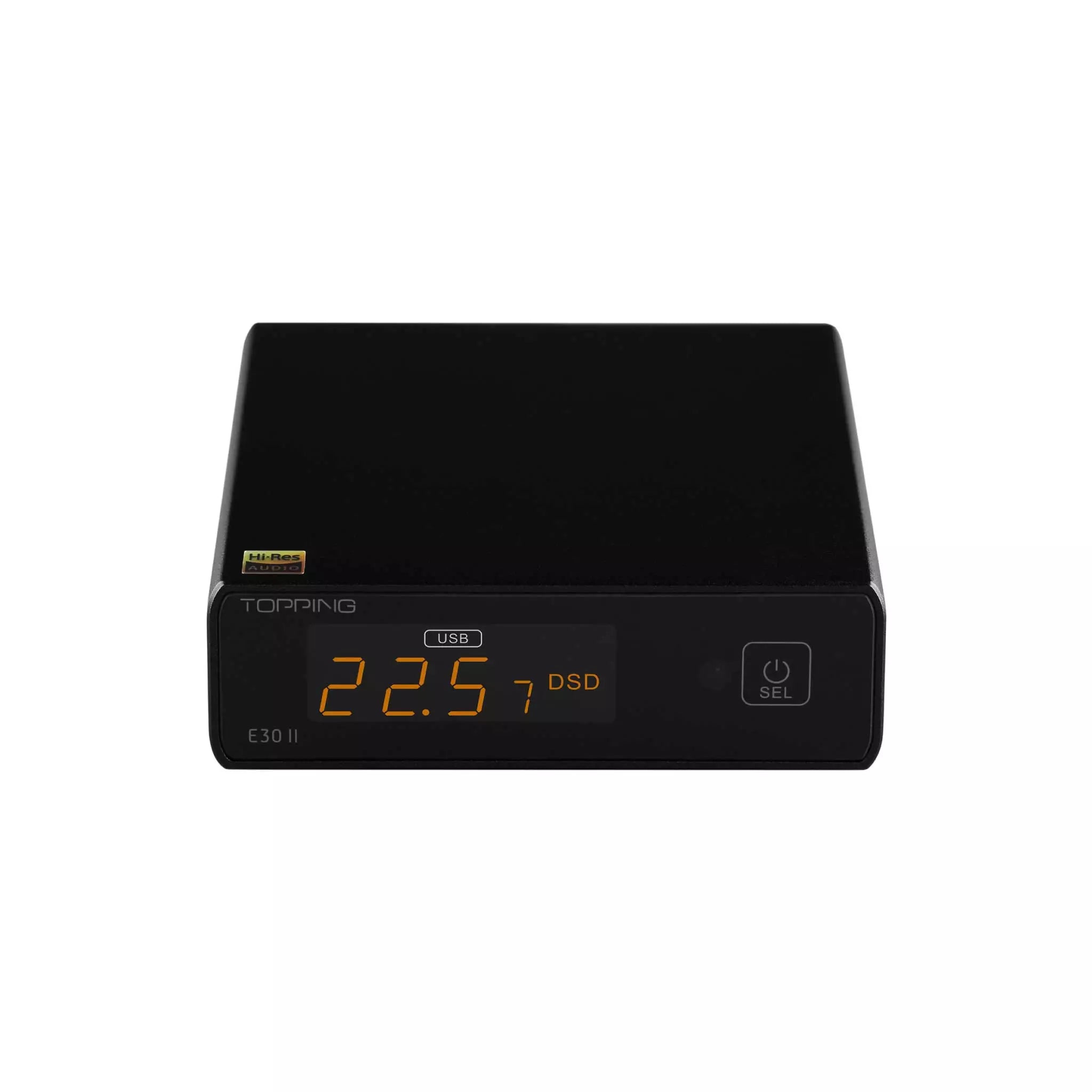

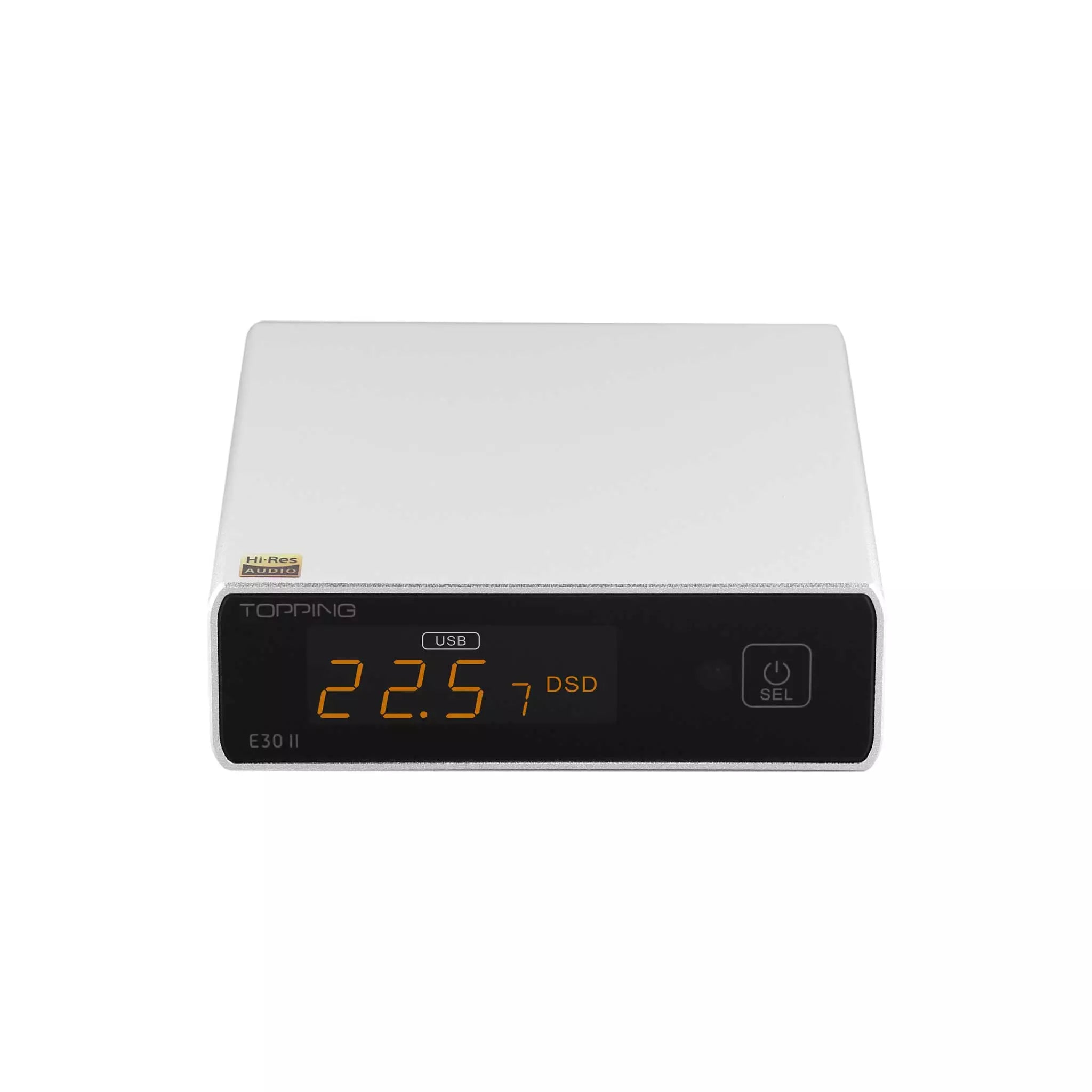

TOPPING E30 II - Audio DAC

E30 II is a high performance DAC with USB, coaxial and optical inputs.It is compatible with up to 768kHz/32bit and DSD512.

E30 II is designed for full digital volume control and equipped with an LED display screen. It can be used as not only a DAC but also a pre-amplifier.

We hope it could bring you more fun at enjoying music.

Pure DAC application

E30 II is able to fix to maxmum output level so that it can be worked as a pure DAC. In this mode, DSD signal will bypass the DATT Soft Mute and △Σ Modulator to provide you a pure/direct DSD performance.

DAC + Preamp application

E30 II has built-in volume control function that can adjust the volume from -99dB to 0dB by using the remote control, so you are able to directly connect E30 II to power amplifier or active speakers, and control the volume of E30 II through remote control.

HiFi College is an authorized retailer of TOPPING, so you can be confident you'll be happy with your purchase.

E30II



E30II
Contents list



  1. E30 II x1
  2. DC cable x1
  3. USB cable x1
  4. Remote control x1
  5. User manual ×1
  6. Quality card x1(One-Year Transferable Repair and Free Return Policy)



TOPPING E30 II

2x AK4493S DAC



  • Hi-Res Audio
  • 2x AK4493S DAC
  • XMOS XU208
  • 0.00015% THD+N
  • Support up to DSD512 native & PCM 32bit 768kHz
  • Support DSD Direct Mode for USB
  • Touch operation
  • Preamp function
  • Remote control



  • Measured: 10.0cm×12.5cmx3.2cm
  • Weight: 295g
  • Power input: DC5V/1A
  • Signal input: USB/OPT/COAX
  • Line Out output: RCA

E30II
E30II

E30II

Coaxial and Optical(Toslink) also has good performance

The optical and coaxial input of E30 II supports up to 24bit192kHz audio, which is suitable for digital turntables, disk players, set-top boxes, and game consoles, so that traditional equipment can also give a new sound. The Digital Processing module provides better compatibility than the E30.

E30II

5V power supply, anytime and anywhere

E30 II uses DC5V for power supply, which can easily access almost everywhere. You can power it up by USB port of PC, mobile phone charger or even a power bank. The built-in protection circuit will protect the E30 II and prompt on the screen after connecting to the wrong power supply.

E30II

All inputs support. Auto On/Off function

E30 II auto On/Off function, it will automatically turn on and set to the input which the signal is valid. And when the signal of E30 II's selection is not valid for 1 minute, E30 II will turn off automatically.

E30II

Panel



  1. LED screen
  2. Remote control receiver
  3. Multifunction touch button
  4. Right channel single-ended RCA output
  5. Left channel single-ended RCA output
  6. Coaxial SPDIF input
  7. Optical SPDIF input
  8. USB input 9 Power input (DC5V/1A)
