  • Saramonic UwMic9 Kit1 UHF Wireless Lavalier Microphone System

    The Saramonic UwMic9 Kit1 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

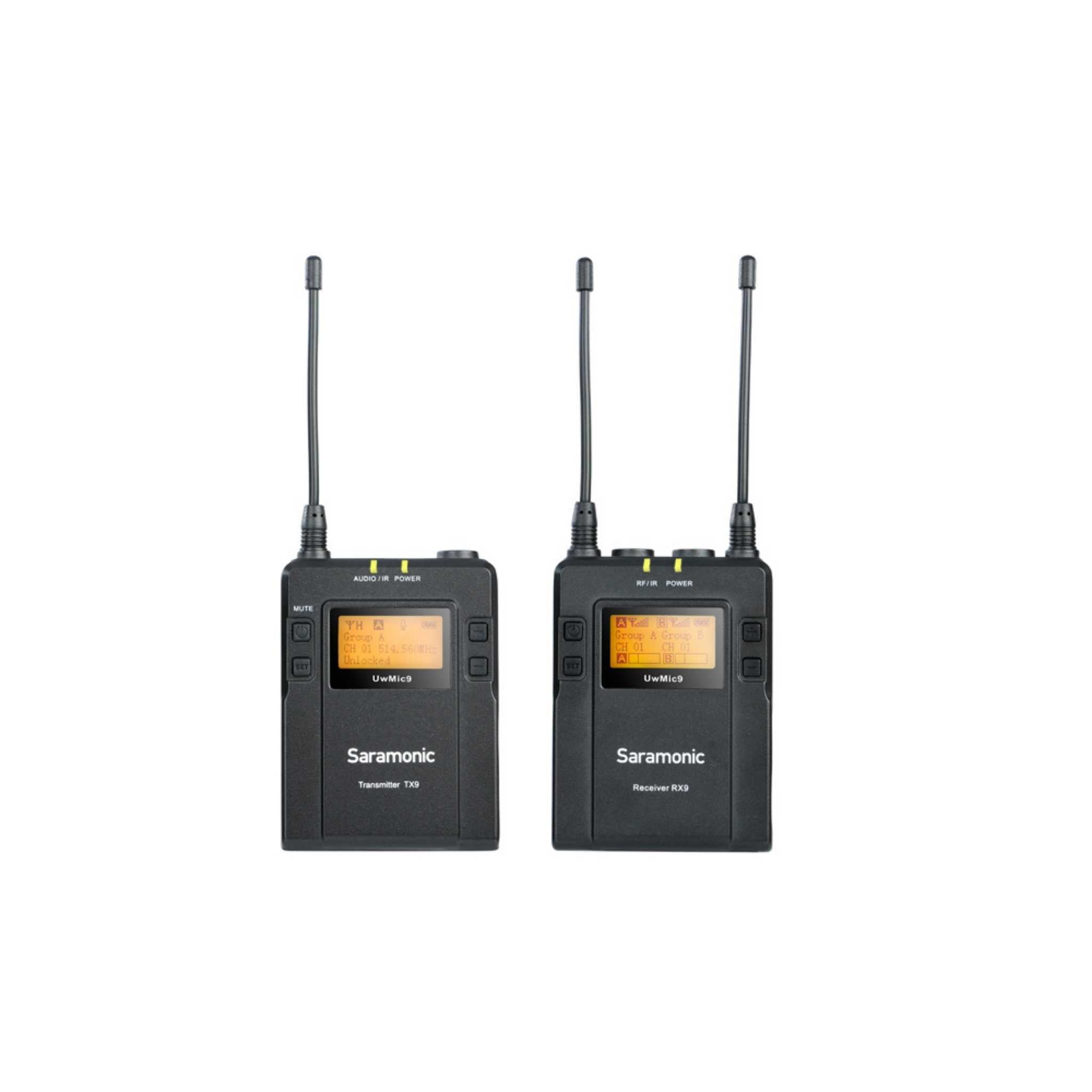

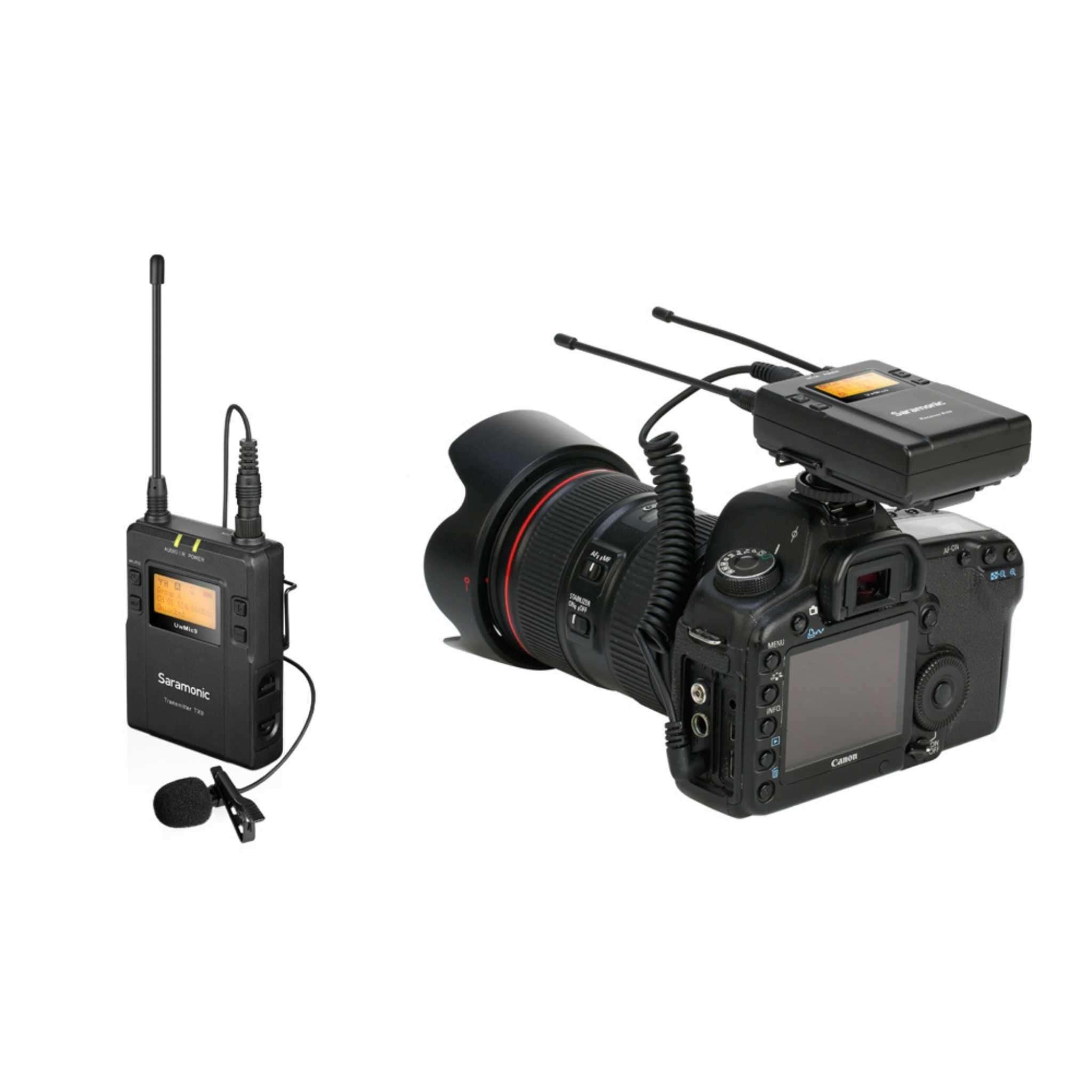

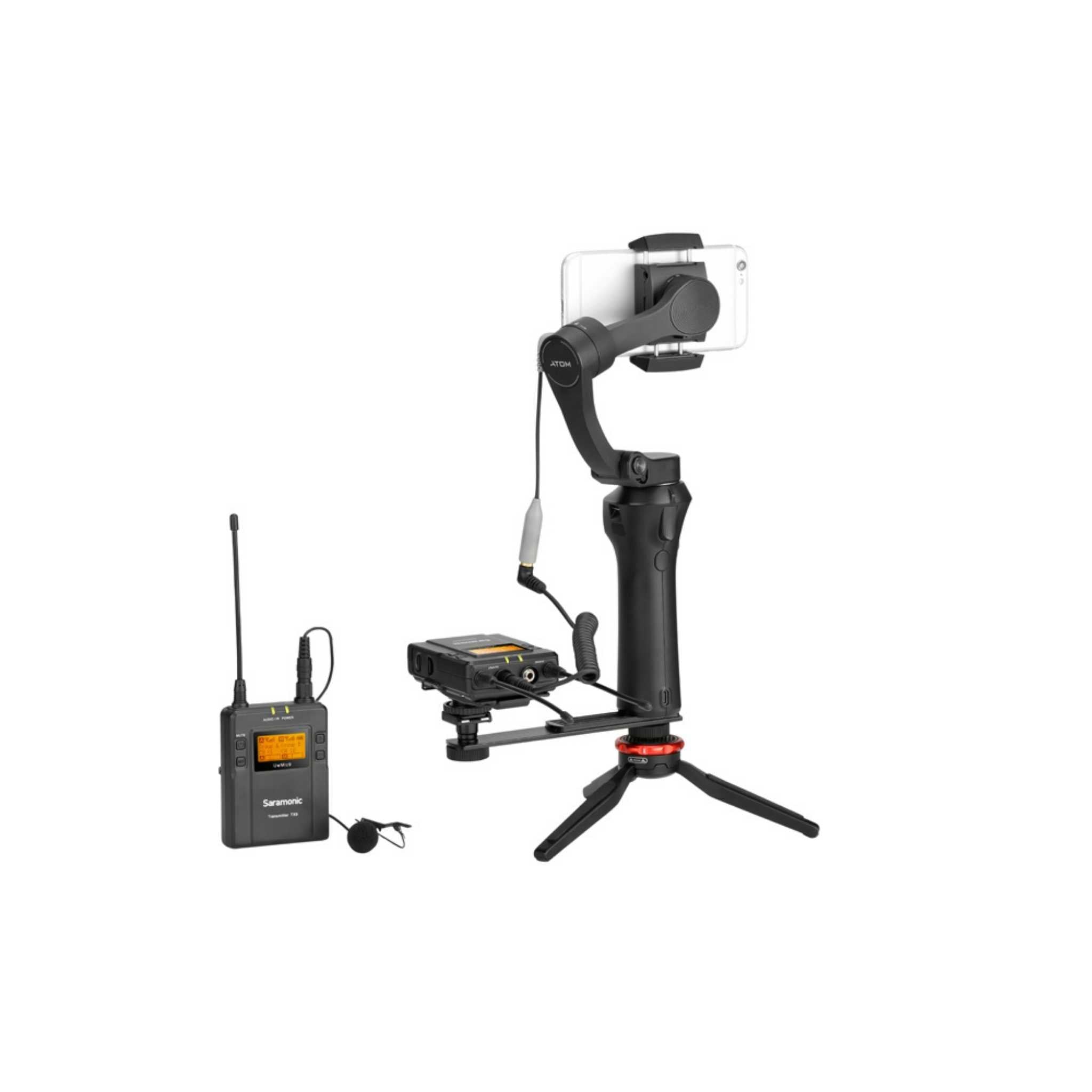

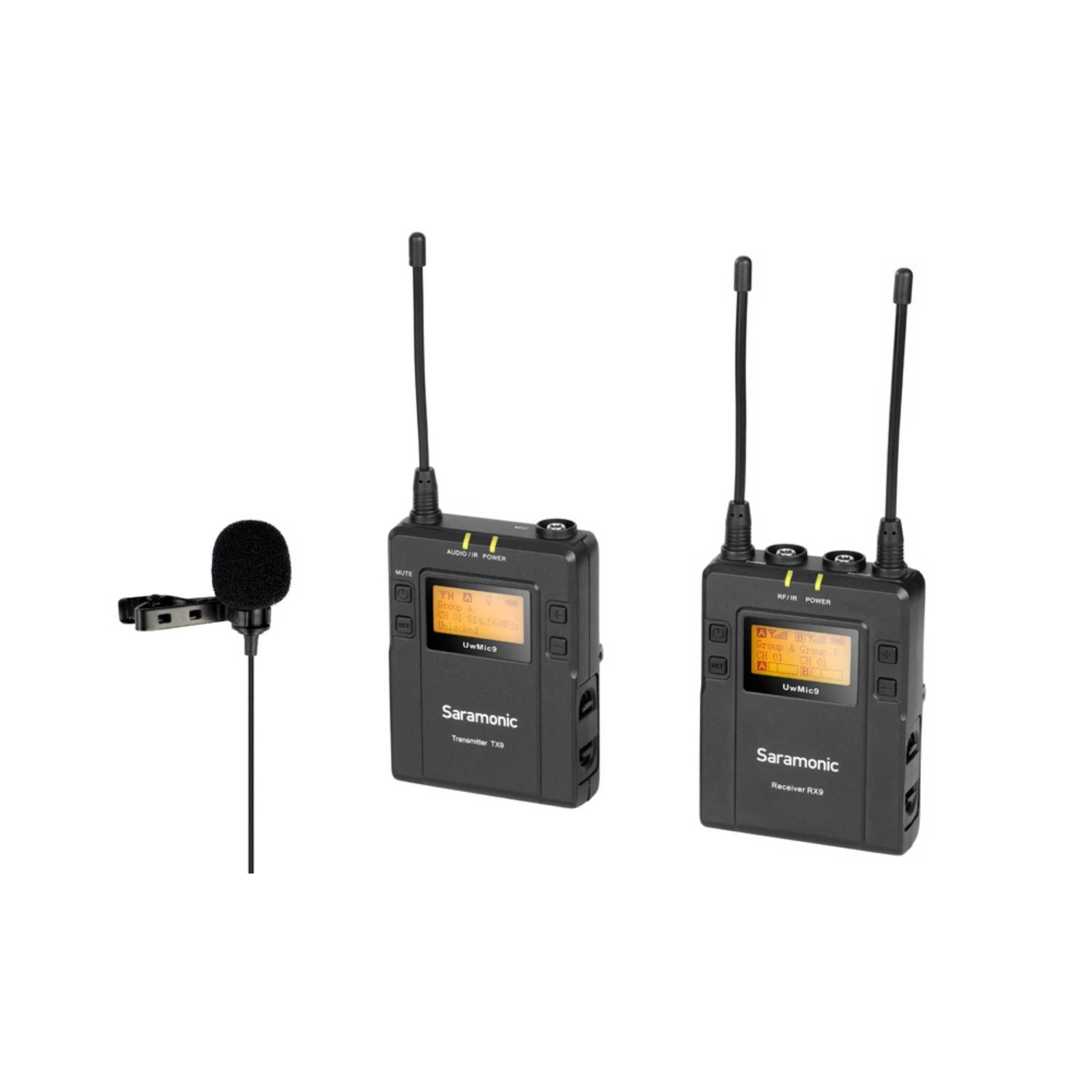

    The system includes a camera-mountable wireless receiver, a wireless body-pack transmitter and clip-on lavalier mic.

    Receiver (x1)

    The Saramonic UwMic9 RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.

    Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.

    Transmitter (x1)

    This compact transmitter UwMic9 TX9 employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.



    • Reliable, broadcast-quality audio
    • Wireless transmitter with lavalier microphone
    • 514 MHz – 596 MHz
    • 96 selectable channels in 2 groups
    • Headphone monitoring
    • Easy-to-read LCD displays
    • Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
    • Optional handheld and XLR transmitter for different applications.



    Transmitter

     Channels:  96
     Groups:  A or B
     Oscillator Type:  PLL Synthesizer
     Frequency Range:  514 MHz – 596 MHz
     Reference Deviation:  +/- 5 kHz (-60dBV, 1kHz input)
     Signal to Noise Ratio:  70 dB or more
     Spur Suppression:  -60 dB
     Voice Delay:  12 ms
     Antenna:  1/4λ wire antenna
     Audio input connector:  TX9:3.5mm mini jack



    HU9: none

    TX-XLR9: XLR-3-11C type (female)

     Reference audio input level:  -60dBV (MIC input, 0dB attenuation)
     Distortion:  0.5% or less
     Weight:  TX9: Approx. 211.4g (excluding batteries)



    HU9: Approx. 338.2g (excluding batteries)

    TX-XLR9: Approx. 138g (Excluding batteries)

     Battery:  Two AA size batteries
     Dimensions:  TX9: 170.9 x 63.5 x 30.0 mm
    HU9: 254.0 x 52.0 x 52.0 mm
    TX-XLR9: 105.5 x 43 x 34.7 mm
     Operating temperature:  0℃ to 50℃
     Storage temperature:  -20℃ to +55℃

    Receiver

     Channels:  96
     Groups:  A or B
     Oscillator Type:  PLL Synthesizer
     Audio output connector:  3.5mm mini jack
     Antenna:  1/4λ wire antenna
     Audio output level:  -60dBV
     Headphone output level:  30mW (16Ω)
     Receiver frequencies:  514 MHz – 596 MHz
     Signal to Noise Ratio:  70 dB or more
     Voice Delay:  12 ms
     Reference Deviation:  +/- 5 kHz (-60dBV, 1kHz input)
     Frequency response:  40Hz to 18kHz (+/-3dB)
     Distortion:  0.5% or less
     Spur Suppression:  -60 dB
     Weight:  218.7g (Excluding batteries)
     Battery:  Two AA size batteries
     Dimensions:  170.9 x 63.5 x 30.0 mm
     Operating temperature:  0℃ to 50℃
     Storage temperature:  -20℃ to +55℃
