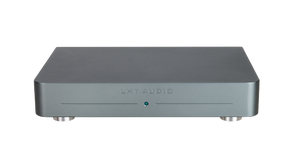

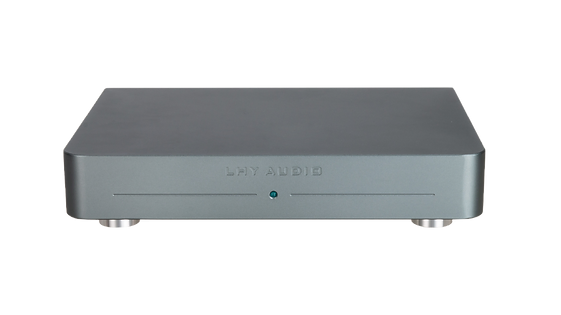

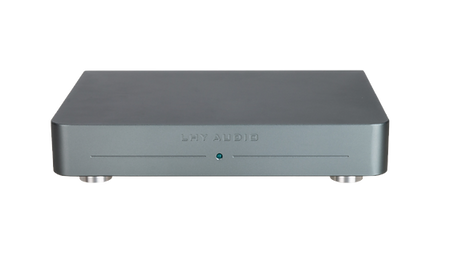

LHY AUDIO OCK-2 Master Clock
In Stock 🚚 Order by {time} to have it shipped today
🚚 Order by {time} to have it dispatched on {day}.
🔒Secure your unit with 50% advance. See more
Pre-Order now and have it delivered within {days} days. {contact_link} if you have any questions.
Express Pre-Order — delivered within {days} days. {contact_link} if you have any questions.
Pre-Order now and have it delivered within {days} days. {contact_link} if you have any questions.
Do you have questions about this product?
Technical Highlight:
- CNC Milled Aluminum Chassis [Gun Metal Grey/Green]
- AC Incoming: High Quality IEC with Fuse & Switch
- AC Noise Filter: UK RIFA RFI Suppression Caps & Noise Filter
- AC Transformer: High Quality Encapsulated Talema Transformer
- High Speed Rectifier
- High Endurance Reservoir Caps
- Phillips 1% Precision Resistors
- Multistages DC/DC Power Supply low noise (lab measurable noise in the range of uV) for OCXO
OCXO
- High quality SUPER SC-CUT Oven Controlled Crystal Oscillator
- Each OCXO are hand-picked measured at 10.000000MHz accuracy
What’s in the package:
1. LHY OCK-2 Master Clock Generator
2. Power cord
What’s not in the package:
1. BNC cables not included
Specifications
Output Frequency: 10MHz
No. of Output: 6 x BNC
Frequency Accuracy: < 300ppb
Frequency Stability: < 50ppb
Output Level: >= 7dBm @ 50Rz
Output Waveform: Square Wave x 3, Sinewave x 3
Output Impedance: 50Ω / 75Ω (User-Configurable)
BNC Connector: 75Ω type, compatible with 50Ω
AC Mains: AC115 / 230V
Power Consumption: <20w
Dimension: 240W x 59H x175D (mm)
Weight: 2.5kg
