  • iFi Audio GO Link Portable DAC + AMP

    🚚 Order within the next 2 hours, 15 minutes for delivery by 19 Jun, 2024.

    The missing link

    The GO link is the missing link in your listening experience.

    Firstly, it will enable corded headphones and earphones to connect to digital devices that don’t have a 3.5mm headphone output.

    Secondly, even if your device does have a headphone socket, the GO link delivers a big sonic upgrade. This is because its sophisticated DAC (Digital-to-Analogue Converter) and headphone amp circuitry are superior to the audio tech contained within smart devices and computers.

    Go forward with GO link.

    ifi Go Link

    Flexible friend

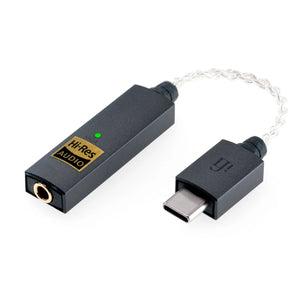

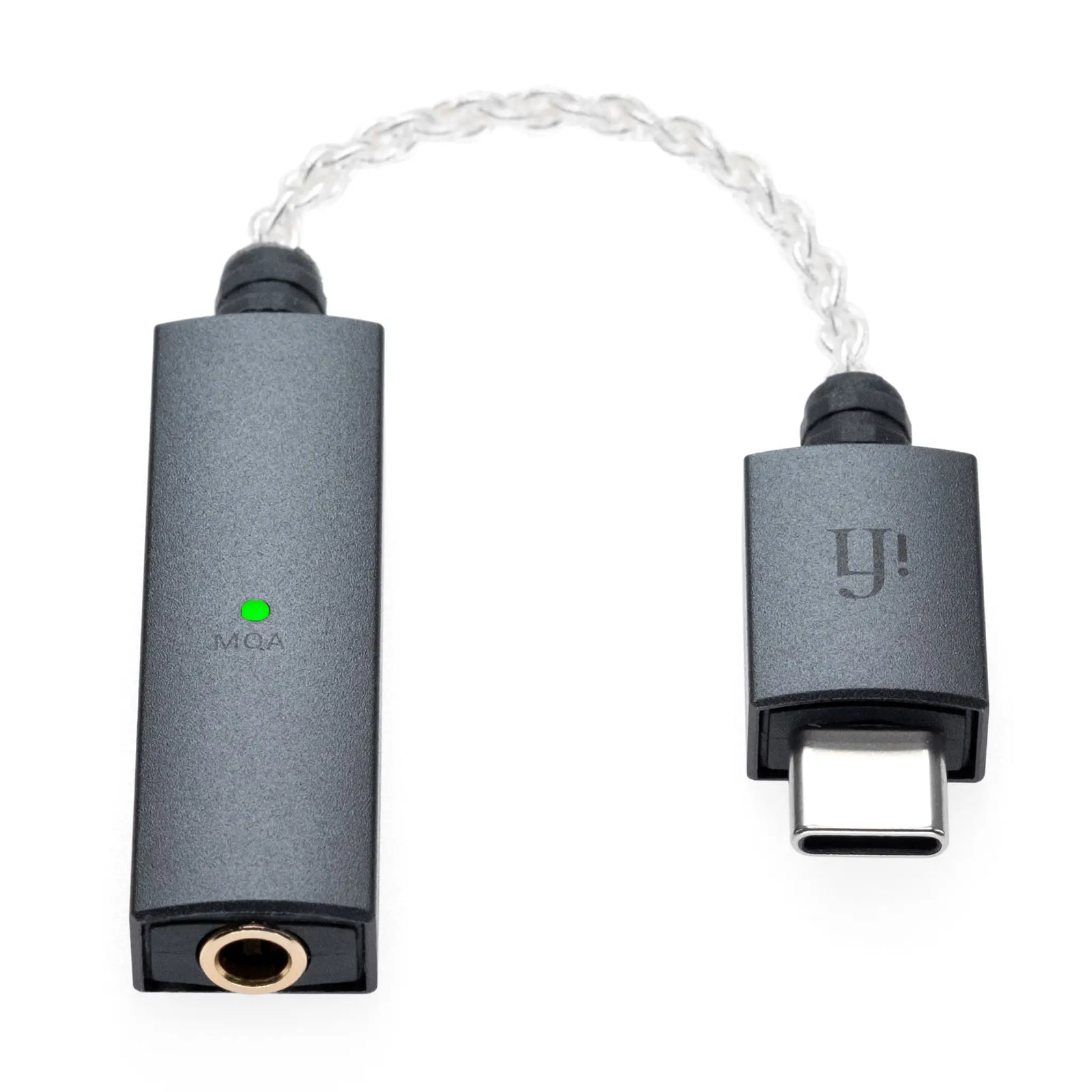

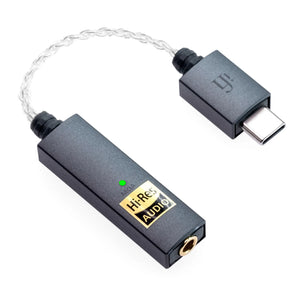

    At one end of the GO link is a USB-C connector, and at the other is the DAC and headphone amp circuitry, both housed in robust yet lightweight magnesium alloy enclosures.

    In between is a 6cm length of flexible cable – this aids practicality, allowing the DAC/amp section to be angled towards the listener and reducing stress on the USB port to which the GO link is connected.

    ifi Go Link

    DAC’s the ticket

    At the heart of the GO link lies a power-efficient, high-performance DAC chip from ESS Technology’s Sabre HiFi series – the ES9219MQ/Q – benefiting from 32-bit HyperStream III architecture.

    This combines with Quad DAC+ and Time Domain Jitter Eliminator technologies, plus iFi Audio's dedicated clock circuitry utilising a specialised crystal oscillator, to deliver ultra-low distortion, excellent clarity and impressive dynamic range.

    Rarely implemented high-end features such as adjustable analogue gain with DRE (Dynamic Range Enhancement) plus technologies to minimise THD (Total Harmonic Distortion) and crosstalk are possible due to the DAC chip’s advanced specification.

    It is also possible to choose between a choice of digital filters via downloadable software.

    ifi Go link

    Do the twist

    The cable linking both sections together uses silver-plated copper conductors with individual polymer insulation in a ‘twisted pair’ configuration.

    This rotational twist helps to optimise inductance and capacitance and also aids noise rejection. The GO link’s sound isn’t affected by electromagnetic interference picked up from nearby electrical sources.

    No distortion means you’re ready to dance without disturbance.

    ifi Go Link

    Move with the music

    Unlike other headphone dongles, the GO link doesn’t rely on the software-based volume controls in connected digital devices. This can adversely affect audio resolution.

    Instead, adjusting the volume on the connected device controls the volume level in the GO link’s DAC, not in the phone, tablet or computer. This hardware-based volume control is another feature that helps to deliver the GO link’s superior sonic performance.

    ifi Go Link

    Hi-res in glorious colour

    The GO link’s hi-res audio credentials are highly impressive given its diminutive size and price tag.

    • PCM  to 32-bit/384kHz
    • DSD to 11.2MHz (DSD256)
    • MQA

    An LED changes colour to indicate the incoming audio format – PCM, DSD or MQA – and the PCM/DSD sample rate.

    ifi go link

    Headphone heaven

    The GO link’s headphone amp feeds a gold-plated 3.5mm socket, incorporating their S-Balanced configuration to reduce noise and crosstalk.

    It delivers a power output of 70mW into 32 ohms, and a maximum voltage output of 2.05V into 600 ohms. This gives it plenty of oomph to drive the kind of headphones and earphones likely to be used with the GO link and easily outclasses the headphone outputs built into smart devices and computers.

    ifi Go Link

    Specifications
    Input USB-C
    Formats DSD 256 / 11.3MHz
    PCM 384kHz
    MQA
    DAC Bit-Perfect DSD & DXD DAC by ESS
    Headphone 3.5mm
    Output Power ≥1.5V/70MW @ 32Ω; 2V/14mW @ 300Ω
    Output Impedance <0.40
    SNR ≥125dBA (2.05V)
    DNR ≥122dB(A) @ OdBFS
    THD+N ≤00.004% (1.27V @ 32)
    Frequency response 10-80kHz(-0.5dB)
    Power consumption No Signal ~0.2W
    Max Signal ~1W
    Dimensions 135 x 12.6 x 7.6 mm (5.3" x 0.5" x 0.3”)
    Cable length 60mm (2.8")
    Net weight 11g (0.4oz)
