Balanced system. Complete.
Custom connectors. Silver. Copper.
Shields to max.

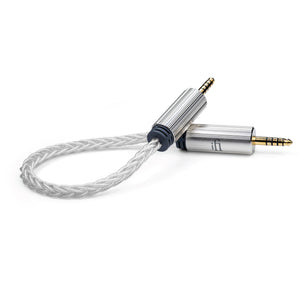

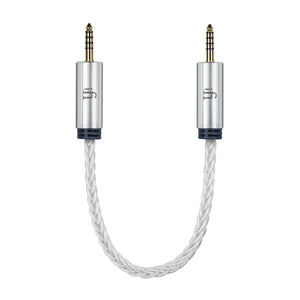

The cable construction is a custom helix design, minimised both in capacitance and inductance, minZ™.
It also has intrinsic shielding provided by minZ™ helix construction. They protect the cable from RFI and EMI noise and provide the cleanest transfer medium possible.
To further insulate the cable, we adopted the RoHS compliant, excellent dielectric property and super-soft (60P) HD polymer with 1500V AC spark resistance.
Specifications:
| Construction | Minimum inductance and capacitance minZ™ (for minimum impedance) helix construction |
| Conductors | 14AWG total thickness |
| Conductor material | Heavy OFHC continuous cast copper silver matrix |
| Insulation | RoHS compliant super-soft (60P) HD polymer |
| Shielding | Intrinsic shielding provided by minZ™ helix construction |
| AC spark insulation | 1500V |

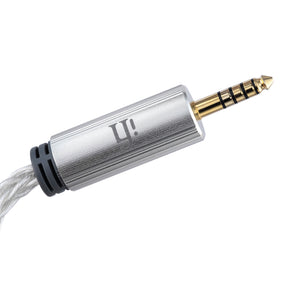

| Connectors | iFi 'FINAL' 4.4 connectors |
| Insulation resistance | 100Mohm |
| Length | 300 mm (11.8") |
| Weight | 25 g (0.9 oz) |
