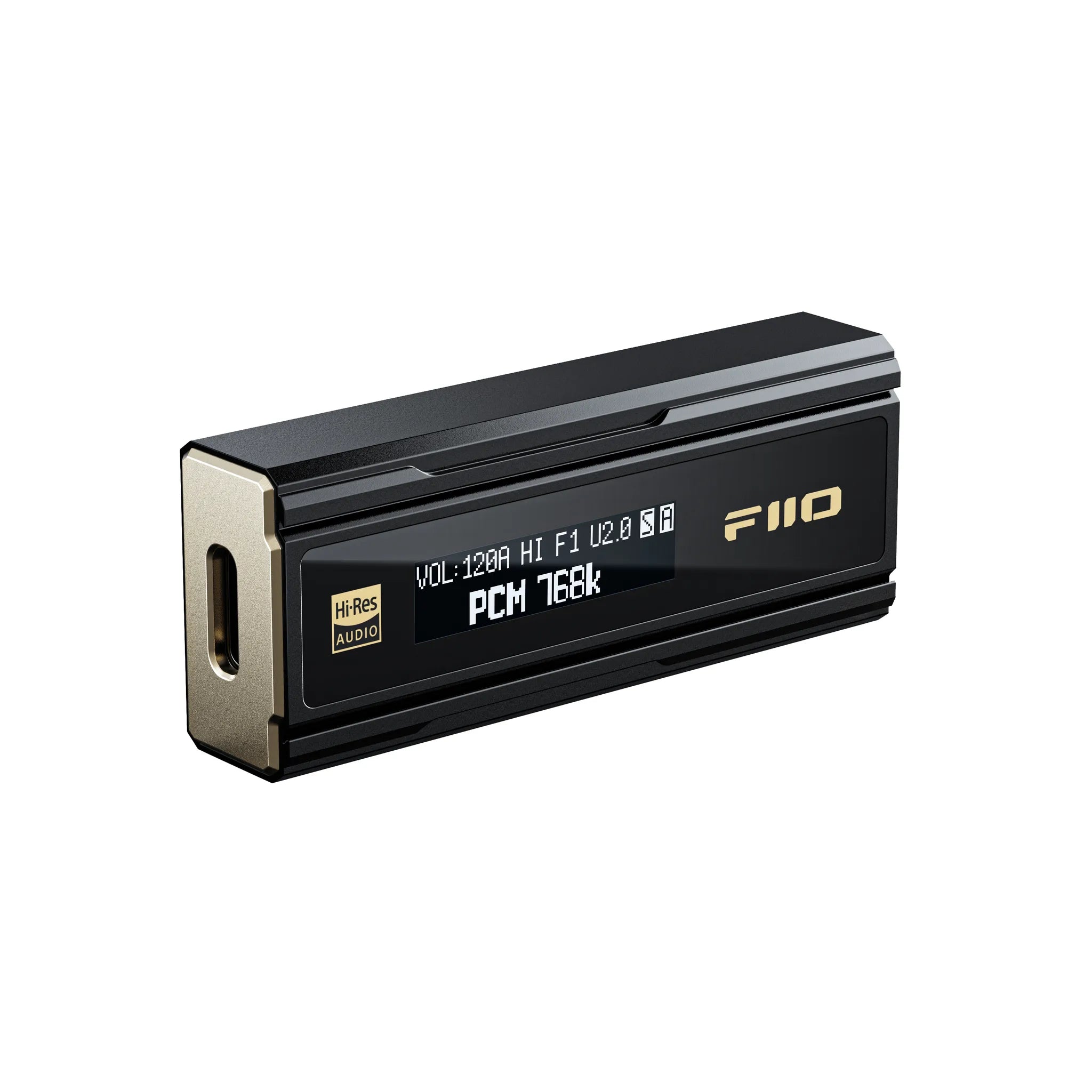

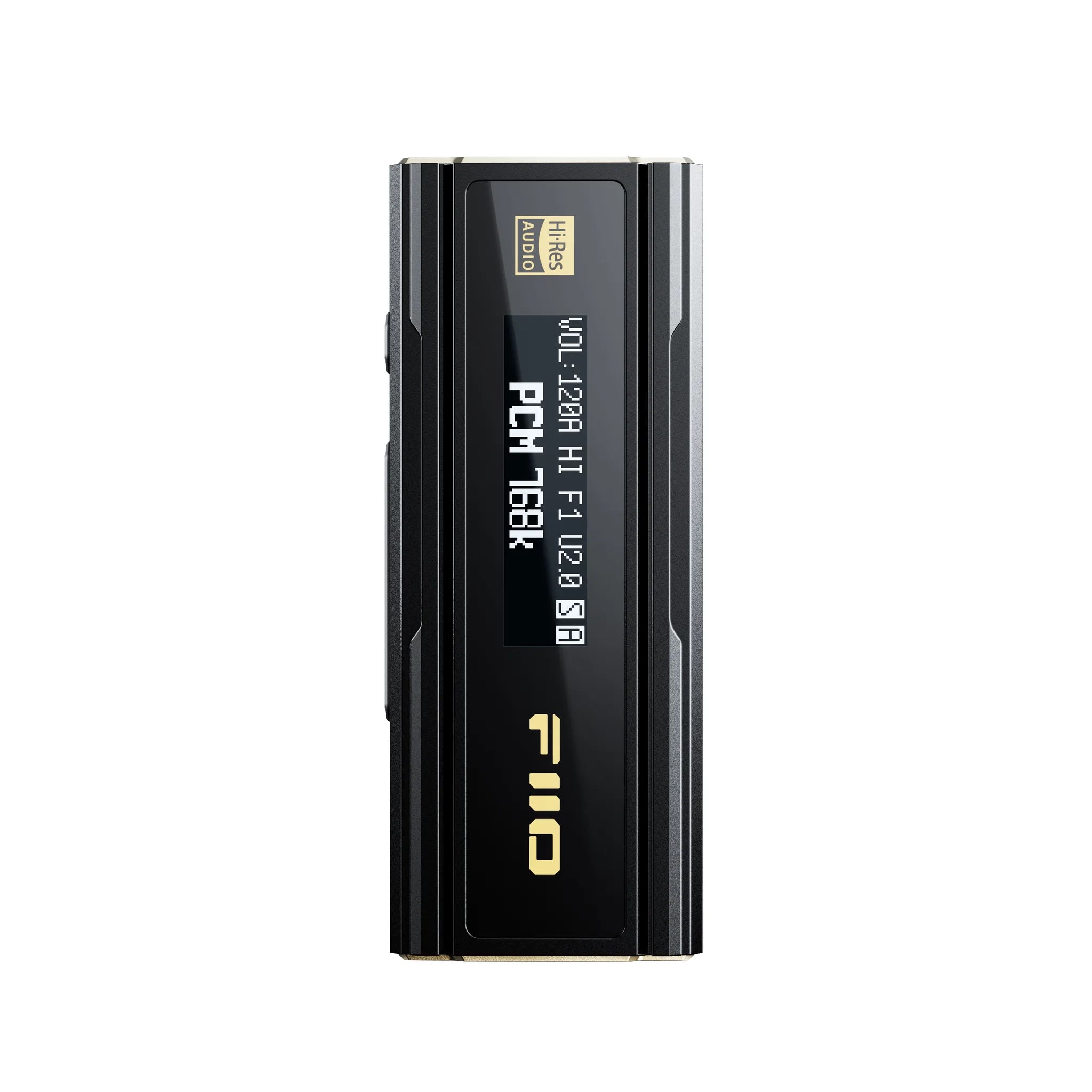

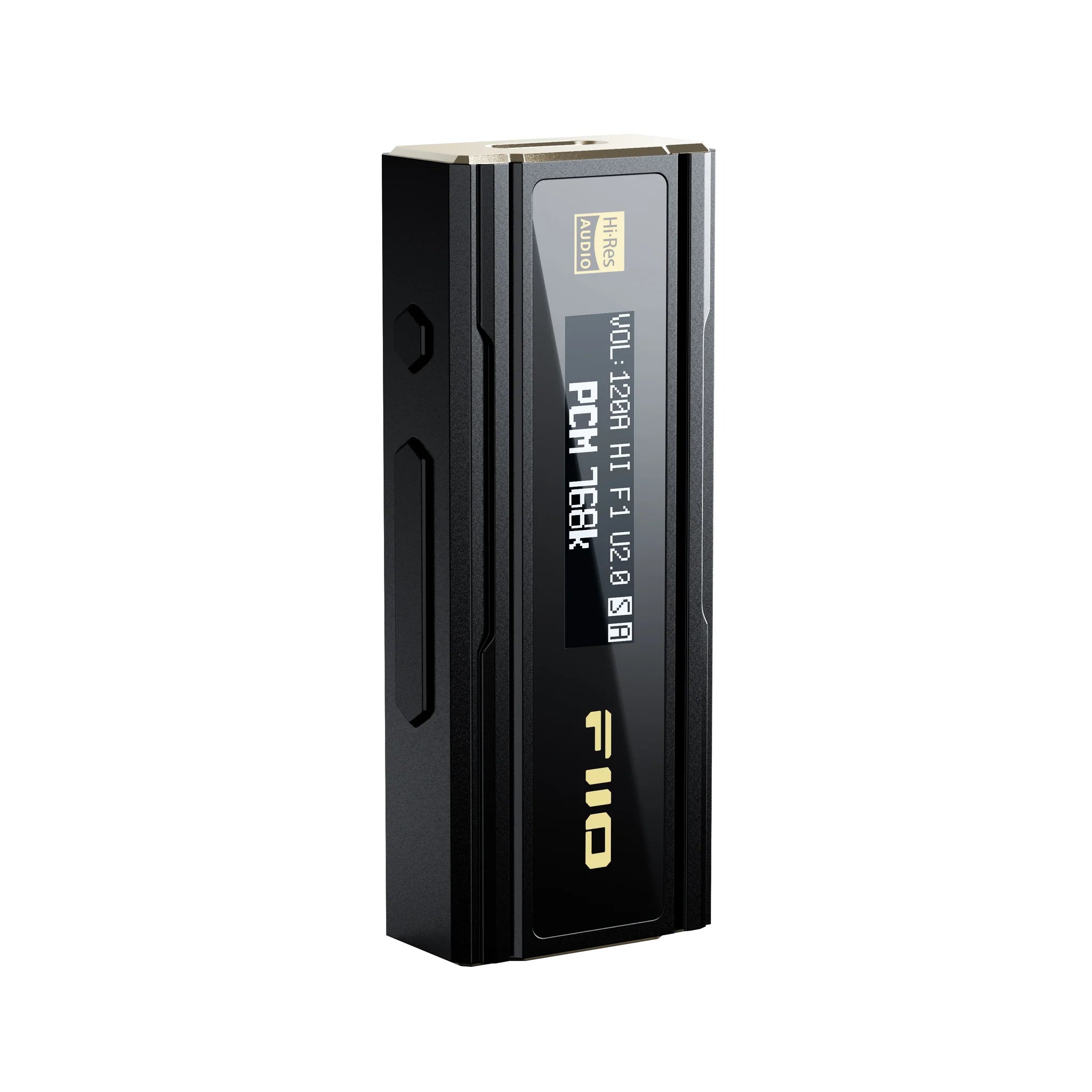

FiiO KA5 Portable DAC and Headphone Amplifier

Description

Features

• OLED display
• Dual CS43198 DACs
• Supports 32bit/768kHz PCM and DSD256
• SPDIF output
• High and low gain, filters and other functions

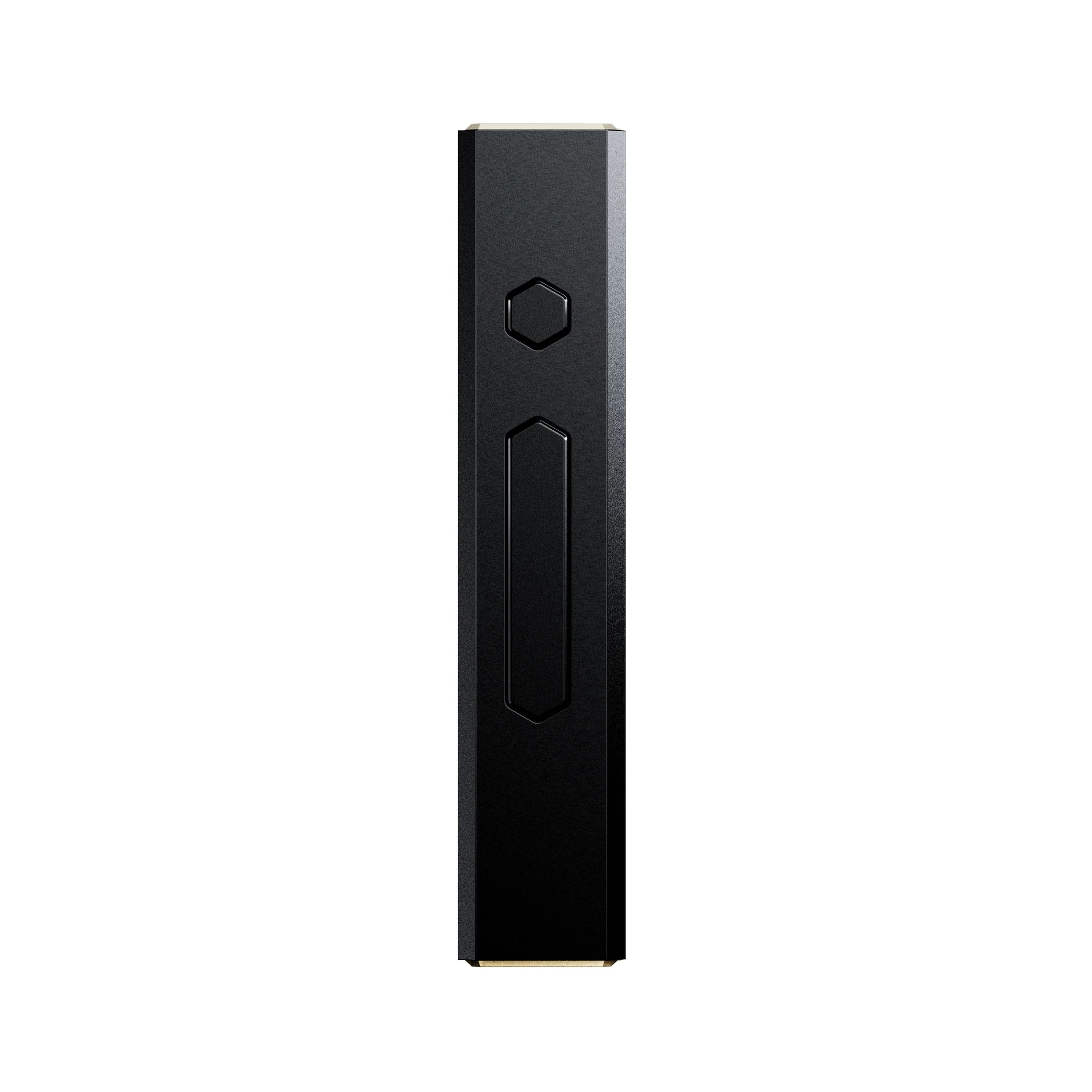

• Multifunction and volume buttons
• App connectivity

Flagship dual DACs

The KA5 features dual Cirrus Logic CS43198 DACs, known for their efficiency and their ability to sound good with a wide variety of music, to give you a serious upgrade to your sound.

High-Res decoding

The KA5 supports up to 32bit/768kHz PCM and DSD256 decoding, allowing you to really dig into and listen to the heart of your music, no matter what device you may have it connected to.

Bold ruggedness & Highly capable

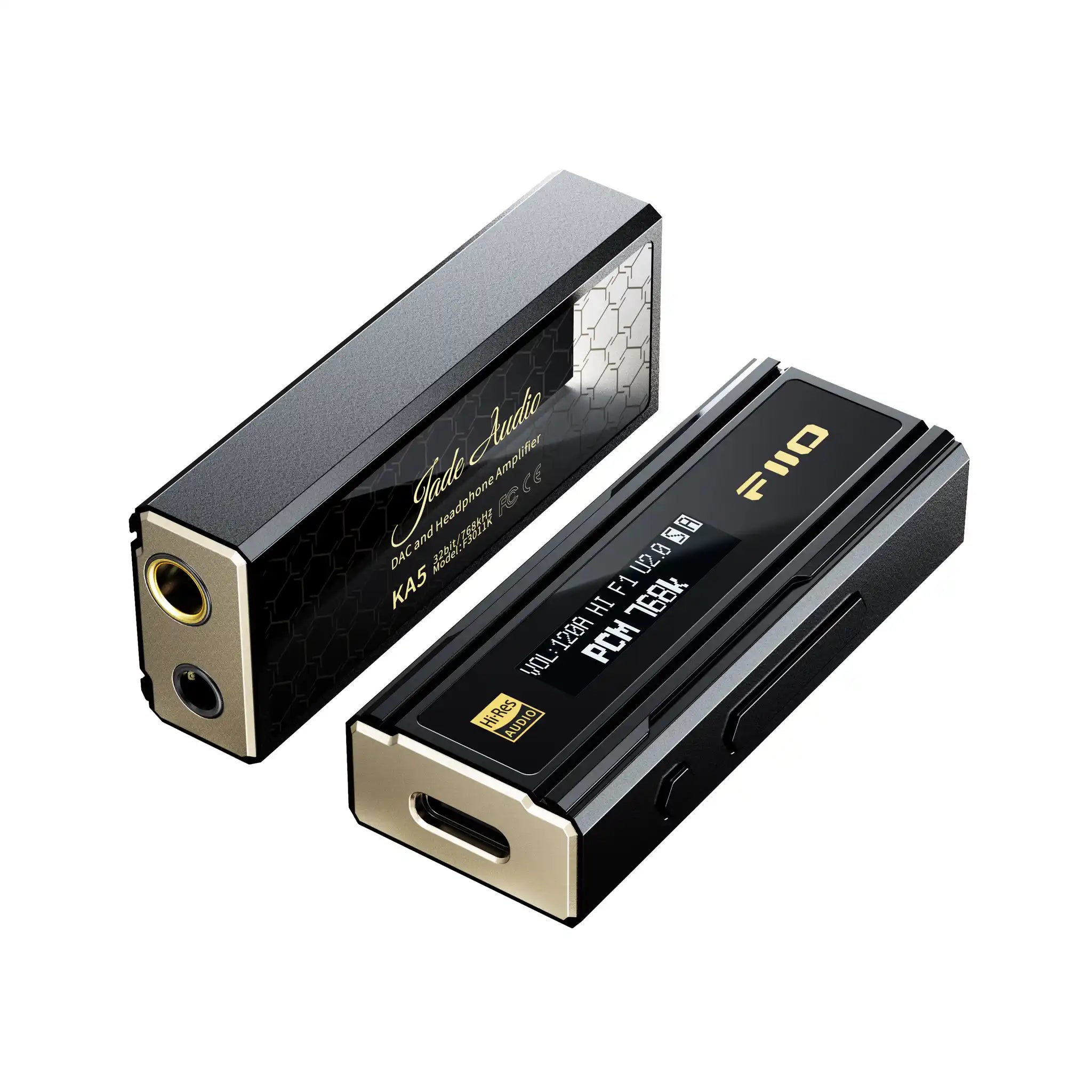

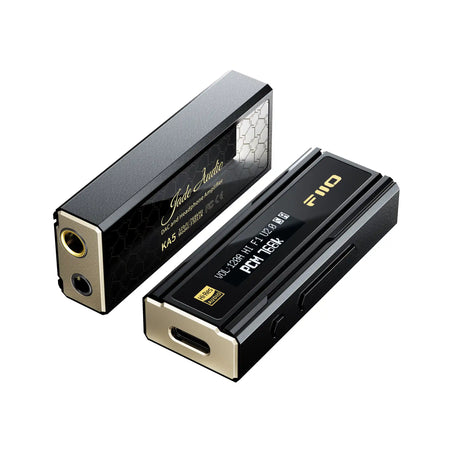

The aggressive lines of the KA5 give it a bold look, while the carefully designed texture makes it a joy to handle. The dual outputs on the right side of the KA5 hint at its powerful capabilities.

All-metal construction

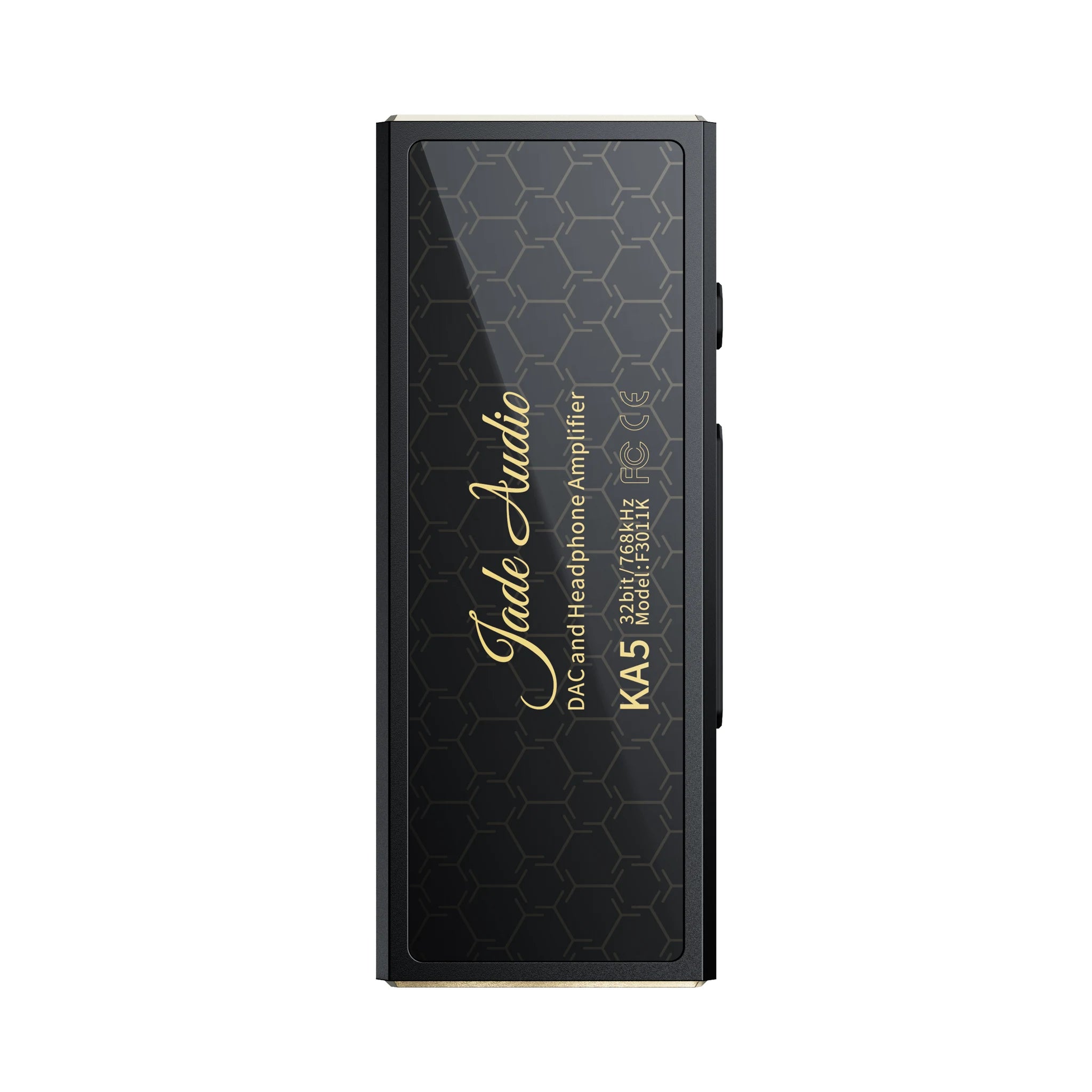

Front and rear tempered glass

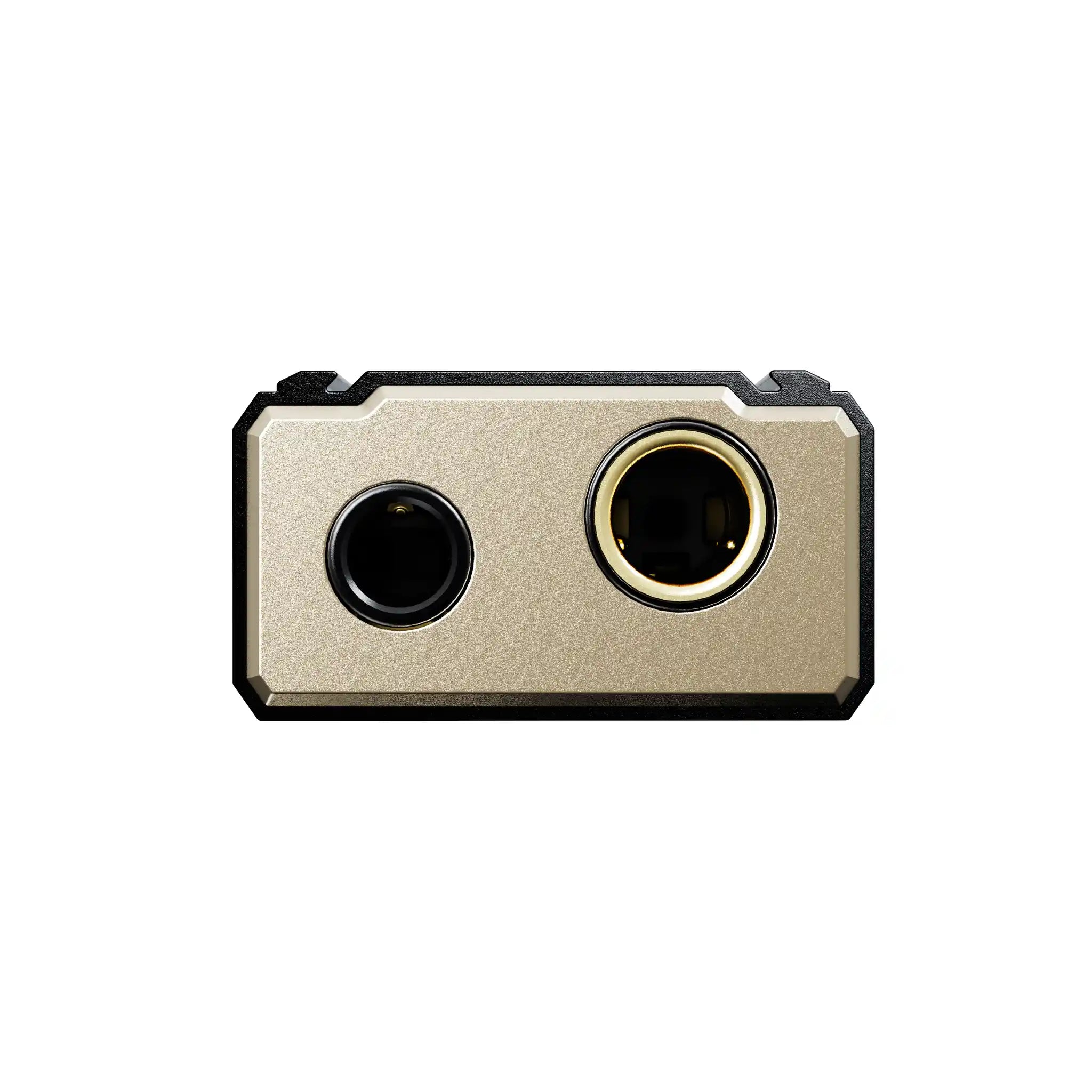

3.5mm single-ended headphone output*

4.4mm balanced headphone output

*3.5mm output supports SPDIF output. After enabling the SPDIF output in the settings menu, you can connect the KA5 to a higher-end external decoder.

Companion App to better serve your needs

Besides the local KA5 operating system, you can use the FiiO Control App to take control over the KA5. Use either method to conveniently dial in the KA5 exactly how you want it.

Specifications

• DAC: CS43198*2
• Supported formats: 768kHz/32bit, DSD256

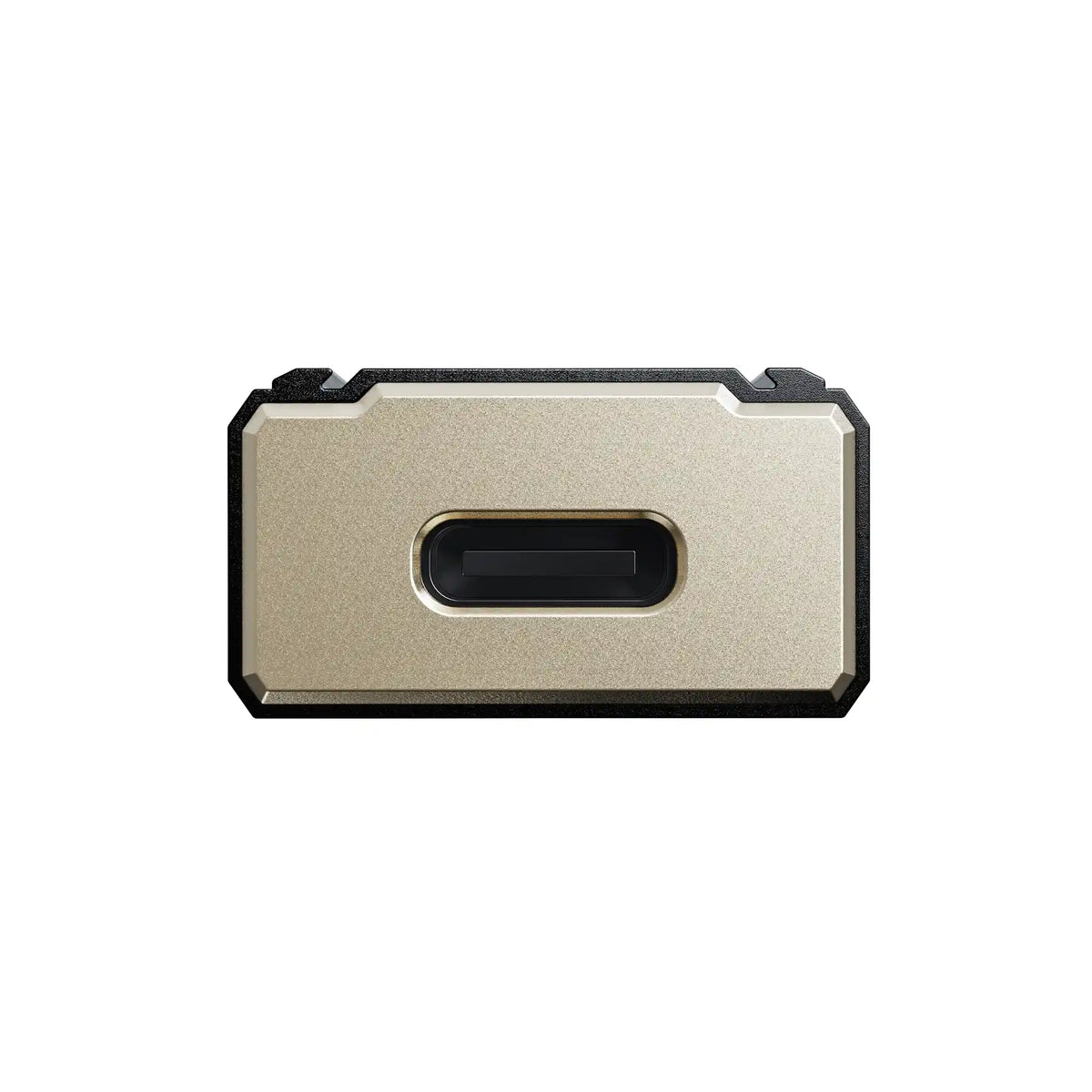

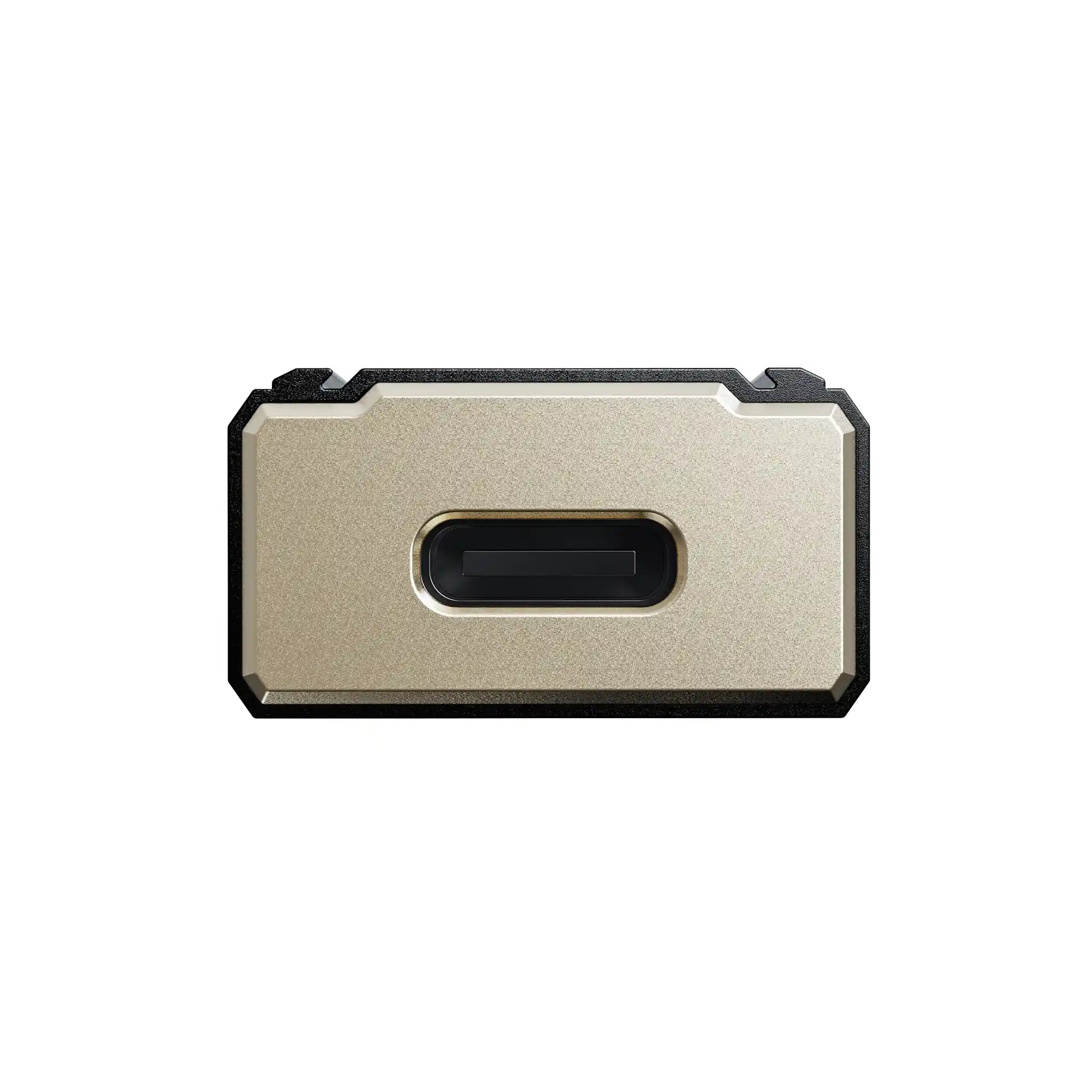

• USB type: Type-C USB2.0
• Dimensions: About 56.3*22*12mm
• Weight: About 19g (excluding cable)
• Display: OLED screen
• Output power 1: L+R≥122mW+122mW (32Ω single-ended/THD+N＜1%)
• Output power 2: L+R≥265mW+265mW (32Ω balanced/THD+N＜1%)
• SNR 1: ≥124dB (32Ω/A-weighted/single-ended)
• SNR 2: ≥128dB (32Ω/A-weighted/balanced)
• Noise floor: PO＜1.6μV (A-weighted); BAL＜1.8μV (A-weighted)
• Output impedance 1: ＜0.3Ω (32Ω load/single-ended)
• Output impedance 2: ＜0.35Ω (32Ω load/balanced)
• THD+N: ＜0.00037% (1kHz/32Ω/single-ended)
• THD+N: ＜0.00037% (1kHz/-6dB@32Ω/balanced)

Included Accessories

• USB-A male to Type-C female adapter*1
• Type-C to Type-C OTG cable*1
• Type-C to Lightning OTG cable*1
• Manual*1
• Warranty card*1
