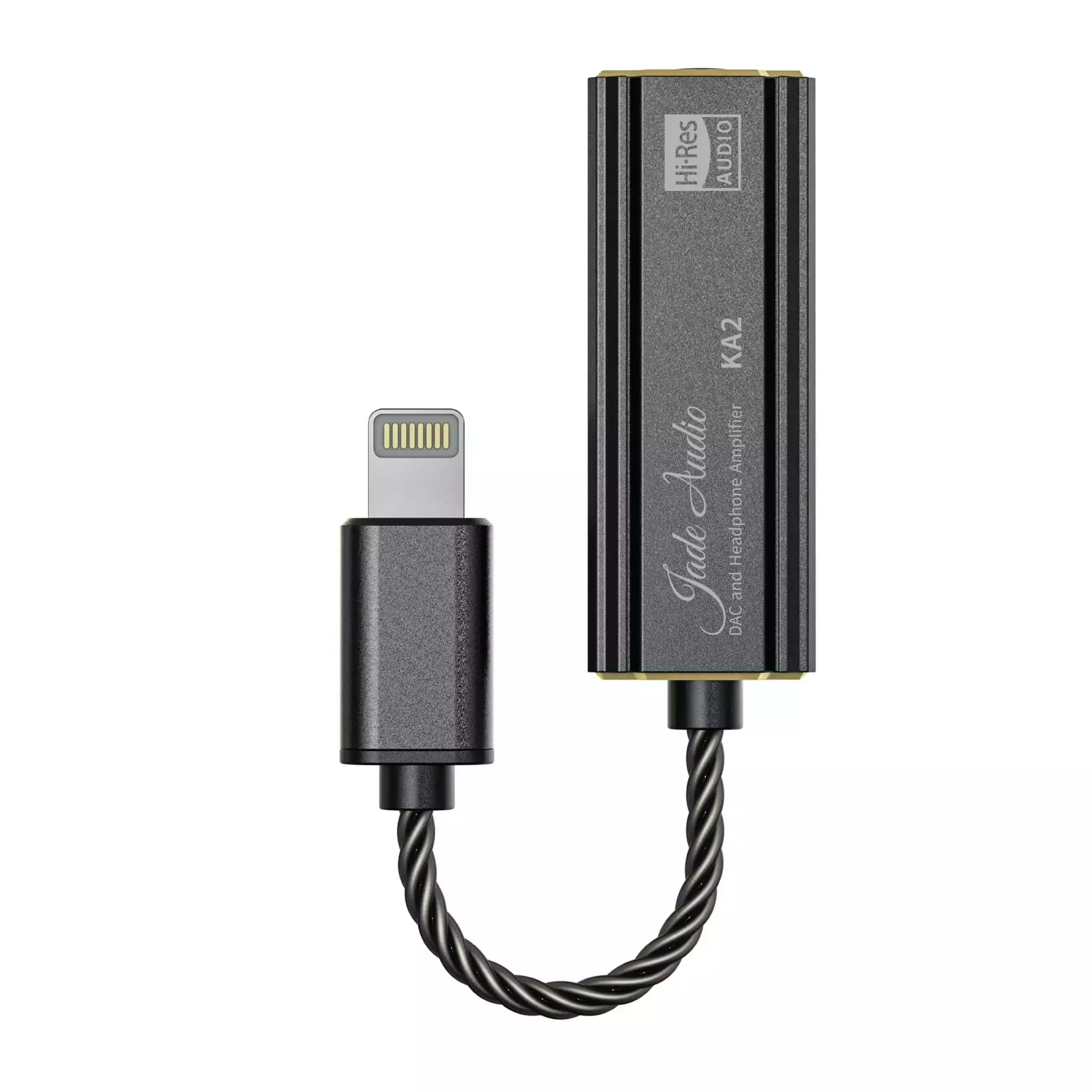

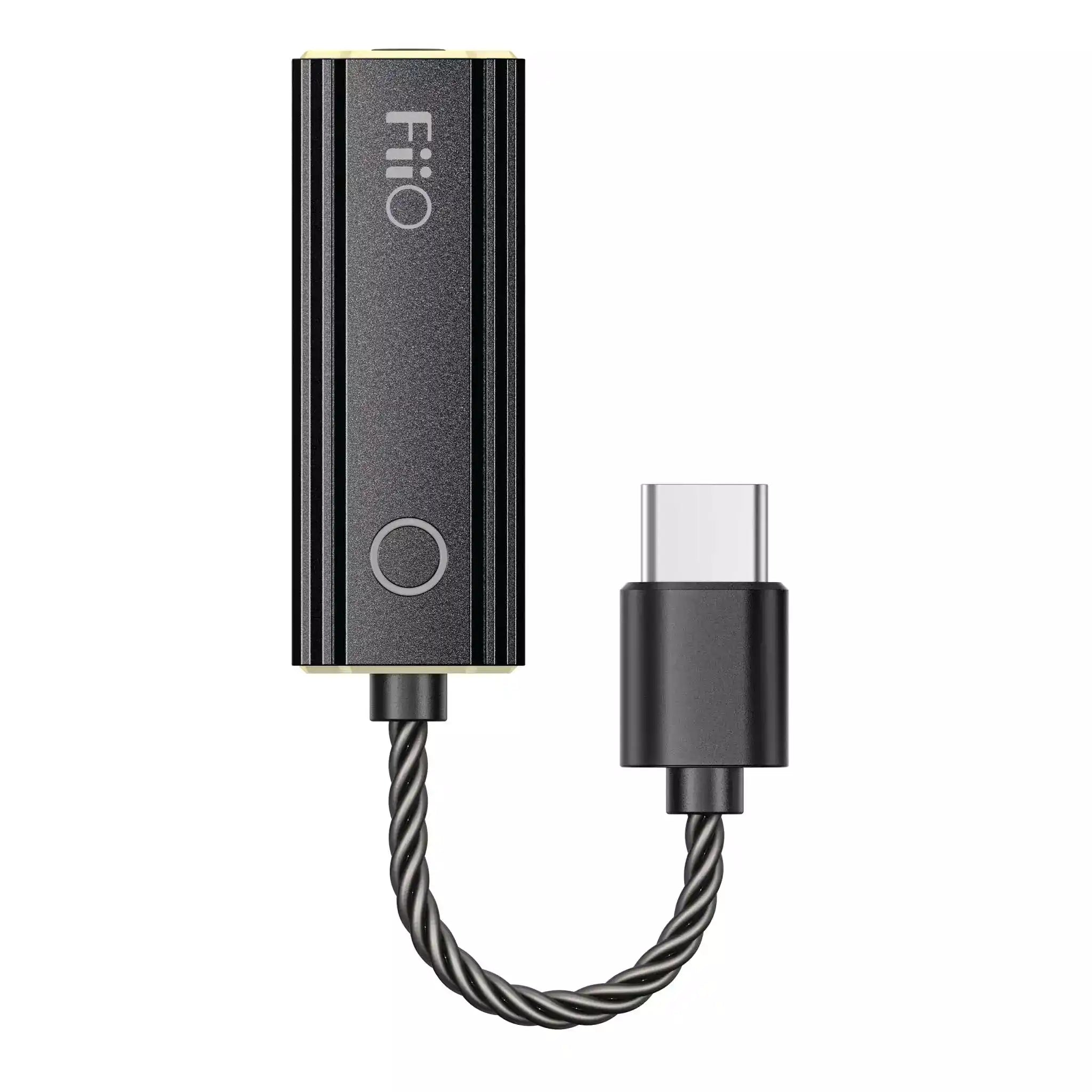

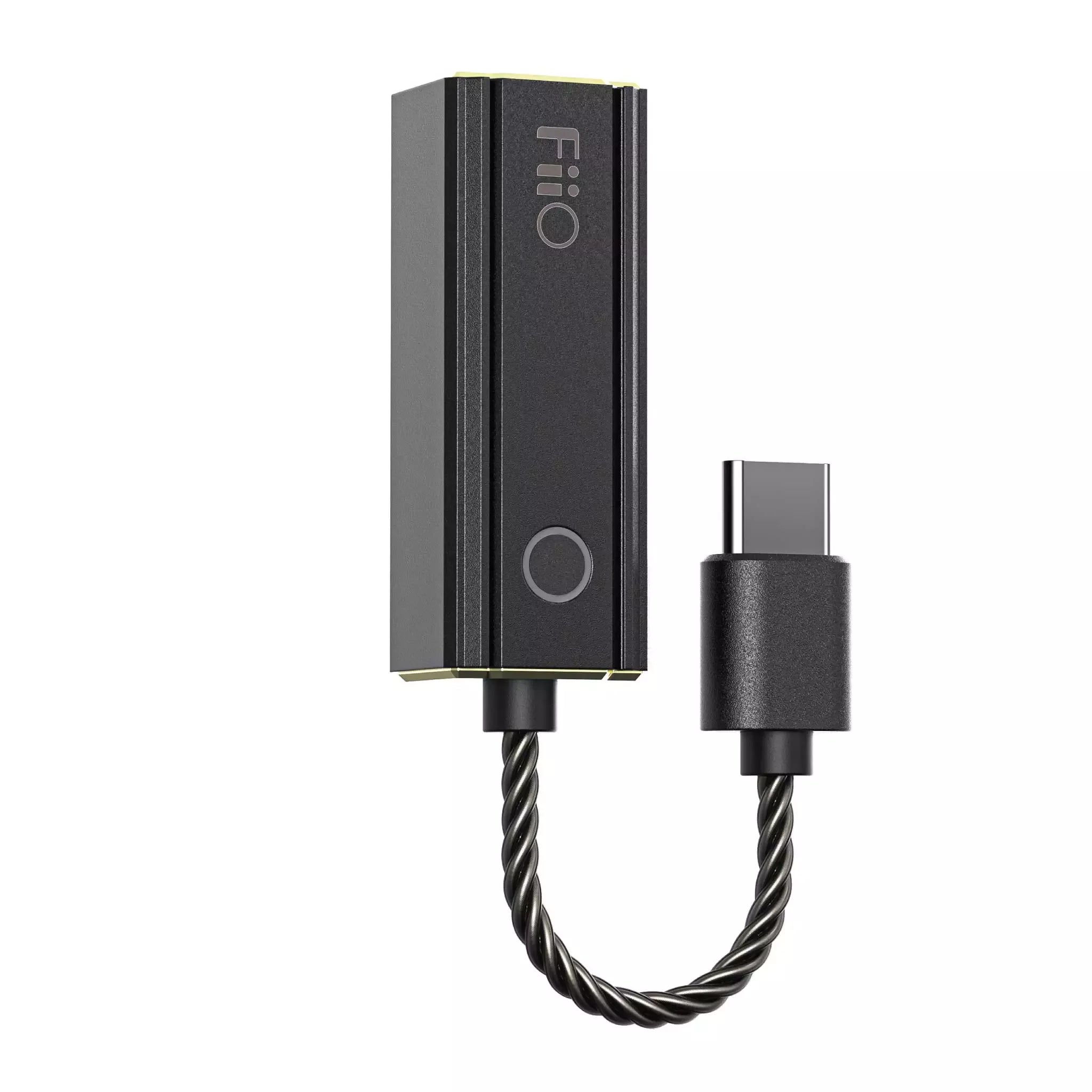

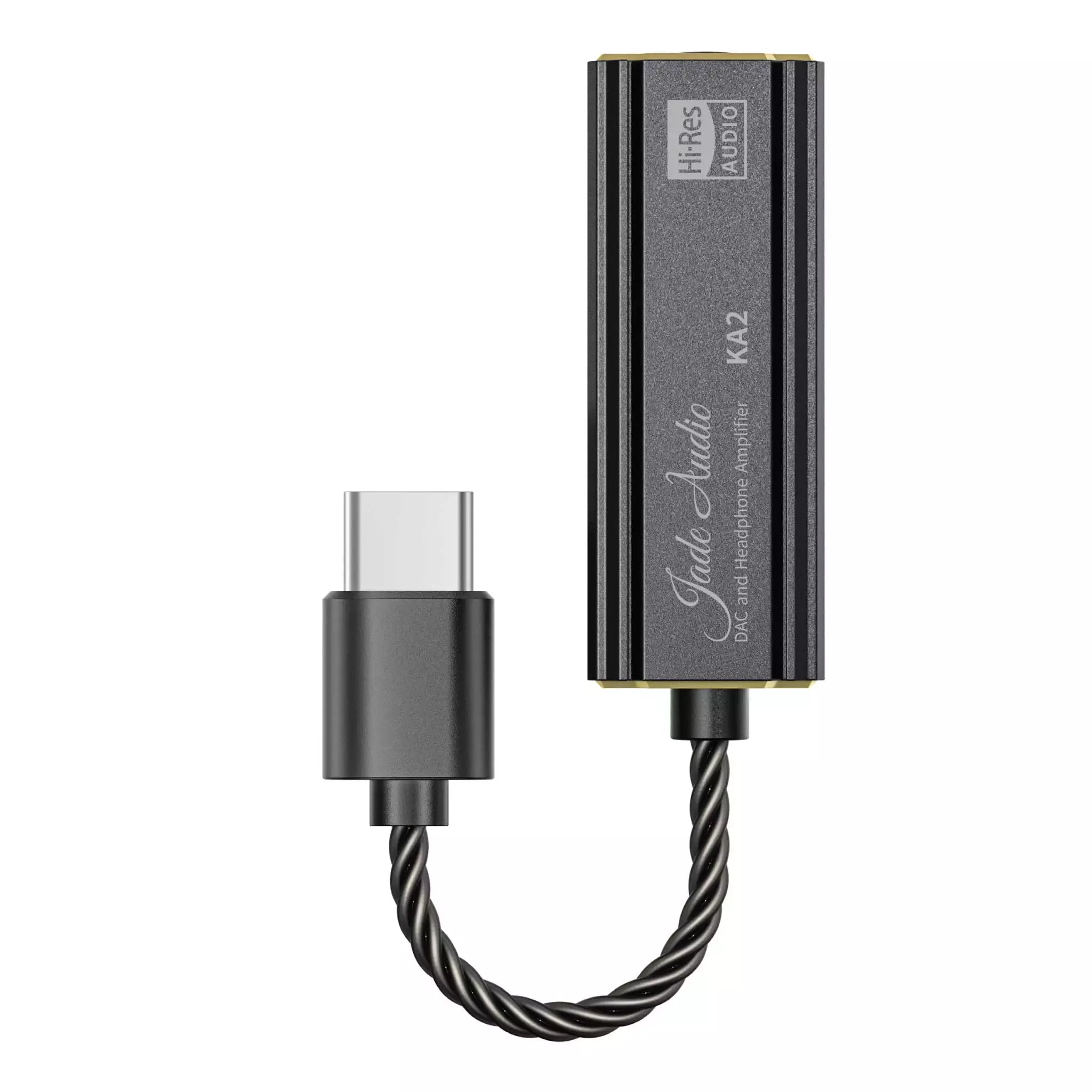

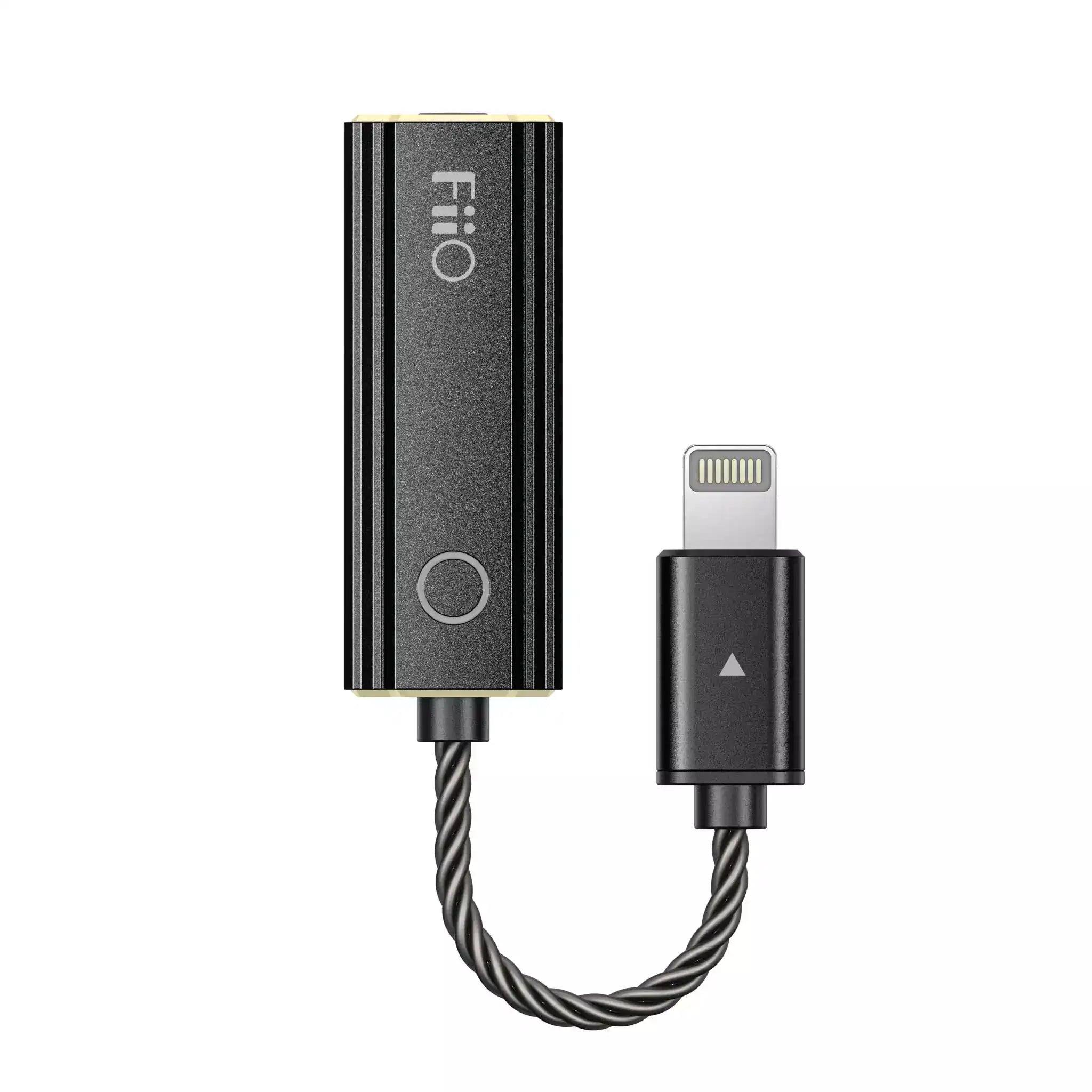

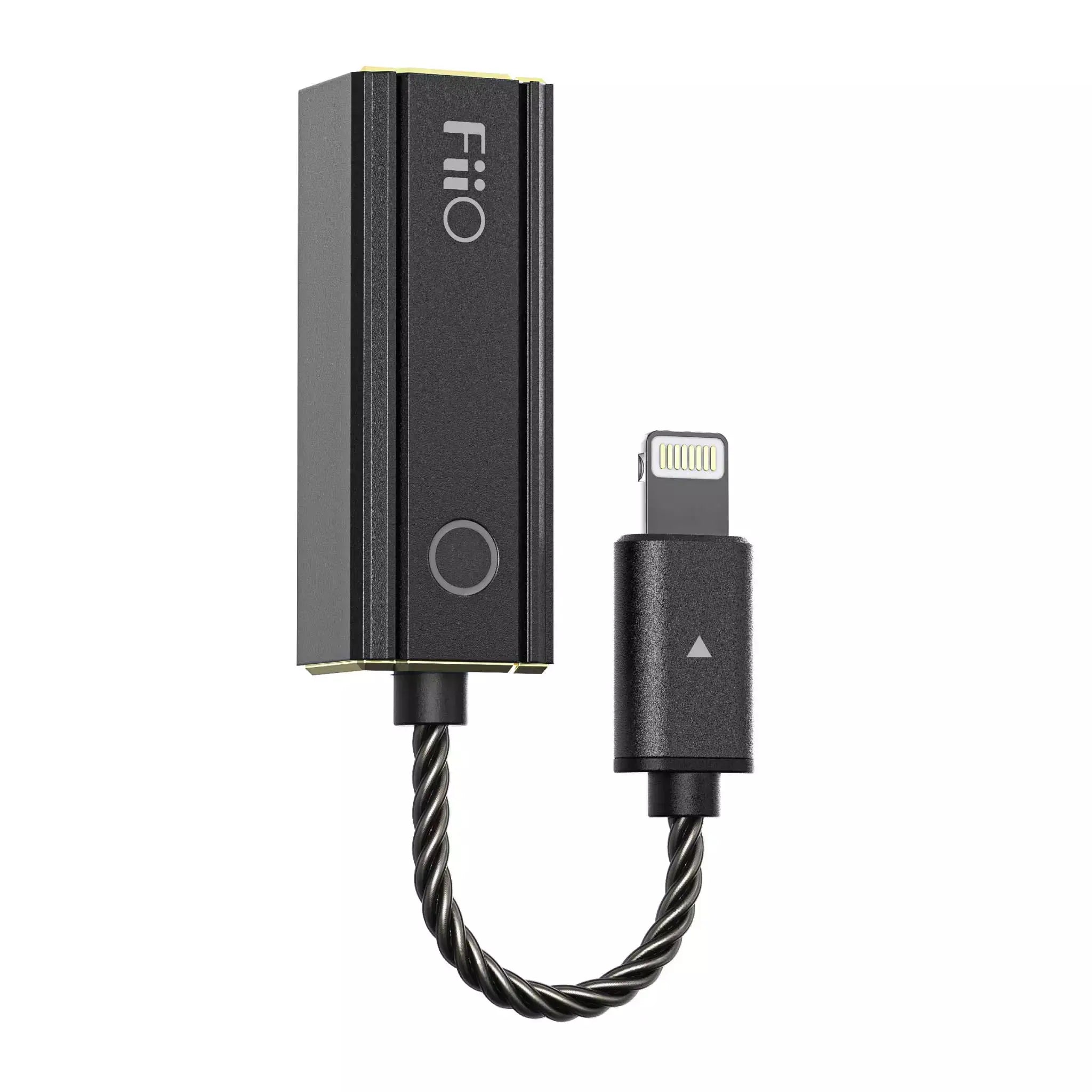

FiiO KA2 Portable DAC+AMP

Connector

Features

  • Dual CS43131 DAC chips.
  • Truly balanced design with 4.4mm balanced output.
  • Supports high-resolution audio signal decoding.
  • Five digital filters to choose from.
  • Ring-Shaped RGB indicator.
  • Supports FiiO control application.
  • Connect with multiple devices including Android, Windows, macOS, etc.
  • Full FiiO Control App integration.
  • Hi-Res audio certified.

Get True Hi-Res Audio Decoding Performance With Premium Dual DAC Architecture:-

FiiO KA2 brings a true high-resolution audio signal decoding performance with a high-performance Dual DAC architecture. FiiO has equipped the KA2 with two CS43131 DAC chips from Cirrus Logics that provides ultimate performance by achieving ultra-low THD+N and high SNR ratings ensuring an impressive performance.



Fully Balanced 4.4mm Headphone Output:-

FiiO KA2 might have a compact form factor, but it packs some serious punch with a fully balanced 4.4mm headphone connection. It provides a whopping 153mW of clean output power with a clean, noise-free background. FiiO KA2 ensures you get a powerful performance with a pitch dark background in the output signal. It can drive most IEMs and some low-power requiring headphones with ease.



Five Different Digital Filters:-

Adjust the output to your liking with five pre-built digital filters on the KA2. You have to use the FiiO Control application on your smartphone to change the digital filters.



Full Integration With FiiO Control Application:-

KA2 gets full integration with the FiiO Control application on your smartphones. You can adjust various settings such as gain level, digital filters, and more via the application. It will also allow the users to upgrade the firmware on their KA2 on the go.



Exquisite Build With Multi-Colour RGB Indicator:-

FiiO KA2 gets an exquisite all-metal housing with a design that is identical to the KA1 and KA3 USB DAC/AMPs. It houses a multi-color RGB indicator ring light on the front that glows into different colors depending on the active file bitrate.

Specifications
Name/Model KA2 color Classic Black
hardware DAC: CS43131*2 FiiO Control support
weight About 12.3g size

fuselage: about 40mm x 15mm x 12mm.

Line length: 70mm

Audio input interface Type-C Cable or Lightning Headset output interface 4.4mm socket
firmware upgrade The system firmware can be upgraded through USB sample rate indication

blue: below 48kHz

yellow: above 48kHz

Green: DSD

channel balance

<0.02dB(32Ω/THD+N<1%)

impedance adaptation

16 to 300 Ω

The highest supported sampling rate 384KHz/32bit Support DSD DSD64/128/256
power supply parameters
power supply battery capacity
Audio parameters
Headset Output Part Performance Parameters (4.4mm)
output power 112mW (16Ω,THD+N<1%) output amplitude 2.2V(32Ω/THD+N<1%)
153mW (32Ω,THD+N<1%) channel separation ≥ 91dB(1Khz,32 Ω load)
54mW (300Ω,THD+N<1%)
27mW(600Ω,THD+N<1%) output impedance <0.5 Ω (load 32 Ω)
frequency response 20Hz to 20KHz, the curve amplitude changes by 0.03dB. signal-to-noise ratio ≥ 125dB(32 Ω A)
20Hz to 50KHz, the curve amplitude changes by 0.05dB. ≥ 131.2dB (600 Ω A)
bottom noise <1.1uV(32 Ω-A) distortion plus bottom noise <0.00036%(32 Ω)
<0.00023%(600 Ω)
<1.05uV(600Ω-A) <0.00024%(32 Ω A)
<0.00014%(600 Ω A)
