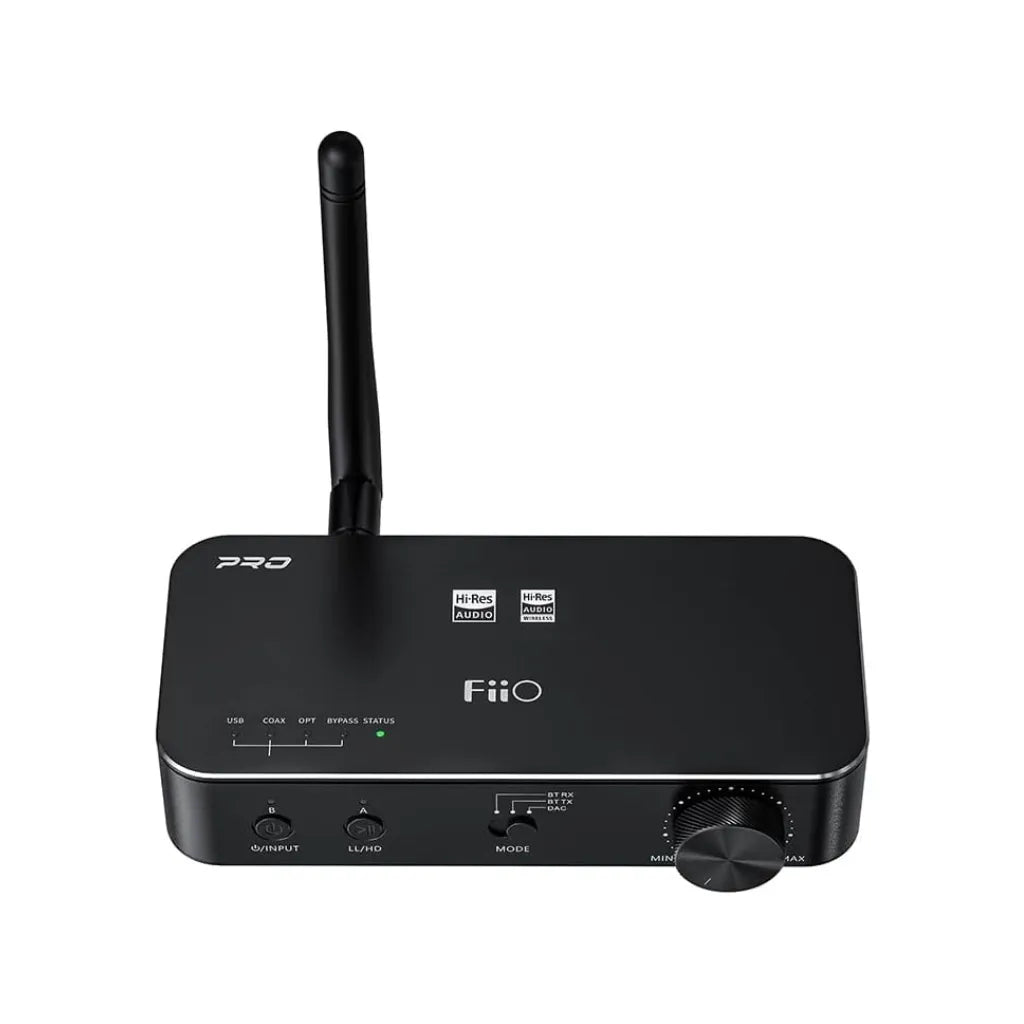

Fiio BTA30 Pro Bluetooth Wireless Transceiver (Transmitter and Receiver)
In Stock 🚚 Order by {time} to have it shipped today
🚚 Order by {time} to have it dispatched on {day}.
🔒Secure your unit with 50% advance. See more
Pre-Order now and have it delivered within {days} days. {contact_link} if you have any questions.
Express Pre-Order — delivered within {days} days. {contact_link} if you have any questions.
Pre-Order now and have it delivered within {days} days. {contact_link} if you have any questions.
Do you have questions about this product?
Description
Not only does the BTA30Pro bluetooth transceiver have Dual Hi-Res Certifications, but it also can come true input and output at the same time through a new Bypass mode.
The BTA30Pro transceiver is even more versatile with the new Bypass mode, allowing you to connect to several different devices at the same time!
When in Bluetooth Transmitting Mode, Bypass mode allows for optical input to optical/Bluetooth output at the same time.
In DAC mode, Bypass mode makes possible optical input to optical output.
ES9038Q2M DAC chip
CSR8675 Bluetooth chip
XMOS decoding chip
Upsampling audio DSP chip
Three modes enough for lots of playings what your need
Turn on Bluetooth Receiving Mode (RX)
1. In Bluetooth Receiving Mode, connect your phone/music player to the BTA30Pro receiver via Bluetooth function, and the BTA30Pro connect to your non-Bluetooth music system with cable (like Optical/ Coaxial/Line-out) – giving your old setup a new life by being able to play wireless music.
PS: Supports LDAC/aptX/aptX HD/AAC high-definition Bluetooth formats.
Turn on Bluetooth Transmitting Mode (TX)
Connect the digital output of the TV/CD player/computer to the BTA30Pro bluetooth amplifier with cable (like USB/Optical/Coaxial), and use your device via bluetooth function (like your speaker/headphone) to connect with BTA30Pro receiver, which can transmit to your Bluetooth headphones (including the LDAC format with any input) for a truly cinematic listening experience.
PS: LDAC/aptX HD/aptX LL/SBC formats are supported; LDAC is supported through optical/coaxial/USB inputs.
How to enable aptX LL First function in TX mode?
In TX mode, double press button LL/HD after the device is connected, so to enable aptX LL First. Under this state, other Bluetooth codecs will be disabled except for aptX LL and SBC.
Double press button LL/HD again to disable aptX LL First. Light STATUS will stay constantly on following the corresponding Bluetooth codec after the device is reconnected. At this time, all supported codecs will be enabled. Short press button LL/HD to successively switch the codec.
Turn on Digital Decoding Mode
1. When connected to a computer or other devices with the appropriate cable, the BTA30 Pro amplifier can be used as a DAC to convert digital audio to high-quality analog signal for a serious upgrade to your sound.
PS:
(1)Coaxial input supports up to 384kHz/24bit and native DoP128; optical input supports up to 96kHz/24 bit; USB input supports up to 384kHz/32bit and DoP256.
(2)Supports UAC2.0 and driverless UAC1.0 (set on the app); RCA line output is possible from any DAC mode input.
(3)Coaxial input is not supported when using coaxial output.
(4)Bypass mode can only be used for optical input in transmitting and DAC modes.
2. Want to directly connect your DAC/audio decoders to any smartphone?
connect the optical out of the BTA30 Pro amplifier to the digital input of your external DAC to allow it to decode directly from your phone.

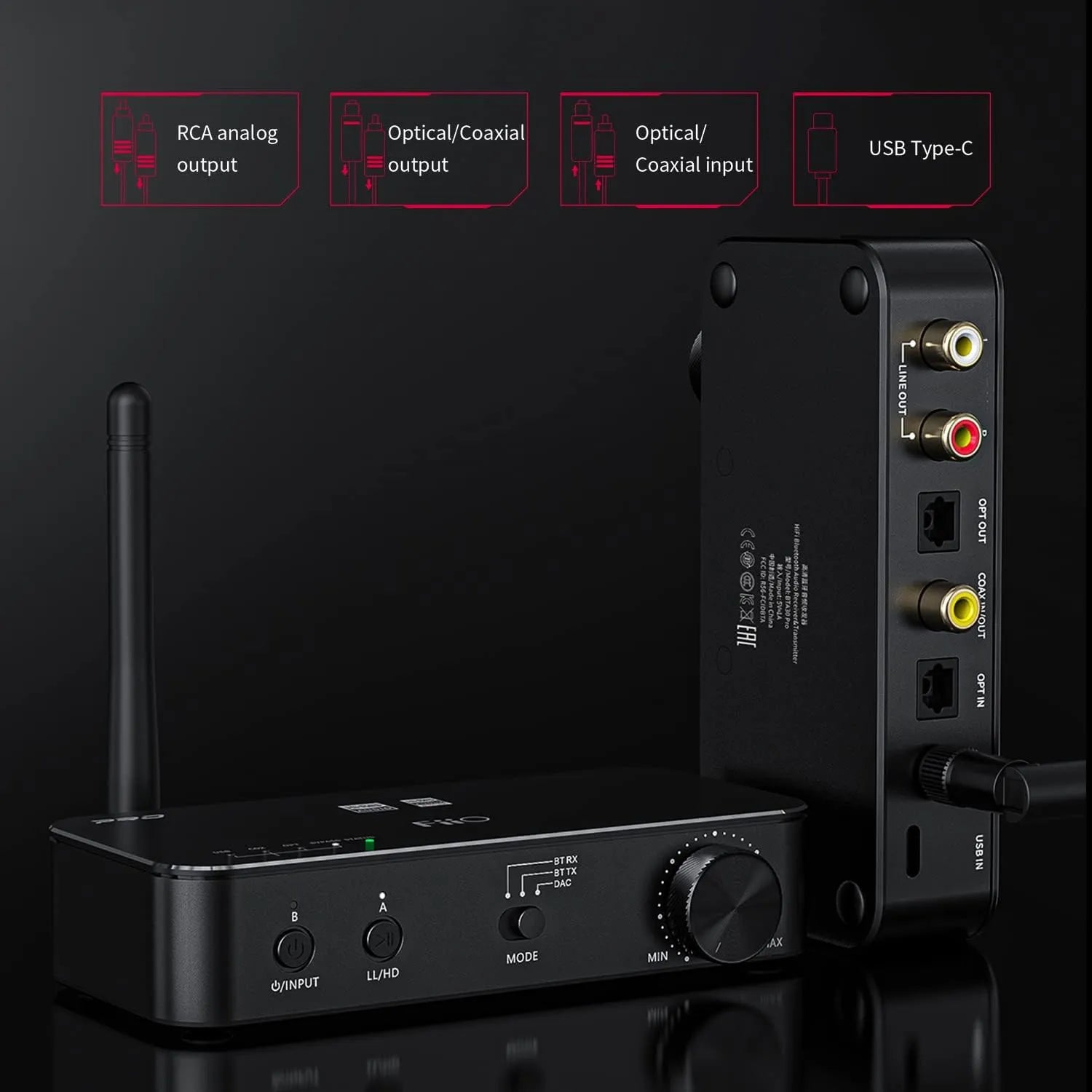

3. All connections in one:
RCA analog output, Optical/Coaxial output, Optical/Coaxial input, USB Type-C
Dual connections
RGB light indicator
Convenient intelligent interaction
Accessories included
FAQ for BTA30Pro bluetooth amplifier.
Q1. How to reset the device if problems happen? For example, it fails to power on or gets no sounds when playing music.
(1) [Fails to power on]: It does not support to be reset. If malfunction happens, unplug and plug the USB cable to restore to normal performance.
(2)[Gets no sounds out]: Please check it out on our official website by google 'fiio'.
ps:
Gudie guide, DAC driver download,firmware download link for BTA30 Pro, if you need them, also please check it out on our official website.
Q2. How to connect the BTA30Pro to two Bluetooth devices simultaneously?
(1)RX (Bluetooth receiving):
first connect the Device 1, and hold PAIR1 for about 3s to enter the pairing mode again. On Device 2, search for "BTA30 Pro" and complete the connection. Back to Device 1, select "FiiO BTA30 Pro" in the Bluetooth device list and complete the reconnection. You could also restart the BTA30 Pro after a successful pairing with Device 2.
(2)TX (Bluetooth transmitting):
connect the BTA30 Pro to the Bluetooth receiving device, Device 1 (PAIR1 is prior as default), and hold button C for about 3s to enter the pairing state again. The BTA30 Pro will automatically search for Device 2 and start to pair with it.
PS:When working in LDAC and aptX LL codec in TX mode, the BTA30 Pro cannot be connected to two Bluetooth devices simultaneously.
- [Transmit and receive SBC/aptX/aptX HD/LDAC]: LDAC codec that supports 96kHz/24bit is the highest standard for Bluetooth devices. The upgraded BTA30Pro amplifier is basically one of the rare Bluetooth devices with support for both LDAC transmission and reception. When under USB/SPDIF input, it also supports LDAC transmission, allowing for Hi-Res lossless transmission anywhere and anyhow.
- [Supports up to 384k/DSD256]:The XMOS receiver chip easily handles a wide variety of audio formats up to 384kHz/32bit PCM and native DSD256, allowing you to enjoy it worry-free.
- [High-performance ES9038Q2M DAC]: Responsible for digital-to-analog conversion is the excellent ES9038Q2M, letting you easily hear every small detail in your music and providing a wider dynamic range than with portable audio products. Film capacitors work with the ES9038Q2M for clearer and more transparent treble.
- [3 operating modes for you]: (1)Bluetooth receiving mode can free your old setup; (2)Bluetooth transmitting mode can create your own private theater; (3)Digital decoding mode for a serious upgrade to the sound.
- [Qualcomm CSR8675 Bluetooth chip]: The BTA30Pro portable headphone amps utilizes the efficient Qualcomm CSR8675 Bluetooth chip for enhanced audio applications – supporting 32bit audio processing and equipped with a 120MHz DSP, it effectively integrates various Bluetooth decoding functions into one package.
Specifications
| Name/Model | BTA30 Pro | Hardware solution | DAC: ES9038Q2M，USB: XMOS XU208 , BT： CSR8675，DSP：CT7302EL |
| Color | Black | Volume Control | Potentiometer(ADC Sampling) |
| Weight | ≈145g | FiiO Control | Yes |
| Bluetooth connection indicator | Yes | Sampling rate indicator | Yes |
| Firmware upgrade | System firmware and Bluetooth version can be upgraded through USB | Bluetooth receive （5.0） | SBC/AAC/aptX/aptX HD/LDAC |
| Bluetooth transmit | SBC/aptX/aptX HD/aptX LL/LDAC | Input source indicator | USB IN/COAX IN/OPT IN/BYPASS separate indicator |
| Maximum supported sampling rate | 384kHz-32bit/DoP256（USB DAC） 384kHz-24bit/DoP128（Coaxial） 96KHz-24bit（Optical） |
Bluetooth indicator(TX&RX) |
SBC: Blue/ AAC: Teal/ AptX HD: Yellow/ AptX: Purple/ AptX LL: Green/ LDAC: White |
| Buttons and ports | |||
| Buttons | Physical key + toggle switch | USB | Two-way TYPE C USB2.0 (Charging/Data transmisson) |
| Coaxial input | RCA (input/output shared) | Coaxial output | RCA (input/output shared) |
| Optical input | Optical fiber socket | Optical output | Optical fiber socket |
| Analog output(LO) | RCA | Headphone output | / |
| Power supply specifications | |||
| USB power | DC5V 2A（recommended） | Battery capacity | / |
| Audio parameters | |||
| USB DAC decoding- LO parameters | |||
| THD+N | ＜0.001%(1kHz/10kΩ) | SNR | ≥118dB (A计权) |
| Crosstalk | ≥112dB (1kHz/10kΩ) | Floor noise | ＜4μV（A计权） |
| Frequency response | 5Hz~90kHz (-3dB) | LO level | 3Vrms (1kHz/10kΩ) |
| RX mode(LDAC)- LO parameters | |||
| THD+N | ＜0.003%(1kHz/10kΩ) | SNR | ≥116dB (A计权) |
| Crosstalk | ≥110dB (1kHz/10kΩ) | Floor noise | ＜5μV（A计权） |
| Frequency response | LO level | 2.7Vrms (1kHz/10kΩ) | |
| RX mode(aptX)- LO parameters | |||
| THD+N | ＜0.046%(1kHz/10kΩ) | SNR | ≥116dB (A计权) |
| Crosstalk | ≥110dB (1kHz/10kΩ) | Floor noise | ＜5μV（A计权） |
| Frequency response | LO level | 3Vrms (1kHz/10kΩ) | |
