Douk Audio T6PRO Class D Tube Amplifier

Features

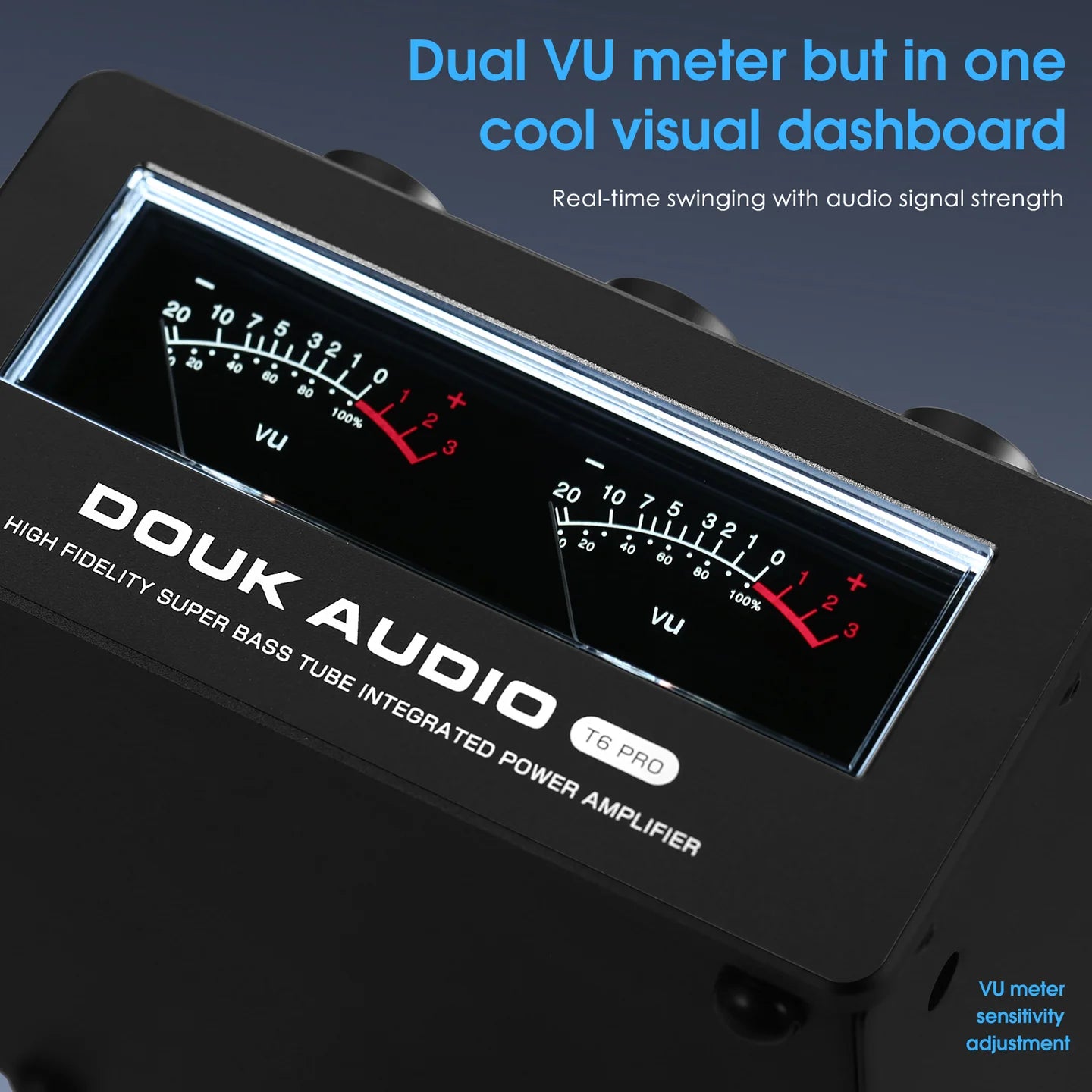

• Dual VU Meter but in OneVisual Dashboard
• JAN5725 Tubes+TPA3255 Class D Amp Chip
• Versatile Inputs and Preamp Output
• QCC5125 Bluetooth Chip+Germany WIMA+Japanese ELNA+Rubycon Capacitors
• Refined Craftsmanship and Attractive Appearance

Specifications

• Audio input: Bluetooth 5.1/2 groups of stereo RCA / 3.5mm AUX
• Audio output: banana speaker jacks / 3.5mm AUX
• Bluetooth version: QCC5125 (support APTX/APTX-HD/LDAC)
• Sampling rated BT supported: 24bit/96Khz
• Max output power: 300Wx2 (@4Ω)
• Matched speaker impedance: 4-8Ω
• Tone control range / center frequency:
  Treble: ±8dB / 10KHz
  Bass: ±6dB / 200Hz
  Super bass: ±10dB / 20Hz
• Frequency response: 20Hz-20KHz (±1dB)
• Input sensitivity: 0.775V/0dBFS
• Max output level of AUX: 3V
• THD: 0.01%
• SNR: ≥102dB
• Working voltage: DC 24-48V
• Dimensions(W*D*H): 140*165*69mm / 5.51*6.50*2.72in
• Package dimensions(W*D*H): 250*228*110mm / 9.84*8.98* 4.33in
• Net weight: 1.4kg / 3.09lb
• Package weight (with 32V Power Adapter): 2.1kg / 4.63lb
• Package weight (with 48V Power Adapter): 2.4kg / 5.29lb

Package Includes

• T6PRO Amplifier ×1
• JAN5725 Tube ×2
• DC 32V Power Adapter (Optional) ×1
• DC 48V Power Adapte(Optional) ×1
• Bluetooth Antenna ×1
• User Manual ×1

DOUK AUDIO’s goal is to offer you a level of support that matches the attention to detail and quality of their products. In the unlikely event that a DOUK AUDIO product develops a manufacturing defect within the warranty period, please contact Gears For Ears. Please make sure that the issue with your product is eligible for a warranty claim.

Please be advised that Gears For Ears is not authorized to handle warranty claims for purchases made outside of Bangladesh.

DOUK AUDIO's Warranty Period is 1 Year from the Date of Invoice for all products.

Eligibility for warranty

• Manufacturing Defects only


Non-eligible for warranty

• Physical Damages
• Damaged external power supply due to a faulty connection
• Wear and tear from usage
• Cosmetic flaws
• Wire/cord tearing
• Damages to accessories
• Any other accidental damage
• Natural disasters or animal-related damages
