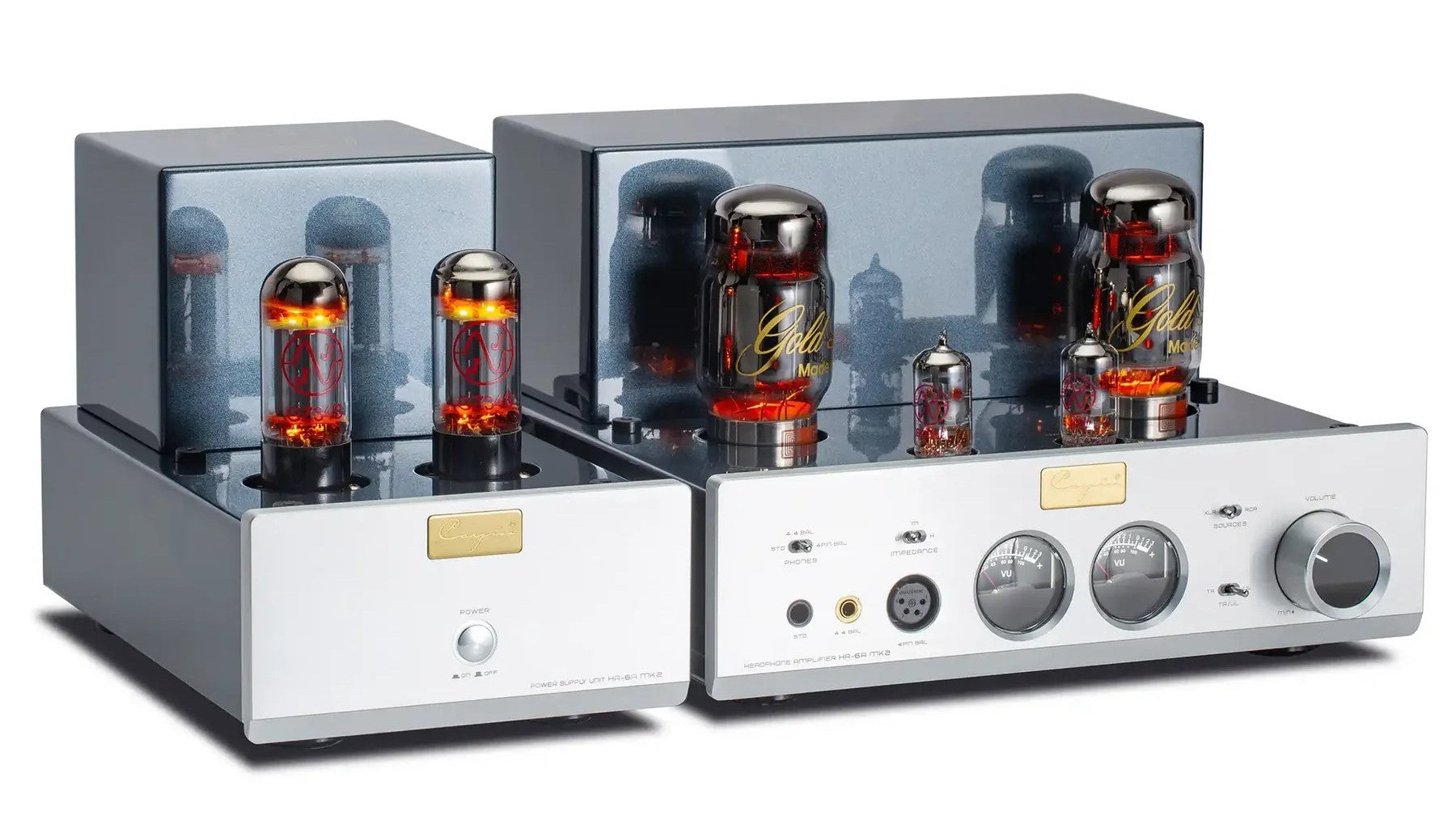

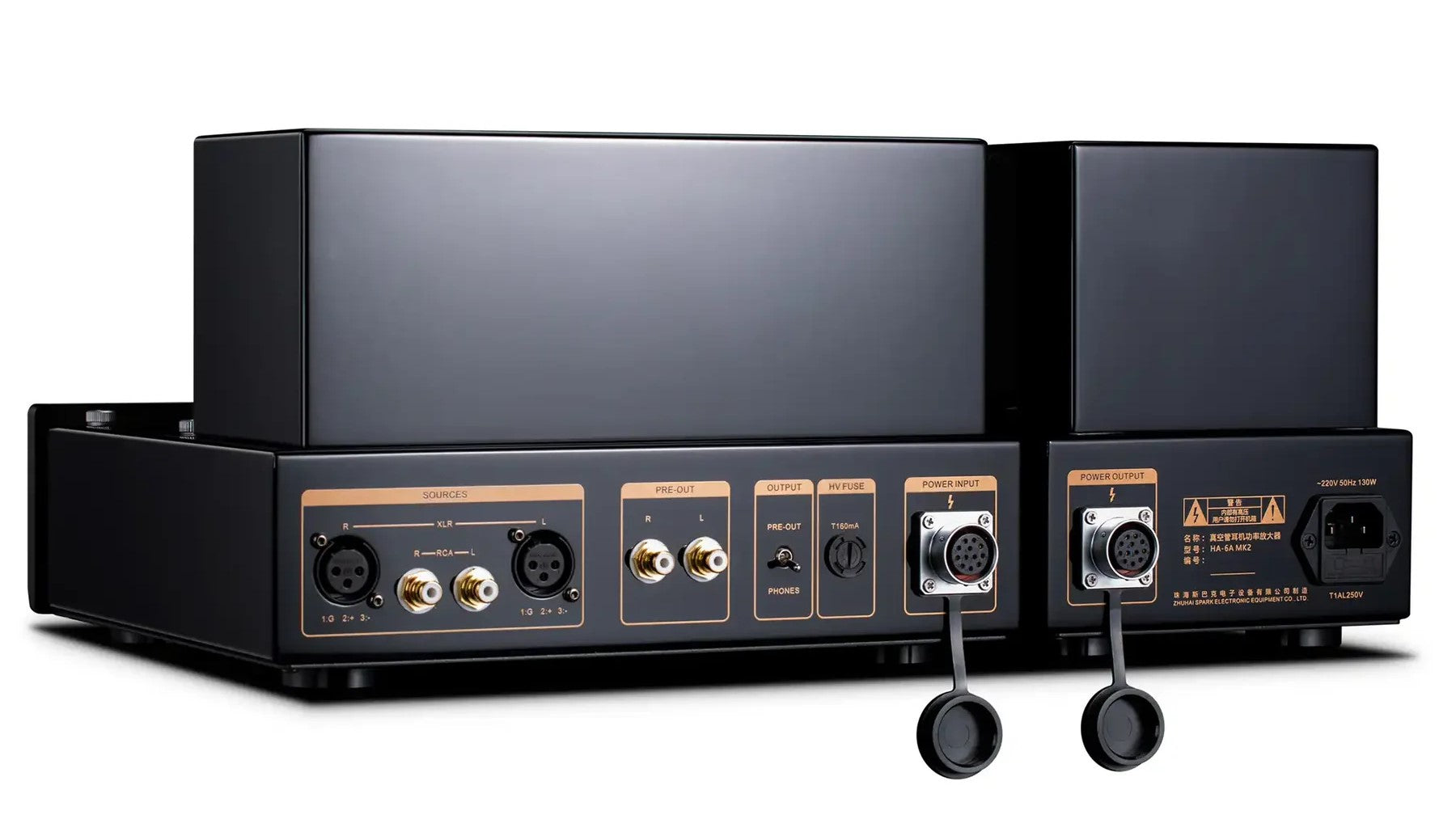

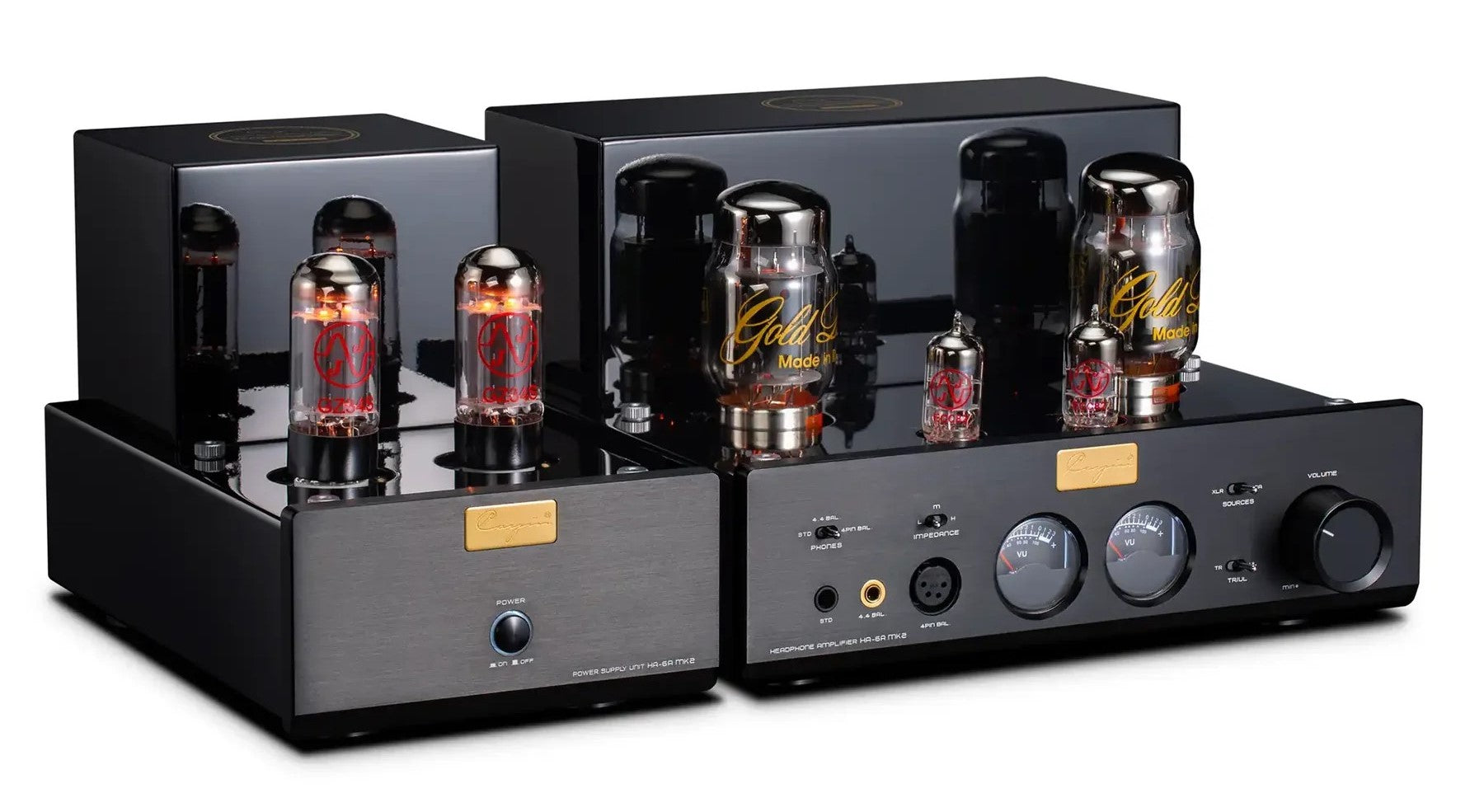

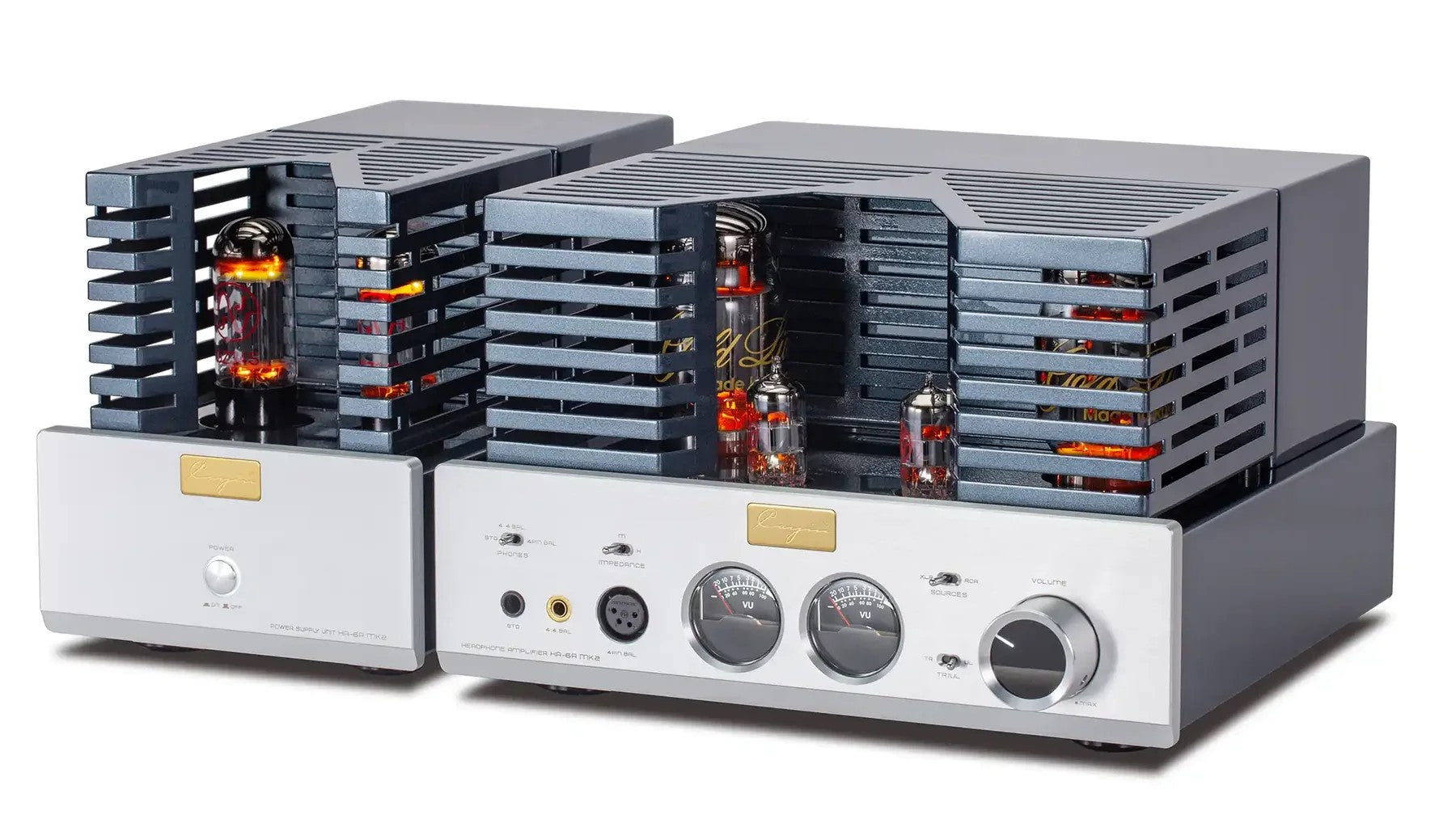

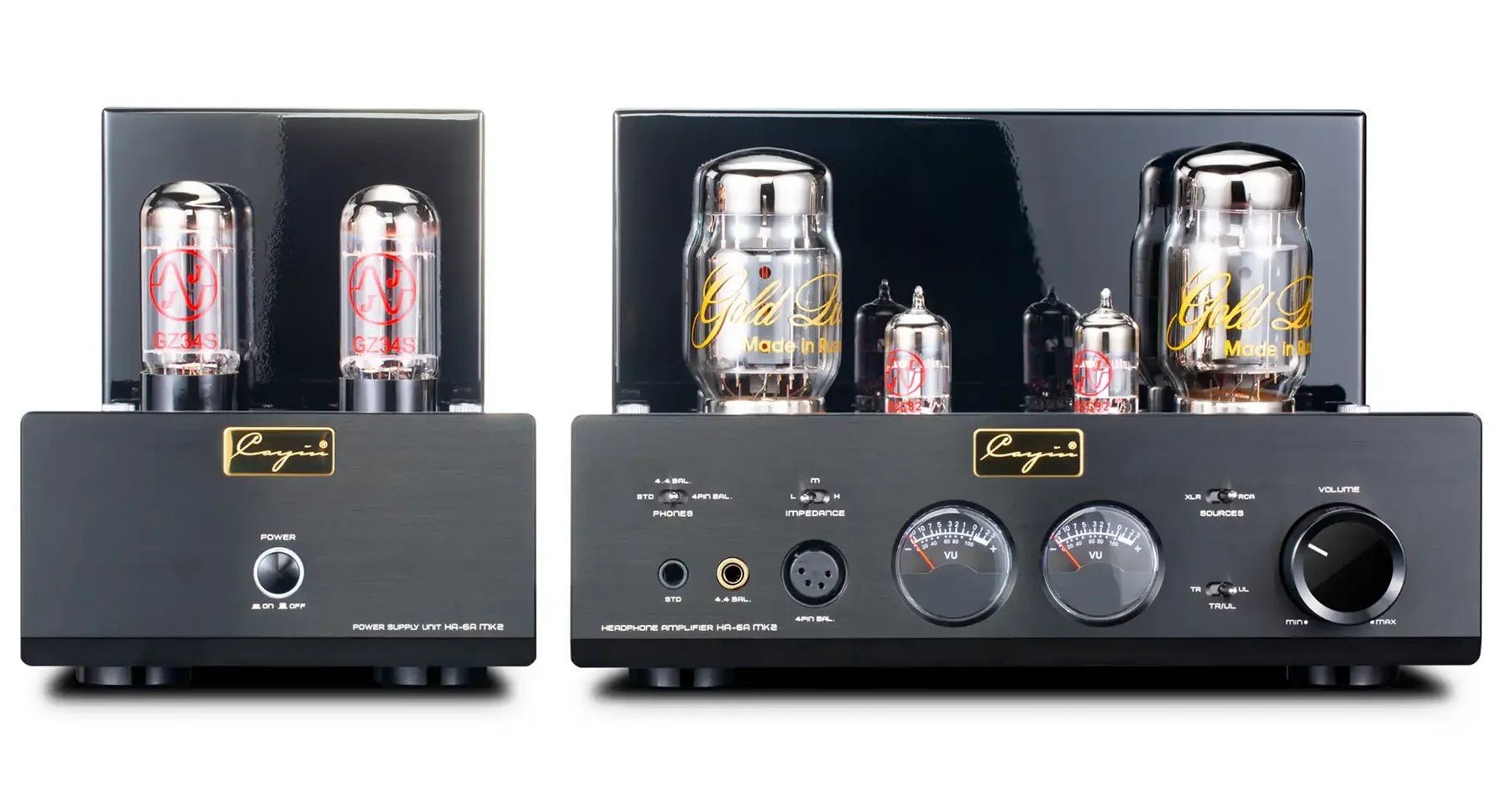

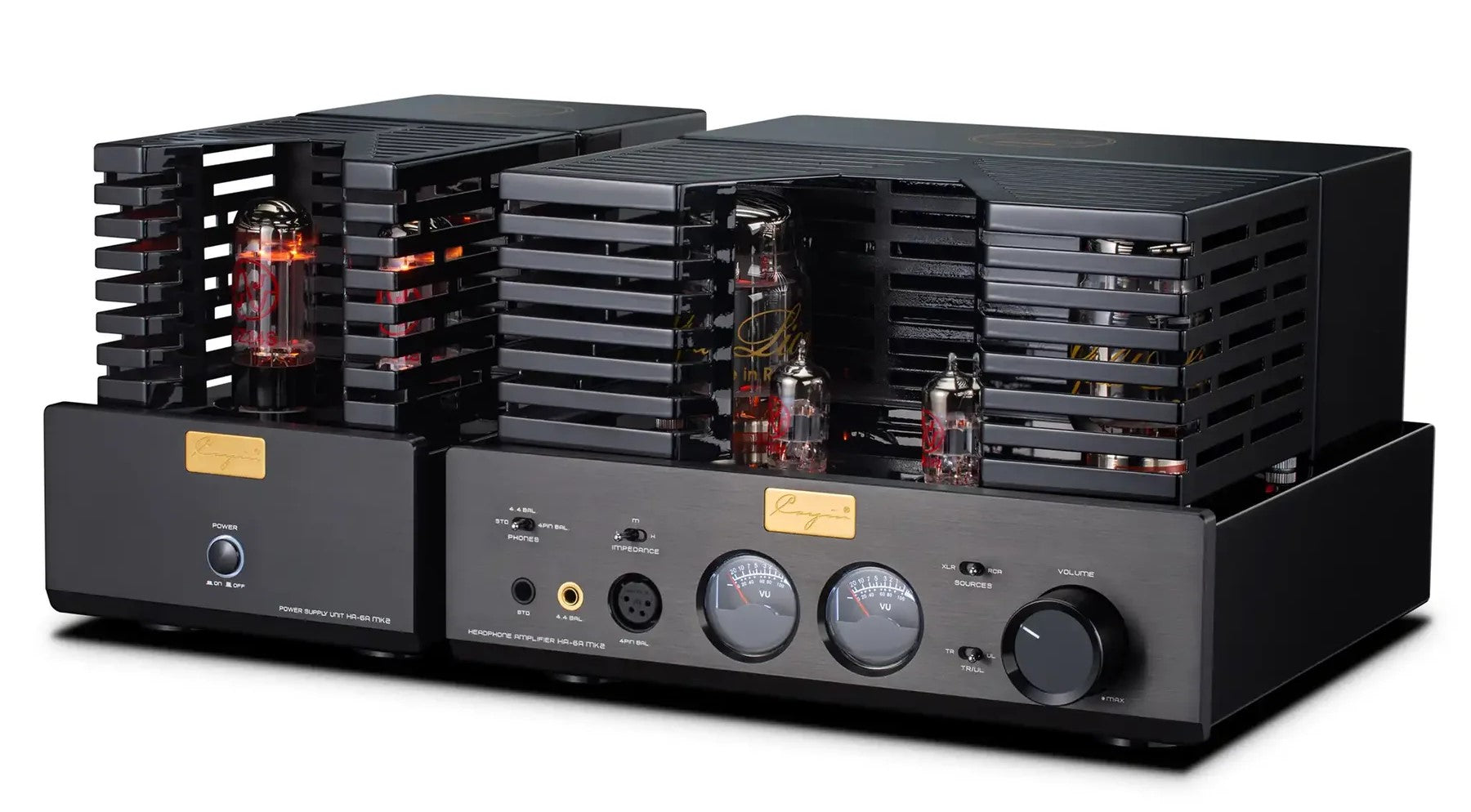

Cayin HA-6A MK2 Vaccum Tube Headphone Amplifier
Regular price
Tk 375,000.00
In Stock 🚚 Order by {time} to have it shipped today
🚚 Order by {time} to have it dispatched on {day}.
Pre-Order now and have it delivered within {days} days. {contact_link} if you have any questions.
Express Pre-Order — delivered within {days} days. {contact_link} if you have any questions.
Pre-Order now and have it delivered within {days} days. {contact_link} if you have any questions.
Do you have questions about this product?
Features
- Upgraded amplification circuit with premium components
- Outboard power supply design for a darker, cleaner background
- Gold Lion Genelax KT88 tubes provide faithful reproduction
- Includes preamplifier output to connect with a power amplifier
- Multiple headphone outputs with impedance matching for 32-600 ohm headphones
Specifications
|
Parameter |
Specification |
|
Physical Specifications |
|
|
Model |
Cayin HA-6A MK2 |
|
Dimensions (Power Supply) |
160 × 297 × 185 mm³ |
|
Dimensions (Amplifier) |
285 × 297 × 185 mm³ |
|
Net Weight (Power Supply) |
8.2 kg |
|
Net Weight (Amplifier) |
11.2 kg |
|
Technical Specifications |
|
|
Tube Configuration |
JJ 12AU7/ECC82 ×2, Genalex KT88 ×2, JJ GZ34/5AR4 ×2 |
|
Power Consumption |
130 W |
|
External Main Fuse |
220V–240V: T1AL250V; 100V–120V: T2AL250V |
|
External High Voltage Fuse |
T160mAE250V |
|
Working Condition |
Temp: 0°C–40°C, Humidity: 20%–80% |
|
Storage Condition |
Temp: –20°C–70°C, Humidity: 20%–90% |
|
Audio Specifications |
|
|
Headphone Output Power (6.35 mm) |
UL: 3500 mW + 3500 mW; TR: 2300 mW + 2300 mW |
|
Headphone Output Power (4.4 BAL) |
UL: 1000 mW + 1000 mW; TR: 650 mW + 650 mW |
|
Headphone Output Power (4-Pin BAL) |
UL: 4500 mW + 4500 mW; TR: 3000 mW + 3000 mW |
|
Frequency Range |
10 Hz–26 kHz +3 dB; 1 Hz–21 kHz ±1 dB |
|
THD+N (Headphone) |
0.3% (1 kHz, 200 mW; Rated output power <5%) |
|
Sensitivity |
240 mV–820 mV |
|
S/N Ratio (Headphone) |
104 dB (A-Weighted) |
|
Headphone Impedance Range |
L: 8–64 Ω; M: 65–250 Ω; H: 251–600 Ω |
|
Preamplifier Specifications |
|
|
Maximum Output Voltage |
6 V |
|
Gain |
20 dB |
|
THD (Preamp) |
0.2% (2 V RMS) |
|
S/N Ratio (Preamp) |
98 dB (A-Weighted) |
|
Input Sensitivity (Preamp) |
200 mV |
|
Connectivity Specifications |
|
|
Input Impedance |
RCA: 32 kΩ; XLR: 16 kΩ |
|
Input Connectors |
XLR, RCA |
|
Headphone Connectors |
6.35 mm ×1; 4.4 mm BAL ×1; 4-pin XLR ×1 |
|
Preamp Output Connector |
RCA |
|
Tube Substitution Options |
|
|
Genalex KT88 Compatible |
EL34, KT66, 6CA7, 6L6, KT77, KT88, 6550, KT90, KT120, KT150 |
|
JJ GZ34/5AR4 Compatible |
GZ34, GZ37, 5AR4, 5V4G, 5R4G, 5U4G, 5Y3GT, 5DJ4 |
|
JJ 12AU7/ECC82 Compatible |
12AU7, ECC82, ECC802S |
