BRZHIFI PLD100 ESS DAC Audio Decoder

The BRZHIFI PLD100 ESS DAC Audio Decoder is a compact yet powerful HiFi digital-to-analog converter designed for audiophiles and music enthusiasts who want superior audio quality from digital sources. Manufactured by BRZHIFI and distributed by Audio Phonic, this ESS DAC audio decoder combines advanced digital processing technology, Bluetooth connectivity and premium sound decoding performance in a stylish and user-friendly design.

The PLD100 is engineered to improve the sound quality of TVs, computers, smartphones, media players and other digital devices by converting digital audio signals into high-quality analog output with excellent detail and clarity. With support for multiple input methods including Bluetooth, optical, coaxial and USB flash drive playback, the device offers exceptional flexibility for modern audio systems.

Powered by the advanced ES9039Q2M DAC chipset, the BRZHIFI PLD100 delivers clean, low-noise and highly detailed audio reproduction suitable for home HiFi systems, active speakers and desktop audio setups.

Key Features of BRZHIFI PLD100 ESS DAC Audio Decoder

Premium ES9039Q2M DAC Chipset

At the core of the BRZHIFI PLD100 is the advanced ES9039Q2M DAC chipset. ESS DAC chips are highly respected in the HiFi audio industry for their excellent sound accuracy, low distortion and high dynamic performance.

The ES9039Q2M chipset enhances:

• Audio clarity

• Detail retrieval

• Stereo separation

• Dynamic range

• Signal precision

This ensures a highly transparent and natural listening experience across all music genres.

Multi-Input Audio Connectivity

The BRZHIFI PLD100 supports multiple input methods, making it compatible with a wide range of digital audio devices.

Supported inputs include:

• Bluetooth

• Optical fiber input

• Coaxial input

• USB flash drive playback

This flexibility allows users to connect televisions, computers, smartphones, digital players and other devices with ease.

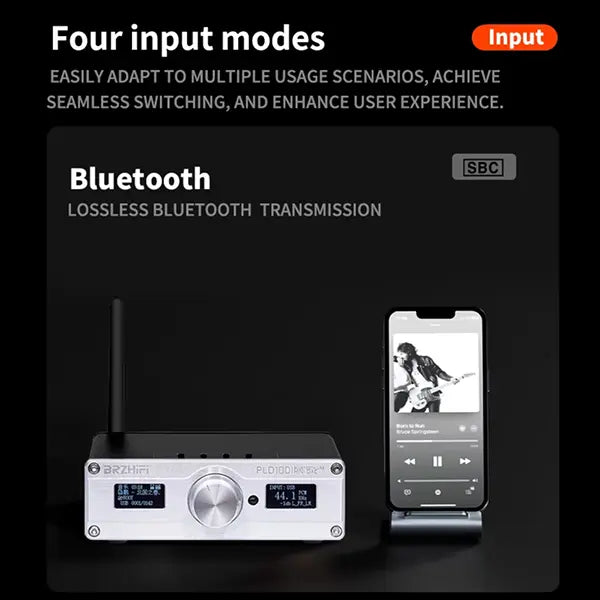

Bluetooth 5.0 Wireless Audio Streaming

The PLD100 supports Bluetooth 5.0 wireless connectivity, providing stable audio transmission and improved wireless range compared to older Bluetooth versions.

Bluetooth features include:

• Stable wireless connection

• Low audio interruption

• Easy pairing process

• Wireless playback convenience

• Transmission distance up to 13 meters

This allows users to stream music directly from smartphones, tablets and laptops without additional cables.

Support for Multiple Lossless Audio Formats

The BRZHIFI PLD100 supports a wide range of audio formats including both standard and lossless music files.

Supported formats include:

• WMA

• MP3

• WAV

• APE

• FLAC

• Other lossless audio formats

Lossless playback ensures high audio fidelity with better detail and sound accuracy compared to compressed audio formats.

High Signal-to-Noise Ratio for Clean Audio

With a signal-to-noise ratio of ≥105dB, the PLD100 delivers a clean and quiet listening experience with minimal background noise.

This high SNR performance ensures:

• Clear vocals

• Better instrument separation

• Lower audio distortion

• More accurate sound reproduction

This is especially important for critical listening and HiFi audio systems.

Wide Frequency Response Range

The device offers a frequency response range of 20Hz to 20kHz, covering the full range of human hearing.

This allows the PLD100 to reproduce:

• Deep bass frequencies

• Natural midrange vocals

• Crisp high-frequency details

The balanced frequency response ensures accurate and enjoyable music playback.

USB Playback Support up to 128GB

The BRZHIFI PLD100 supports USB flash drive playback with storage capacity up to 128GB. Users can directly play music files from USB storage devices without requiring additional equipment.

This feature is useful for:

• Large music libraries

• High-resolution audio collections

• Convenient standalone playback

Users can enjoy lossless music directly through the DAC decoder.

Coaxial Output Function

In addition to RCA analog output, the PLD100 also provides coaxial digital output functionality.

Output options include:

• RCA analog output

• Coaxial digital output

This allows flexible integration with external DACs, amplifiers and audio systems.

Compact and Elegant Design

The PLD100 features a compact and lightweight design that fits easily into desktop audio setups and home entertainment systems.

Its modern chassis design provides:

• Space-saving installation

• Easy integration

• Durable construction

• Clean and professional appearance

The compact size makes it suitable for small and large audio environments alike.

Technical Specifications of BRZHIFI PLD100

DAC and Audio Processing

• Chipset: ES9039Q2M + Jerry BT + N5532

This combination ensures accurate digital decoding and stable audio performance.

Input Options

The PLD100 supports the following input methods:

• Bluetooth 5.0

• Optical fiber input

• Coaxial input

• USB flash drive input

Output Options

• RCA analog output

• Coaxial digital output

Audio Performance

• Signal-to-noise ratio: ≥105dB

• Frequency response: 20Hz–20kHz

• Output level: 2V @1kHz

These specifications ensure clean and balanced audio reproduction.

Bluetooth Specifications

• Bluetooth version: 5.0 SBC

• Bluetooth transmission distance: ≥13 meters

Sampling Rate Support

Fiber and coaxial input:

• 44.1–192kHz

• 16–24Bit

Coaxial output:

• 44.1kHz 16Bit

USB playback:

• 44.1–48kHz 16Bit

USB Storage Support

• Maximum USB capacity: 128GB

Power and Physical Specifications

• Working power supply: DC 12V 1.5A

• Product size: 131 × 107 × 41 mm

• Net weight: 0.43kg

Its lightweight and compact design make it easy to place in any setup.

Sound Performance and Listening Experience

Clear and Detailed Audio Reproduction

The ESS DAC chipset provides excellent audio transparency and precision. Musical details become clearer while vocals and instruments maintain natural tonal balance.

Smooth and Balanced Sound Signature

The PLD100 delivers a smooth and balanced sound character suitable for various music genres including classical, jazz, pop and electronic music.

Improved Stereo Imaging

The decoder provides strong channel separation and accurate stereo positioning, resulting in a wider and more immersive soundstage.

Low Noise and Clean Background

With its high signal-to-noise ratio and optimized circuitry, the PLD100 minimizes unwanted background noise and interference.

Enhanced Digital Audio Quality

The DAC significantly improves sound quality from TVs, computers and digital devices by reducing harshness and improving detail clarity.

Why Choose BRZHIFI PLD100 from Audio Phonic

Audio Phonic offers authentic and high-quality audio products for users who value premium sound performance. The BRZHIFI PLD100 ESS DAC Audio Decoder is an excellent choice for upgrading digital audio systems with better clarity, detail and musicality.

Choosing this product from Audio Phonic ensures:

• Genuine BRZHIFI product quality

• Reliable HiFi audio performance

• Advanced ESS DAC technology

• Flexible input compatibility

• Compact and durable design

It is ideal for users seeking affordable high-resolution digital audio improvement.

Ideal Applications of BRZHIFI PLD100

The PLD100 is suitable for various audio setups including:

• Home HiFi systems

• TV audio enhancement

• Desktop speaker systems

• Active speaker setups

• Computer audio upgrades

• Bluetooth music streaming systems

Its versatile connectivity makes it suitable for both casual and serious listening environments.

Setup Guide for BRZHIFI PLD100

Setting up the BRZHIFI PLD100 is simple and user-friendly. Connect the DC12V power supply and choose the desired input source such as Bluetooth, optical, coaxial or USB playback.

Connect the RCA output to your amplifier or active speakers. If using Bluetooth, pair your smartphone or tablet directly with the DAC decoder.

After setup, users can enjoy significantly improved audio quality with cleaner and more detailed sound.

Maintenance and Usage Tips

To maintain stable performance:

• Keep the device in a cool and dry environment

• Avoid exposure to excessive heat or moisture

• Use quality audio cables for better signal transmission

• Keep USB storage organized for smoother playback

• Clean the chassis regularly using a soft cloth

Proper maintenance ensures long-term durability and consistent audio performance.
