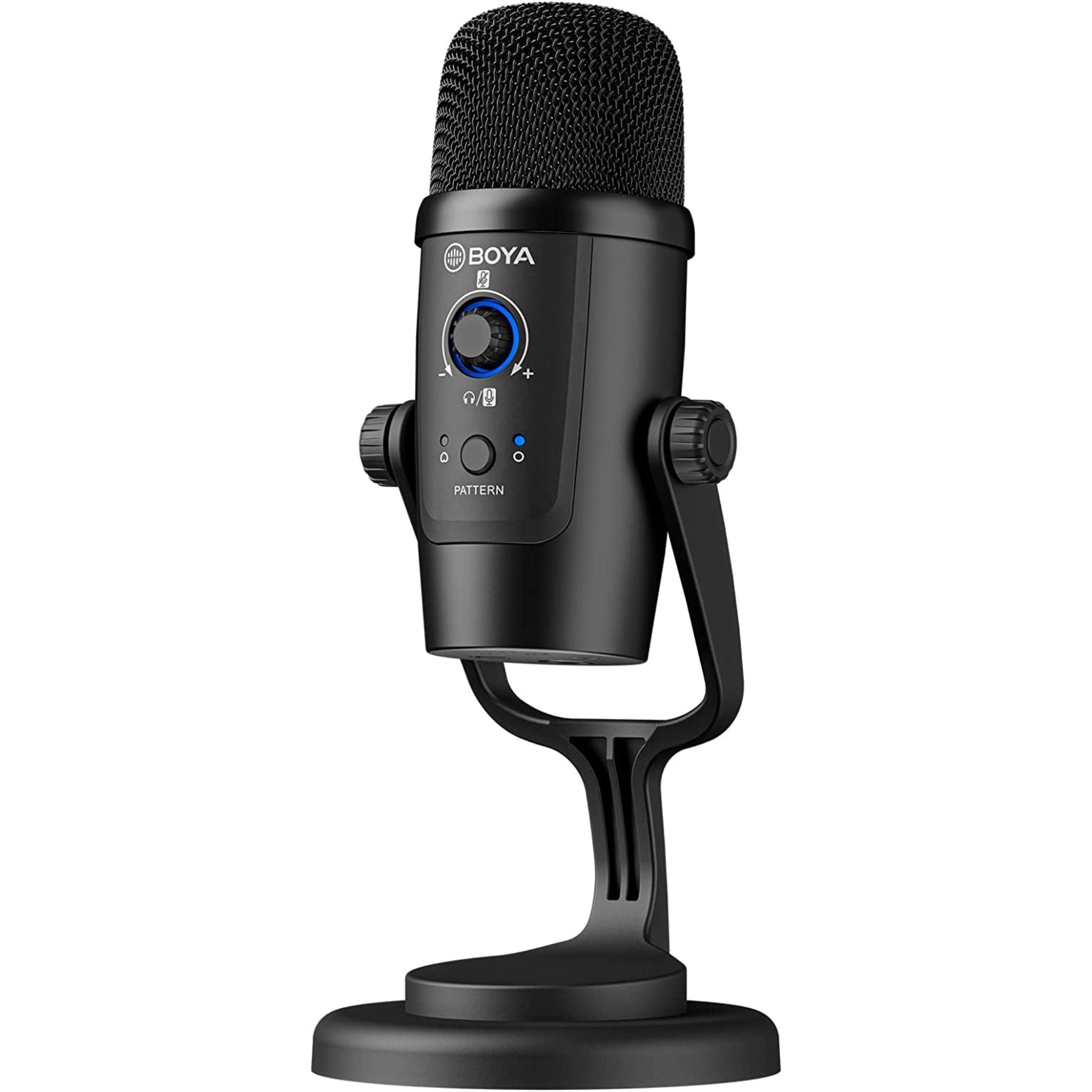

  • BOYA BY-PM500W Wireless Microphone

    • Wireless & Wired Microphone: This usb microphone has wireless function, supports USB/TYPE C devices, and can be used by plugging into the receiver. It also supports wired transmission, and HD has no delay.

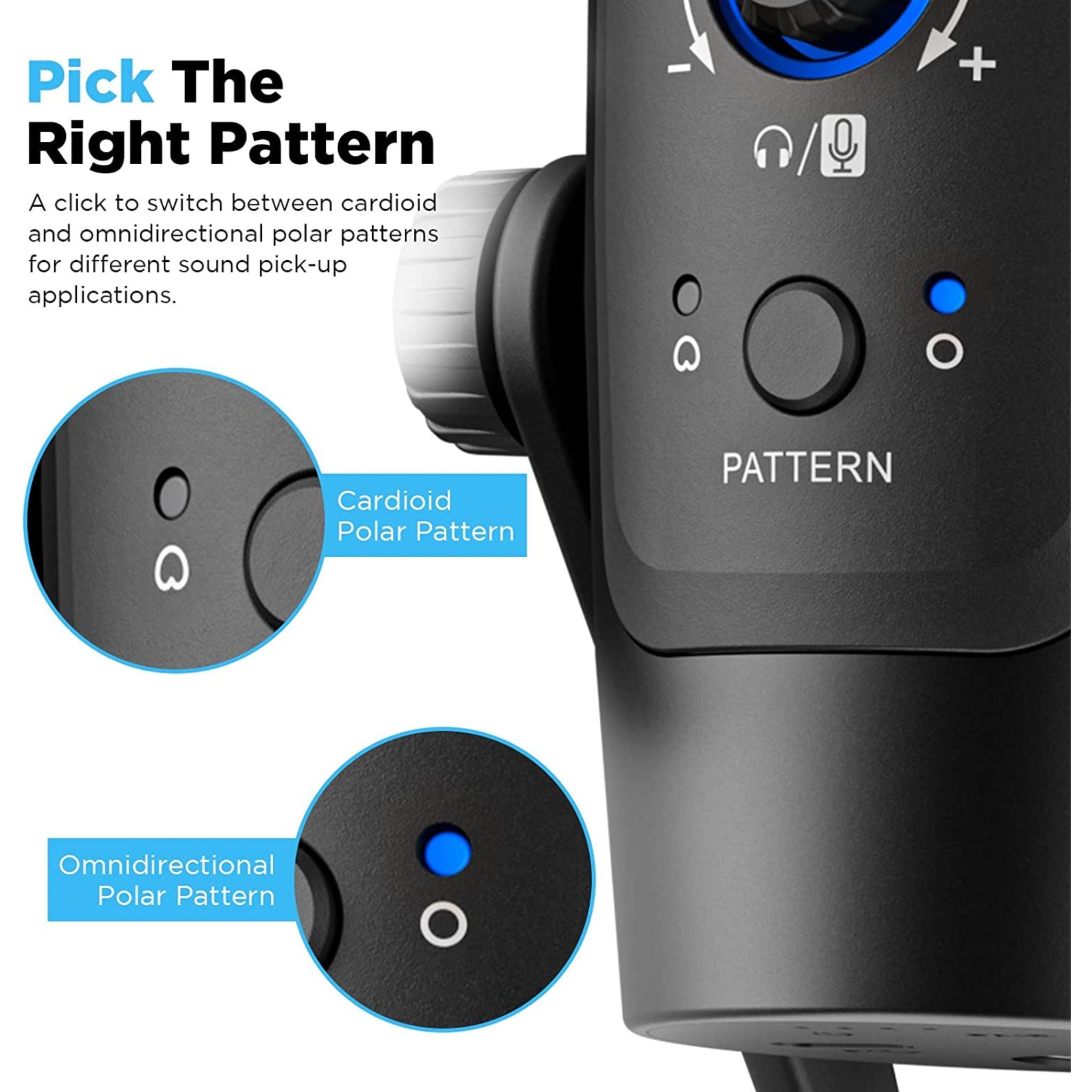

    • Optional Radio Mode: built-in cardioid & omnidirectional recording modes for you to choose, cardioid mode is suitable for unidirectional recording, omnidirectional recording is suitable for wide range recording, to meet your various recording needs.
    • Volume knob & multi-function key: The microphone has a volume knob, you can adjust the recording sound at any time, support one-key mute and other operations. With headphone monitoring interface, real-time detection of recording status, to ensure recording quality.
    • Wide Application: This microphone is ideal for gaming, streaming, podcasting, conferences, and more. It has the characteristics of low latency and high-definition sound quality.
    Features with the 2.4GHz wireless technology, BY-PM500W provides up to 10m wireless operation distance and delivers studio-quality audio at the same time. It is much more convenient in long-distance usage scenarios and usage scenarios that require a tidy desktop.
    The transmitter of the BY-M500W features selectable Cardioid an Omnidirectional polar pattern for different applications. The 3.5mm headphone jack allows users to monitor and ensure the recording content in real-time. The all-in-one control knob on the transmitter allows users to control the volume, gain, mute easily during use.
    The receiver of the BY-PM500W is designed with the M/S function, users can pair two transmitters with one receiver at the same time. It is optional to record each audio signal separately or combine them for ultimate flexibility in post-production.

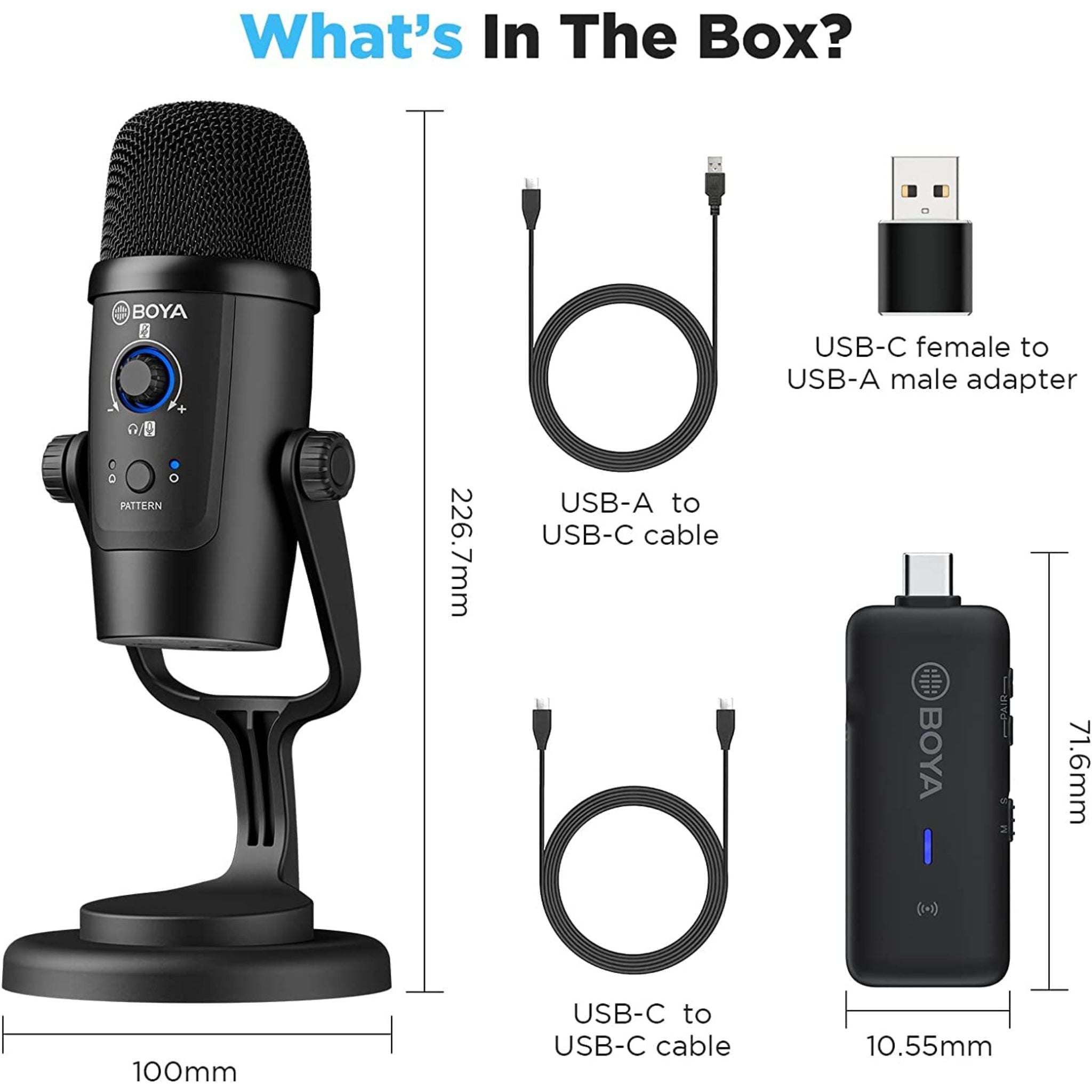

    The BY-PM500W includes a USB-A adapter and USB-C output cables, allowing easy plug-and-play functionality with all types of Computers with USB or USB-C, and Android Smartphones and Tablets, as well as iPad Pro and iPad Air with USB-C. Users can also easily adapt it to iPhones and iPads with USB-C to the Apple Lightning cable (sold separately).

    Wired Operation
     Mic Capsule  14mm Condenser Capsule
     Polar Pattern
     Cardioid /Omnidirectional
     Frequency Response
     -36dB(0dB=1V/Pa,1kHz 1Pa)
     Signal-to-Noise Ratio  80dB
     Maximum SPL
     Sampling Rate
     Bit Rate
     Mic Gain
     Working Voltage  5V/100mA
     Audio Output Connector
     3.5mm Headphone Jack
     USB-C Port
     Operating Temperature  0°C to 50°C
     Storage Temperature  –20°C to +55°C

    Wireless Operation

     Mic Capsule
     14mm Condenser Capsule
     Polar Pattern  Cardioid /Omnidirectional
     Frequency Response  35Hz-18kHz
     Sensitivity  -36dB(0dB=1V/Pa,1kHz 1Pa)
     Signal-to-Noise Ratio
     Maximum SPL  110dB
     Transmission Type  2.4GHz
     Dipole Antenna
     Operating Range
     10m (Indoors with obstacles)
     RF Output Power  <10mW
     Distortion  <0.05%
     Battery Life  8 Hours
     Charging Time  1.5 Hours
     Battery Capacity  800mAh
     Dimensions  TX:226.7×100×100mm
     Weight  TX:660g
