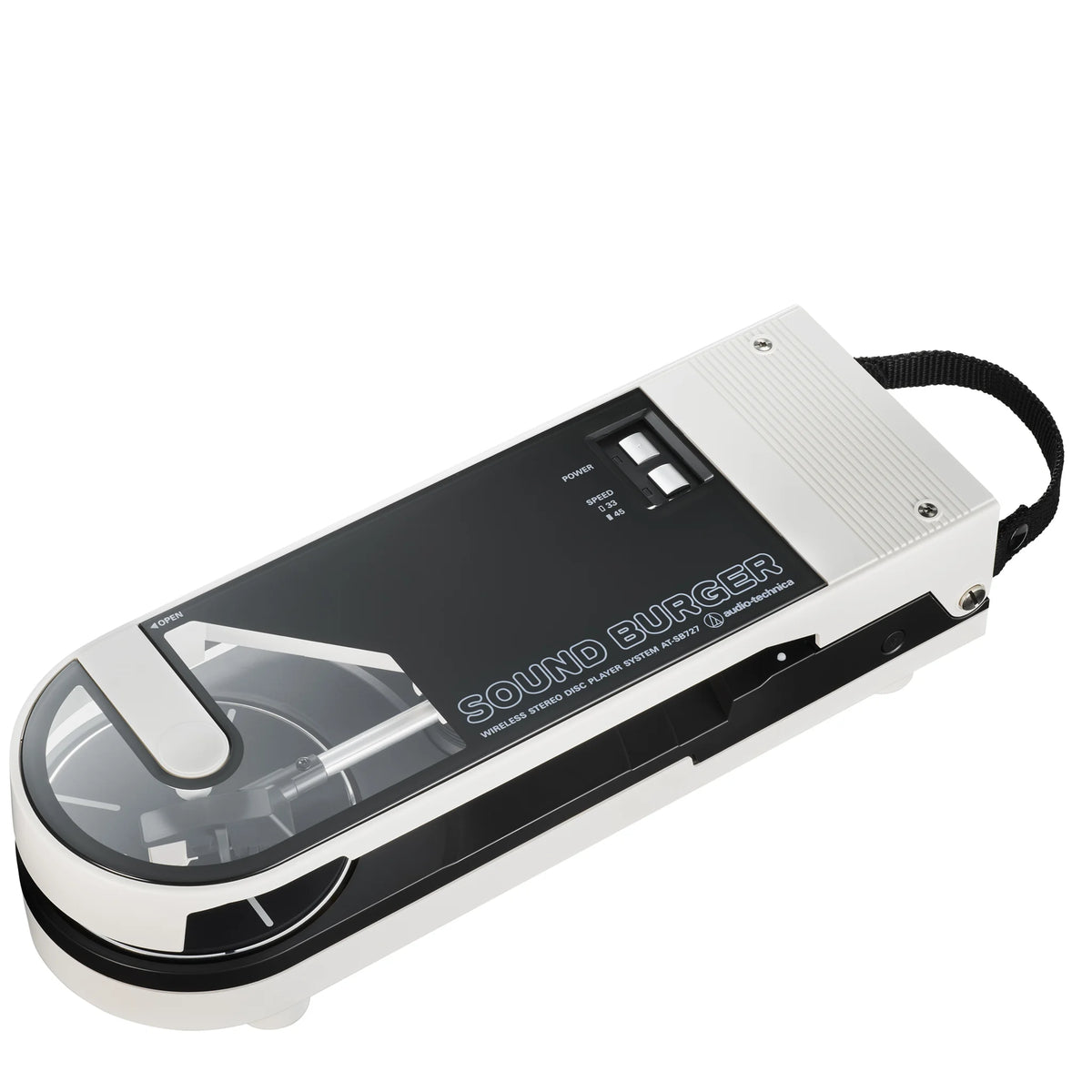

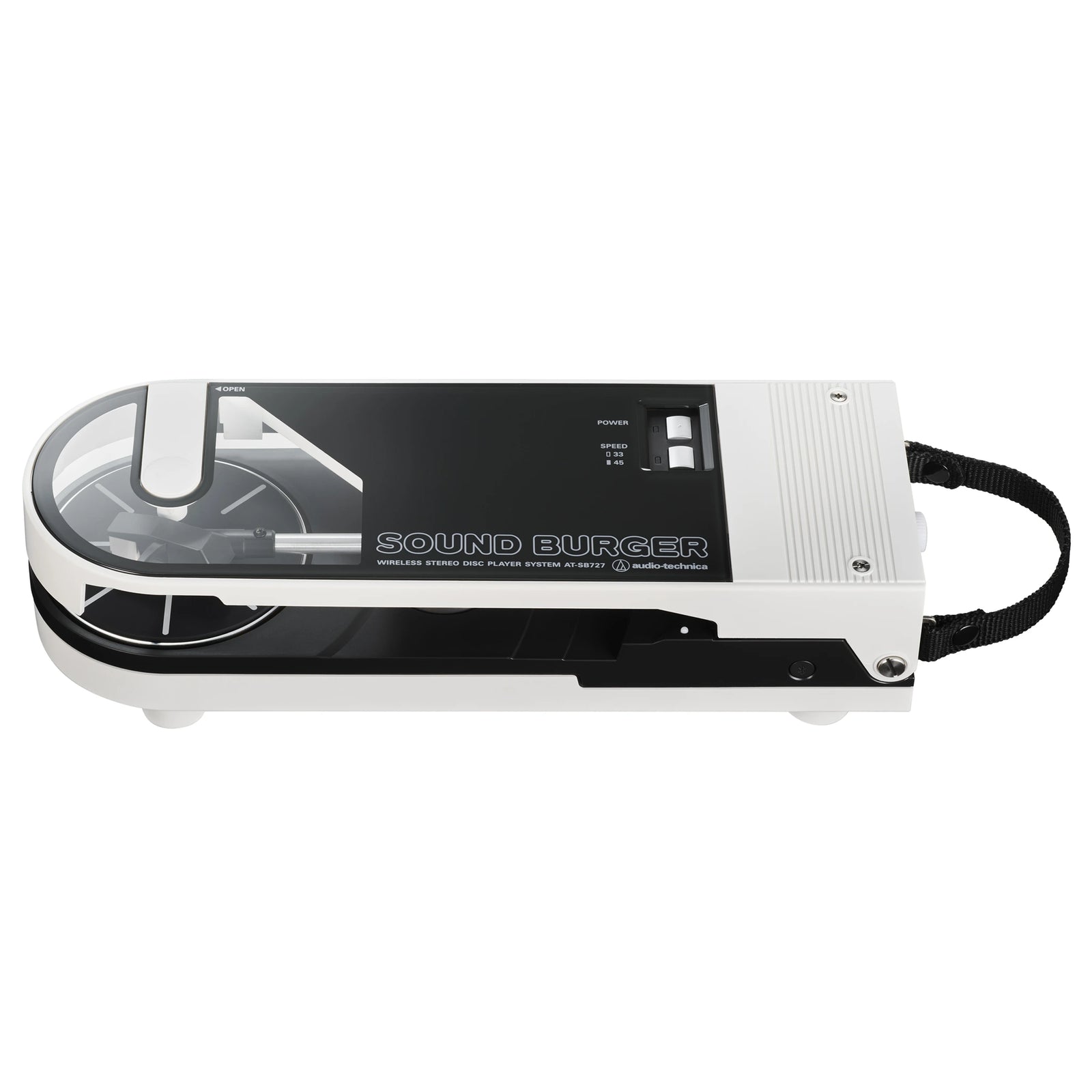

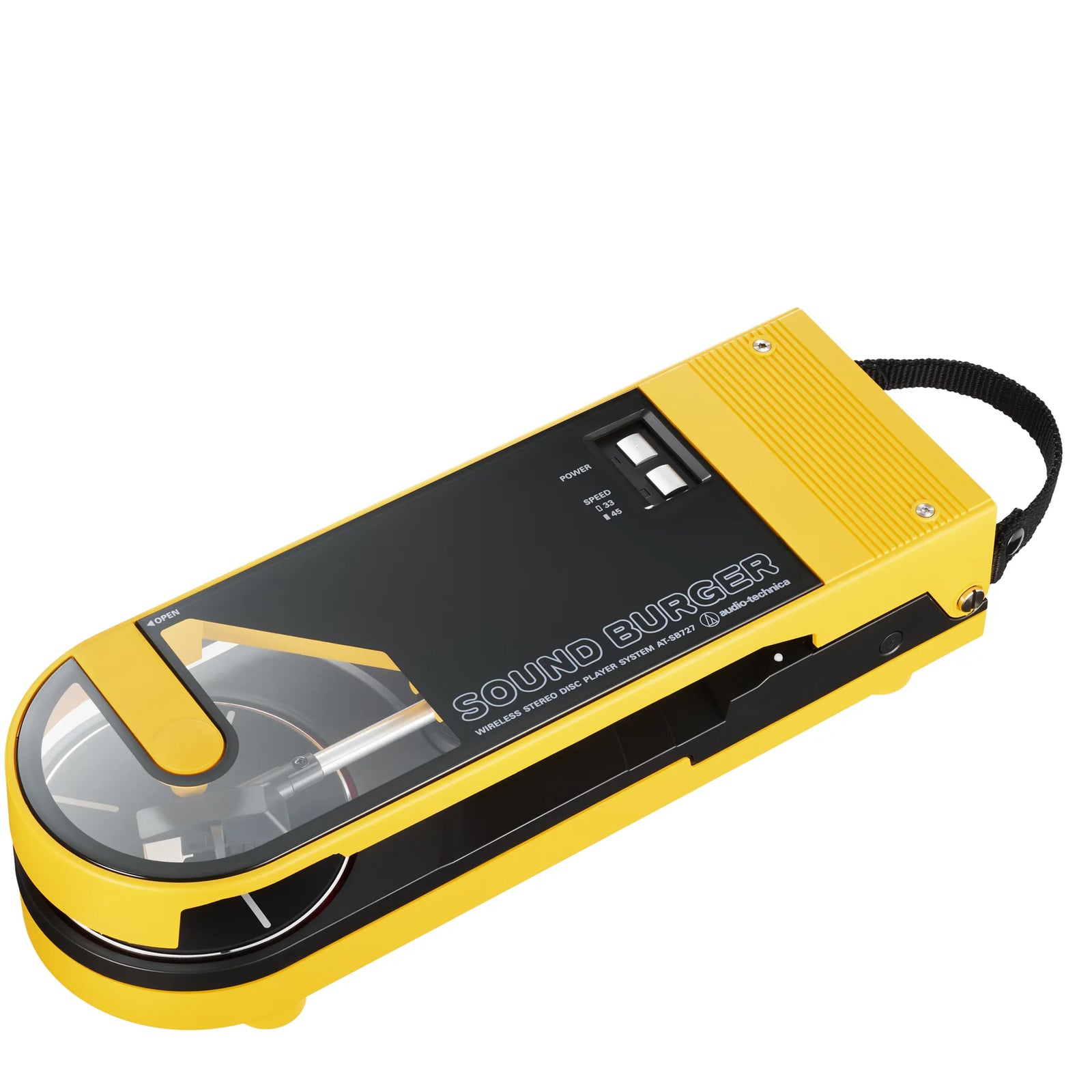

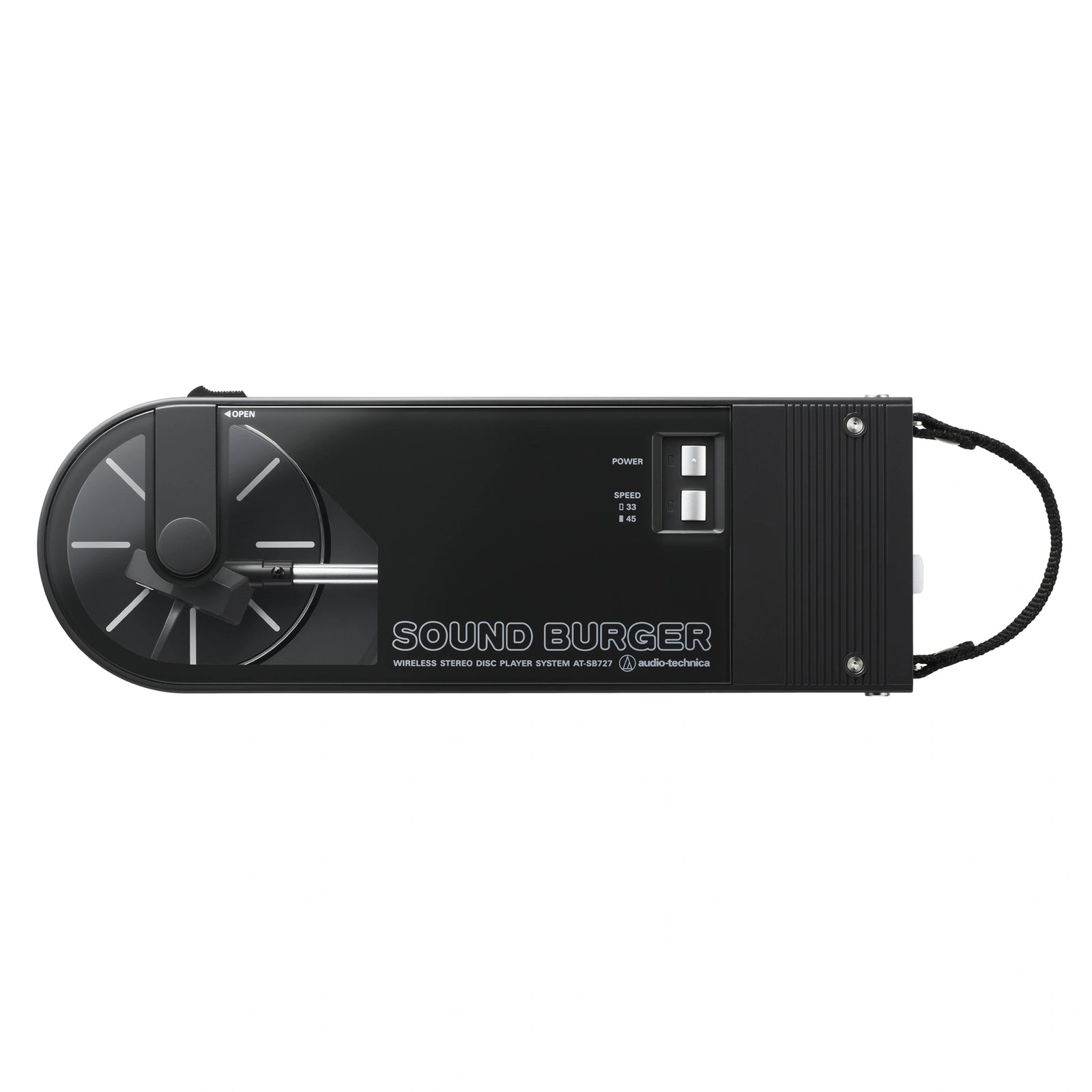

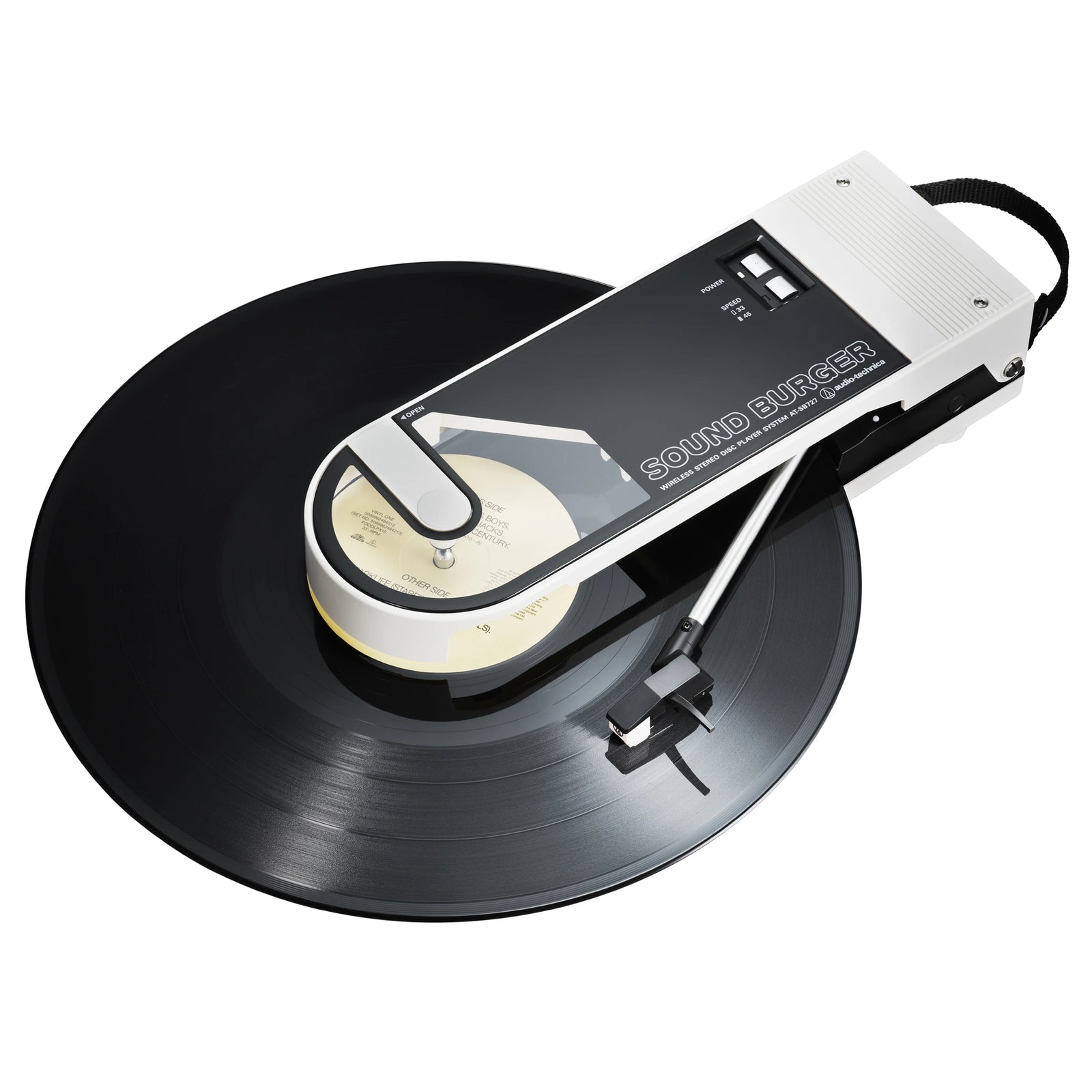

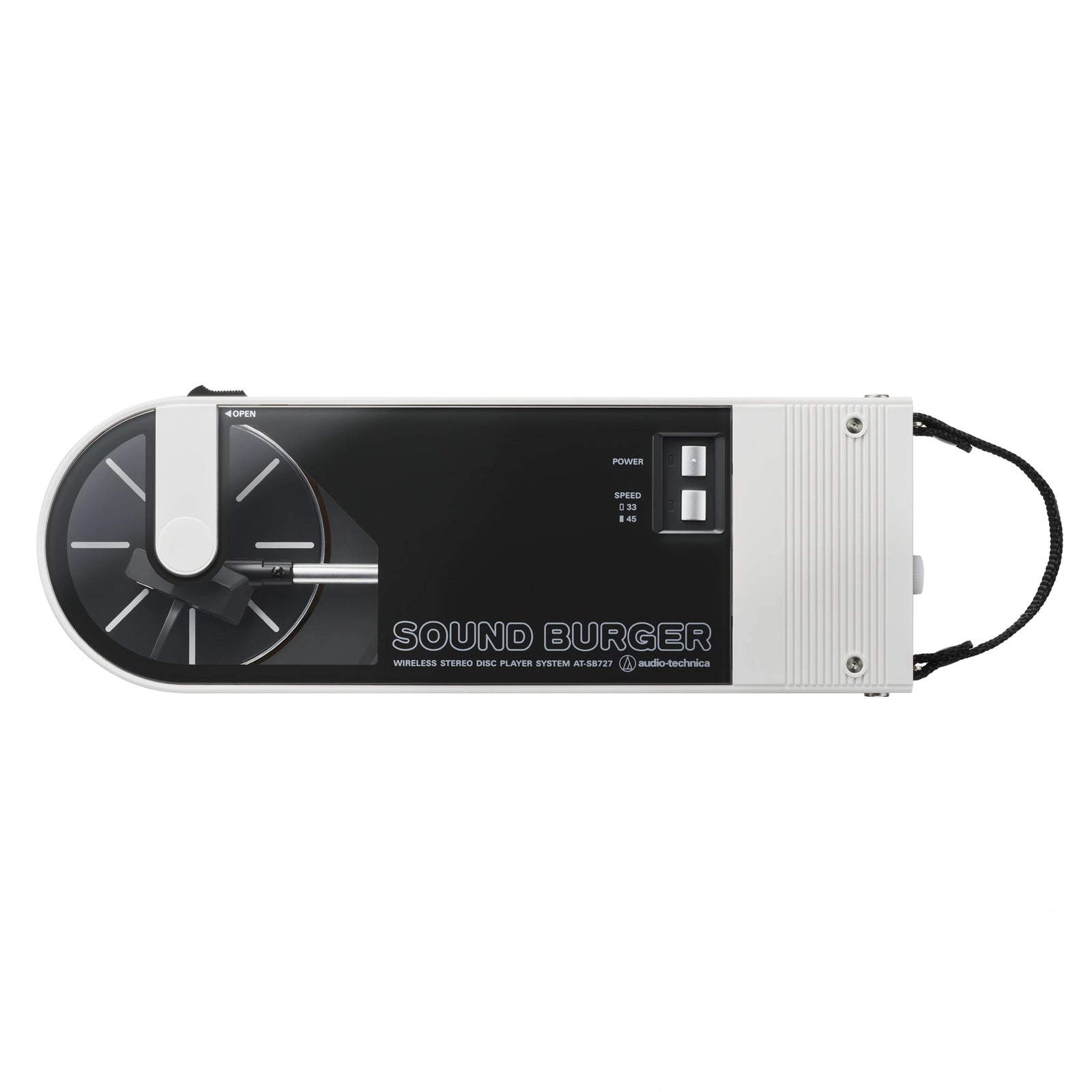

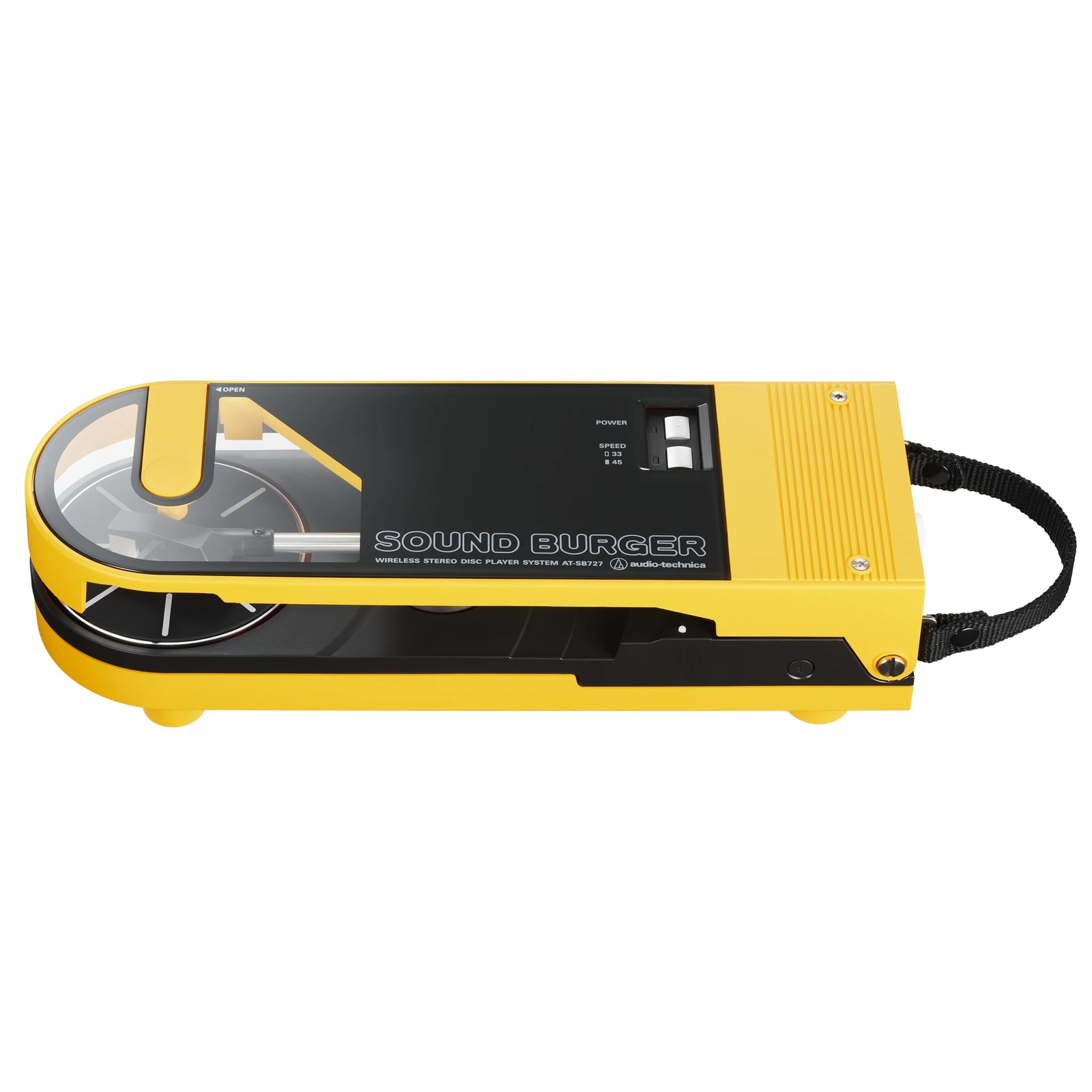

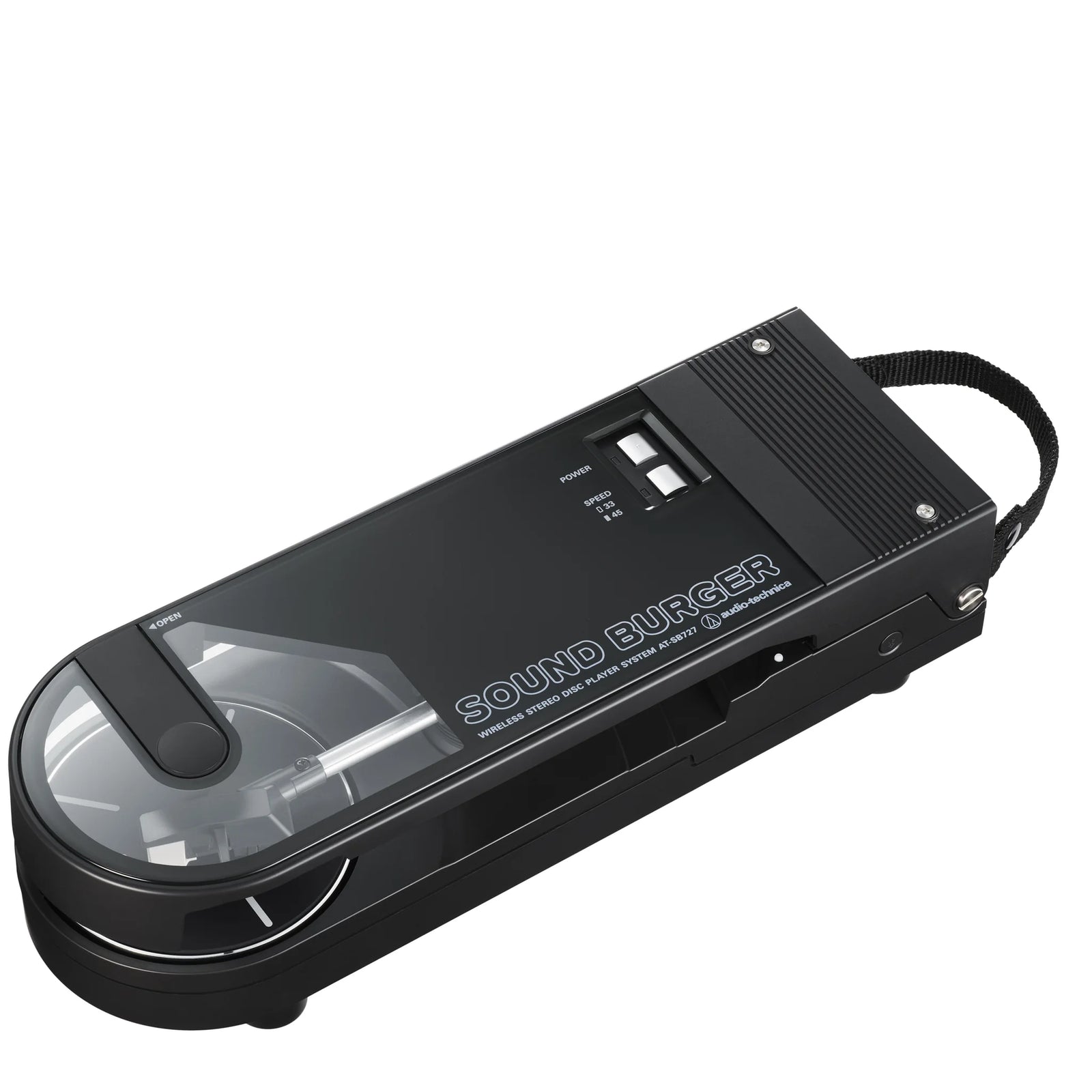

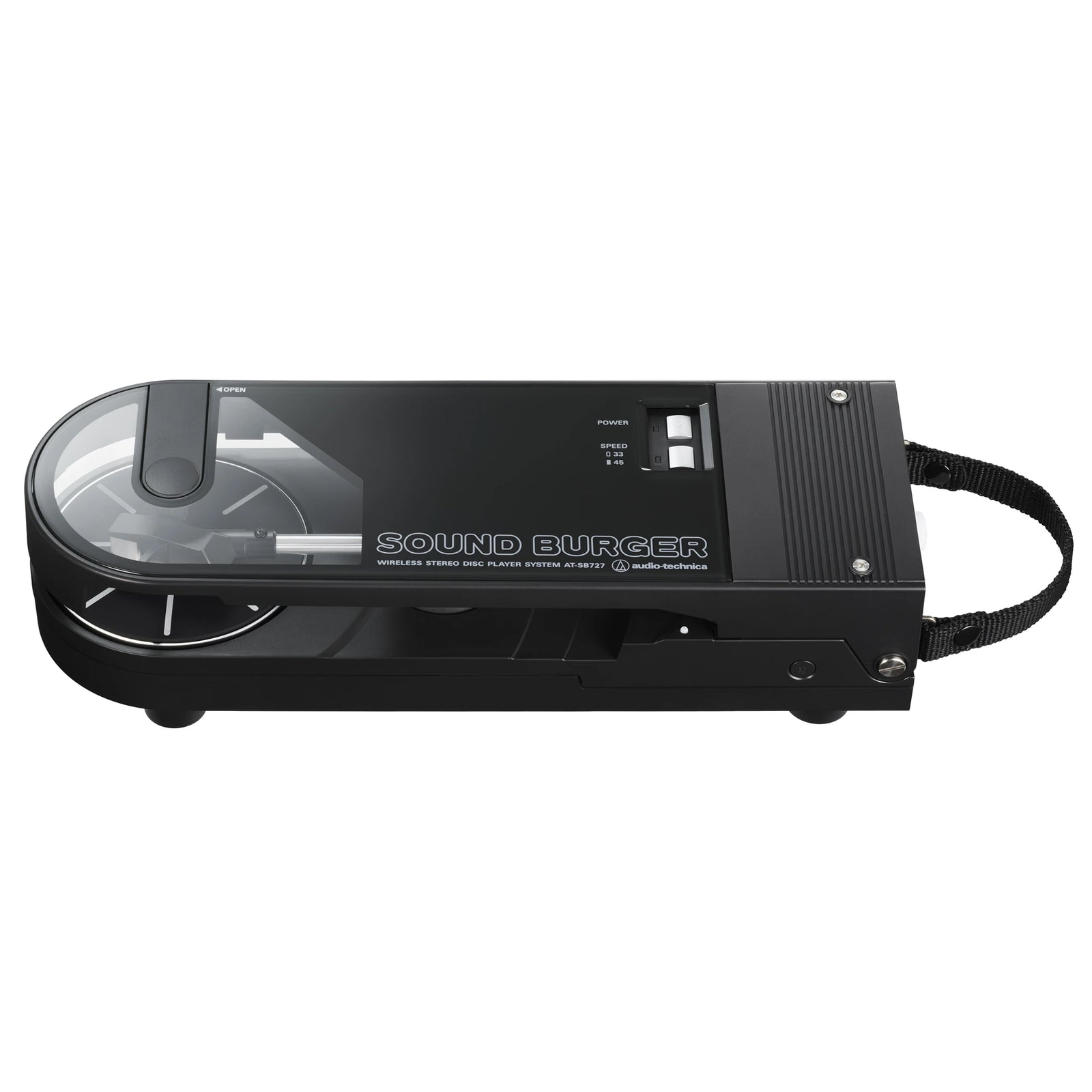

  • Audio-Technica AT-SB727 Sound Burger - Portable Bluetooth Turntable

    Color
    Black
    White
    Yellow

    Features

    • Belt-driven portable turntable
    • Stylist retro, compact design
    • Plays 33-1/3 and 45 RPM records
    • Uses a high-precision DC motor that maintains stable rotation
    • Die-cast aluminium alloy platter with damping design
    • 12-hour battery
    • Replaceable ATN3600L stylus
    • Accessories:
      • 45 RPM adapter
      • RCA audio cable (3.5 mm male to dual RCA male)
      • USB cable for charging (USB Type-A / USB Type-C™)

    To commemorate the company’s 60th anniversary, Audio-Technica released a limited-edition Sound Burger portable turntable in November 2022 – four decades after its original debut. We have seen the success and overwhelming response on the 60th anniversary release of SB2022, having sold out worldwide shortly after launch. Inspired by the response and acknowledging the voices of fans who were not able to purchase the SB2022, A-T will be releasing the SB727 to make the Sound Burger more widely accessible and inspire the next generation of Analog Enthusiasts. Pairing a playful retro design that comes in 3 colours with portability, the Sound Burger stays true to its original aesthetic while also including modern updates, such as Bluetooth connectivity and USB charging.

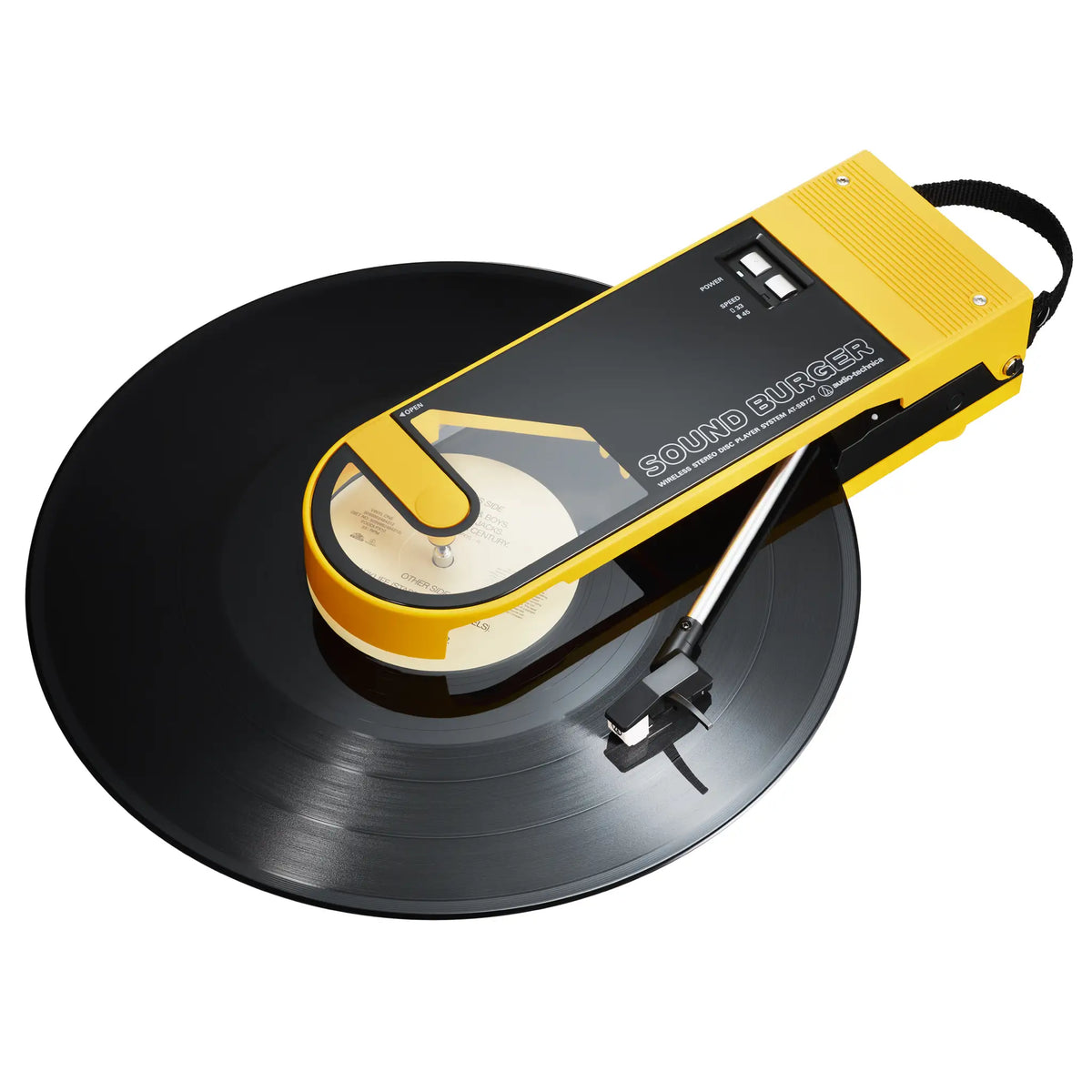

    Portable Record Player

    Thanks to its Bluetooth connection and compact, lightweight design, the AT-SB727 is the perfect travel partner. From sampling vinyl at record fairs to sing-along parties with friends – keep your records spinning wherever you go by connecting to your Bluetooth headphones or speakers.*
    The Sound Burger remembers your paired device after initial pairing, automatically connecting to your Bluetooth speakers or headphones when you press the power button.

    *This product does not produce direct sound. Separate wireless (Bluetooth) active speakers or headphones, or a stereo system with line connection (such as AUX), are required.

    12 Hours of Power

    Enjoy 12 hours of listening with the Sound Burger’s powerful battery life. Keep the records spinning all day and recharge at night!

    Wired or Wireless Listening

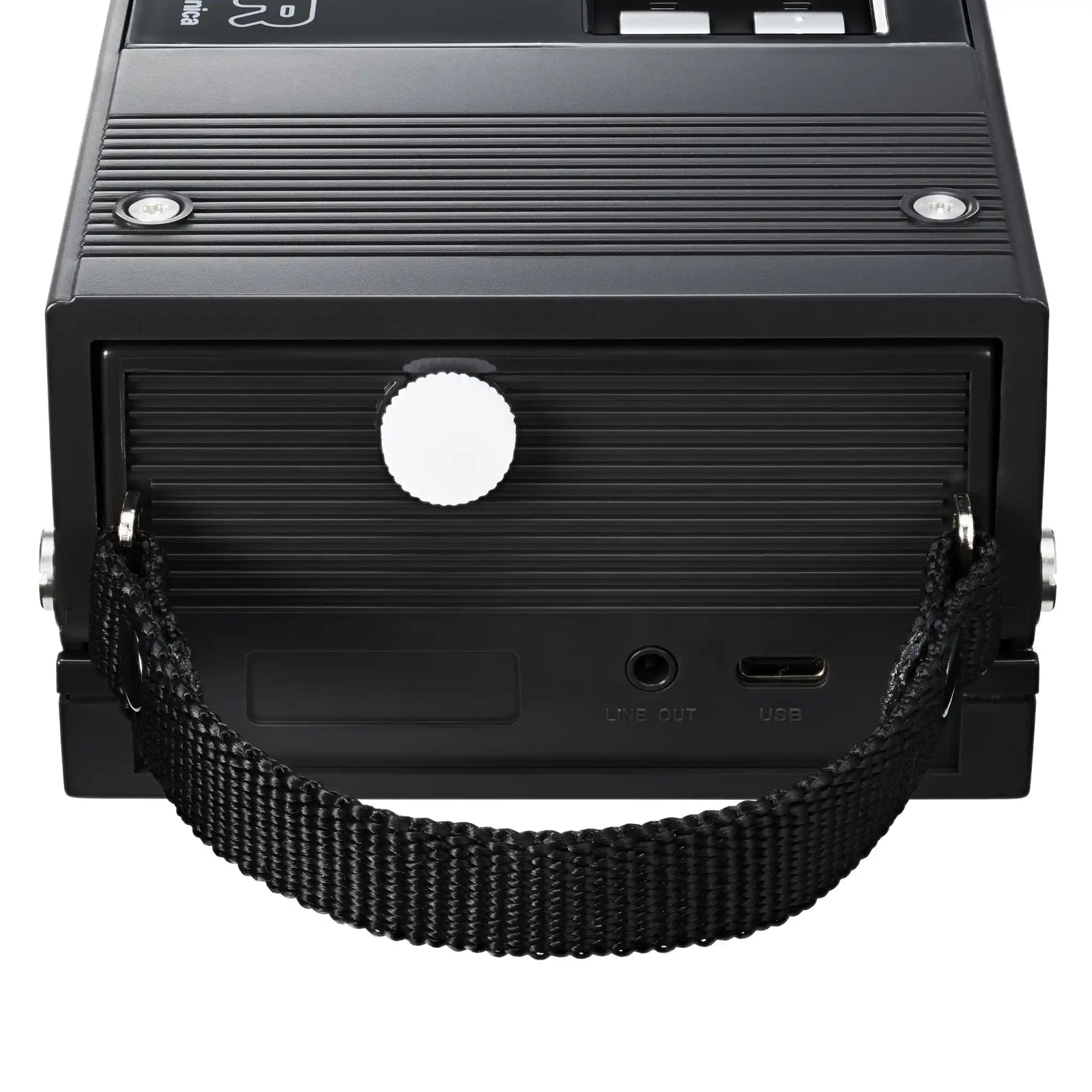

    In addition to the Bluetooth functionality, you can connect to active speakers with the included audio cable.*

    *Supports LINE output. You can connect the included cable to an amplifier or active speaker that has an AUX terminal.

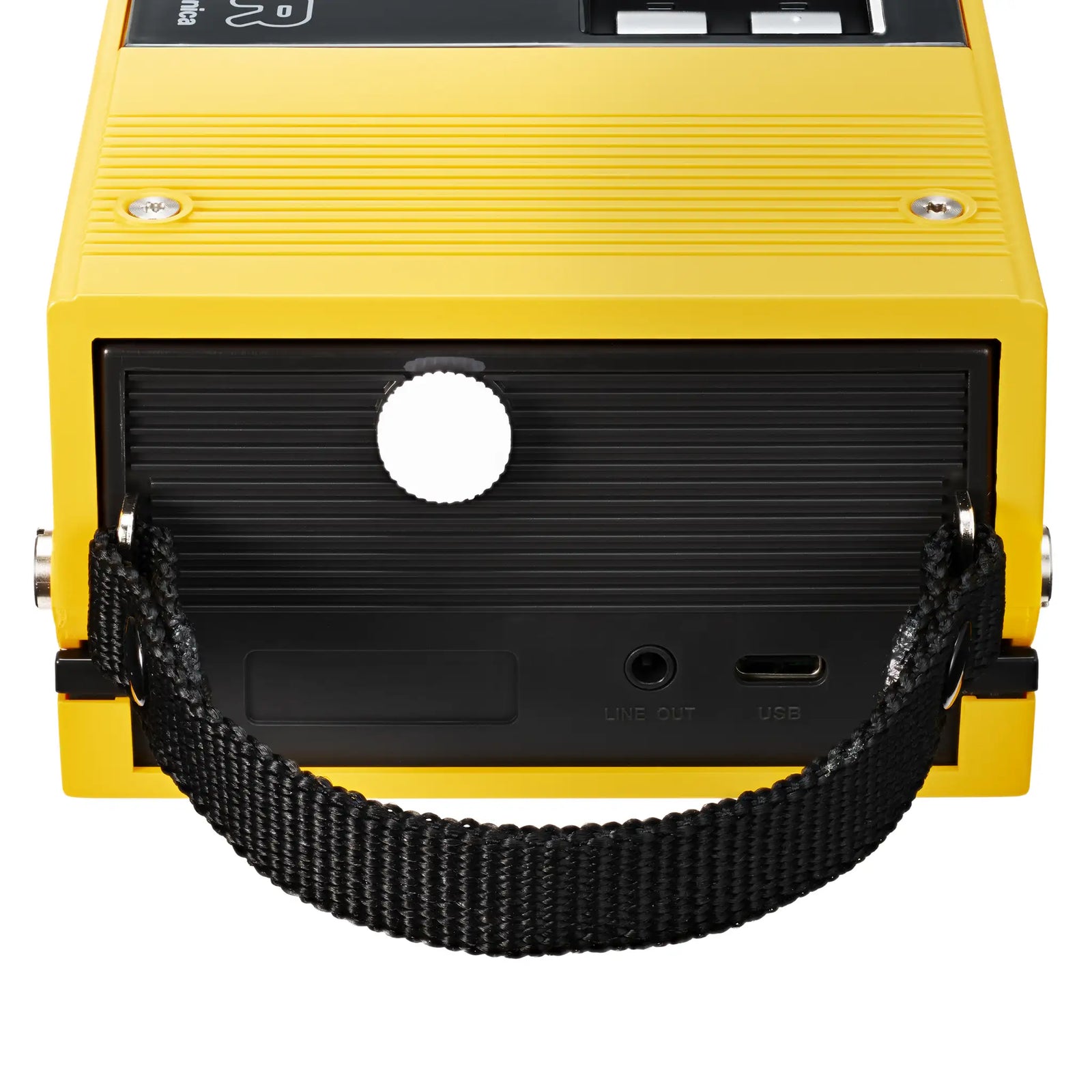

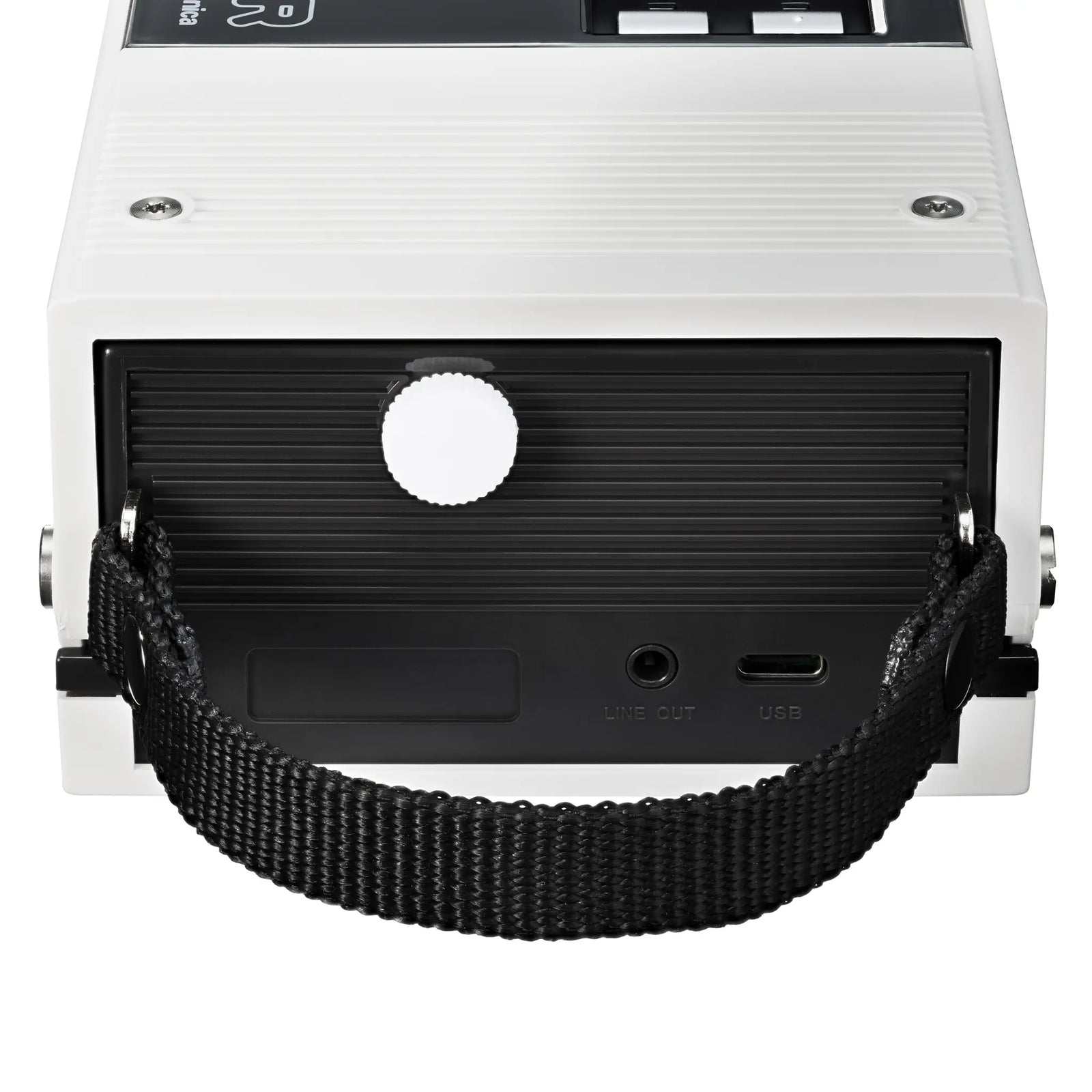

    USB Type-C™ Charging

    Plug in and power up, thanks to handy USB-C charging with the included cable.*

    *This product does not come with a USB power adapter (for charging from an AC outlet). Please use a USB power adapter with 5V output and 500mA or more, or charge from a USB port on a personal computer, etc.

    Analog Audio Experience

    Developed with 60 years of experience in analog audio, the Sound Burger offers high-quality sound reproduction with a belt-drive system that plays 33-1/3 and 45 RPM records.

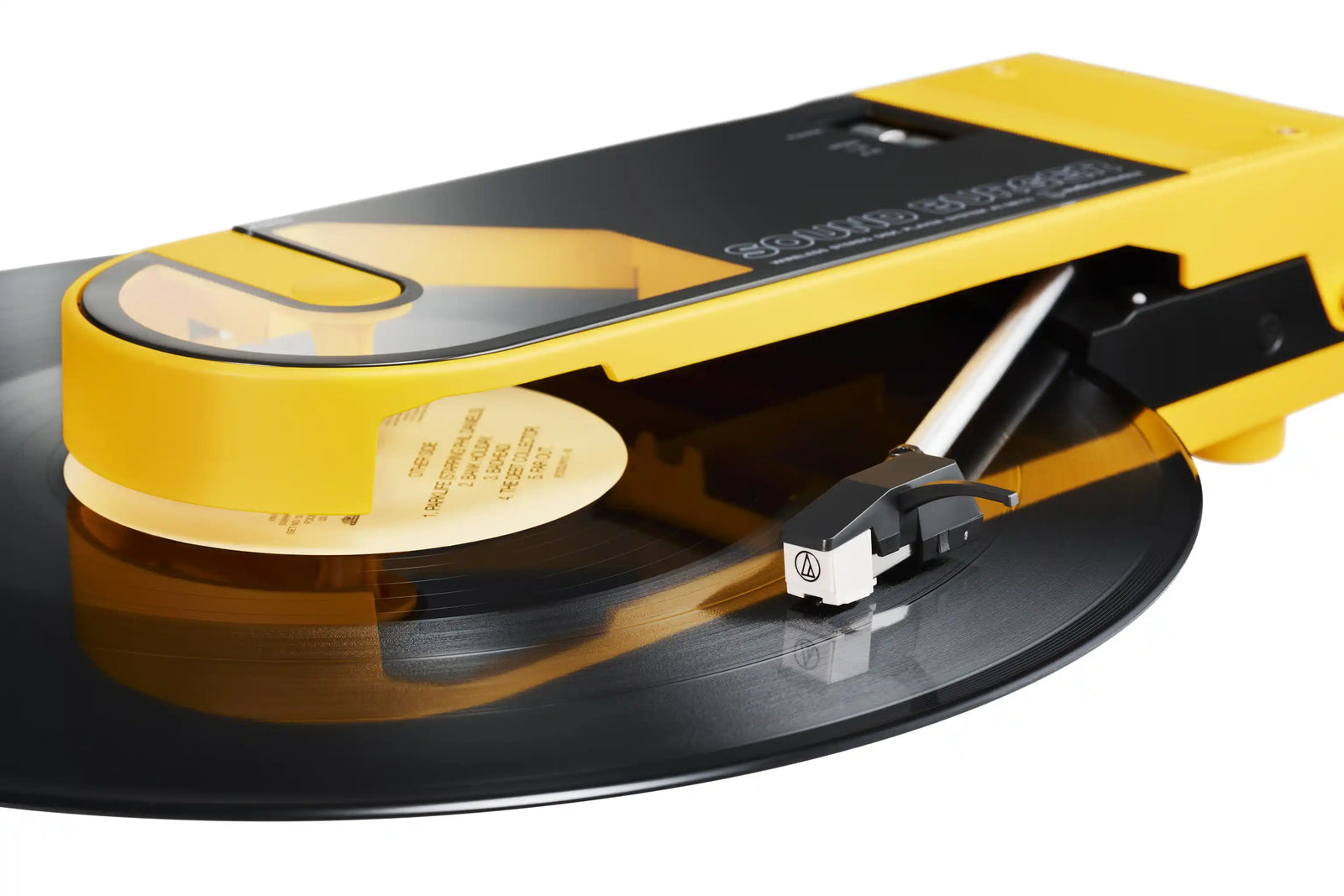

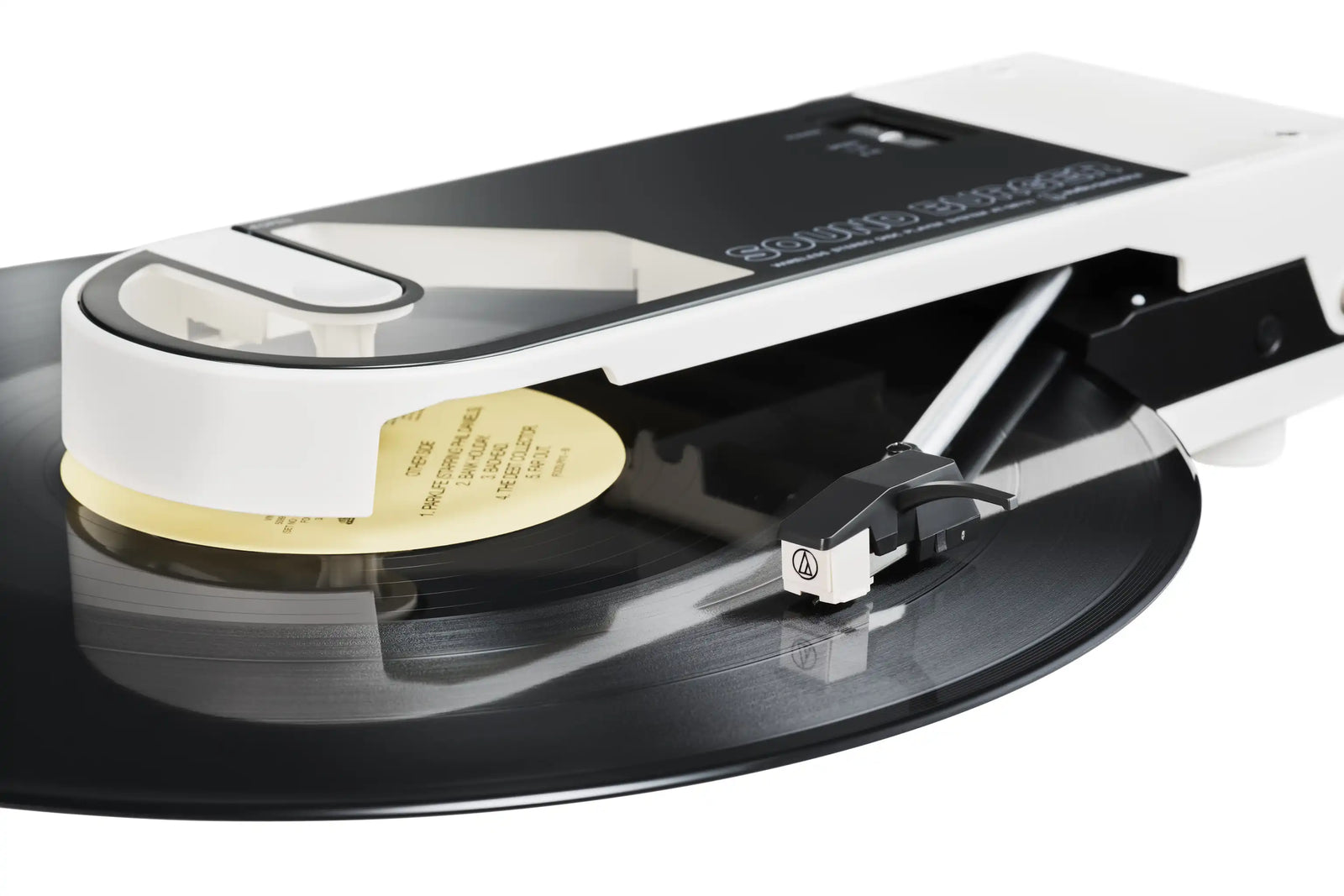

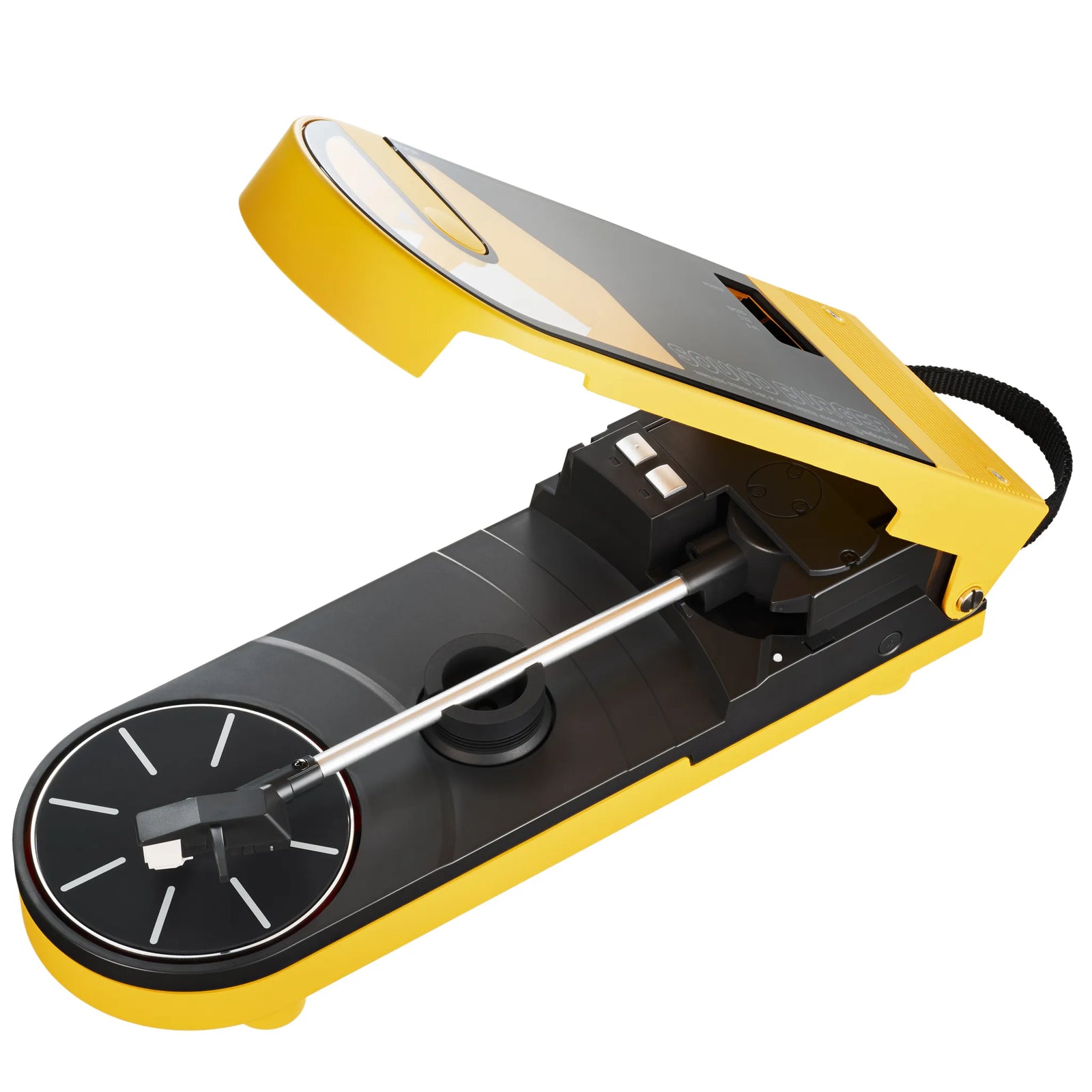

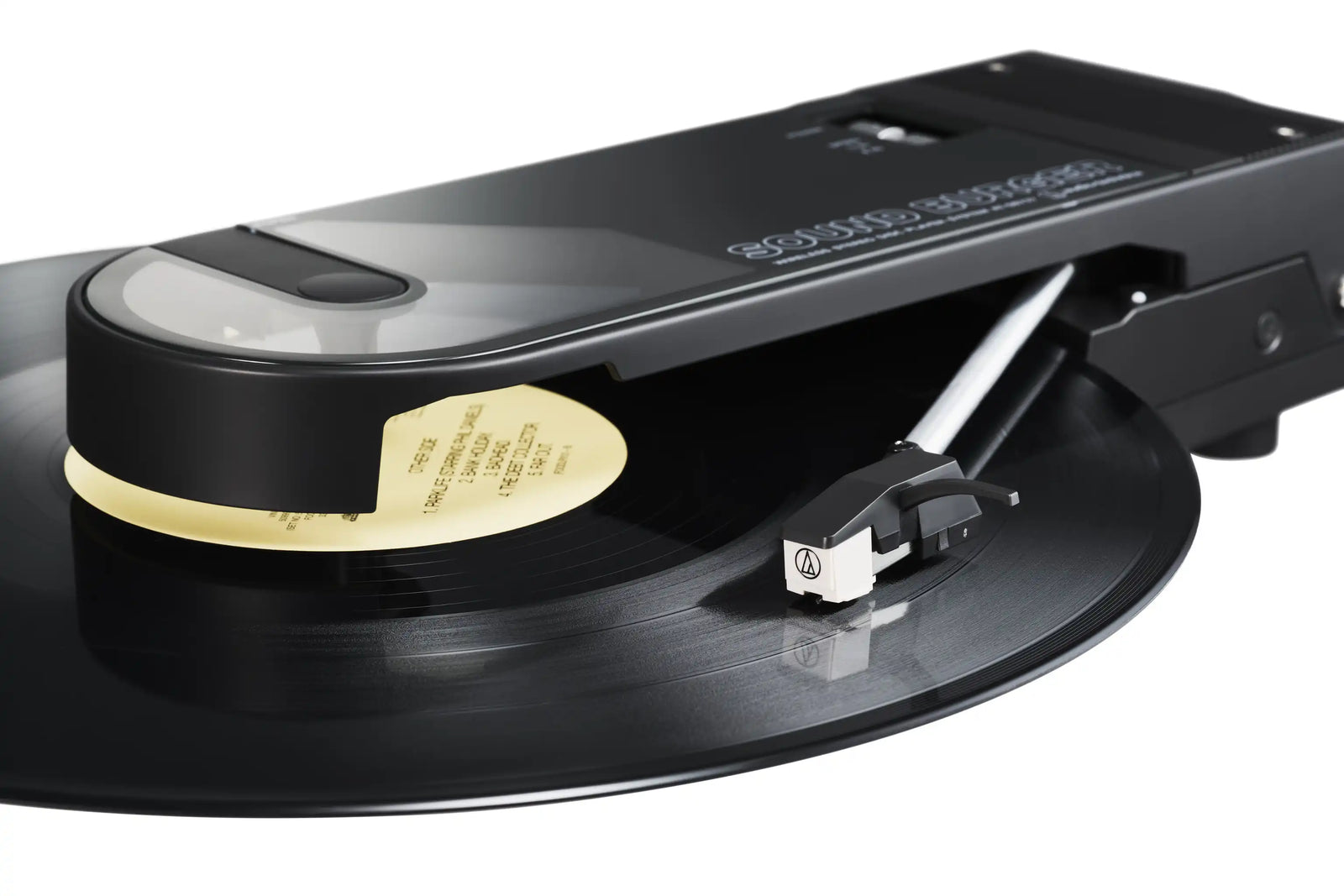

    To achieve both portability and stability, the tonearm employs a dynamic balance system in which stylus pressure is applied via a spring. In addition, a high-precision DC motor maintains stable rotation.

    The stylus on the Sound Burger can be replaced with the ATN3600L (sold separately).

    Communication system

    Bluetooth version 5.2

    Maximum RF output

    10 mW EIRP

    Maximum communication range

    Line of sight – approx. 10 m (33’)

    Frequency band

    2.402 GHz to 2.480 GHz

    Modulation method

    GFSK, Pi/4DQPSK, 8DPSK

    Spread spectrum method

    FHSS

    Compatible Bluetooth profiles

    A2DP, AVRCP

    Supported codec

    SBC

    Transmission band

    20 to 20,000 Hz

     Specifications

    Power supply

    DC 3.6 V lithium ion battery

    Drive method

    Belt-drive

    Motor

    DC servo motor

    Speeds

    33-1/3 RPM, 45 RPM

    Turntable platter

    Aluminium

    Wow and flutter

    < 0.25% (WTD) at 3 kHz

    Signal-to-noise ratio

    > 50dB (DIN-B)

    Cartridge Type

    VM

    Output levels

    150 mV nominal at 1 kHz, 5 cm/sec (No phono-output)

    Phono Pre-amp gain

    36 dB nominal, RIAA equalized

    Charging specification

    5 V  0.5 A

    Power consumption

    1.5 W (when charging)

    Charging time

    Approx. 12 hours*

    Operating time

    Approx. 12 hours*

    Input jack

    USB Type-C jack

    Dimensions

    100 mm (3.9”) x 290 mm (11”) x 70 mm (2.8”) (WxDxH)

    Weight

    Approx. 900 g (32 oz)

    Colour

    SB727 BK (Black)

    SB727 WH (White)

    SB727 YW (Yellow)

    Operating temperature

    5°C to 40°C (41°F to 104°F)

    Included accessories

    • USB cable (1.5 m (5’), USB Type-A – USB Type-C)
    • RCA­ audio cable
    • 45 RPM adapter

    Replacement stylus (sold separately)

    ATN3600L

    * The figures above depend on the operating conditions.

    For product improvement, the product is subject to modification without notice.
