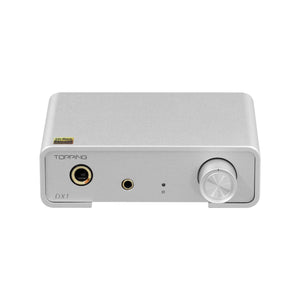

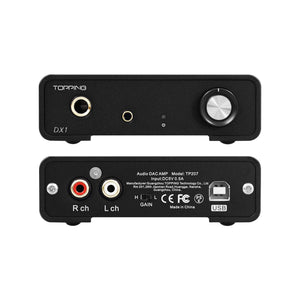

  • Topping DX1 DAC & AMP


    DX1 DAC Parameters (USB ln@44. 1kHz )
    THD+N @1kHz (A-wt)<0.0002 %
    THD @20-20kHz 90kBW<0.0006%
    SNR @1kHz (A-wt):120dB
    Dynamic range @1kHz (A-wt):120dB
    Frequency Response:
    20Hz-20kHz (±0.3dB)
    20Hz-40kHz (±0.7dB)
    Output Level:2.0Vrms @0dBFS
    Noise (A-wt) <2.0uVrms
    Channel Crosstalk @1kHz:-112dB
    Channel Balance: 0.3 dB
    Output Impedance: 22Ω

    DX1 Headphone Amplifier Specifications
    THD+N @1kHz ( A-wt)
    <0.0003% @ Output= 200mW (32Ω)
    <0.0002% @Output= 4 5mW (300Ω)
    THD @20-20kHz 90kB W
    <0.003% @Output= 200mW (32Ω)
    <0.001% @Output= 45mW (300Ω)
    SNR @MAX OUT 1kHz ( A-wt): 118dB
    Dynamic Range @1kHz (A-wt): 118dB
    Frequency Response
    20Hz 20kHz (±0.3dB)
    20Hz-40kHz (±0.7dB)
    Output Level
    2.2Vpp @G=L
    11Vpp @G=H
    Noise ( A-wt)< 1.0uVrms
    Channel Crosstalk @ 1kHz: -86dB
    Gain: -2dB (Vrms/FS) @G=L
            12dB (Vrms/FS) @G=H
    Output Impedance< 0.5Ω
    Output Power
    280mW X 2 @32Ω THD+N<0.1 %
    190mW X 2 @64Ω THD+N<0.1 %
    51mW X 2 @300Ω THD+N<0.1 %
    Load Impedance>8Ω
