    Denafrips Gaia Digital Converter 12th

    🚚 Order within the next 2 hours, 15 minutes for delivery by 17 Apr, 2024.
    Color
    Black
    Silver
    1.The GAIA is our flagship Digital To Digital Converter. It took us a good 3 years to perfect the development. It leveraged the technologies found in our award-winning DAC, namely, Proprietary FPGA DSP Processing, FIFO Buffer & Reclocking, Industry Leading USB Audio Interface Solution via STM32F466 Advanced AMR based MCU.

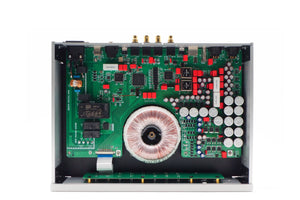

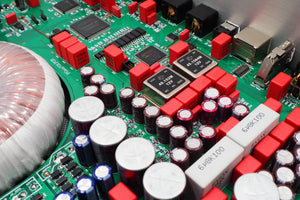

    2.More than 8 sets of Ultra Low Noise, Precision Linear Power Regulars along with oversized O-Core Transformer, delivers clean power to the digital circuitry effortlessly.

    We do not limit the GAIA to process only the USB signal. We raised the bar. The GAIA accepts USB, SPDIF (Coax, TOSLink, AES/EBU) inputs. These digital signal data-stream will be FIFO buffered and reclocked via the Precision Oven Controlled Crystal Oscillator OCXO. This process eliminates the jitter to negligible level, ensuring the digital output signal are free from the harmful jitter noise. The use of OCXO plays an important role here.

    3.If you are still on the fence to look for a D/D Converter that can potentially improve the sonic performance of your system, look no further. GAIA is the best companion that work with most DAC brands & models in the market. Own it and get it setup in your system to hear the difference.

    Technical Highlights:
    Proprietary FPGA DSP Processing Architecture
    FIFO Buffer and Reclock with Internal Crystal
    Precision Oven Controlled Crystal Oscillator OCXO
    Optical Isolated All Digital Input Interfaces
    Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
    Licensed Thesycon USB Driver For Windows Platform
    Driverless On Mac & Linux
    Dual AES/EBU Output Supported
    External Clocks Input Supported

    DSD:
    DSD64-DoP On All Input & Output
    Upto DSD512 On USB Input & I²S Output

    PCM:
    24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input & Output
    Upto 768kHz On USB Input & I²S Output

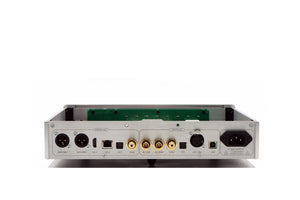

    Digital Input:
    Coax SPDIF via RCA
    TOSLink x 1
    AES/EBU x 1
    USB

    External Clock Input:
    45.1548MHz
    49.152Mhz

    Digital Output:
    Coax SPDIF via RCA
    TOSLink x 1
    AES/EBU x 2
    I²S HDMI LVDS Standard
    I²S RJ45 LVCMOS Standard

    AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage)
    Power Consumption: ≤20W
    Dimension: 340W x 260D x 66H mm (Feet +18mm)
    Package Content: DDC. No remote control & power cord.
    Weight: 6 Kg
    Color: Black/Silver
