    7HZ 71 USB DAC & AMP

    🚚 Order within the next 2 hours, 15 minutes for delivery by 17 Jul, 2024.

    Features

    • AKM AK4377 Chipset
    • Applicable to Android 5.1 or Higher Version And Lightning Connector
    • High-end 4-pin 36-core OCC cable
    • Battery-Free Design, Plug And Play

    AKM AK4377 Chipset

    7HZ SEVENHERTZ 71 adopts AKM's AK4377 chip to process digital signals. It is smaller than other chips and uses 36-pin CSP packaging, which requires less space on the circuit board. The upgrade AK4377 chip can analyze each format audio signal. For better sound quality, a 32-bit digital filter is integrated into the circuit, allowing a lower distortion rate and a wider sound field.

    Applicable to Android 5.1 or Higher Version And Lightning Connector

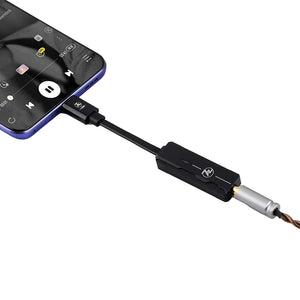

    The 7HZ SEVENHERTZ 71 Portable Headphone Amplifier is small but powerful. It can effectively improve the sound quality representation of devices such as mobile phones, music players, etc. SEVENHERTZ 71 is mainly applied to mobile phones and it is suitable for Android 5.1 and above. Besides, SEVENHERTZ 71 can compatible with Apple Lightning connection.

    High-end 4-pin 36-core OCC cable

    As a portable headphone amplifier, the 7HZ SEVENHERTZ71 not only adopts an upgraded DAC chip but was also designed with high-end cables. 7HZ SEVENHERTZ 71 cables use four 36-core OCC cables, which can transmit digital and analog signals losslessly. The cables are hand-woven and extremely robust, enhancing the resistance to breakage.

    Battery-Free Design, Plug And Play

    The 7HZ SEVENHERTZ 71 Potable Headphone Amplifier used a battery-free design. The AK4377 chip is easy to drive and the impedance of the circuitry in this amplifier is also low, meaning that not much power is required. This means that this potable amplifier can be driven with low power. The battery-free design means that there is no need to worry about running out of power during use. You can use this Potable Amplifier anytime, anywhere.

    Specifications
    DAC Chip: AK4377
    THD+N: -108dB/0.0004%@32 ohms
    Output Power: 70 mW@32 ohms
    Output Voltage: 1 Virms@32 ohms
    Sensitivity: 106 dB
    Frequency Range: 20 Hz-40 kHz
    Noise: <0.9 μV
    PCM Decoding: 32bit/384KHz Maximum
    DSD: DSD64; DSD128 (DOP)
