| FEATURES | |||
|---|---|---|---|
| Type | Headphone amplifier and DAC | ||
| Volume control | Via ALPS potentiometer (from -90dB to 0dB) | ||
| DAC | PCM5102 Burr Brown | ||
| Input | USB-C | ||

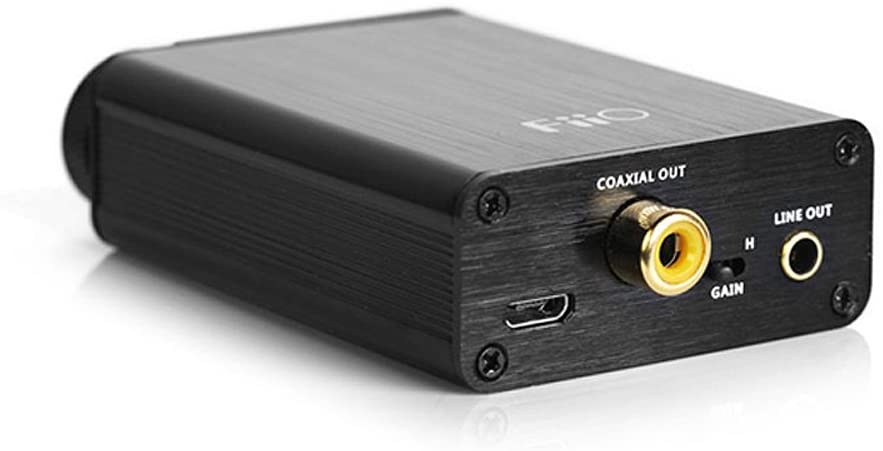

| Outputs | 1x 3.5mm analog line level jack (2Vrms) 1x 3.5mm headphone jack 1x SPDIF Coaxial digital |
||
| Signal to noise ratio | 114dB | ||
| Frequency response | 20Hz - 20kHz | ||
| Accepted sampling rates | 32Bit / 384khz | ||
| Headphone amplification | LMH6643 + OPA1662 | ||
| Accepted headphone impedances | 16 - 150 Ohm | ||
| Output impedance | < 1.2 Ohm (32 Ohm) | ||
| Power output | 219mW sous 32 Ohm | ||
| Gain | L : +1.6dB / H : +8.8dB | ||

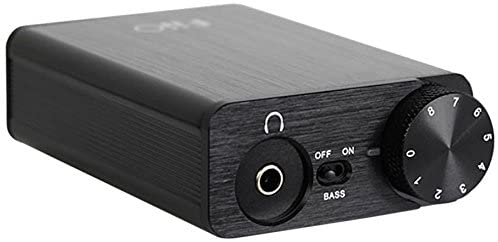

| Bass boosting | OFF : 0dB / ON : +3dB | ||
| Supply voltage | 5V 500mA (Via USB) | ||
| Dimensions | 79x21x49mm | ||
| Weight | 78g net | ||
| PACKAGE CONTENTS | |
|---|---|
| E10K TC | x1 |
| Mini-USB to USB cable | x1 |
| Cable 3.5mm jack angled to 3.5mm jack angled | x1 |
| Manual | x1 |
| Anti-slip rubber pad | x4 |
