VINSHINE x LHY SW-10PRO

Technical Highlights

• High-End 1G/2.5G Audiophile Ethernet Switch with Integrated OCXO Master Clock

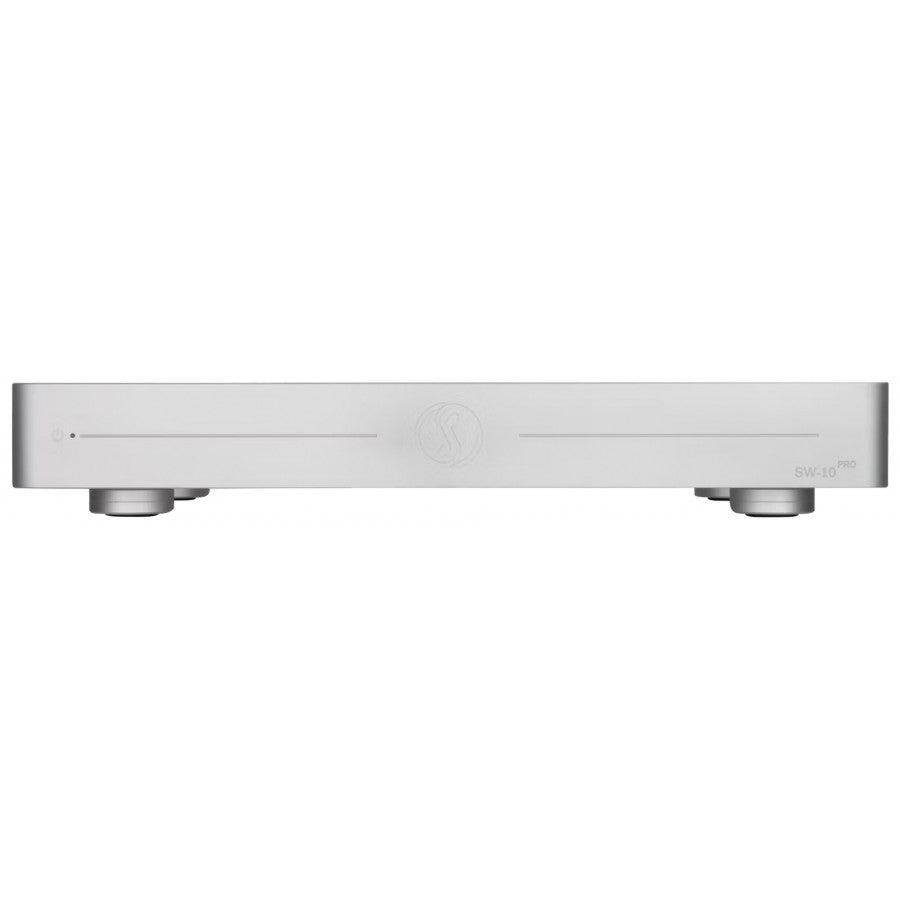

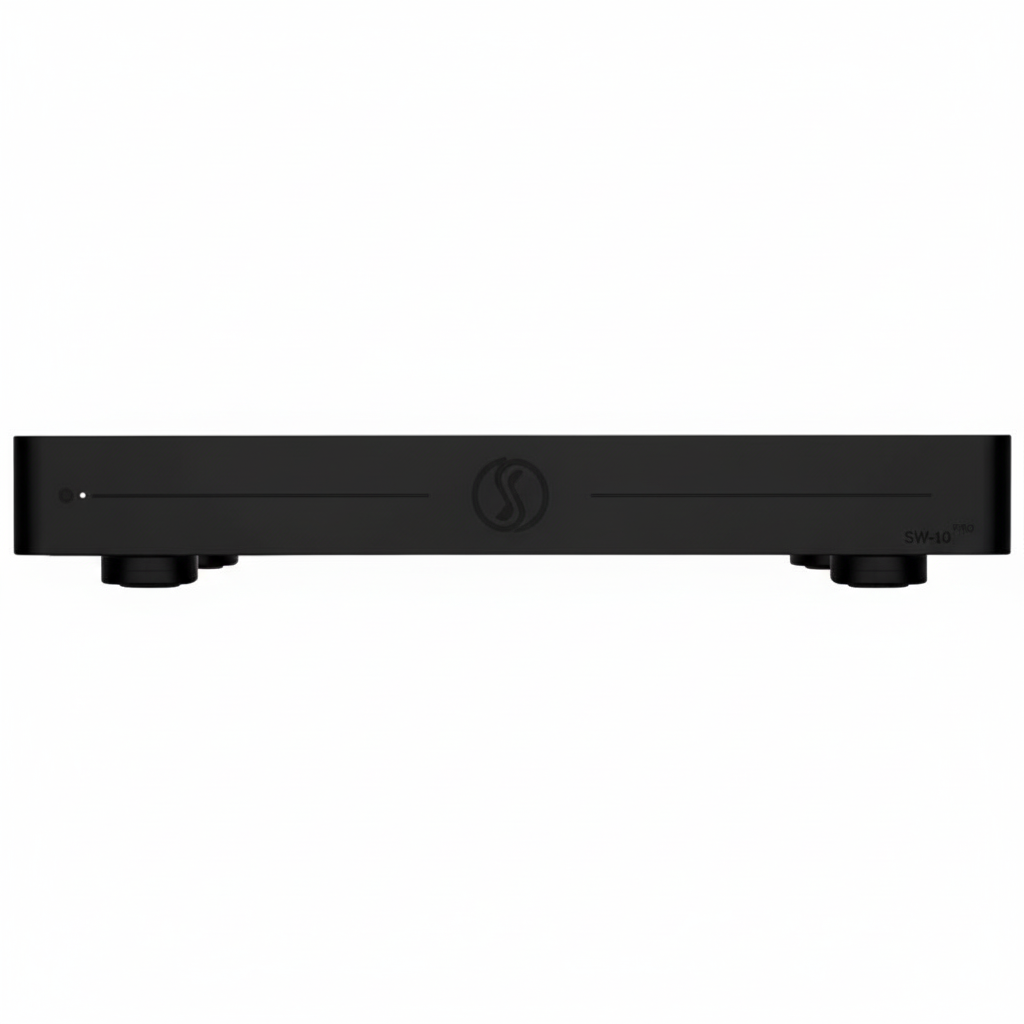

• CNC-Machined Solid Billet Aluminum Chassis [Silver / Black]

• All-in-One Architecture: Segregated 2.5G Main Switching Zone + 1G Isolated Audio Zone + Ultra-Low Phase Noise Clock

• Built-in Dual Single-Mode Optical Fiber Links for Zone Isolation (Optical-Electrical Separation)

• AC Inlet: High-Quality IEC with Power Switch and Fuse Protection

• AC Noise Filtering: UK RIFA RFI Suppression Capacitors and EMI Filter

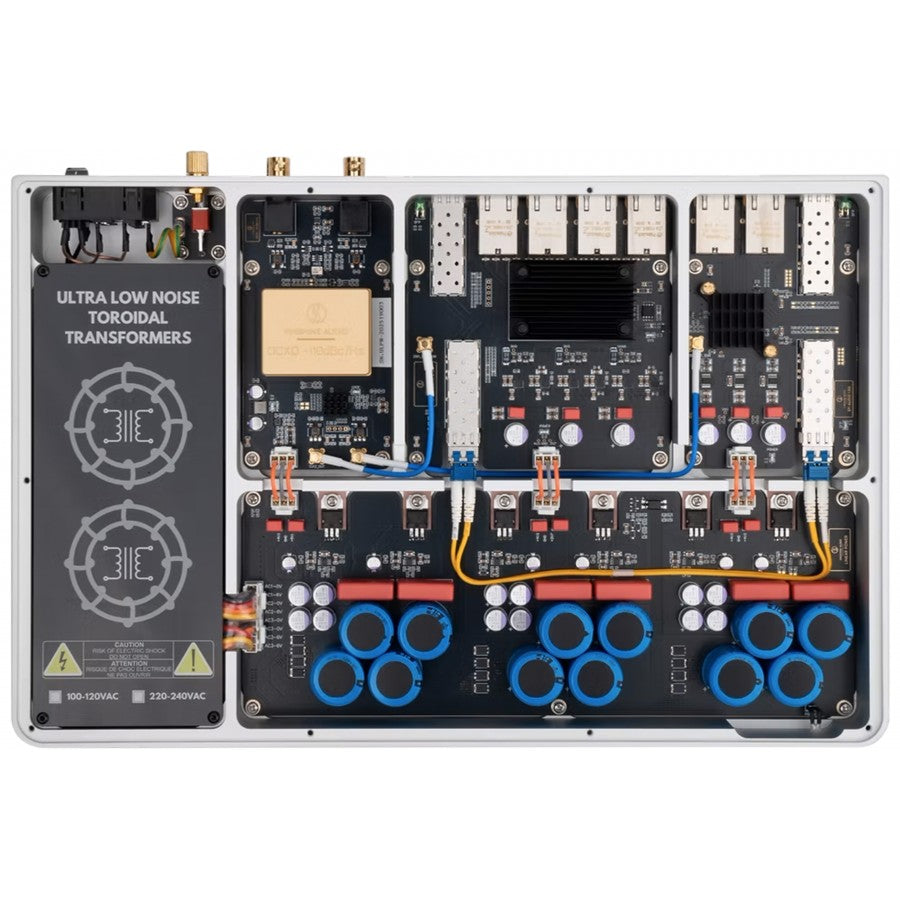

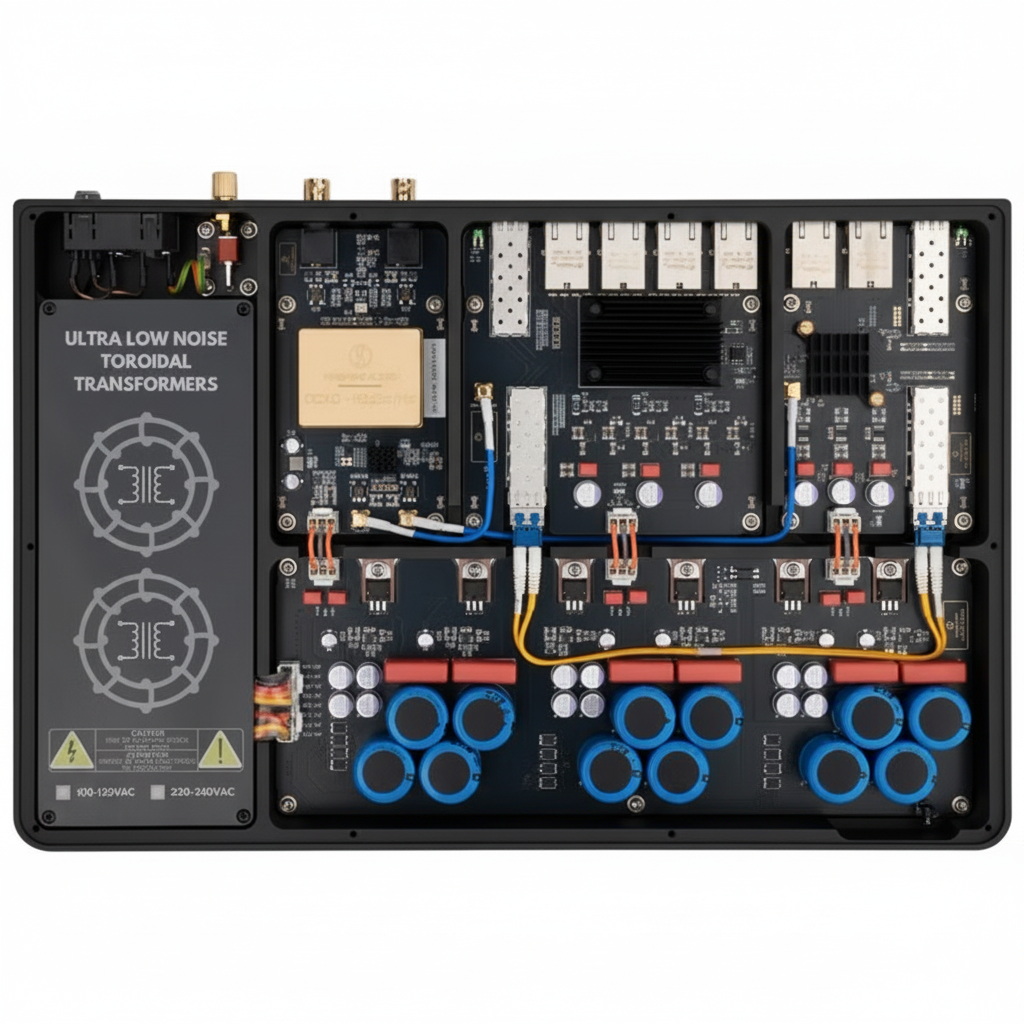

• Dual 50VA Audio-Grade Toroidal Transformers (Multicomp NORATEL Series)

• 18 Sets of Multi-Stage uV-Class Linear Power Regulation, Fully Linear , LDO

• Premium Vishay BC056 12x 4700uF Reservoir Capacitors

• SC-CUT Dual Thermostatically-Controlled OCXO with High-end PLL Synthesizer

• Ultra-Low Phase Noise: Better than -110 dBc/Hz

• Reclocking of Internal Network Zones & External Clock Output

• Master Clock Functionality: Two 10MHz BNC Outputs (50Ω-75Ω, Squarewave)

• Integrated Passive Thermal Management via Chassis Heatsinking

• Isolated Ground Terminal with Ground Lift Switch for Ground Loop Management

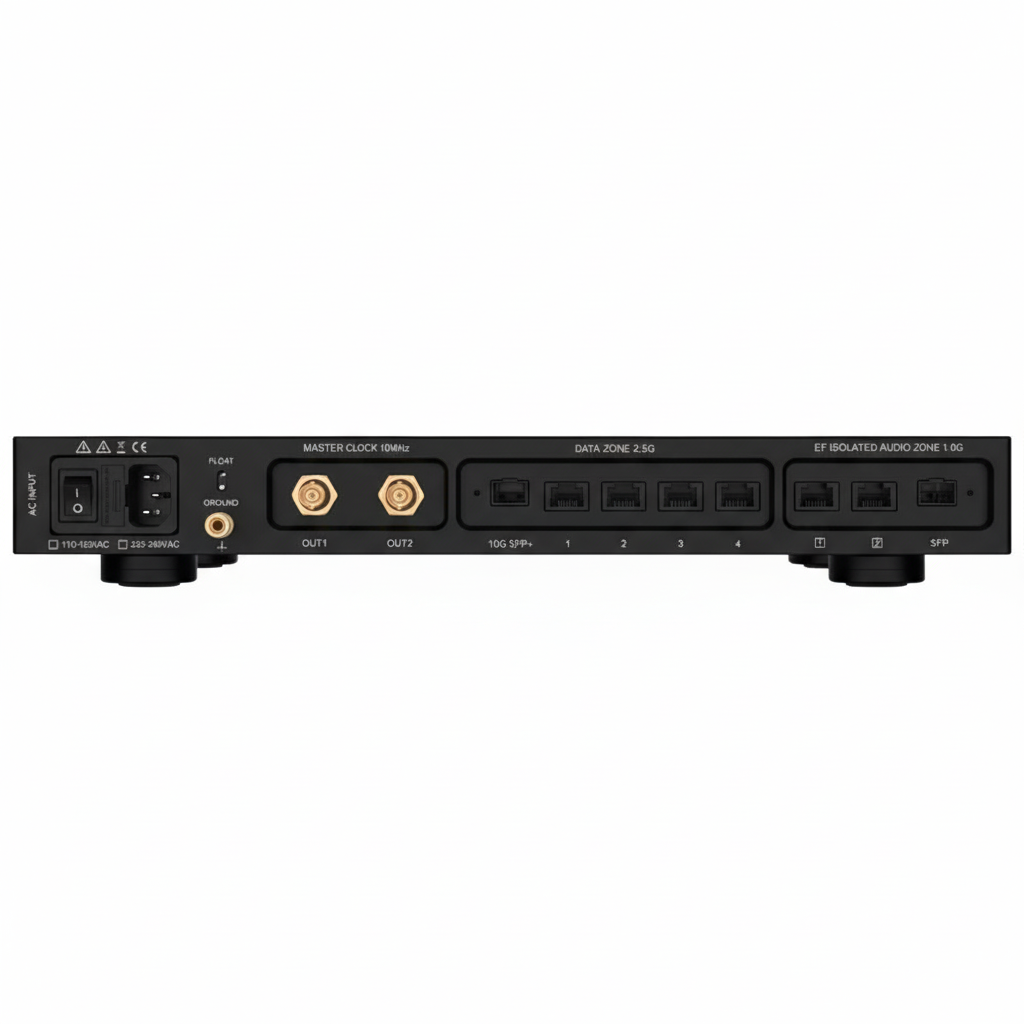

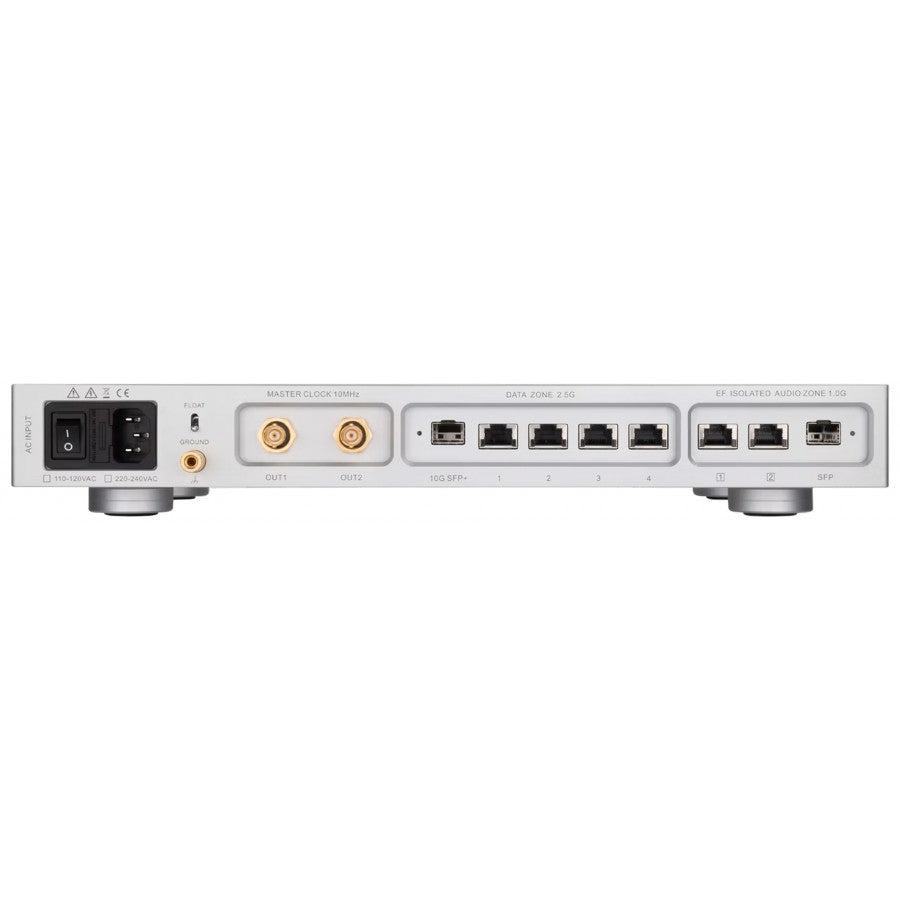

Connectivity

• 4 × RJ-45 2.5G Gigabit Ethernet Ports (Red Zone)

• 2 × RJ-45 Isolated 1G Gigabit Port (Green Zone - Audio)

• 1 × SFP Port for Fiber Input (Red Zone)

• 1 × SFP Port for Fiber Input (Green Zone - Audio)

• 2 × 10MHz Master Clock Outputs (BNC, 50Ω - 75Ω)

OCXO & Master Clock

• Oscillator Type: SC-CUT OCXO (Dual, Independent Chambers)

• Phase Noise: Better than -110 dBc/Hz @ 1Hz Offset

• Clock Distribution: Internal Zones & External Devices

• External Clock Output: 2 x 10MHz BNC, 50Ω-75Ω  (Square Wave)
