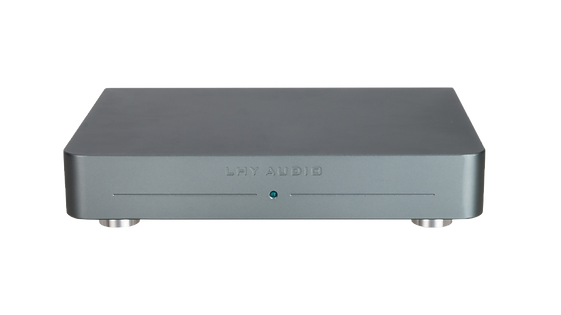

    LHY AUDIO OCK-2 Master Clock

    Technical Highlight:

    • CNC Milled Aluminum Chassis [Gun Metal Grey/Green]
    • AC Incoming: High Quality IEC with Fuse & Switch
    • AC Noise Filter: UK RIFA RFI Suppression Caps & Noise Filter
    • AC Transformer: High Quality Encapsulated Talema Transformer
    • High Speed Rectifier
    • High Endurance Reservoir Caps
    • Phillips 1% Precision Resistors
    • Multistages DC/DC Power Supply low noise (lab measurable noise in the range of uV) for OCXO



    OCXO

    - High quality SUPER SC-CUT Oven Controlled Crystal Oscillator

    - Each OCXO are hand-picked measured at 10.000000MHz accuracy



    What’s in the package:
    1. LHY OCK-2 Master Clock Generator
    2. Power cord



    What’s not in the package:

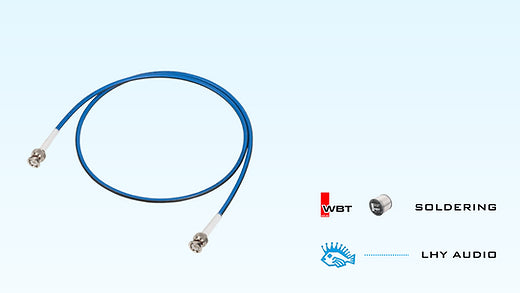

    1. BNC cables not included



    Specifications

    Output Frequency: 10MHz

    No. of Output: 6 x BNC

    Frequency Accuracy: < 300ppb

    Frequency Stability: < 50ppb

    Output Level: >= 7dBm @ 50Rz

    Output Waveform: Square Wave x 3, Sinewave x 3

    Output Impedance: 50Ω / 75Ω (User-Configurable)

    BNC Connector: 75Ω type, compatible with 50Ω

    AC Mains: AC115 / 230V

    Power Consumption: <20w

    Dimension: 240W x 59H x175D (mm)

    Weight: 2.5kg
