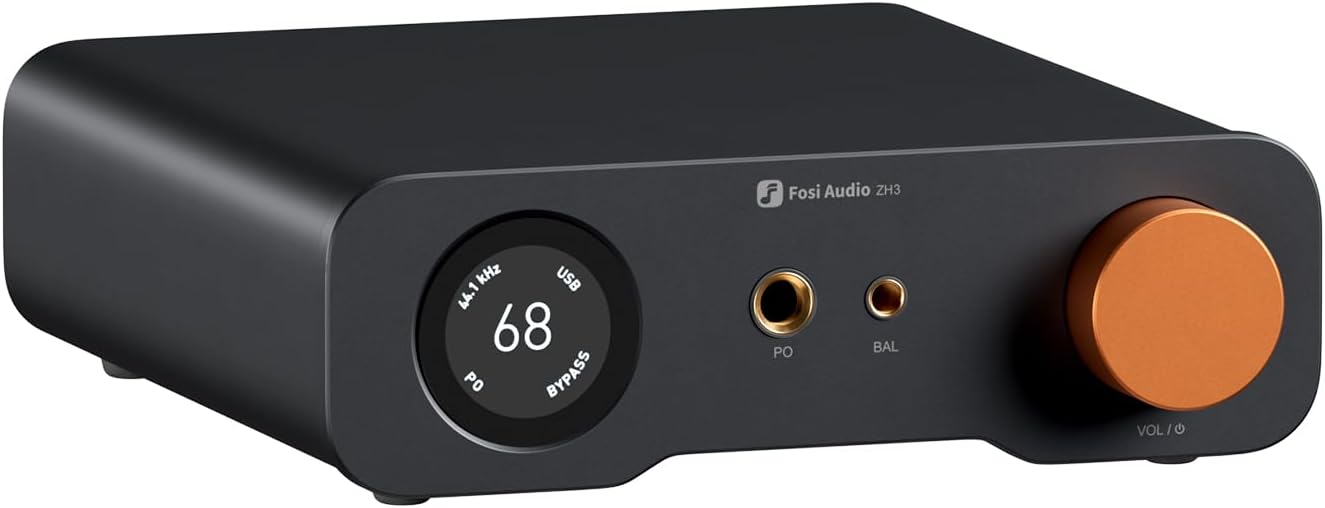

Comprehensive Desktop HiFi Solution
With comprehensive input and output options, the ZH3 functions as a DAC, headphone amplifier, and preamp, which can be connected to IEMs, over-ear headphones, active speakers, and amplifiers. Featuring UAC 1.0 and 2.0, it is also compatible with gaming consoles, ensuring seamless connectivity across multiple desktop devices.
- Chipset: XMOS XU316+AKM4493SEQ+ OPA1612 x 4
- Input: Coaxial/Optical/USB/RCA
- Output: 4.4mm/6.35mm/RCA/XLR
- SINAD ≥ 115dB; SNR ≥ 121dB; THD+N ≤ 0.00018%; Noise Floor ≤ 1.9μV
- An all-in-one desktop HiFi DAC/headphone amp/preamp: With premium chipsets and self-developed fully balanced circuitry, low noise and low distortion. Perfect for HiFi headphones or active speakers, it's the ultimate desktop audio solution.
- Exceptional Sound Quality: Premium chipset with AKM4493SEQ DAC, XMOS XU316 processor, and four OPA1612 amps supports up to PCM 768kHz/32bit & DSD512. A self-developed dual-power balanced amp circuit with multiple ultra-low-noise LDOs and capacitors keeps noise as low as 1.9μV.
- High Output Power: Equipped with both 6.35mm single-ended (640mW@32Ω x2) and 4.4mm balanced (2570mW@32Ω x2) outputs. The 3-level gain switch supports headphones ranging from 16Ω to 300Ω, making it perfect for almost in-ears and over-ear headphones.
- Versatile & Flexible: With coaxial, optical, USB, and RCA inputs, plus 4.4mm, 6.35mm, RCA, and XLR outputs, it connects to diverse audio sources and devices. Functions as a DAC/amp/preamp for desktop HiFi. UAC mode switching ensures full compatibility with game consoles for both music and gaming.

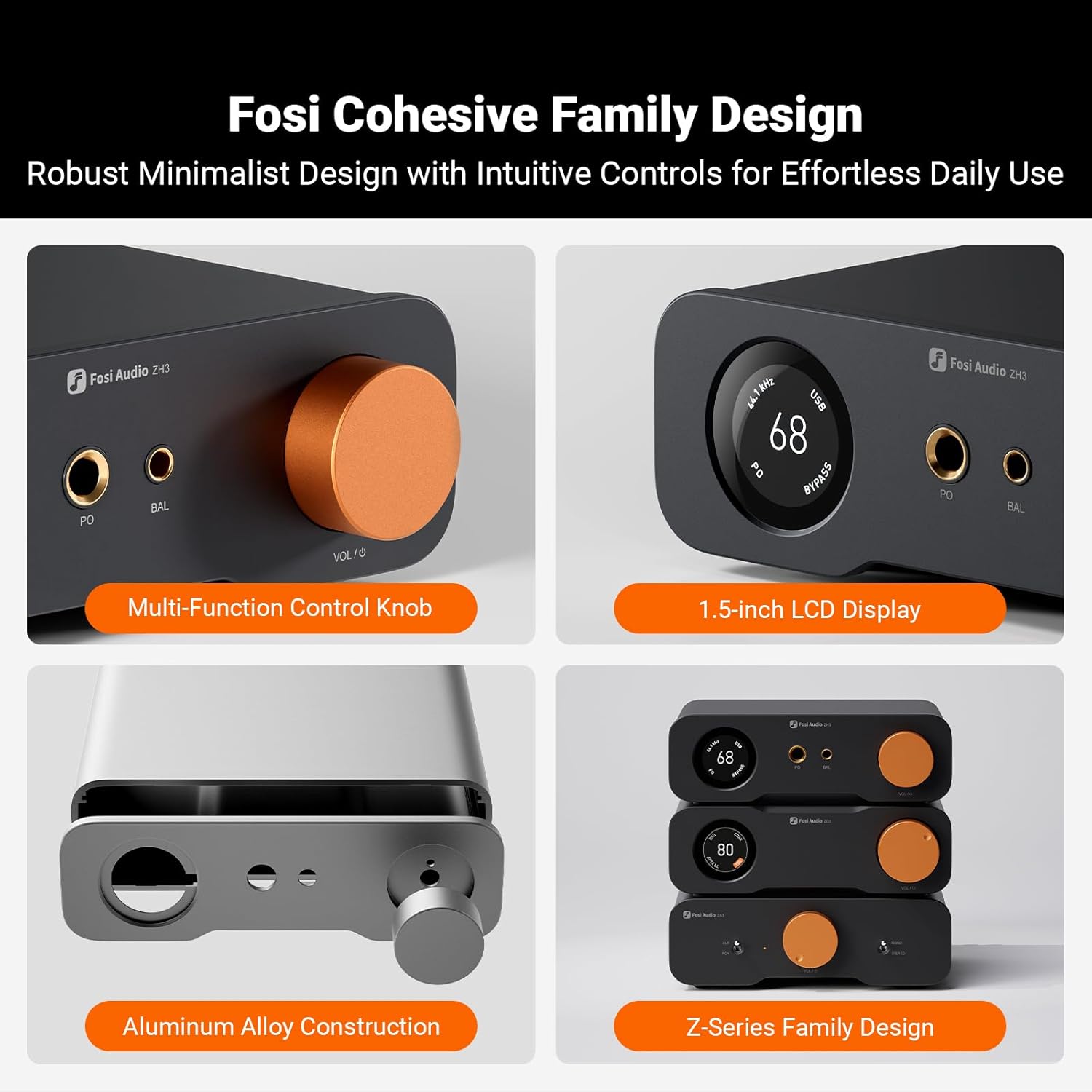

- Rich Customization: Features bass/treble EQ adjustments and 6 filter types, including Bypass mode and two swappable op-amps, allowing you to customize the sound to match your preference. All functions are integrated into the screen for a clean, premium look that continues the Z-Series design language.
FAQ
When do I need to install a driver for ZH3 on Windows?
If your PC is running Windows 7 or earlier. (Note: Windows 7 is no longer updated and may have compatibility issues. Using ZH3 with Windows 7 is not recommended.); To play DSD tracks. (Note: If you use Foobar with the built-in WASAPI plugin for DSD playback, no driver is needed.); To play PCM 768kHz tracks.
USB not recognized?
Faulty or loose USB connection—try a different USB cable; Computer malfunction—try connecting to another computer; Malfunctioning USB port—try another USB port; ZH3 is not set to USB input mode; Driver conflict—go to "Device Manager," find "Audio Inputs and Outputs," uninstall the ZH3 driver, reinstall it, reboot your computer, then reconnect the ZH3 via USB.
If a submenu item appears grayed out, it means the function is not available in the current input/output mode.
USB Input--R/X or LO output: EQ, Bypass, and Gain adjustment not supported; Optical/Coaxial Input--PO output: UAC switching not supported; Optical/Coaxial Input--R/X or LO output: EQ, Bypass, Gain, and UAC switching not supported; RCA Input--PO output: UAC switching and Filter not supported; RCA Input--R/X or LO output: Only input and output selection available.
Can I replace the op-amps in the ZH3?
The ZH3 supports the replacement of two op-amp chips. It utilises easily replaceable DIP8 dual-channel discrete op-amps, catering to your pursuit of a personalised audio experience. Compatible models include the LME49720, NE5532, MUSES02, SS3602, and others. For detailed video tutorials, please consult customer service.

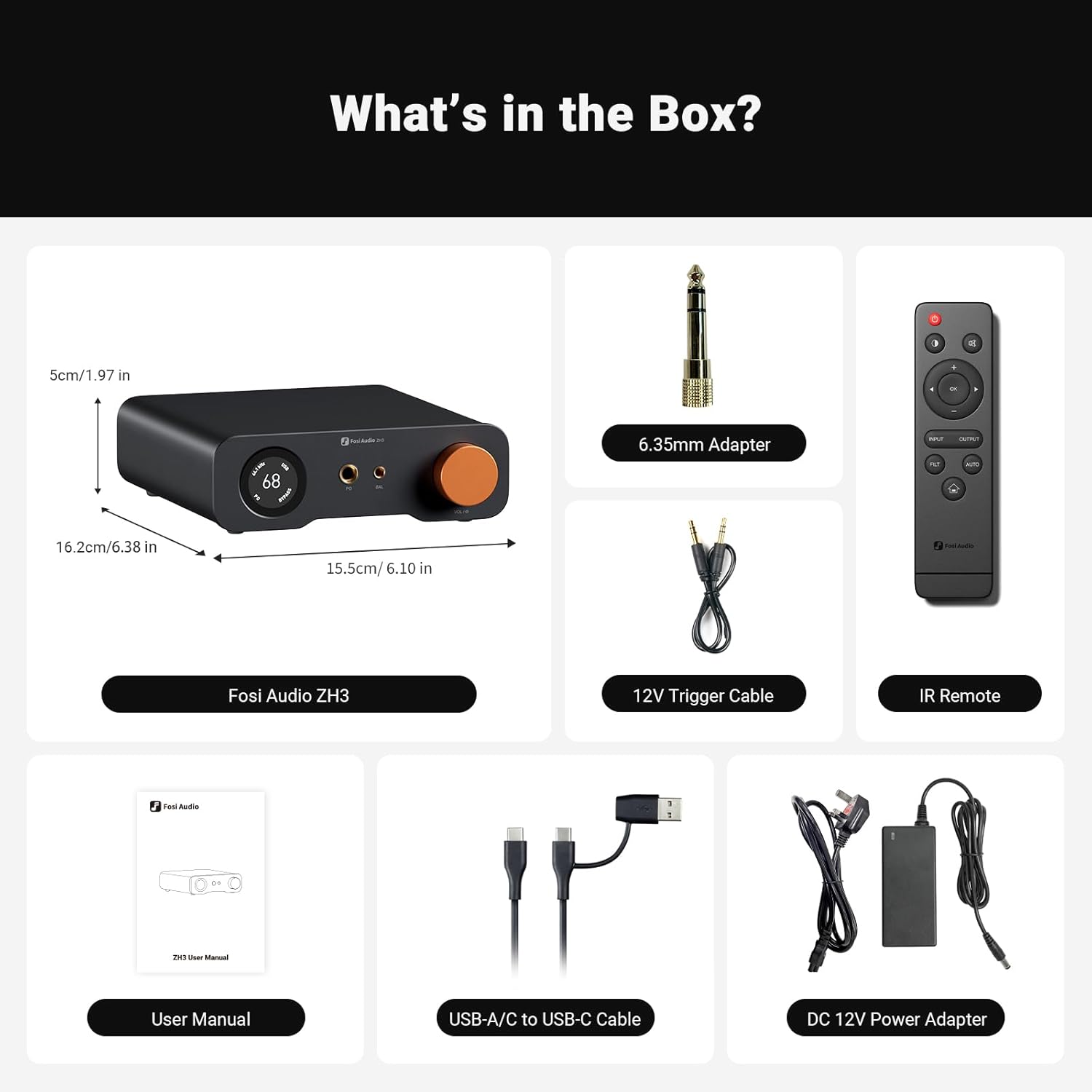

What‘s in the box?
- Fosi Audio ZH3 x 1
- 6.35mm Adapter x 1
- 12V Trigger Cable x 1
- IR Remote x 1
- User Manual x 1
- USB-A/C to USB-C Cable x 1
- DC 12V Power Adapter x1
