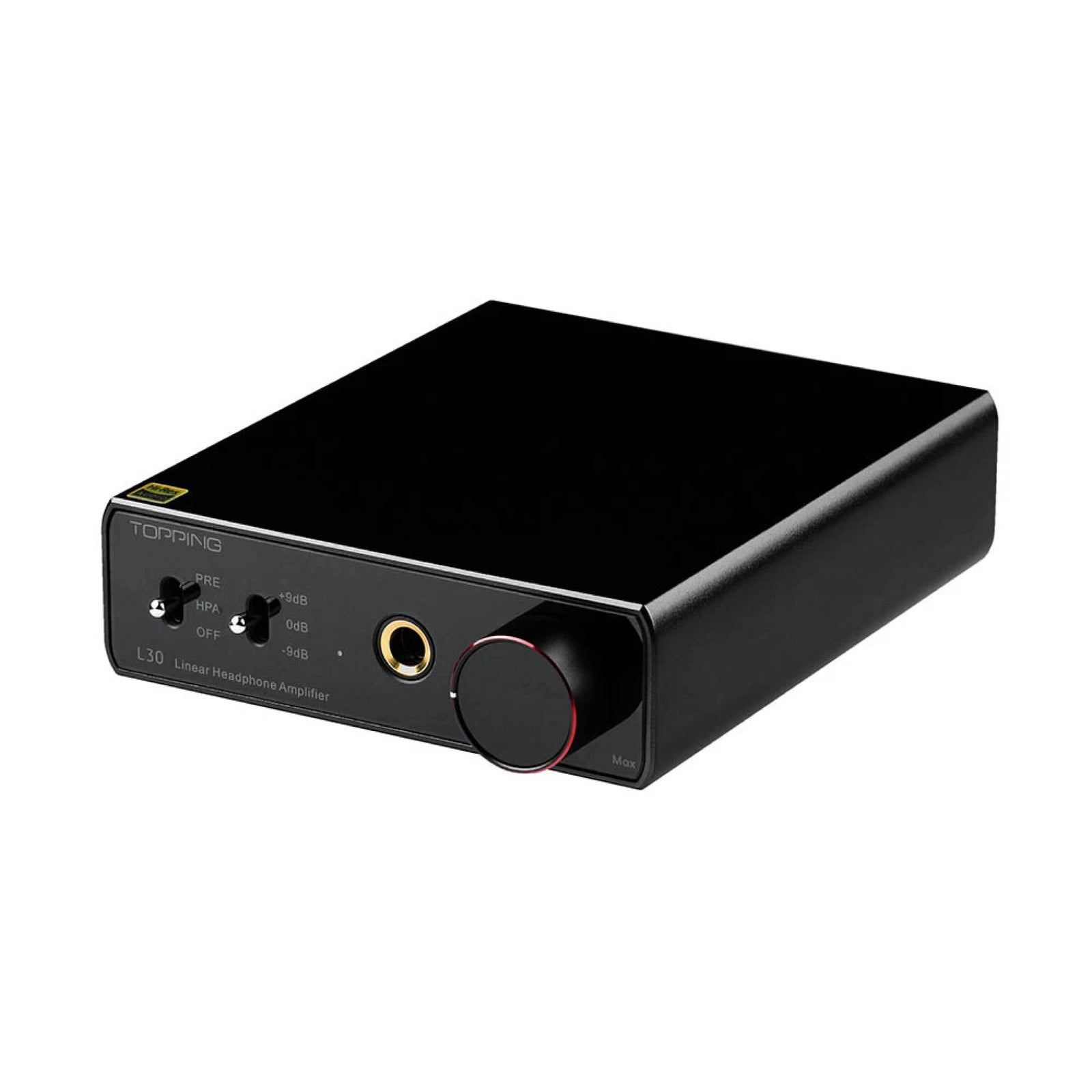

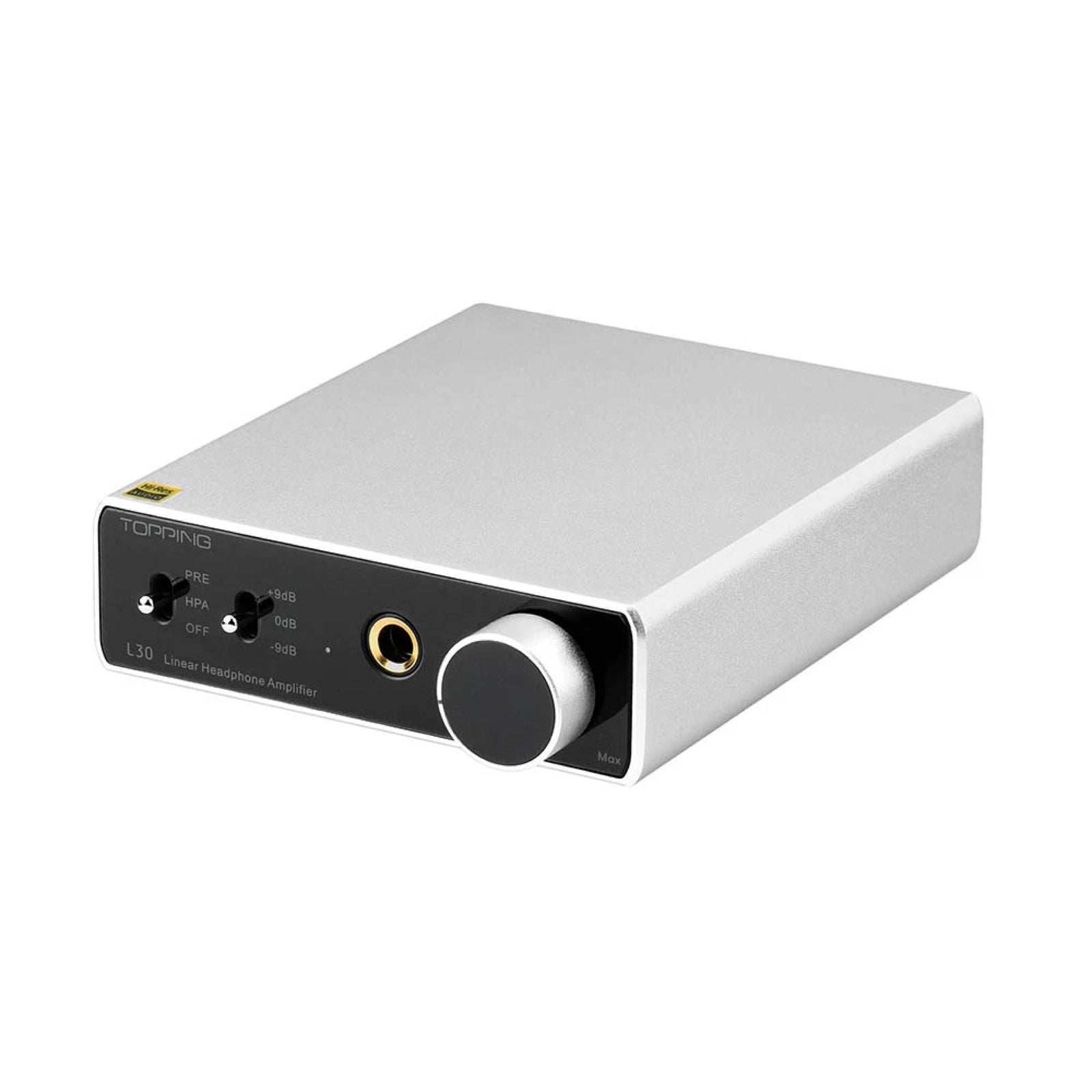

TOPPING L30 Headphone Amplifier
The Topping L30 is a high-performance headphone amplifier and preamplifier featuring flagship NFCA modules. It delivers an impressive 3500mW of power with ultra-low noise, ensuring a pitch-black background. Get it today from Gears for Ears the official dealer at the best price in Bangladesh.
Ultra-High Performance NFCA modules
L30 uses the same NFCA (Nested Feedback Composite Amplifier) module from flagship A90. Voltage Current hybrid feedback architecture along with UHGF (Ultra High Gain Feedback) technology provides excellent DC and AC performance. High output current drive capability allows the amp driving low impedance headphones with ease. Ultra-low noise of 0.3uV is miles ahead of the competition, giving an absurdly high dynamic range of 141dB and no audible noise and darkest background for the most sensitive IEMs.
3 step gain settings, adapt to various sensitivities
L30 is equipped with three gain settings of -9.9dB/0dB/9.5dB. Wide range of gain settings and the 0.3uVrms ultra-low noise makes L30 easily adapt to all types of headphones from extremely sensitive IEMs to most power demanding full-sized over-ears.
Wide range of adaptation to headphones
L30 has a high voltage swing of 26Vp-p, power of 3500mW per channel when both channels are driven and output impedance of less than 0.1Ohm. It easily drives power-hungry headphones with a wide range of different impedance.
Also an excellent preamp
The NFCA modules of L30 are not only able to drive the headphones but also apply to be a preamplifier with the same ultra-high performance. When it is in preamp mode, output impedance is as low as 20ohm, which is widely suitable for various devices.
Product parameters
- Headphone amp/Preamplifier application
- Hi-Res Audio
- Gain: 3 step gain settings
- Modules: NFCA Modules
- THD+N: 0.00007%
- DNR: 141dB
- Noise: 0.3uVrms*
- Output Impedance: 0.1Ω
- Maximum output power: 3500mWx2

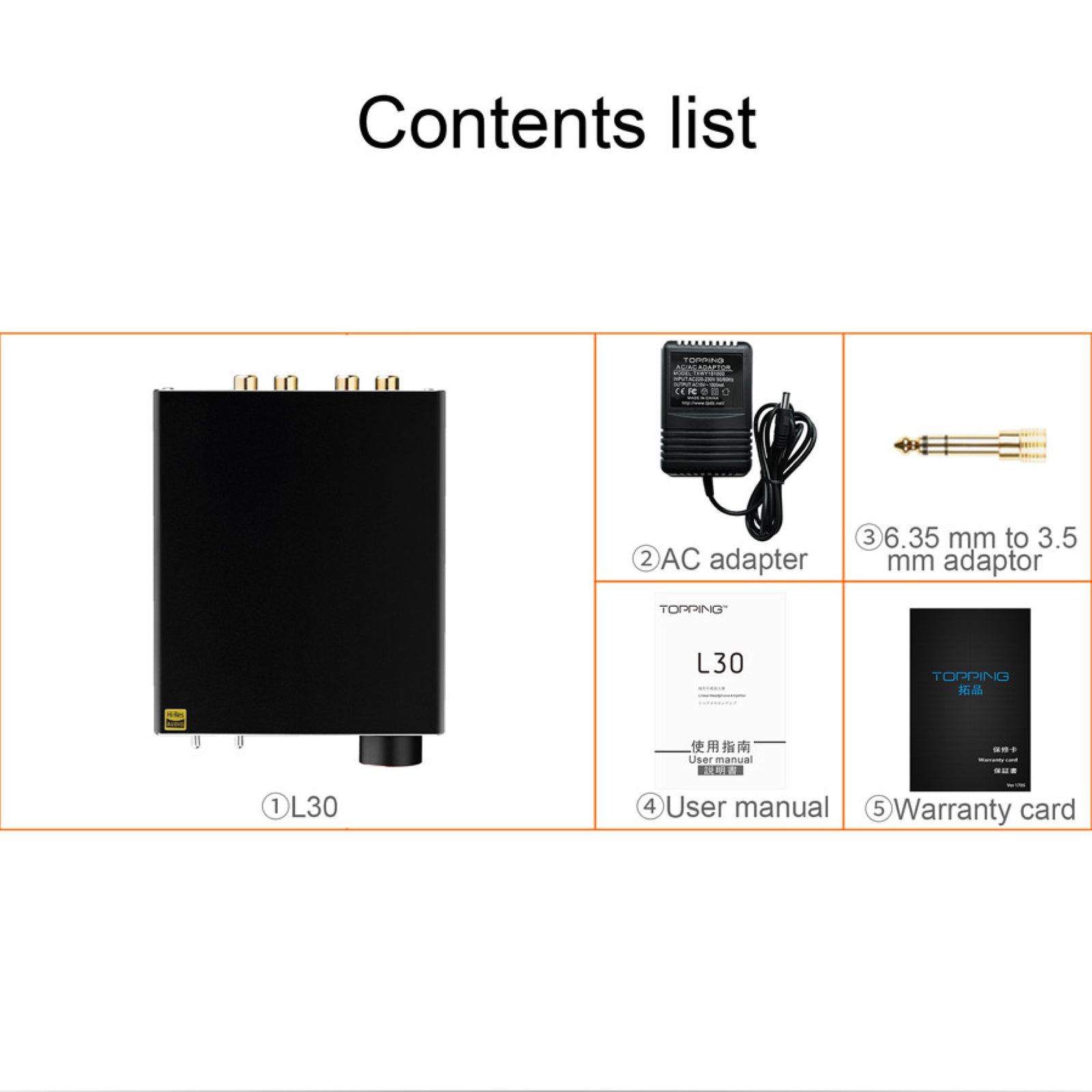

Contents list
- L30*1
- AC adapter*1
- 6.35mm to 3.5mm adaptora*1
- User manual *1
