Engineered for Audiophiles - Optimal Choice for Home Audio Systems

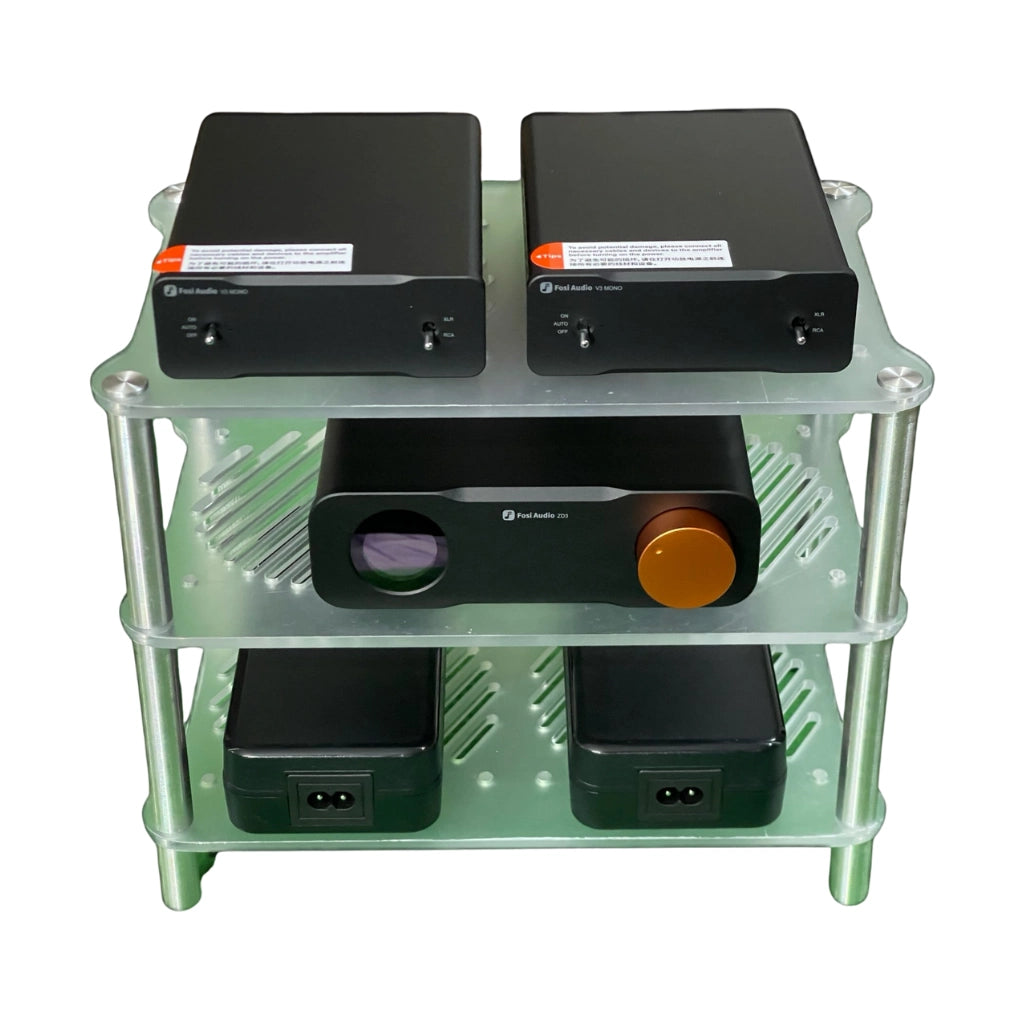

In 2023, following the launch of the V3 stereo amplifier, we received numerous valuable suggestions and feedback from our global audio lovers. We listen intently, record diligently, and develop with dedication, ultimately striving to transform your suggestions and ideas into reality—the V3 mono.
- Input: RCA, XLR, ¼" TRS; Output: Passive Speaker (supports banana plug or bare wire connection)
- SINAD: XLR--101dB; RCA--93dB; SNR: ≥123dB
- Rated Power Output: 48V/5A 240W@4Ω; 32V/5A 100W@4Ω
NICHICON Caps, Japanese
Ensure superior sound clarity, longevity, and stable electrical performance, enhancing the fidelity of audio reproduction.
WIMA Caps, German
Provide exceptional sound quality and signal stability, greatly enhancing the audio experience.
Sumida Inductor, Japanese
Offers superior signal purity and noise reduction, elevating the amplifier's sound performance.
ELNA Caps, Japan
Ensure enhanced audio clarity and stability, contributing to a richer sound experience.
Specifications
- Channel : 1.0
- Amplifier Chip : Texas Instruments TPA3255
- Input : RCA, XLR, ¼" TRS
- Output : Speaker Output (supports banana plug or bare wire connection)
- SINAD : XLR: 101dB ; RCA: 93dB
- SNR : ≥123dB
- Dynamic Range : ≥123dB
- THD : ＜0.006%
- Gain : XLR/¼” TRS: 20dB ; RCA: 25dB, 31dB;
- Terminal Impedance : 2-8Ω
- Rated Power Output : 48V/5A--240W@4Ω ; 32V/5A --100W@4Ω
- Frequency Response : 10Hz-30kHz（±0.06dB）
- Input Voltage Range : DC 32-48V
- Standard PSU : 48V/5A
