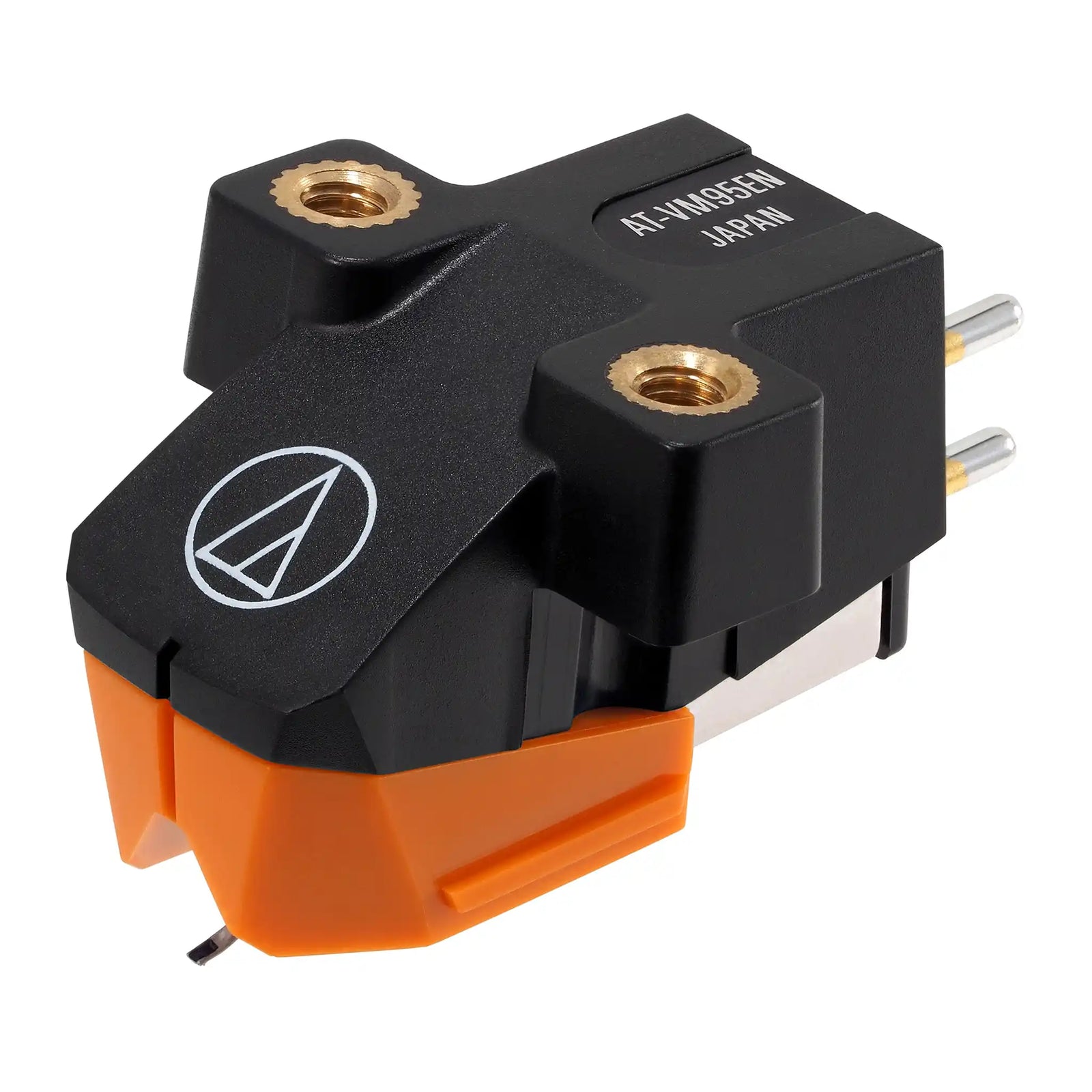

  • Audio-Technica AT-VM95EN Cartridge

    VM95 series Elliptical Nude stereo cartridge

    The AT-VM95EN, features a Nude Elliptical Diamond. The construction of the stylus being a one piece diamond with a round shank inserted in the cantilever creates a lighter and more rigid transmission system than a diamond tip bonded on a round titanium shank such as in the AT-VM95E. Also the use of nude diamond implies a substantial difference in pricing, yet the quality of the reproduction will be immediately noticed, specifically in the fidelity of high frequencies and in the quality of the transient responses.

    • Aluminium cantilever
    • 3.5mV output voltage
    • Compatible body with all VM95 Series stylus assemblies
    • 20 to 23,000Hz frequency response

    VM95 Series - Styli compatibility

    Every cartridge diamond stylus becomes worn after a period of play.

    Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

    Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

    The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

    AT-VMN95C

    AT-VMN95E

    AT-VMN95EN

    AT-VMN95ML

    AT-VMN95SH

    AT-VMN95SP

    AT-VM9E Series compatibility with the AT-XP Series DJ Cartridges

    • The electromagnetic engine-body of XP-Series, is fully compatible with all replacement styli of VM95 Series and will deliver more output voltage than VM95 Series cartridge. So providing improved compatibility with phono inputs of Professional DJ Mixers.
    • VM95 Series electromagnetic engine-body is also compatible with the three replacement styli of the DJ cartridge AT-XP Series, nevertheless, the electromagnetic engine-body of XP-Series, will deliver more output voltage than VM95 Series cartridge in order to provide better compatibility with phono inputs of Professional DJ Mixers.
    • Note that typical tracking force when using XP Series styli is three grams as opposed to two grams for VM95 Series styli.
    • The suspension design and compliance of XP-Series styli have been optimized for intensive DJ’ing, including possible manual cueing and back-cueing.
    • The VM95 Series suspension design and compliances of VM95 Series have been designed for optimum audiophile reproduction.

    ATN-XP7

    ATN-XP5

    ATN-XP3

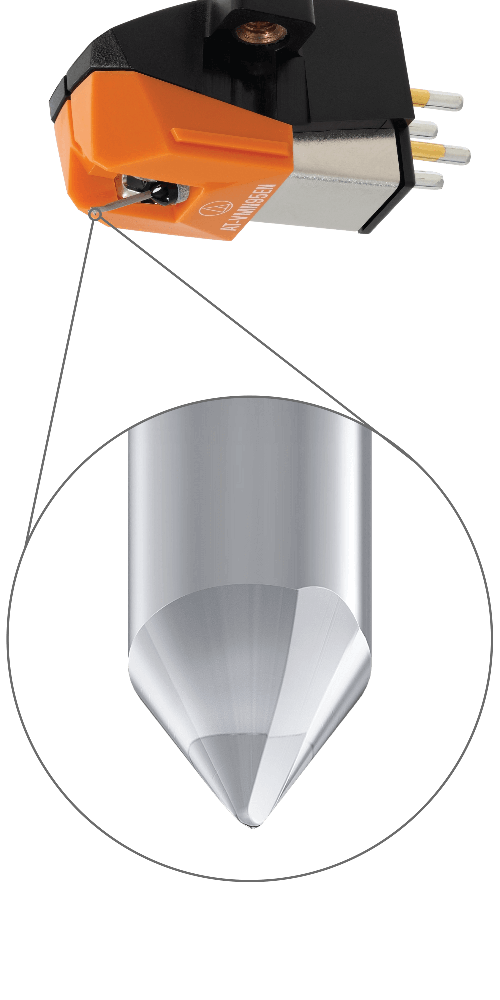

    Elliptical Nude Stylus

    Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.

    No use of nuts

    VM95 Series cartridges features two M2.6 threaded inserts allowing the installation of the cartridge onto tonearm or removable headshell without the use of nuts.Each cartridge is provided with one pair of 8mm M2.6 screws, one pair of 11mm M2.6 screws and two plastic washers.

    Specifications
    Frequency Response 20 - 23,000 Hz
    Channel Separation 22 dB (1 kHz)
    Vertical Tracking Angle 23°
    Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
    Stylus Construction Nude Round Shank
