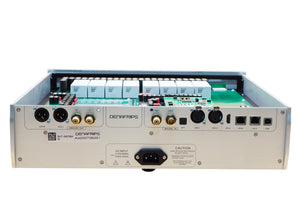

    Denafrips Terminator DAC

    • ♫ Terminator R2R DAC - Denafrips designed fourth generation discrete resistance R2R DAC module, which is true analog sound. It breaks through the limitations of the traditional built-in DAC chip, and the playback effect is the best sound of the best audio.
    • Multiple inputs: Toslink fiber terminator, 2 x AES, 2 x Coaxi, 3 x I2S, can be configured with an external asynchronous USB interface or with digital dial via I2S, supports 32-bit, 1536 kHz DSD1024.
    • Core Conversion Module: The decoding module is built with high precision 0.005% 10 PPM discrete resistors. Each channel uses more than 500 pieces. The whole machine uses up to 1000 resistors to achieve extremely low distortion, which is more than 4 times that of the general R2R decoder.
    • ♫ Clock Processing: The Terminator uses first-in-out (FIFO) technology commonly used in communications, so the decoder's internal clock is hardly affected by the external input signal clock.
    • Excellent resolution: in terms of sound, the width and depth of the sound field, clarity and resolution, low-frequency diving and volume, the realism and texture of the instrument are excellent. The sound is smooth and relaxed, not the kind of stimulating sound.



    Technical Highlights

    • Proprietary R2R + DSD Architecture
    • True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters)
    • Matched Precision Thin Film 0.005% R-2R Network Arrays
    • Encapsulated Flagship Ultra Low Noise Power Supply
    • Oven Controlled Crystals OCXO
    • Adaptive FIFO Buffer Reclocking
    • New Improved Digital Signal Processing FPGA Code
    • DSD1024, PCM1536 Supports On USB & I²S Input
    • Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
    • Licensed Thesycon USB Driver For Windows Platform
    • Driverless On Mac & Linux
    • Dual AES/EBU Input Supports
    • Sharp/Slow Filters Option
    • I²S Pinout Configuration
    • I²S DSD Channel Swap Configuration



    DSD

    • DSD64-DoP On All Input
    • DSD1024 On USB & I²S Input Only



      PCM

      • 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
      • 1536kHz On USB & I²S Input



      Sampling Mode: Non-Oversampling NOS / Oversampling OS



      Digital Input

      • Coax via RCA
      • TOSLink x 1
      • AES/EBU x 2
      • USB
      • I²S via HDMI LVDS
      • I²S via RJ45 LVDS
      • I²S via RJ45 LVCMOS



      Analog Output

      • RCA at 2.0Vrms, 625 Ω
      • XLR at 4.0Vrms, 1250 Ω



      Clock Output

      • 44.1KHz, 48KHz
      • 22.5774Mhz, 24.576Mhz
      • 45.1548MHz, 49.152Mhz



      Frequency Response: 20-40KHz -0.2dB

      THD+N: 0.0015%

      S/N Ratio: 127dB

      Dynamic Range: >132dB

      Stereo Crosstalk: -110dB



      AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage)

      Power Consumption: ≤20W

      Dimension430 x 380 x 105 mm

      Package Dim: 610 x 570 x 275 mm

      Package Content: DAC only. No power cord & remote control.

      Weight: 19.0 Kg

      Color: Silver / Black
