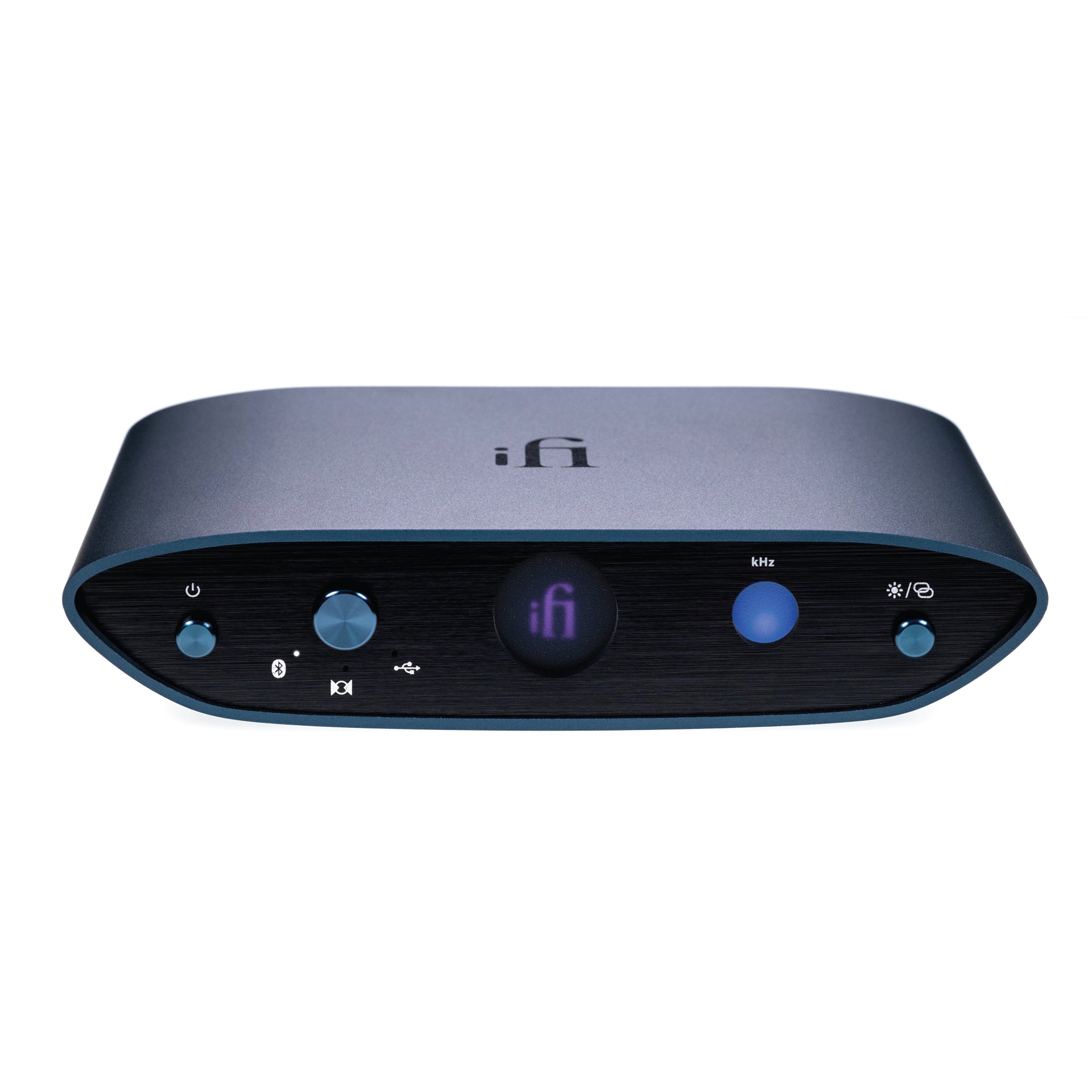

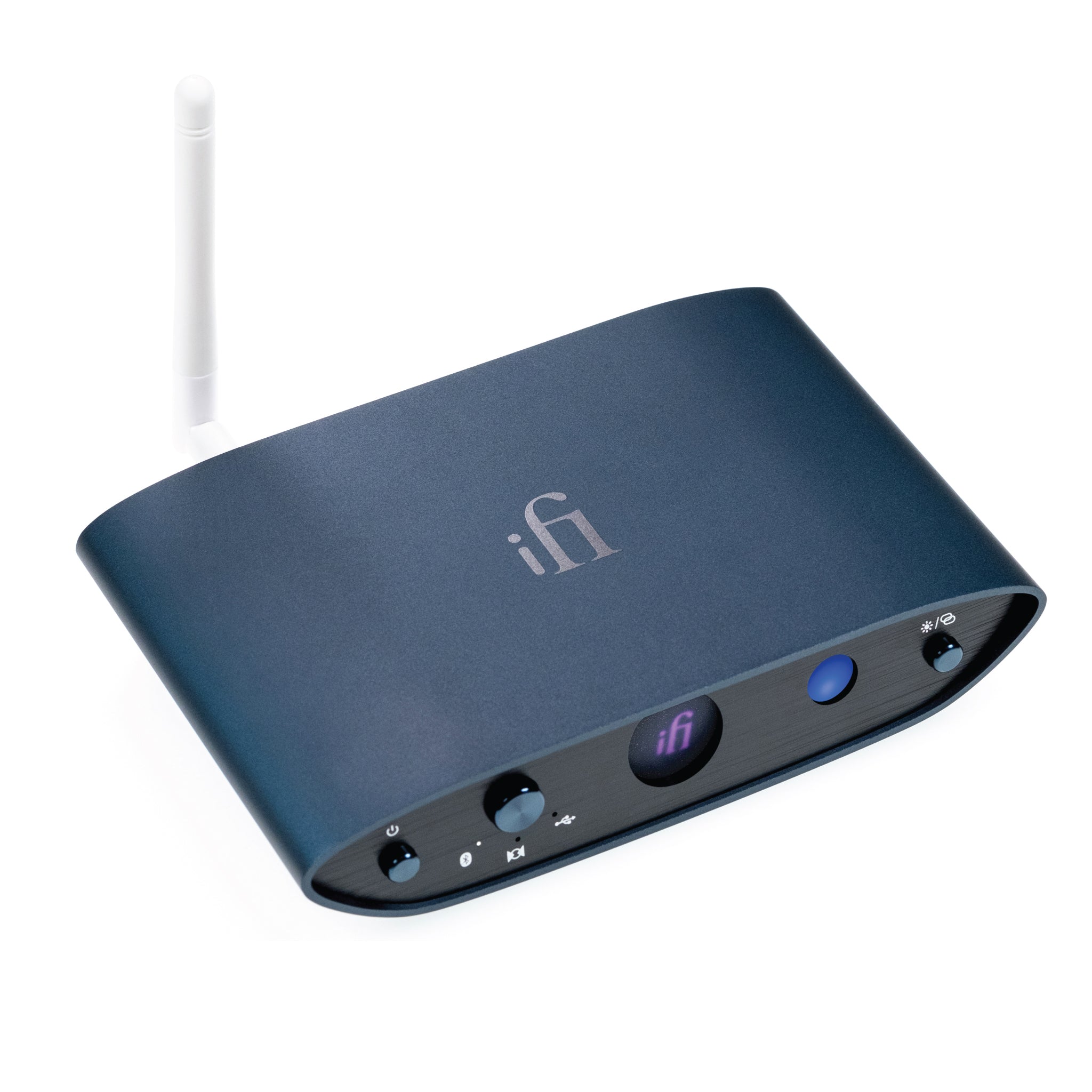

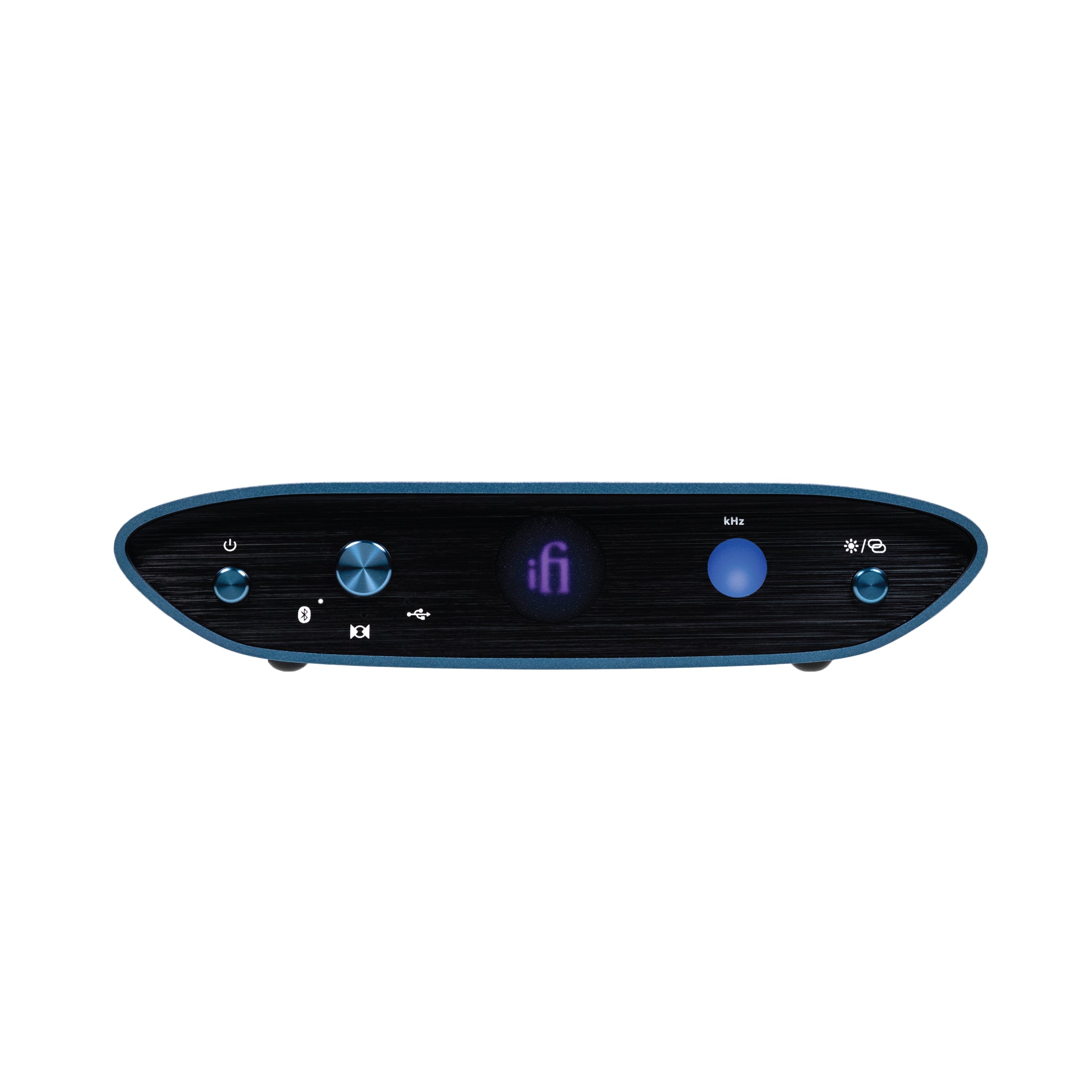

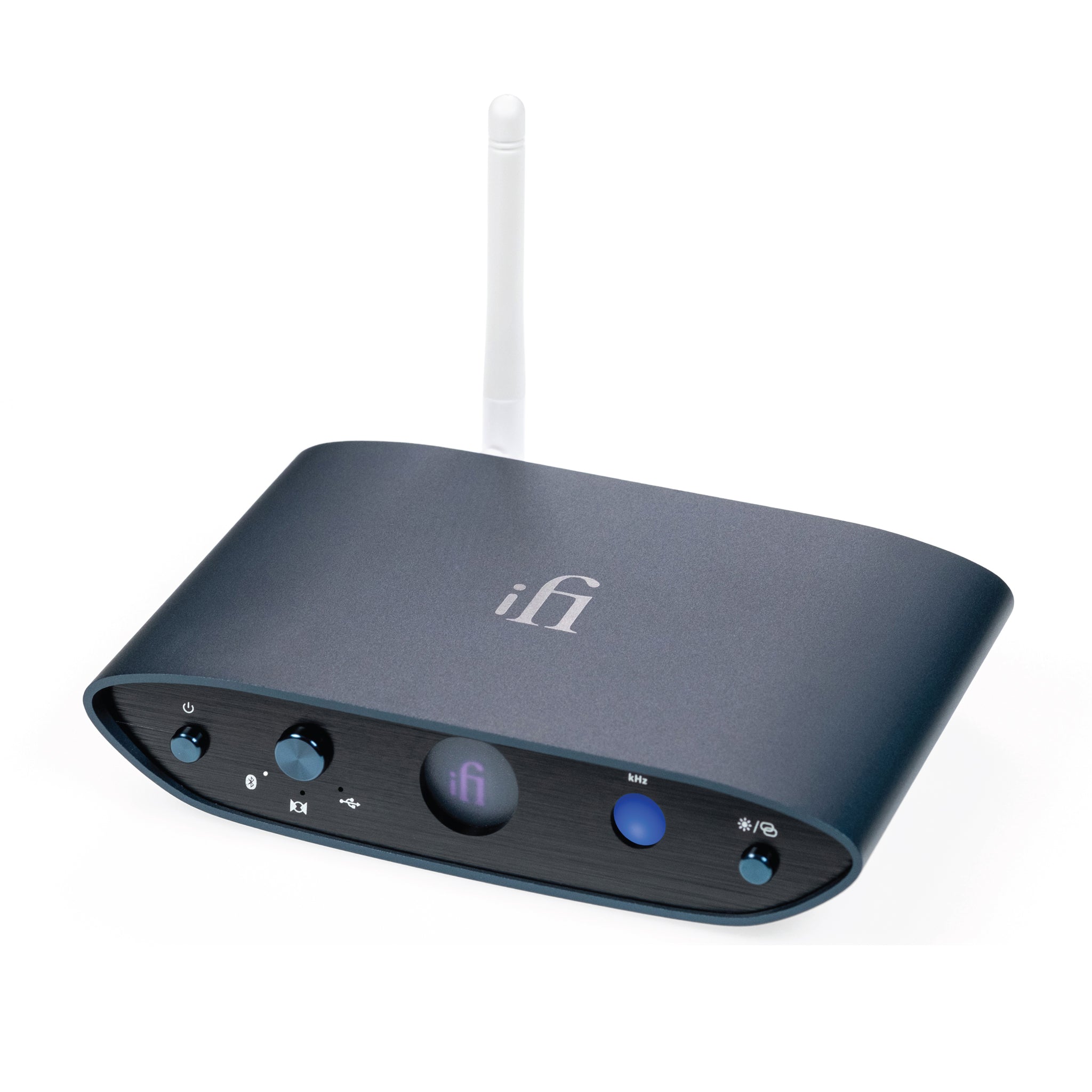

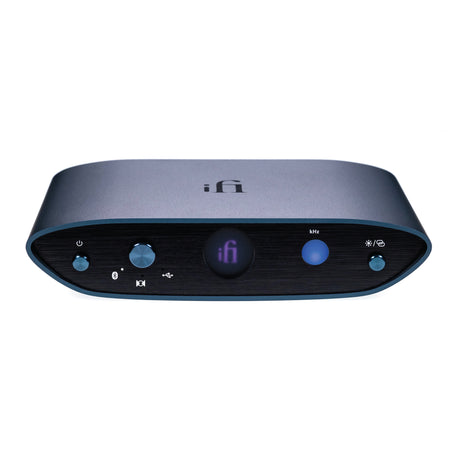

ifi Zen One Signature DAC

Description

Only DAC  you’ll need (Bluetooth + USB + S/PDIF)

All-purpose Digital Audio Hub
The ZEN One Signature delivers exceptional sound from every digital device in a home audio environment. Buy the ifi Zen One Signature DAC today from Gears for Ears the official ifi dealer at the best price in Bangladesh.

One DAC for universal connectivity
▪Bluetooth
▪USB
▪S/PDIF

Purist Engineering and Signature-grade Circuitry

The ZEN One Signatureis performance-tuned to deliver captivating sound with all forms of media, from hi-res music to movie and video game soundtracks.
▪Next gen Bluetooth –best sound from every source
▪True Native hi-res DAC with powerful 16-core XMOS processor
▪Balanced circuit design with Signature-grade circuit components

Hi-Res DAC

▪Hi-res PCM up to 32-bit/384kHz
▪Full native DSD playback
▪Full MQA decoding
▪Optical & coaxial S/PDIF supports 32-bit/192kHz PCM and MQA

Specifications

Power:DC 5V (centre pin +ve)
Digital inputs:
USB3.0 Type B (USB2.0 compatible)
S/PDIF (coaxial, TOSLINK optical)
Bluetooth 5.1 (aptX, aptXHD, aptXAdaptive, aptXLL, LDAC, LHDC/HWA, AAC and SBC codec)
Formats:
PCM 44.1/48/88.2/96/176.4/192kHz
DSD 2.8/3.1/5.6/6.1/11.3/12.3MHz
DXD 352.8/384kHz
MQA Decoder
Bluetooth 96kHz
Chipset
Bit-Perfect DSD & DXD DAC by Burr Brown
Qualcomm QCC 5100 Series

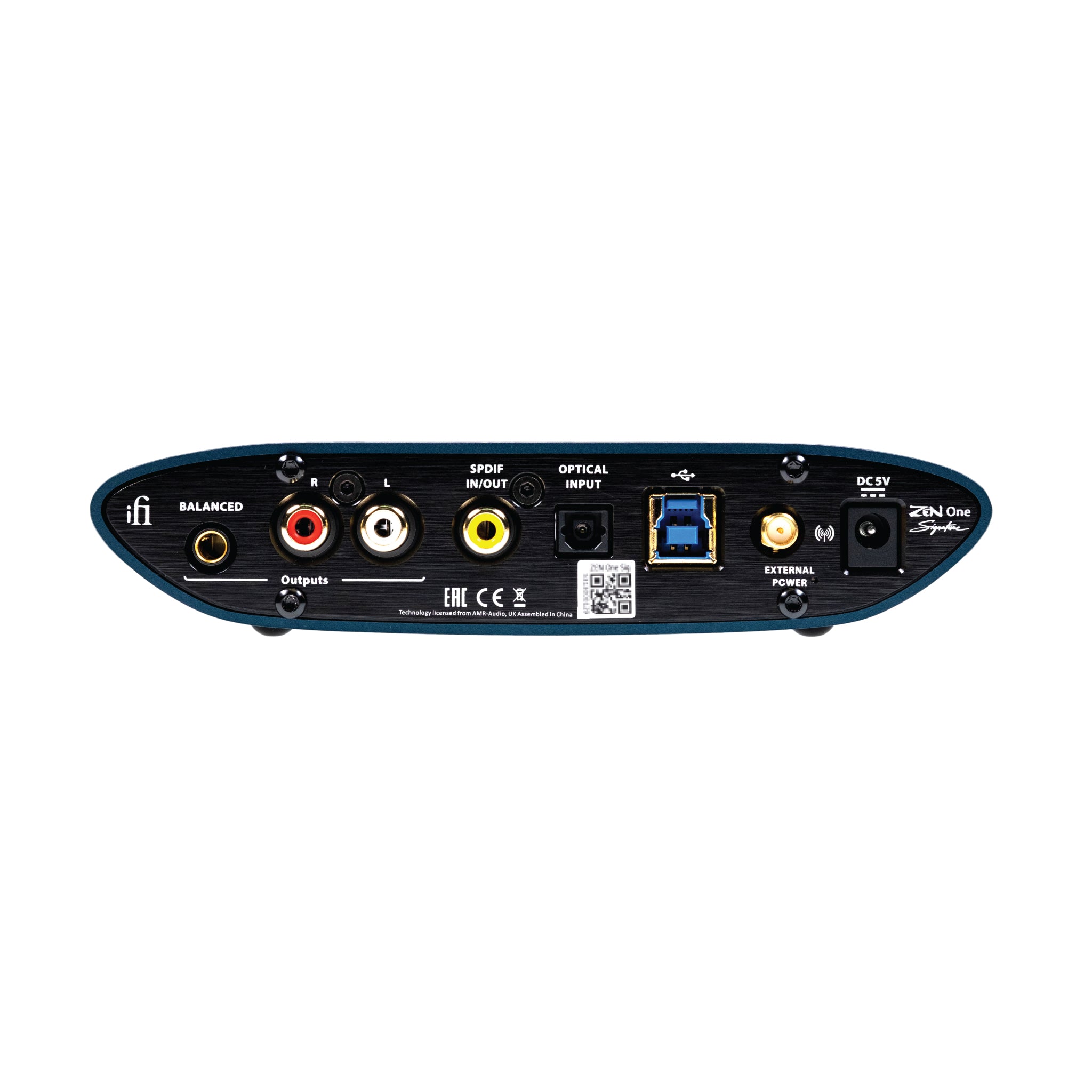

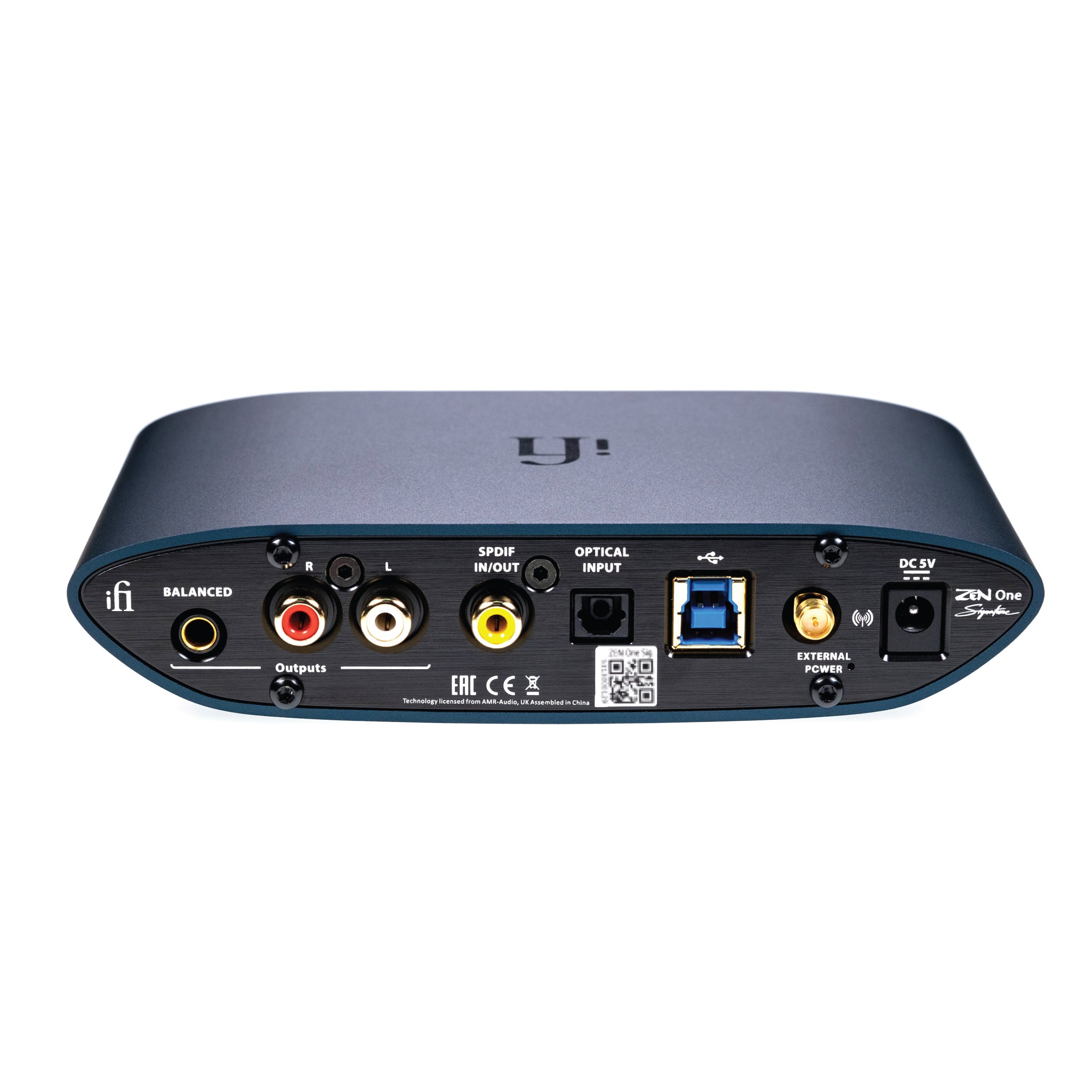

Analogue outputs
Coaxial, Audio RCA L/R
4.4 Balanced Lineout
Frequency Response
5Hz -80kHz ±3dB
Outputs
4V / 2V max. (BAL/UnBAL)
Output Impedance
≤72Ω/36Ω (BAL/UnBAL)
SNR
-105dB(A) @ 0dBFS (BAL/UnBAL)
THD + N
<0.002% @ 0dBFS (BAL/UnBAL)
Power consumption
No Signal ~0.7W/Max Signal ~1W
Dimensions
158 x 100 x 35 mm
6.2" x 3.9" x 1.4"
Net weight
485g
1.1 lbs

Outputs
Balanced 6.7V max. (variable)
UnBAL 3.5V max. (variable)
Output Impedance
Balanced ≤200Ω
UnBAL ≤100Ω
SNR
Balanced <110dB(A) @ 0dBFS
UnBAL <110dB(A) @ 0dBFS
THD+N
Balanced <0.007% @ 0dBFS
UnBAL <0.015% @ 0dBFS

All iFi products boast Class A analogue circuitry with no DSP and the signal stays ‘Bit Perfect’ throughout. If the product develops a manufacturing defect within the warranty period, please contact Gears For Ears Please make sure that the issue with your product is eligible for warranty claim.

Please be advised that Gears For Ears is not authorized to handle the warranty claims for the purchases that are made outside Bangladesh.

iFi AUDIO's Warranty Period is 1 Year from the Date of Invoice for all products.

Eligibility for warranty

Manufacturing Defects

• No Sound Output

• Noise while Charging

• Buttons Not Working

• Not charging

• Doesn't turn on

• Any other manufacturing defect

Non- eligible for warranty

Physical Damages

• Wear and tear from usage

• Cosmetic flaws

• Wire/cord tearing

• Damages to accessories

• Any other accidental damage

• Natural disasters or animal related damages
