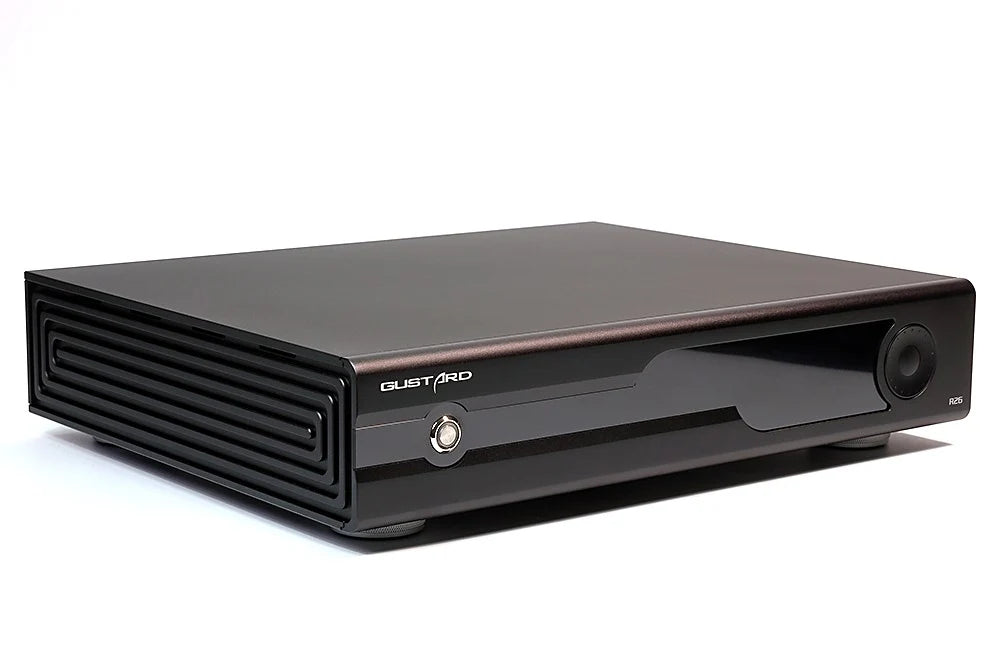

GUSTARD R26 R2R DAC

Description

Specifications

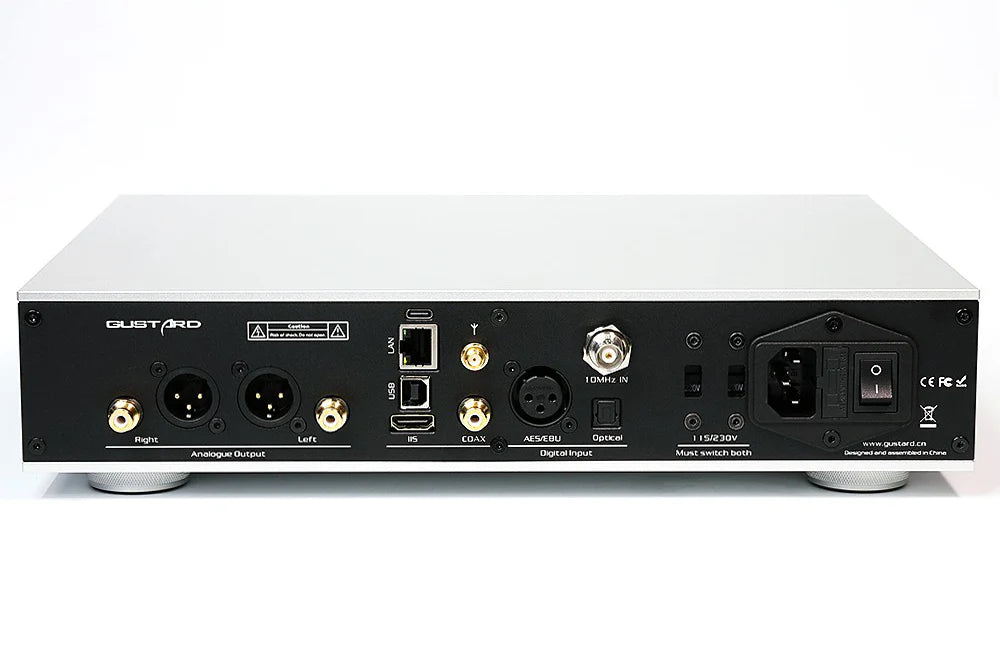

Sample Rate Supported by Digital Input Channels:
COAX/AES/OPT :PCM 16-24bit/44.1-192kHz; DSD DOP64
USB :
PCM 16-32bit/44.1-768kHz
DSD DOP64-DOP256
NATIVE DSD: DSD64-DSD512
OS support: Windows 7~11 32/64bit; macOS; Linux
IIS: PCM 16-32bit/44.1-768kHz; DSD DOP64-DOP256
NATIVE DSD: DSD64-DSD1024
LAN: more in the future
10M Clock in: 50 Ohm BNC, 0dBm-20dBm
square wave 0.2V-3.3V, sinewave 0.5-3.3V

Analog Output Performance :
Frequency Response: 20- 20kHz /+ -0.2dB (Oversampling)
Dynamic range: >115dB
Signal-to-noise ratio: > 122dB
Crosstalk: -134dB @ 1kHz
THD+N: <=0.003% @1kHz
IMD:≈0.008% @ Odbfs
RCA: 2.5Vrms (VOLUME FIXED) 100Ω
XLR: 5.0Vrms VOLUME FIXED) 100Ω
XLR pinout: 1-Ground 2-Hot 3-Cold

Other Specifications :
Power Supply: AC 115V/230V 50/60Hz
Power Consumption < 30W
Size: 330mm (Width) * 260mm (Length) * 65mm (Height) (protrusion not included)
Packing size: 420mm (Width) * 360mm (Length) * 175mm (Height);
Weight: 7Kg (with package)

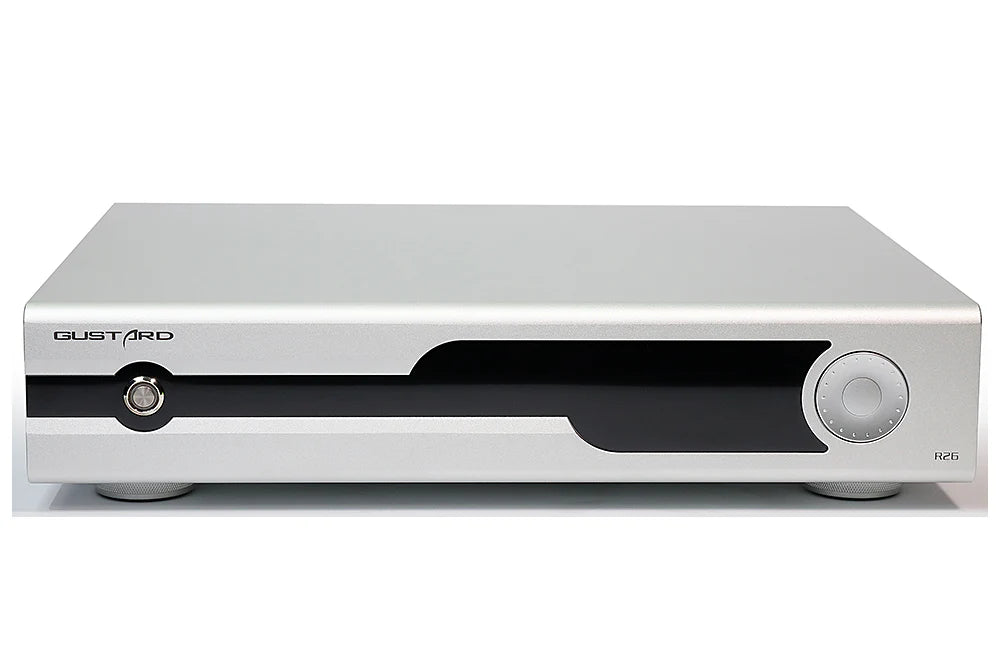

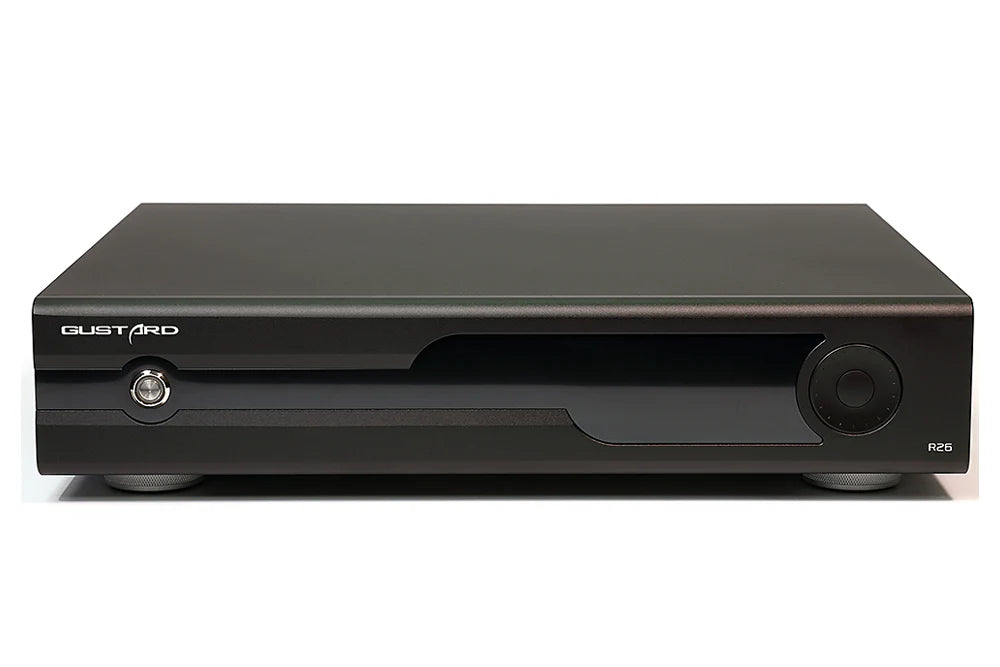

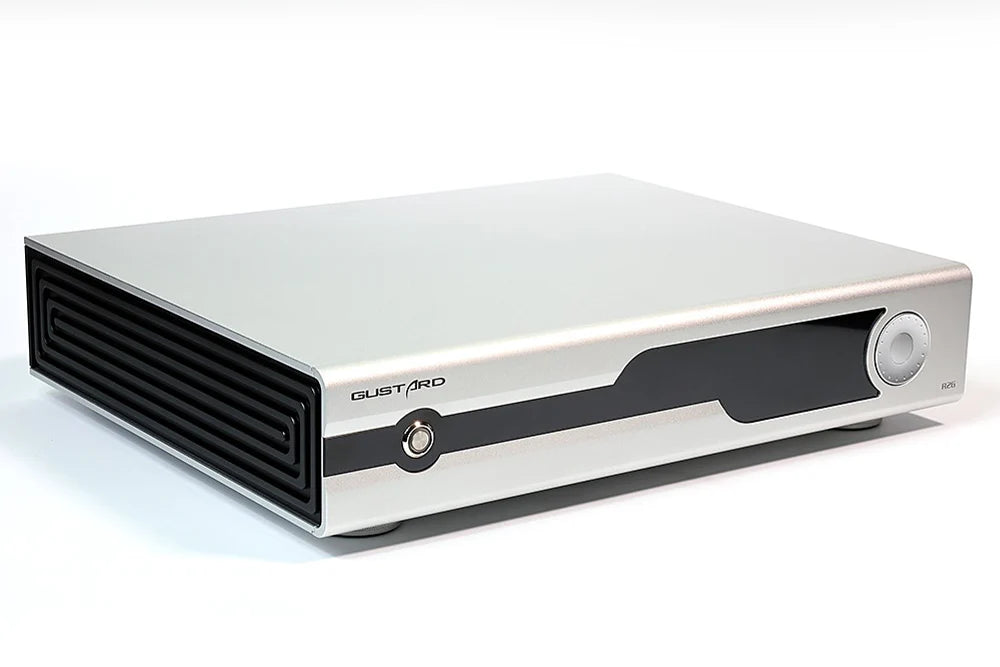

Sandblasted aluminum alloy case: Silver or Black version

Gustard’s goal is to offer you a level of support that matches the attention to detail and quality of their products. In the unlikely event that a Gustard product develops a manufacturing defect within the warranty period, please contact Gears For Ears. Please make sure that the issue with your product is eligible for a warranty claim.

Please be advised that Gears For Ears is not authorized to handle the warranty claims for the purchases that are made outside Bangladesh.

Gustard's Warranty Period is 1 Year from the Date of Invoice for all products.

Eligibility for warranty

Manufacturing Defects

• No Sound Output
• Doesn't turn on
• Any other manufacturing defect

Non- eligible for warranty

Physical Damages

• Wear and tear from usage
• Cosmetic flaws
• Wire/cord tearing
• Damages to accessories
• Any other accidental damage
• Natural disasters or animal related damages
