Fosi Audio ZD3 Balanced Desktop DAC

Tk 22,500.00

Do you have questions about this product?

Ask an expert!

Description Warranty Shipping information Reviews (0)

Description

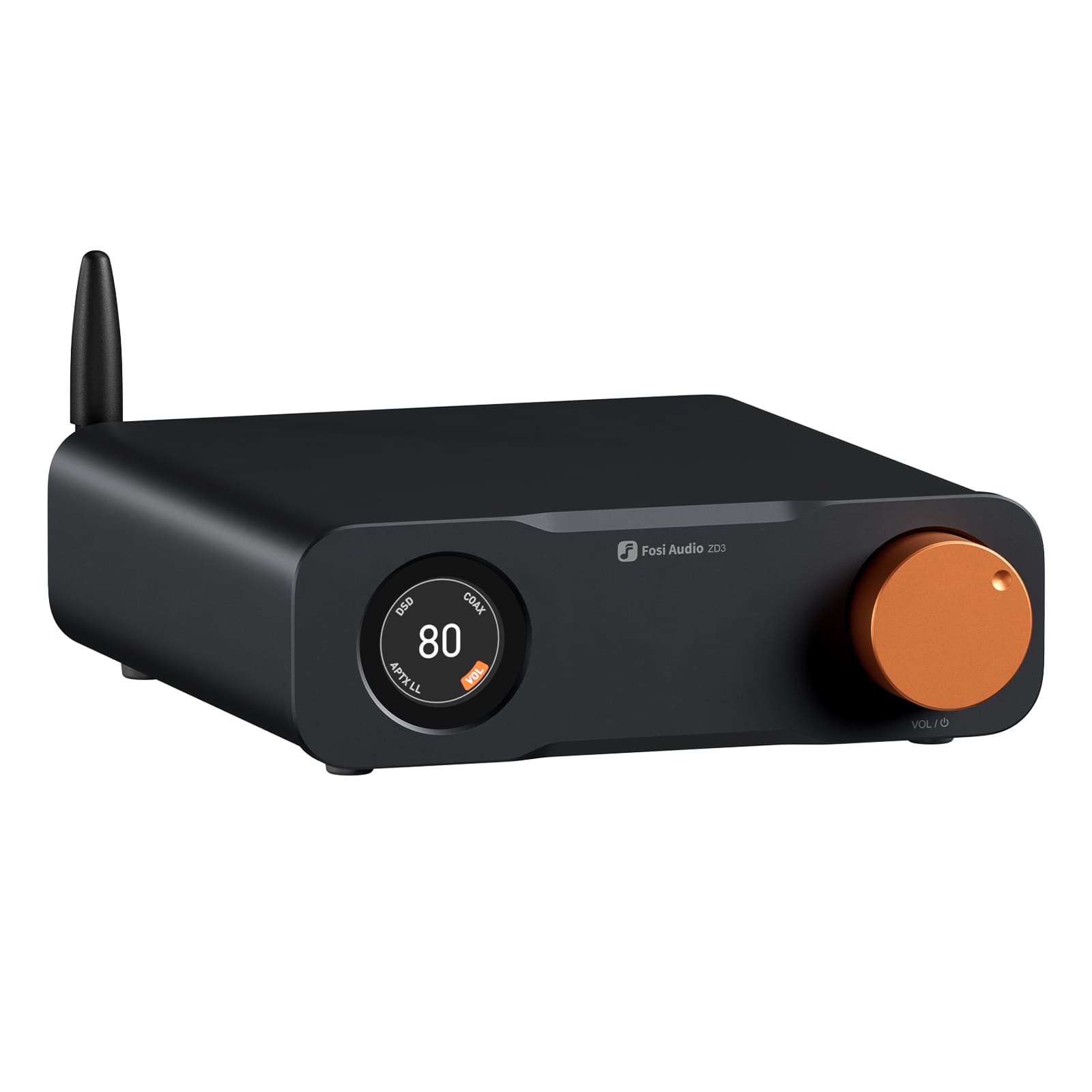

The Fosi Audio ZD3 is a flagship balanced desktop DAC featuring the ES9039Q2M chip and XMOS XU316. It supports high-resolution DSD512 and 32bit/768kHz audio. With HDMI ARC, XLR balanced outputs, and a 12V trigger for synchronized power, it is the perfect DAC for your system. Get it today from Gears for Ears the official Fosi Audio dealer at the best price in Bangladesh.

Presents tailored DAC performance, ensuring superior audio quality for pure enjoyment with ease of use.

High-Performance Digital-to-Analog Audio Converter

The ZD3 is an audiophile-grade balanced stereo DAC meticulously developed by Fosi Audio after thoroughly understanding user needs. It features the ES9039Q2M high-precision DAC chip, delivering rich and superior sound.

Swappable Op-Amp Design

Easily replaceable DIP8 dual discrete op-amps, meeting your pursuit of a personalized audio experience, such as LME49720, NE5532, MUSES02, SS3602.

Bypass Mode

The signal bypasses the internal preamp section, providing a fixed output level for direct signal transmission.

Trigger In/Out

Enables synchronized on/off across your audio setup, automating system control for seamless operation.

Perfect Match to ZA3 Amp

In the same series and form factor, the ZD3 provides seamless integration with the ZA3, unlocking audio details and clarity.

Specifications

  • Chipset: XMOS XU316+ESS 9039Q2M+QCC3031+LME49720

  • Maximum Sampling Rate

          USB: PCM 32bit/768kHz; DSD512

          OPT/COA: PCM 24bit/192kHz

          HDMI: PCM 24bit/192kHz;

          Bluetooth: PCM 24bit/48kHz;

  • Output Level: XLR: 5Vrms/RCA: 2.5Vrms

  • Input: USB, HDMI (ARC), Coaxial, Optical, Bluetooth

  • Output: XLR, RCA

  • SNR: 126dB

  • THD+N: <0.00008%

  • Dynamic Range: 126dB

  • Noise Floor: ≤2μV

  • Frequency Response: 20Hz-20kHz (±0.1dB)

  • Bluetooth Version: 5.0

  • Bluetooth Connection Distance: ≥13m

  • Bluetooth Transmission Audio Format: SBC, AAC, aptX, aptX HD

  • Input Voltage and Current: DC 12V 1.5A

  • USB Compatible Devices:

  • Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to subsequent instructions for details)
    Mac OS X, Linux (No driver required)

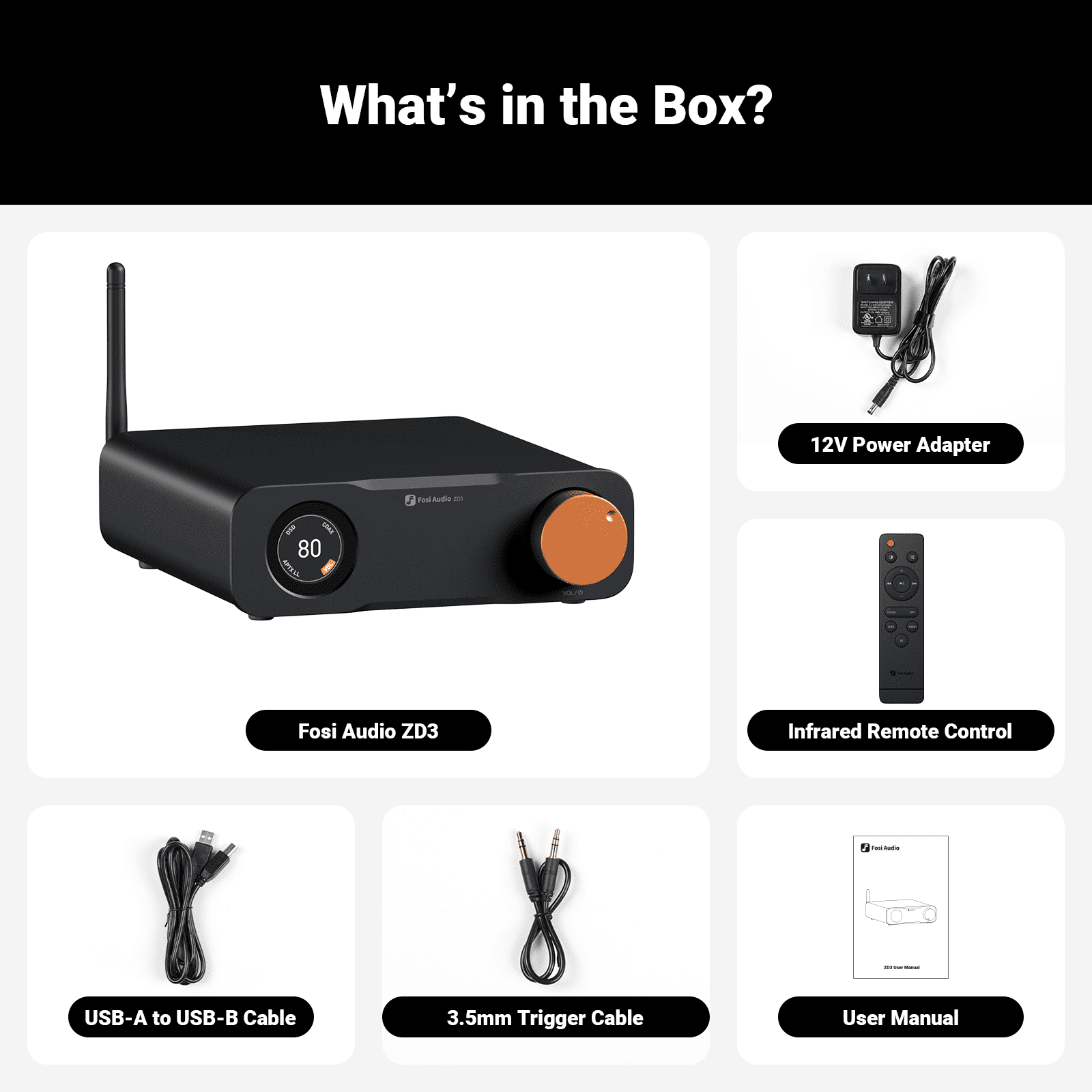

What's in The Box?

  • ZD3*1

  • USB-A to USB-B Cable*1

  • 12V Power Adapter*1

  • Bluetooth Antenna*1

  • 12V Trigger Cable*1

  • Infrared Remote*1

  • User Manual*1
