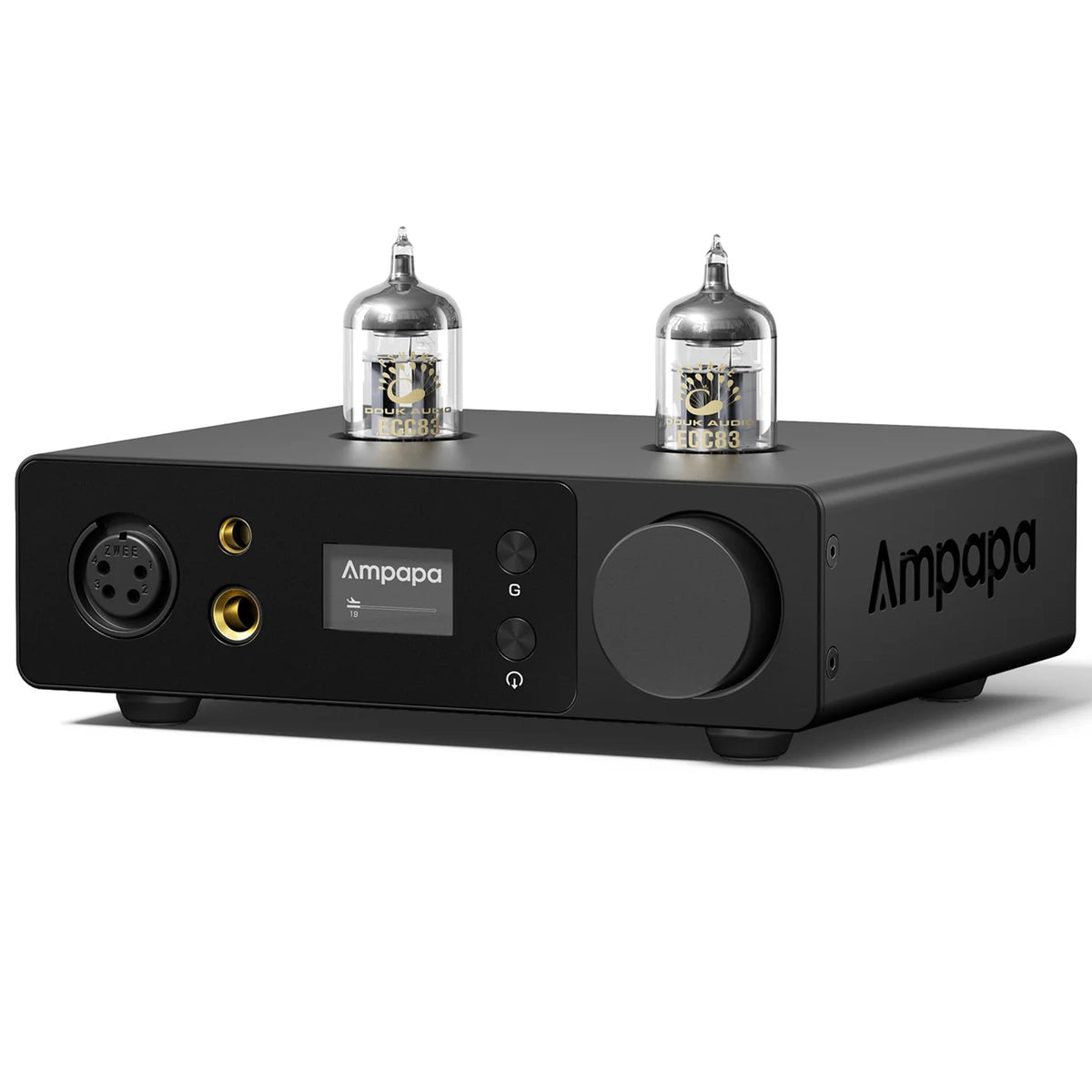

Douk Audio Ampapa H1 Headphone Amplifier

Description

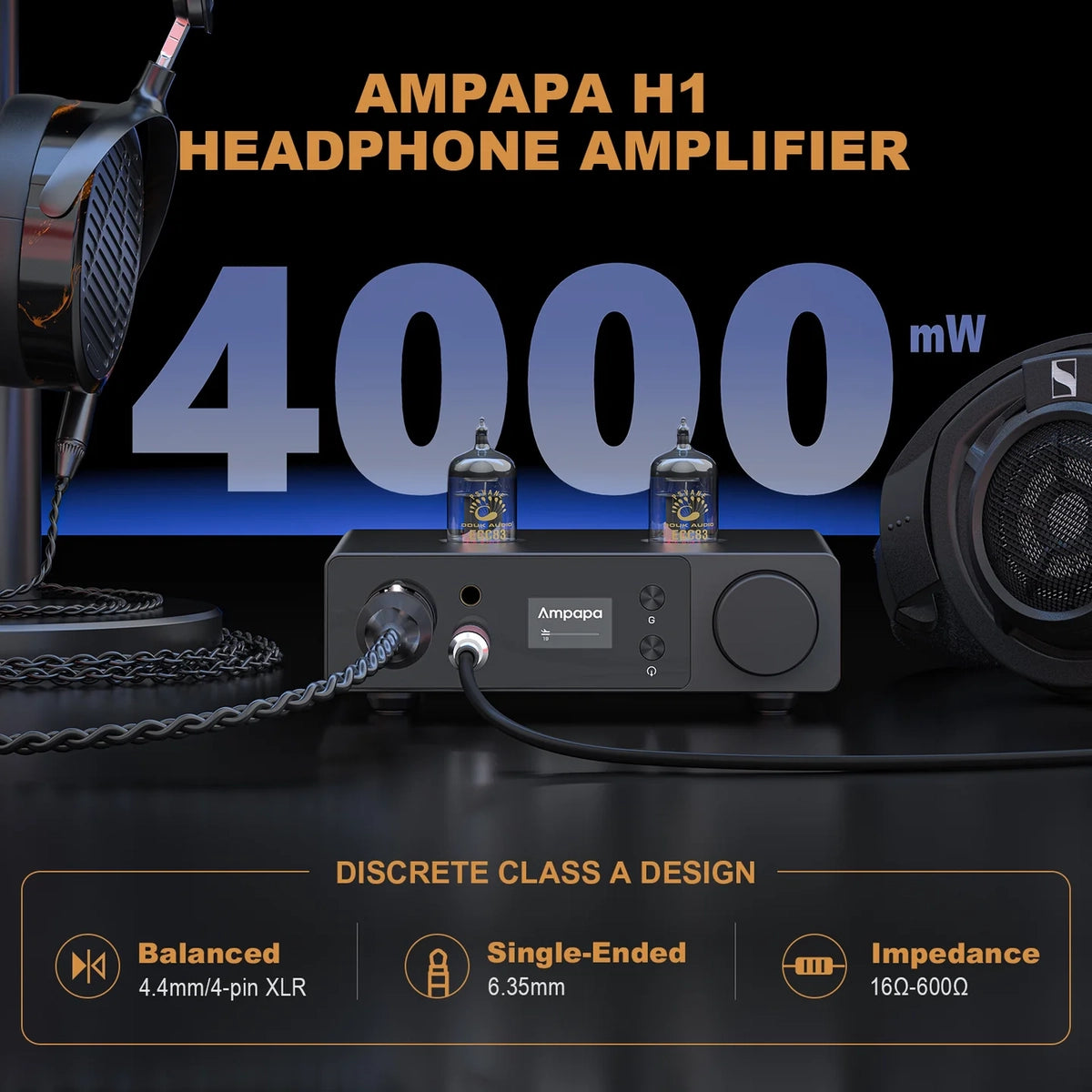

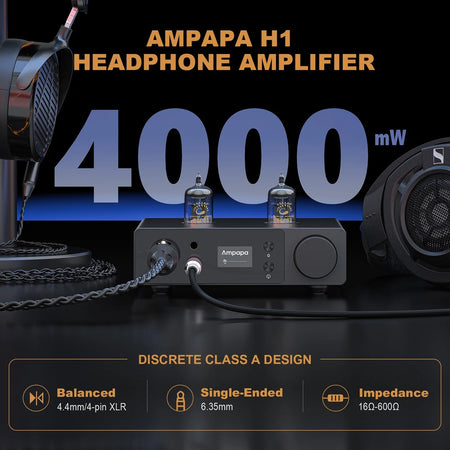

• Power for Demanding Headphones: Built around a discrete Class A output stage, Ampapa H1 delivers strong current drive and up to 4000mW from its balanced high-gain output, giving 16–600Ω headphones wider headroom, steadier control and smoother dynamics. 4.4mm, 4-pin XLR and 6.35mm outputs fit more full-size HiFi headphone setups.

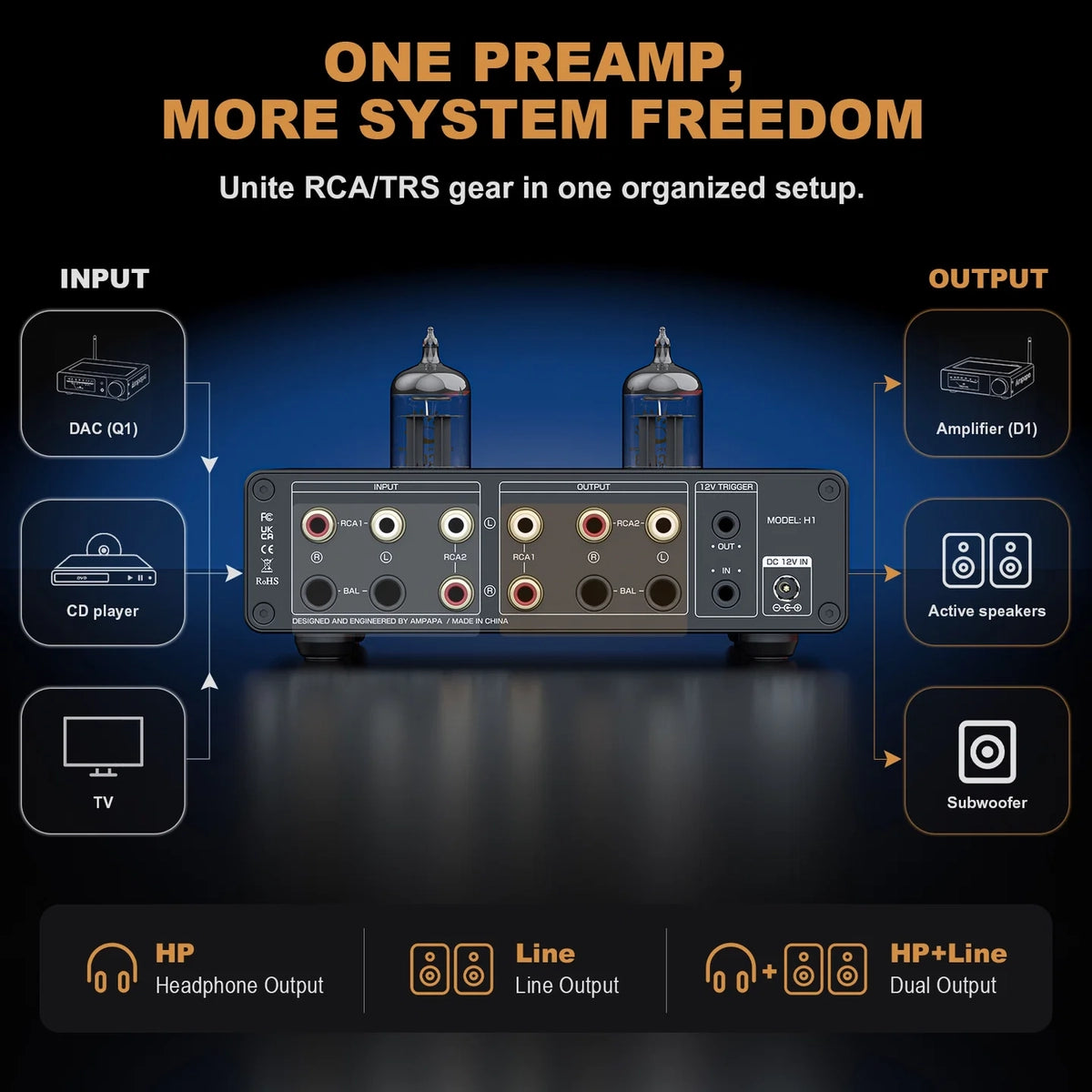

• Preamp Control for Your Audio System: With 2×RCA and 1×TRS analog I/O, H1 keeps your DAC, CD player and streamer connected for simple source selection, while its preamp outputs can stay linked to multiple power amps or active speakers for system expansion. Designed to complement Ampapa Q1 and D1, it adds tube preamp control for a more unified stack.
• Custom ECC83 Tube Character: Made with exclusive PSVANE × Douk Audio ECC83 tubes, H1 brings a warmer, richer tube character to both headphone listening and preamp output. The custom tube set gives H1 a more distinctive out-of-box identity, while tube rolling support leaves room to fine-tune the sound later.
• Effortless Control Across Your Setup: Low, mid and high gain help H1 match sensitive headphones, everyday models and harder-to-drive pairs with less guesswork. HP, Line and HP+Line output modes cover headphone, preamp output or both, while the 1.5-inch OLED keeps key status clear and 12V Trigger helps compatible gear power on/off together.
• Built for Refined HiFi Use: Japan NJW1195 volume IC keeps channel balance stable, while pluggable op-amps leave room for sound tuning. 0.04% THD+N and ≥113dB SNR support clean signal performance, and the low-noise relays, isolated tube power shielding and CNC aluminum chassis add quieter operation and lasting build quality for demanding headphone listeners or serious HiFi users.

Packing List:

• 1 × H1
• 2 × ECC83 Tubes
• 1 × DC 12V Power Adapter
• 1 × 6.35mm to 3.5mm Adapter
• 1 × 3.5mm Trigger Cable
• 1 × Certificate
• 1 × Warranty
• 1 × Cleaning Cloth
• 1 × User Manual

Specifications

• Model: H1

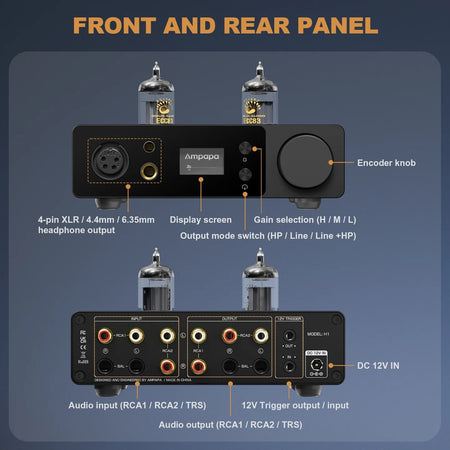

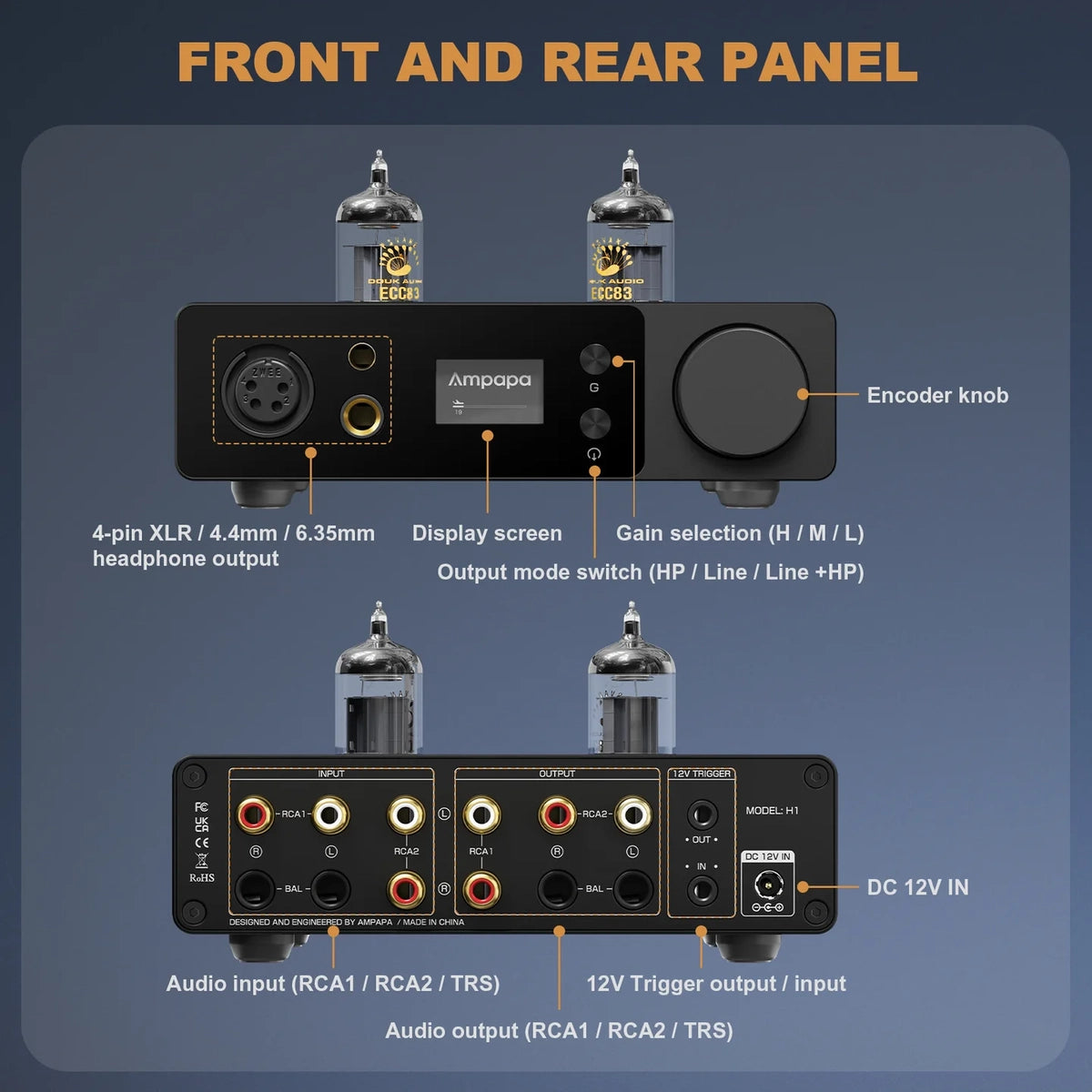

• Audio Inputs: 2 × RCA Inputs / 1 × TRS Input
• Audio Outputs:
  2 × RCA Outputs / 1 × TRS Output
  4-Pin XLR / 6.35mm / 4.4mm Headphone Outputs
• THD+N: 0.04%
• SNR: ≥113dB
• Frequency Response: 20Hz–20kHz (±0.7dB)
• Input Sensitivity: RCA: 1V ; TRS: 2V
• Rated Output Level (by Gain):
  RCA Output: High-3.0V ; Mid-2.1V ; Low-1.5V
  TRS Output: High-6.0V ; Mid-4.3V ; Low-3.0V
• Rated Headphone Output Power (by Gain):
  Balanced Output: High-4W ; Mid-2W ; Low-1W
  Single-Ended Output: High-1000mW ; Mid-500mW ; Low-250mW
• Matched Headphone Impedance: 16–600Ω
• Power Input: DC 12V / ≥2A, 5.5 × 2.1mm
• Dimensions (W*D*H): 155 × 124 × 42mm / 6.10 × 4.88 × 1.65in
• Package Dimensions: 268 × 192 × 95mm / 10.55 × 7.56 × 3.74in
• Net Weight: 750g / 1.64lb
• Package Weight: 1.28kg / 2.82lb

DOUK AUDIO’s goal is to offer you a level of support that matches the attention to detail and quality of their products. In the unlikely event that a DOUK AUDIO product develops a manufacturing defect within the warranty period, please contact Gears For Ears. Please make sure that the issue with your product is eligible for a warranty claim.

Please be advised that Gears For Ears is not authorized to handle warranty claims for purchases made outside of Bangladesh.

DOUK AUDIO's Warranty Period is 1 Year from the Date of Invoice for all products.

Eligibility for warranty

• Manufacturing Defects only


Non-eligible for warranty

• Physical Damages
• Damaged external power supply due to a faulty connection
• Wear and tear from usage
• Cosmetic flaws
• Wire/cord tearing
• Damages to accessories
• Any other accidental damage
• Natural disasters or animal-related damages
