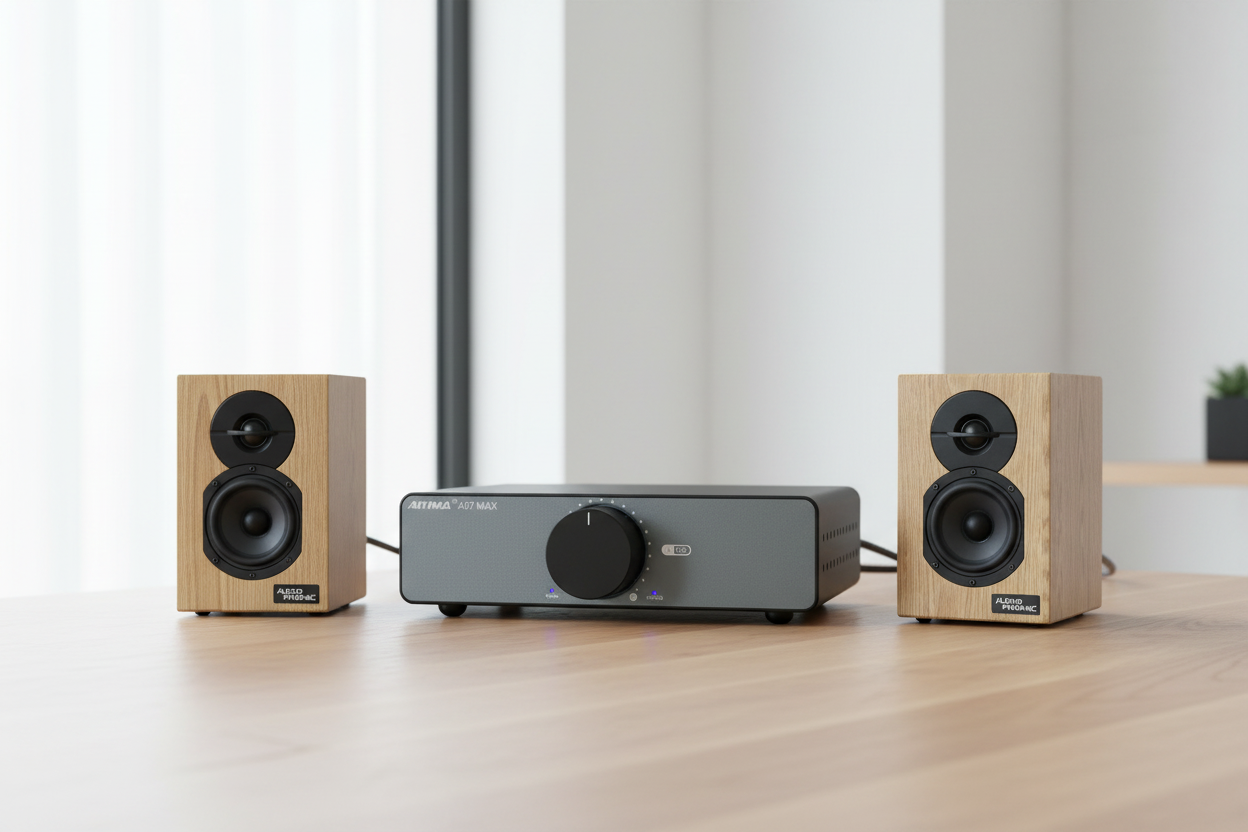

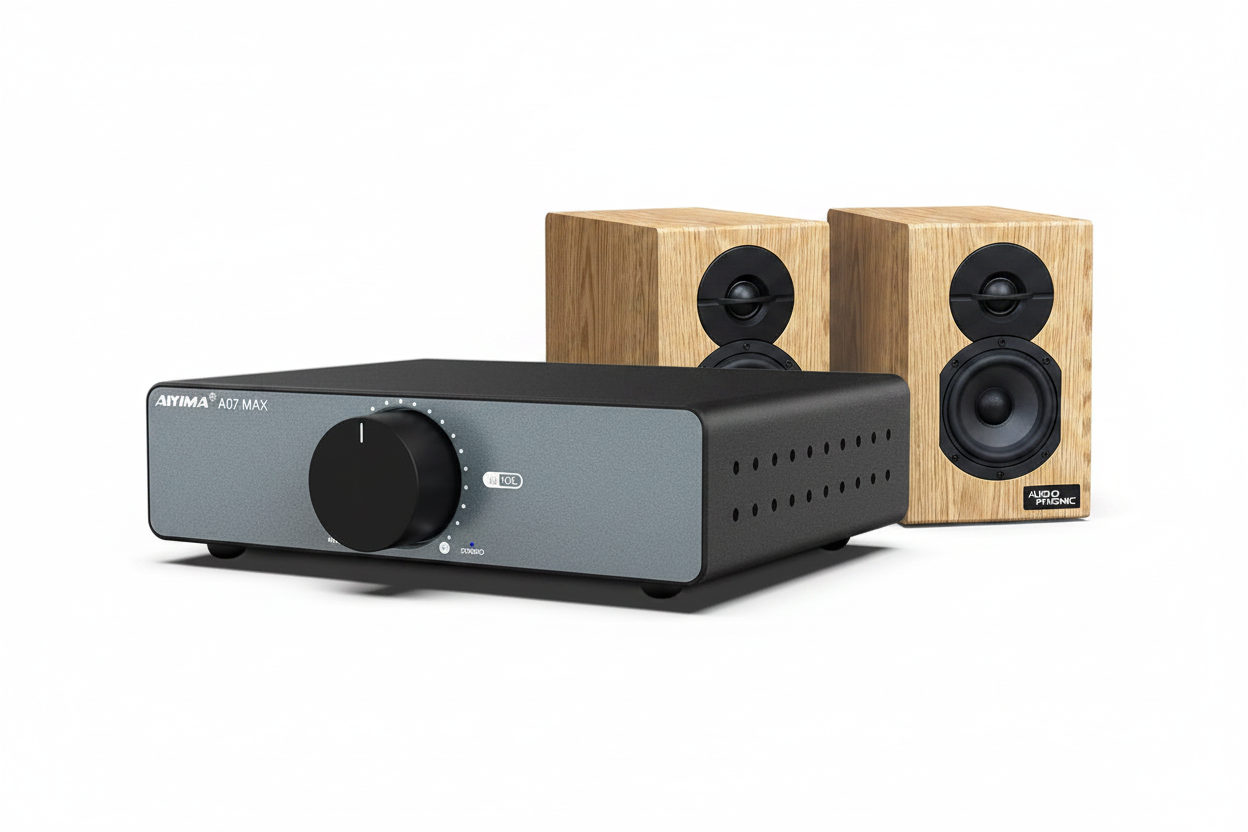

AIYIMA A07 MAX Amp & Audio Phonic Z50 Passive Speakers - khaki
Regular price
Tk 31,000.00
In Stock 🚚 Order by {time} to have it shipped today
🚚 Order by {time} to have it dispatched on {day}.
🔒Secure your unit with 50% advance. See more
Pre-Order now and have it delivered within {days} days. {contact_link} if you have any questions.
Express Pre-Order — delivered within {days} days. {contact_link} if you have any questions.
Pre-Order now and have it delivered within {days} days. {contact_link} if you have any questions.
- Speaker Type
Do you have questions about this product?
AIYIMA A07 MAX 2 Channel Stereo Class D Amplifier
Model: AIYIMA A07 MAX
Product name: A07 MAX TPA3255 Power Amplifier
Stereo Max Output Power (switch stereo mode): 300Wx2 / 4Ω (48V/12A)
Mono Max Output Power (switch mono mode): 600W / 2Ω (48V/12A)
(R+ connect to speaker +, L+ connect to speaker -)
Working Voltage: DC24-48V, 5A or more
Replaceable Op-Amp Chips: OPA2604AP, OPA2134, MUSEO1/02/03, LME49720NA, LM4562, AD827AQ, etc.
AUX OUT: active subwoofer or power amplifier
3.5mm AUX OUT as output connect to next amplifier without volume control
THD: 0.007%
SNR: ≥110dB
Input sensitivity: 1V
AUX Maximum Output level: 1V
Frequency response: 20Hz–20KHz (±1dB)
- ❶ 300W+300W Stereo Amplifier Mode — Dual function switchable Stereo/Mono 300W/600W amplifier. Can drive 2–8Ω speakers, providing spacious and clean sound quality. Compact size suitable for bookshelf/desktop/home theater setups.
- ❷ 600W Mono Amplifier Mode — Flip the function switch at the bottom to set a 600W mono bridgeable amplifier. 3.5mm AUX line output to build a high-power dual-channel system.
- ❸ Upgraded Heat Dissipation — Solid and robust design with side and bottom vents to avoid dust entry and extend device lifespan.
- ❹ Excellent Audio Components — TI TPA3255 high-performance Class D chip, NE5532 Op-amp, Japanese ELNA capacitors, German WIMA capacitors, and IT Power management chip.
- ❺ Exceptional Performance — SNR up to 110dB, excellent clarity and low distortion. Climate Pledge Friendly certified by Amazon.
Package Included: 1x A07 MAX, 1x Power Adapter (Optional)
Audio Phonic Z50 Passive Speakers (Khaki)
Technical Info:
Model: PHONIC-Z50
Driver: 4.5" (Composite Wool Paper Cone)
Tweeter: 35mm Silk Dome
Passive Radiator: 5" Metal
Impedance: 6 Ohms
Power Output: 50W RMS
Frequency: 55Hz–24KHz
Sensitivity: 87dB ±2dB (2.83V/1M)
Dimension: 6.5 x 10 x 9.5 Inch
Weight: 9.5KG/Pair
Colour: Khaki
