- 820W Output power
- Built-in Dolby Atmos and DTS: X decoding
- With detachable, battery powered surround speakers you can enjoy real surround sound without the wires
- Experience deep bass with a 300W, 10" powered subwoofer
- Ultra HD 4K Pass-through with Dolby Vision
- Connector Type: Optical
- Included Components: Main Soundbar, Detachable Wireless Surround Speakers (2), Wireless Subwoofer Remote Control, Power Cords, Hdmi Cable, (2)L-Shape Wall-Mount Bracket (Main Bar), (2) U-Shape Wall-Mount Bracket (For Surround Speakers), Kit With Screws
- Power Source Type: Corded Electric
- Wireless Communication Technology: Wi-Fi
Features
The Ultimate 3D sound experience
Upgrade your viewing or gaming experience from ordinary to extraordinary. Built-in Dolby Atmos®, DTS:X™ and four upfiring speakers bounce sound up to the ceiling back down to you for an awesome, true 3D sound experience.
Real surround sound in a second

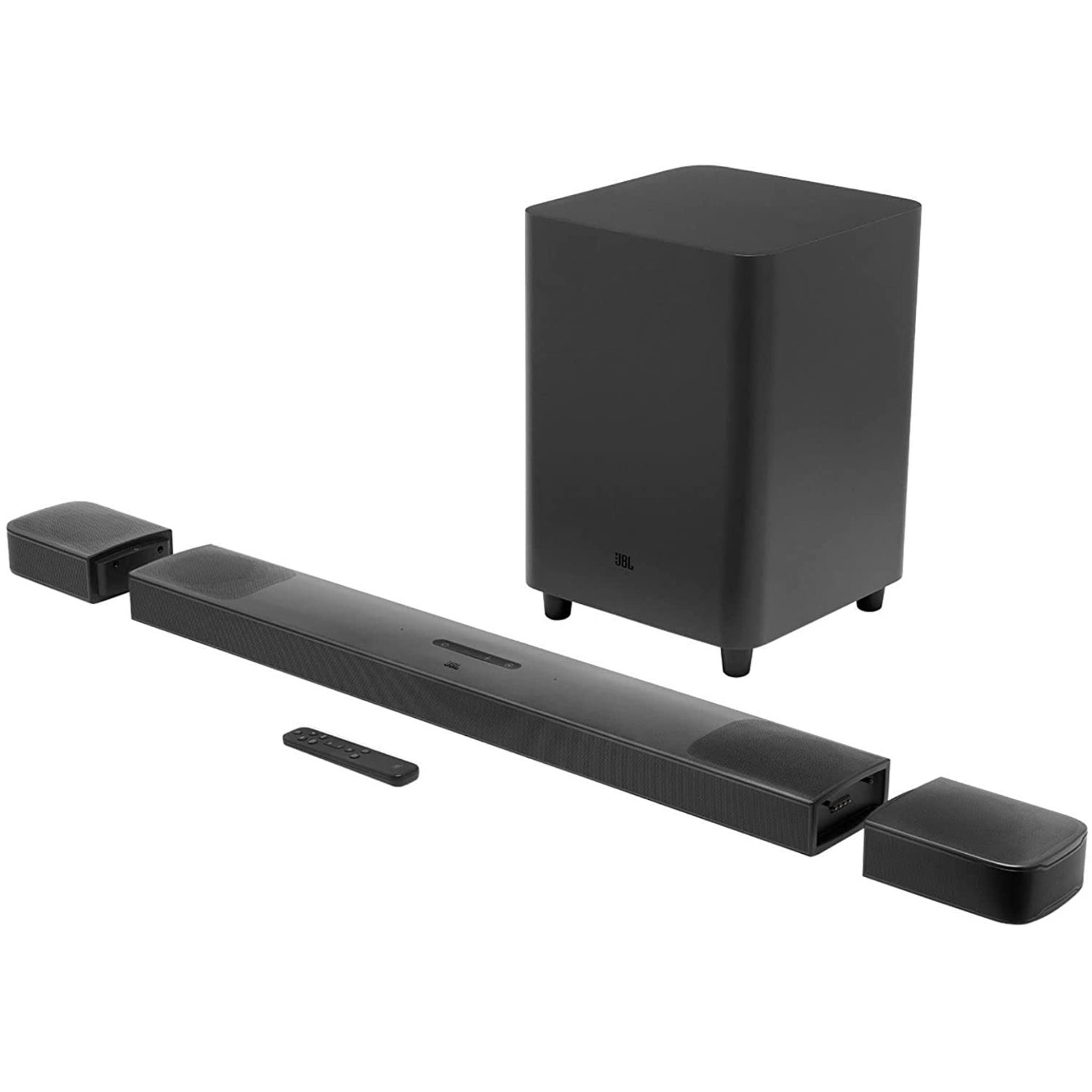

Instantly enjoy a true, cinematic 9.1 surround experience. Simply place the two detachable surround speakers behind you. No extra wires, no extra power connections so no extra hassle.

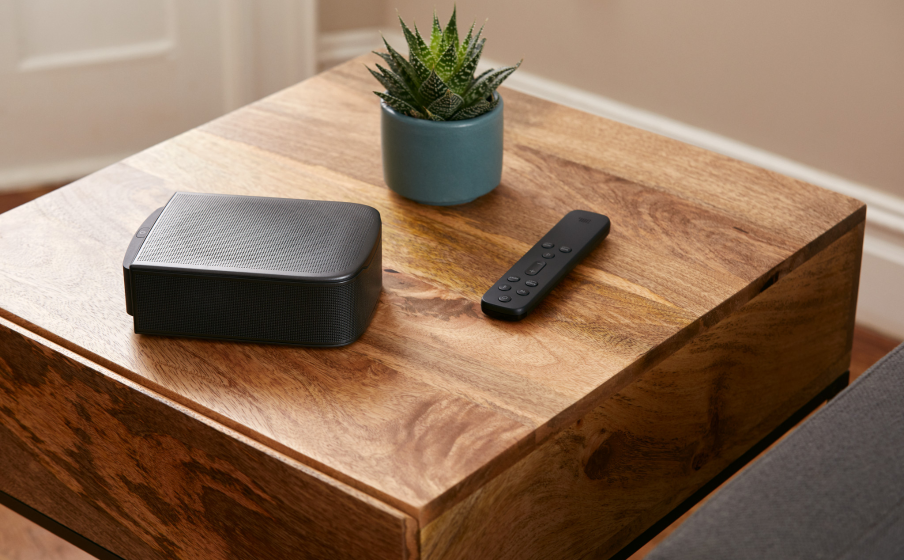

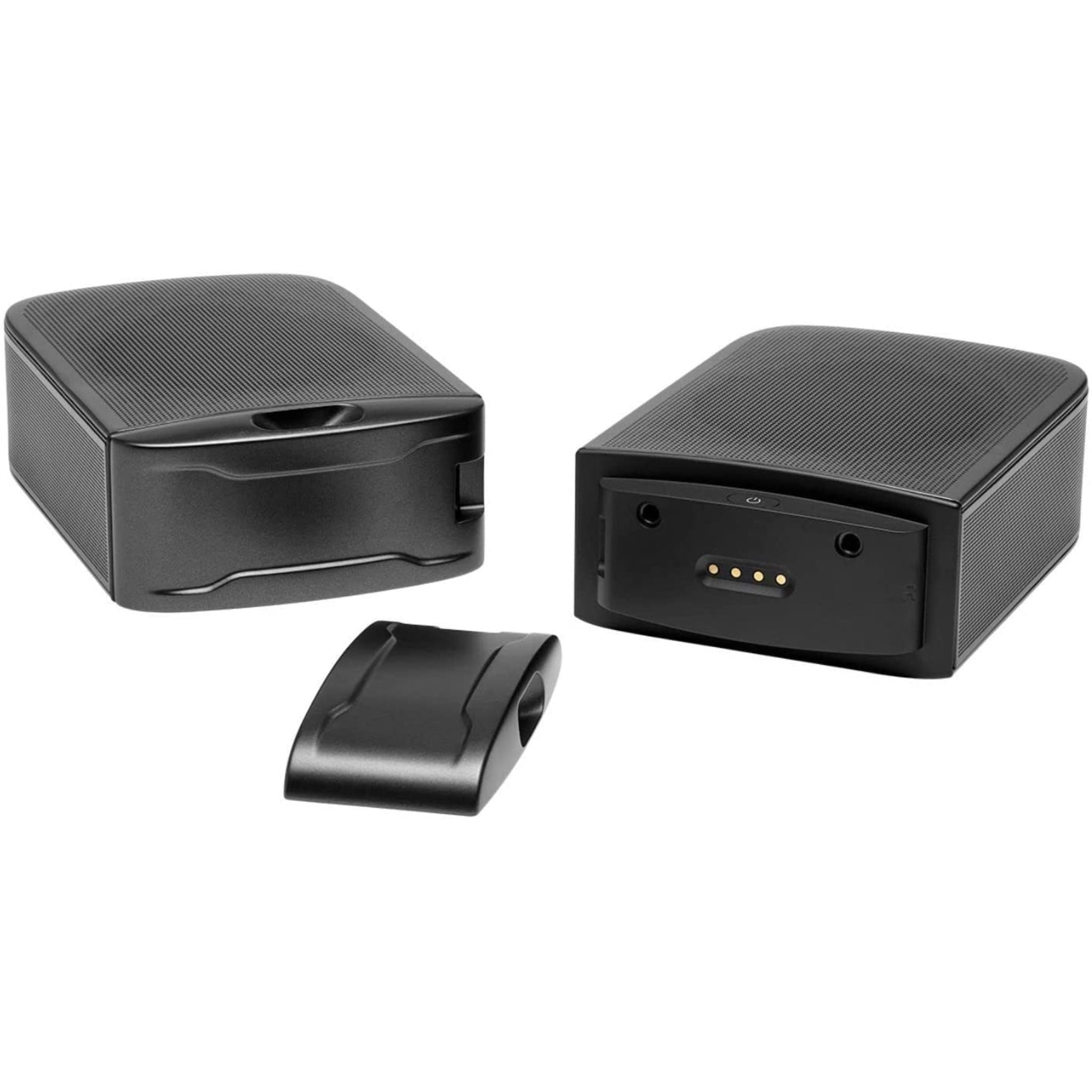

Detachable speakers that go anywhere
Built-in batteries mean audio freedom. Place the two detachable surround speakers anywhere in your room to enjoy an incredible audio experience. After up to 10 hours of playback, simply dock them to the soundbar to recharge.
820W Output Power
With 820 Watts of system output power, you'll hear your movies, games and music like never before. Let the immersive, powerful sound take your viewing or gaming experience to the next level.
-WIRELESS-SUBWOOFER-icon.png?sw=55&sfrm=png){kind=icon}

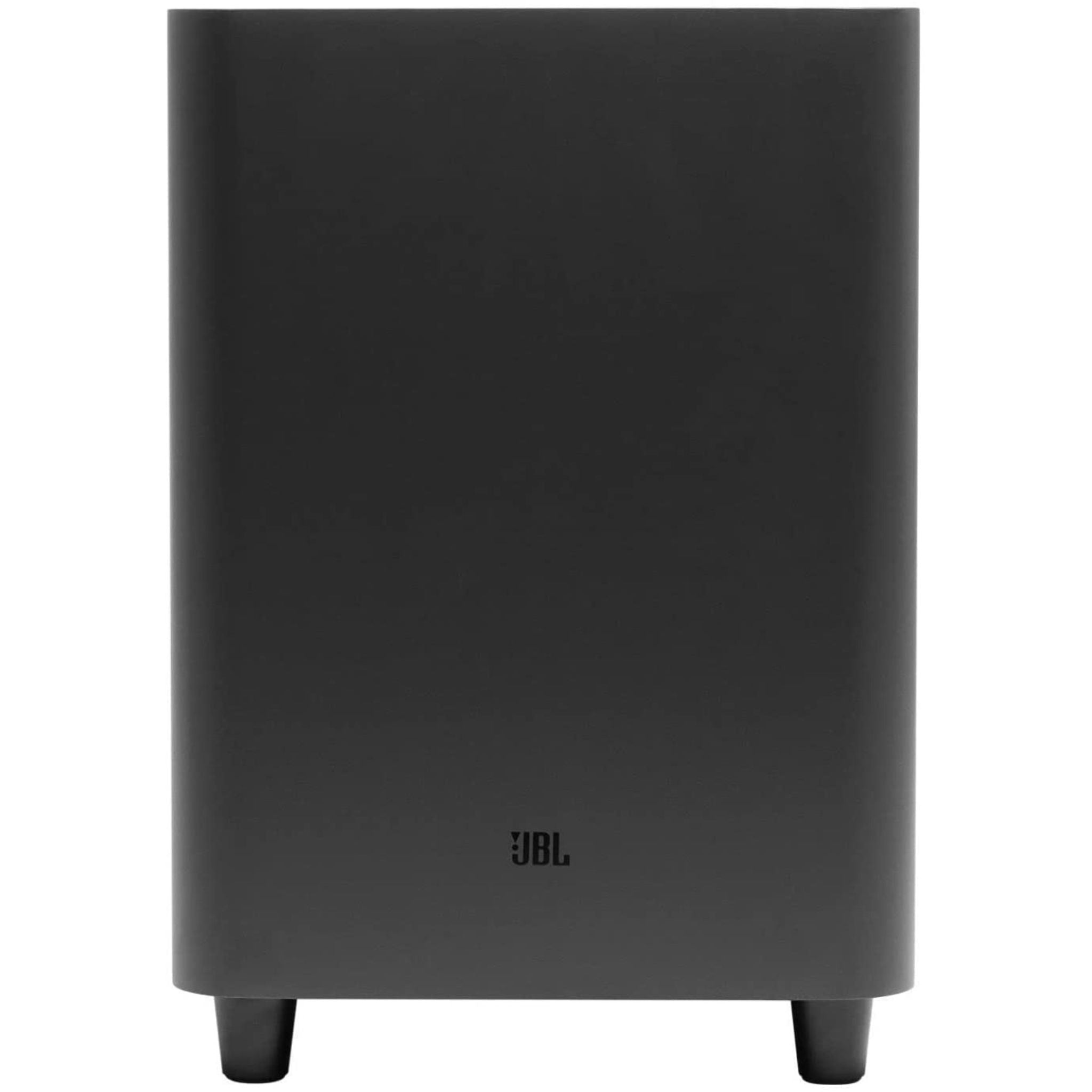

Thrilling bass

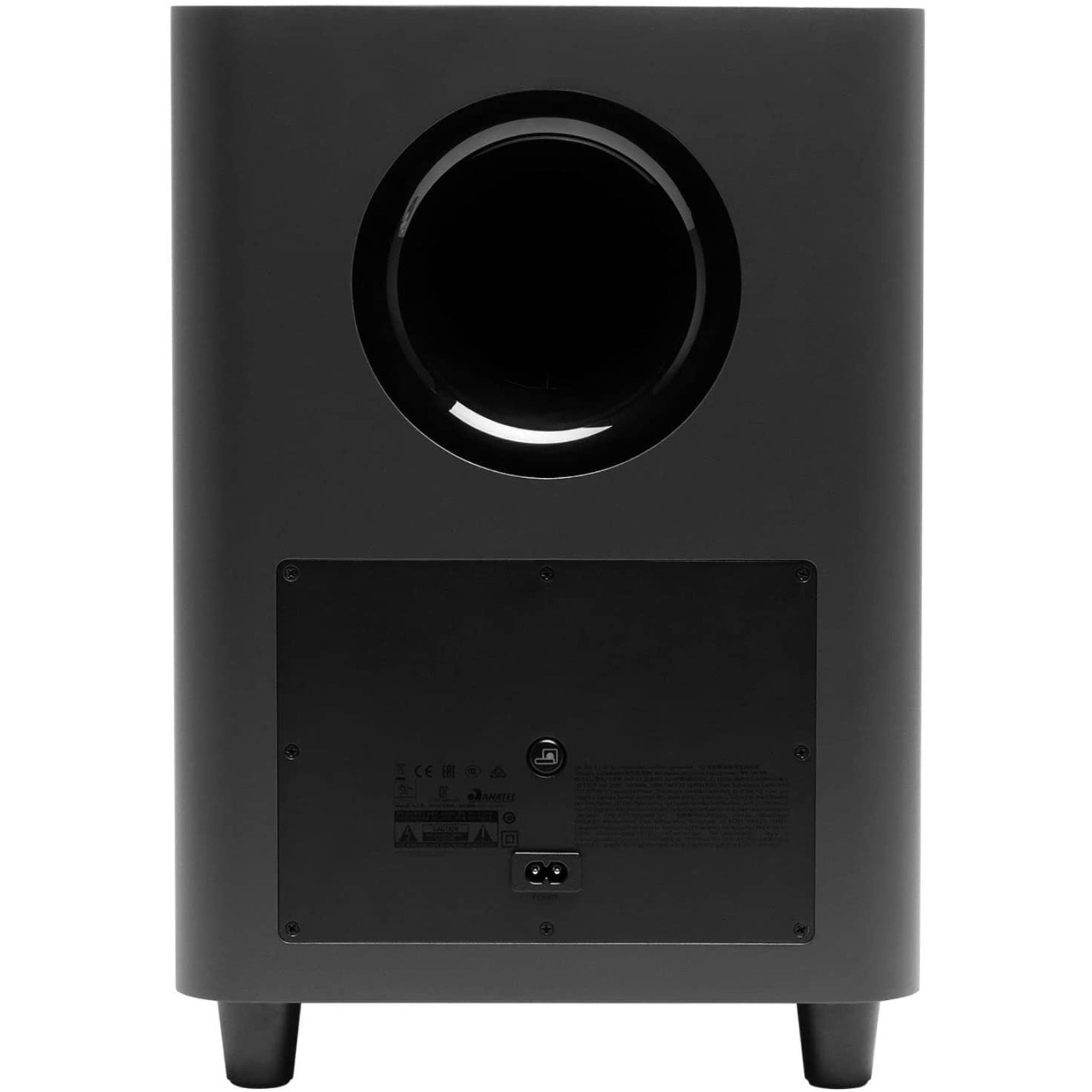

Punchy, precise bass from a mighty 10’’ wireless subwoofer brings the action to your action movies and the emotion to your music.
Ultra HD 4K Pass-through with Dolby Vision™
Incredible 4K video resolution deserves incredible sound. The JBL Bar 9.1 soundbar makes the ultimate dynamic duo when paired with your TV.
Specs & Downloads
Item# JBLBAR913DBLKAS
Product Description
Feel like you're right in the scene with 3D surround sound

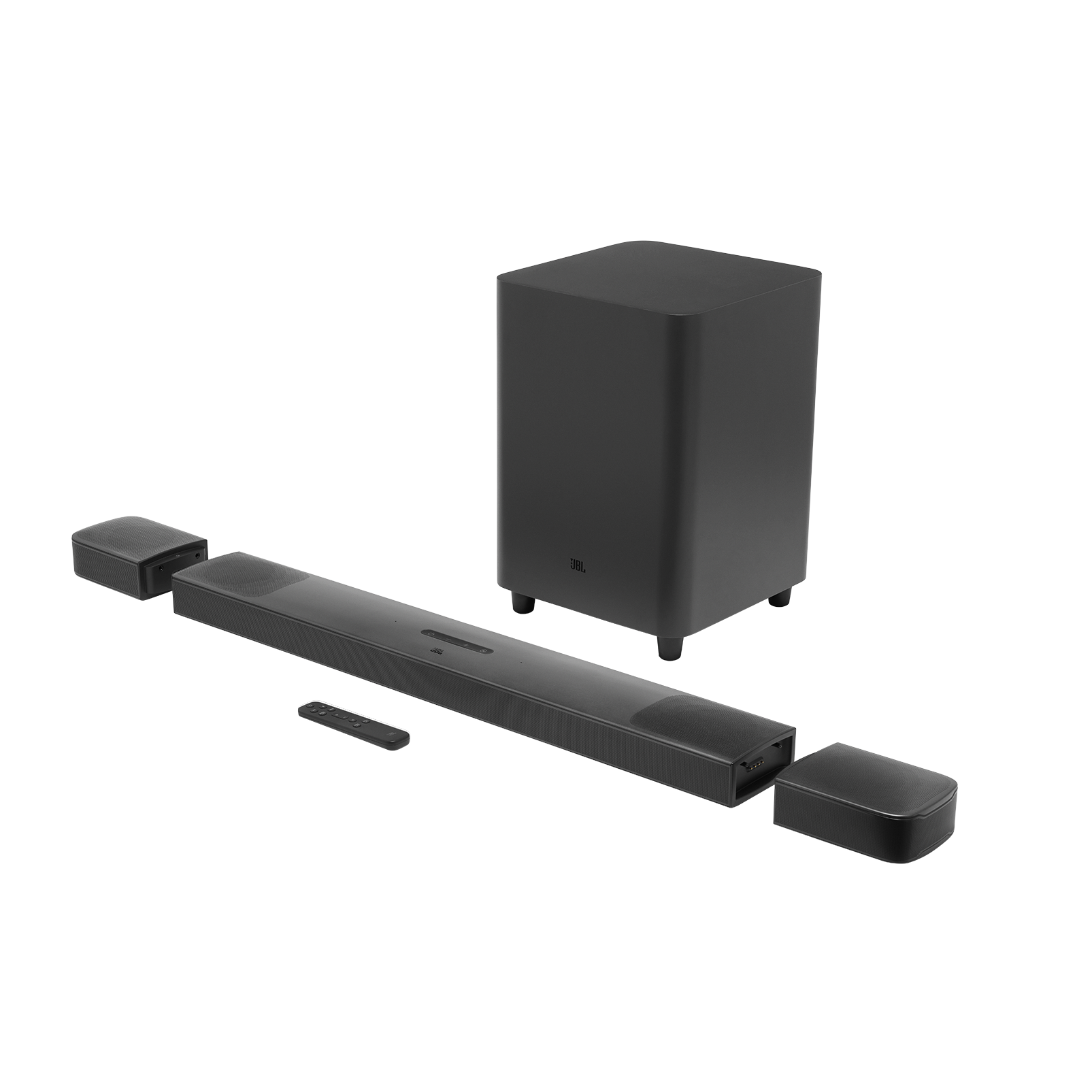

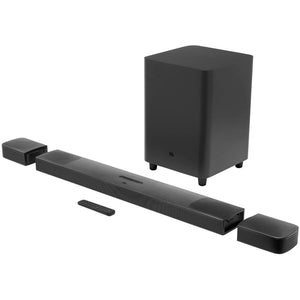

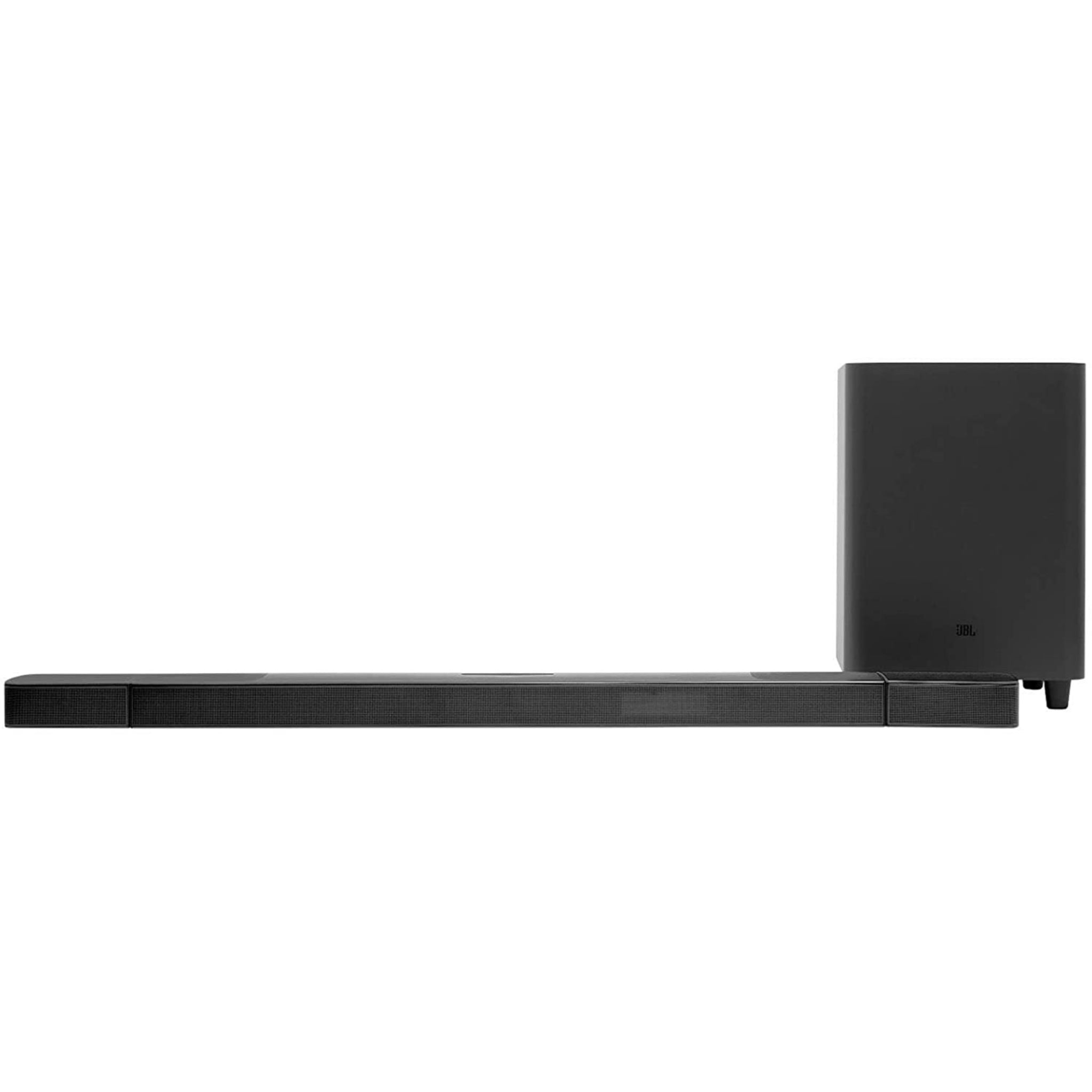

The JBL Bar 9.1 soundbar brings audio experience of a movie theater into your home with two detachable surround speakers and the added punch of Dolby Atmos® and DTS:X™ 3D sound. With 820 watts of total system power, you can enjoy every Oscar-worthy performance through powerful, crystal-clear audio. Turn up the 10’’ subwoofer for pulse-pounding bass or turn it down and relax with Chromecast and AirPlay music streaming. Immerse yourself in the latest blockbuster or re-live your favorite movie or sport scenes. The most incredible home cinema sound experience is here.
General Specifications
5.1.4 channelYes
Power supply100 - 240VAC, ~ 50/60Hz
Battery charge time3 hours
Total speaker power output (Max. @THD 1%)820 W
Main Soundbar output power (Max. @THD 1%)400
Surround speakers output power (Max. @THD 1%); 2 x 60WYes
Subwoofer output power (Max. @THD 1%); 300Yes
Soundbar transducer4×racetrack drivers +2 × up-firing full-range drivers+3 × 0.75” (20mm) tweeter
Surround transducer (per piece)up-firingfull-range driver + 0.75” (20mm) tweeter
Subwoofer transducer10"
Operating temperature0°C - 45°C
Standby for Soundbar (when all wireless connections are deactivated)< 0.5 W
Networked standby (Soundbar)< 6.0 W
Networked standby (Subwoofer)< 2.0 W
Time to standby<10 minutes
This equipment complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013. The Soundbar unit is considered as networked equipment with high network availability (HiNA equipment and equipment with HiNA functionality) as it provides wireless network access point for two wireless Surround speakers and one wireless Subwoofer.Yes
Audio Specifications
HDMI In1
HDMI eARC1
HDMI HDCP version2.3
103dBYes
34Hz~20KHzYes
1 Optical, Bluetooth, Chromecast, AirPlay2, USBYes
Dimensions
Soundbar dimensions (WxHxD); 884 x 62 x 120 (mm)/ 34.8” x 2.4” x 4.7”Yes
Detachable surround speaker, per piece173 x 60 x 120 (mm) / 6.8” x 2.4” x 4.7”
Subwoofer dimensions (WxHxD); 305 x 440 x 305(mm) / 12.0" x 17.3" x 12.0"Yes
Soundbar weight3.64 kg/ 8.0 lb
Detachable surround speaker0.72 kg x 2/ 1.6 lb x2
Subwoofer weight11.10 kg / 24.5 lb
Control and Connection Specifications
USB portType A
USB rating5 V/ 500 mA
Supported file formatMP3
MP3 codecMPEG 1 Layer 2/3, MPEG 2Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate; 16 KHz - 48 KHzYes
MP3 bitrate80 kbps - 320 kbps
USB Port; (USB playback is available in US version. For other versions, USB is for Service only.)Yes
Bluetooth version4.2
Bluetooth profileA2DP V1.2/ AVRCP V1.5
Bluetooth frequency range; 2402MHz-2480MHzYes
Bluetooth Max. transmitting power13dbm (EIRP)
Modulation TypeGFSK, π/4 DQPSK, 8DPSK
Wi-Fi networkIEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi frequency range2412 – 2472 MHz (2.4GHz ISM Band,USA 11 Channels, Europe and others13 Channels)
2.4G Wi-Fi Max. transmitting power20 dBm (EIRP)
Modulation TypeDBPSK, DQPSK, CCK,QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi frequency range5.15 - 5.35 GHz, 5.470-5.725 GHz,5.725 - 5.825 GHz
5G Wi-Fi Max. transmitting power22 dBm (EIRP)
Modulation TypeQPSK, BPSK, 16QAM, 64QAM, 256QAM
5G Wireless frequency range5180.0 - 5240.0MHz (Except Europe), 5725.0 - 5825.0MHz
5G Max. transmitting power13 dBm (EIRP)
Modulation TypeQPSK
What's in the box?
- 1x Main Soundbar
- 2x Detachable wireless surround speakers
- 1x Wireless subwoofer
- Remote control with 2 x batteries
- Power cords (up to 8pcs depending on region SKUs)
- HDMI cable x1
- 2 x L-shape Wall-mount bracket (Main Bar) + 2 x U-shape Wall-mount bracket (for Surround Speakers) kit with screws
- Quick start guide
- Warranty card
- Safety sheet
