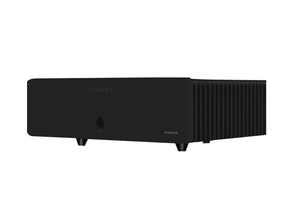

1.The award-winning HYPERION is a fully discrete, true balanced, class AB power amplifier. The power output rated at conservative 80W per channel into 8ohms, 150W into 4ohms (both channels driven, rms).
2.The 300VA power transformer is custom-made for audio with copper shield. 18 pieces of large reservoir capacitors (147,600uF) and fast switching action schottky diode, supplying more than adequate DC power rails to the modular power amplifier.
True balanced input are being amplified (both +ve and -ve signal w.r.t gnd) by the modular power amplifier circuitry. Each channel is equipped with 4 pairs of output transistors.
Features: Technical Highlights: Class-AB, True Balanced, Fully Discrete Power Amp Input: XLR Output: 4mm Speaker Binding Post Gain: 26dB Output Power: 80w RMS per channel into 8ohms Frequency Response: 10-80kHz(-2.2dB) THD+N: 0.00078% S/N Ratio: 125dB Dynamic Range: >121dB Stereo Crosstalk: -110dB
AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage) Power Consumption: 35W (Idle), 234W (Operational) Dimension: 320W x 380D x 100H mm Weight: 16.5 Kg Color: Black/Silver
