FiiO BR15 R2R
FiiO BR15 R2R is a high-resolution wireless audio receiver that upgrades any system with lossless Bluetooth (LDAC, aptX Lossless) via Qualcomm's QCC5181 chip, paired with a rich-sounding 24-bit R2R DAC for detailed sound, offering versatile inputs (BT/USB/Optical/Coaxial) and outputs (RCA/XLR) for seamless integration with amplifiers or active speakers. Get this amazing Audio Receiver now from the official dealer of FiiO in Bangladesh, Gears for Ears today with an official 1 year warranty.
Qualcomm Flagship QCC5181 Chipset with Bluetooth 6.0 & aptX Lossless
Equipped with Qualcomm’s premium QCC5181 Bluetooth chipset, supporting LE Audio and up to 2.1Mbps bandwidth for true CD-grade lossless audio via aptX Lossless in the aptX Adaptive suite. With Bluetooth 6.0, enjoy lower latency, lower power consumption, stronger anti-interference, and a more stable long-distance wireless connection.
Upgrade Your Speakers/Amplifier to aptX Lossless & LDAC Wireless Audio
Transform your existing speaker or amplifier system into a high-resolution wireless audio setup. Fully supports LC3, aptX Lossless, LDAC, SBC, AAC, aptX, aptX HD, and aptX Adaptive—bringing stunning clarity for movies, gaming, and music.
Fully Balanced Complementary 24-Bit R2R DAC for Pure Analog Warmth
Features FiiO’s self-developed four-channel fully balanced complementary 24-bit R2R resistor array DAC. Built with 192 pieces of 0.1% precision, 30ppm thin-film resistors. Compared with non-complementary R2R structures, this architecture offers lower noise, fewer harmonic artifacts, and a darker background for rich, musical, analog-like sound.
Multi-Input Decoding: Bluetooth / USB / Optical / Coaxial
Supports Bluetooth, USB, and SPDIF (optical & coaxial) inputs—making it highly versatile and compatible with smartphones, computers, CD players, TVs, and DVD players. One device covers all scenarios when building your wireless HiFi audio system.

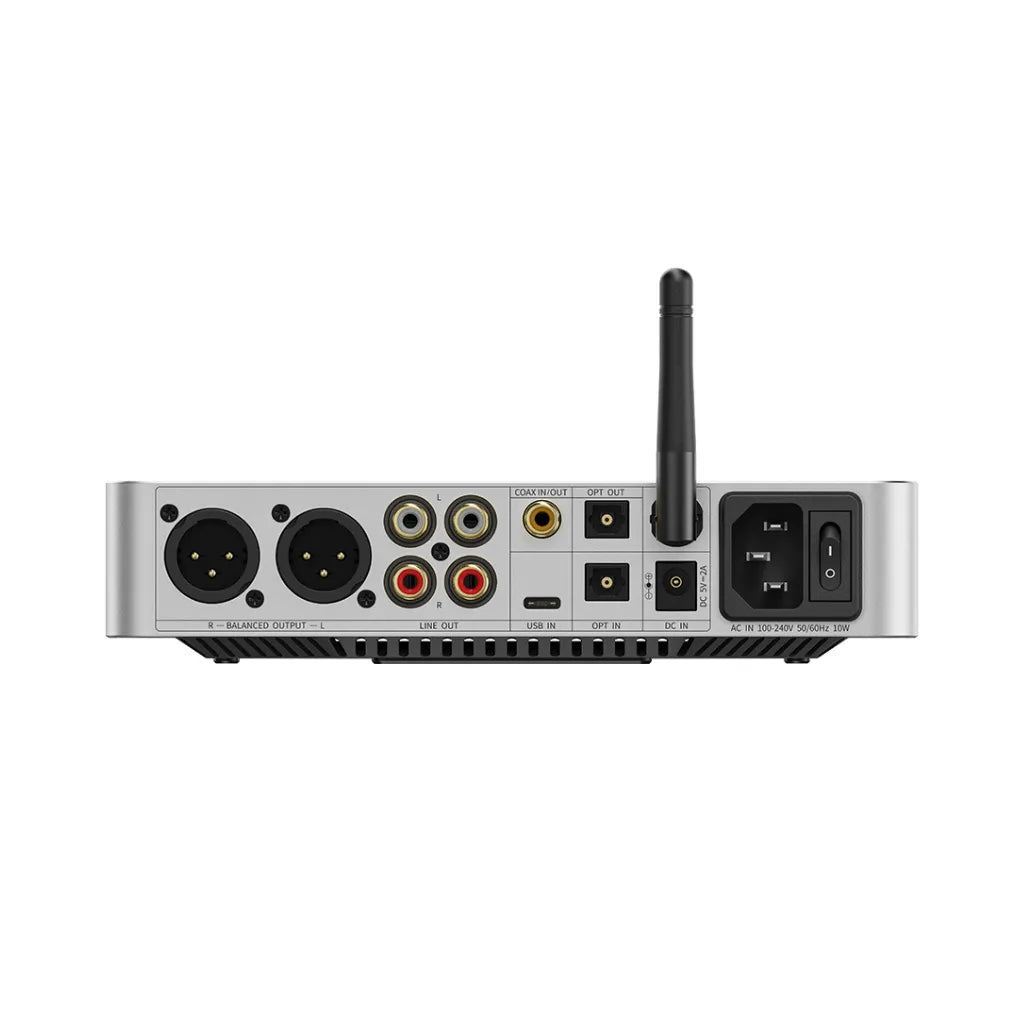

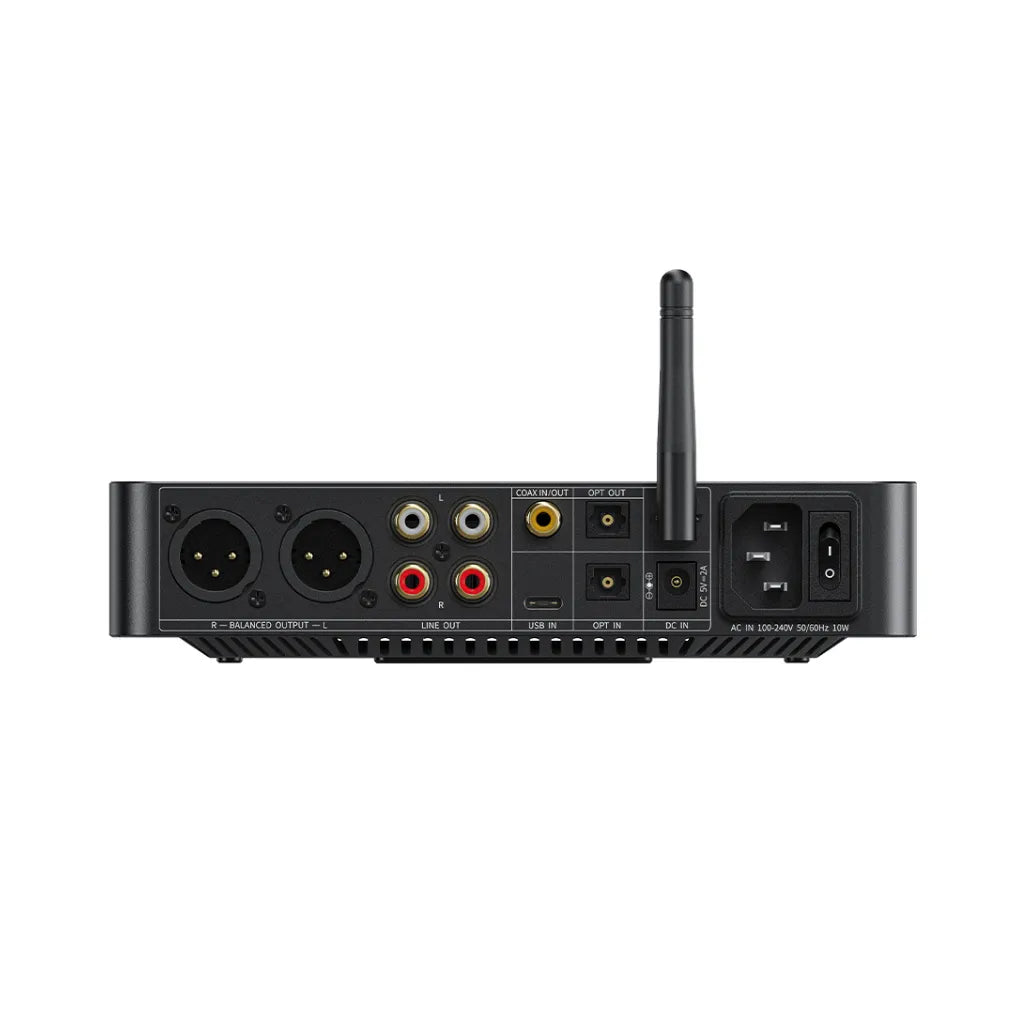

Extensive Output Options with RCA, XLR, Optical & Coaxial
Comes with dual RCA and one XLR analog line-out, plus optical and coaxial digital outputs. Easily integrates with powered speakers, amplifiers, DACs, or other audio components—ensuring flexible system matching for any setup.
Bonus Feature: Convenient Knob Controls + Remote + App Support
Dual physical knobs with a built-in display for easy desktop adjustments. Includes an IR remote and supports the FIIO Control App for effortless long-distance operation.
USB, Coaxial, Optical Frequency Response Curves
Test conditions： Oversampling 192K， -5dB sinusoidal signal，20Hz-20kHz，RCA line out (10kΩ load)
Test conditions： Oversampling 192K， ，-5dB sinusoidal signal， 20Hz-65kHz， RCA line out (10k load)
Test conditions： Oversampling 192K， -5dB sinusoidal signal， 20Hz-20kHz， XLR3 balanced line out (10kΩ load)
Test conditions： Oversampling 192K， -5dB sinusoidal signal， 20Hz-65kHz， XLR3 balanced line out (10kΩ load)
USB, Coaxial, Optical Distortion Curves
Test conditions： Oversampling 192K， -0dB sinusoidal signal， RCA line out (10kΩ load)
Test conditions： Oversampling 192K， -0dB sinusoidal signal， XLR3 balanced line out (10kΩ load)
Spcifications
| Name/Model | BR15 R2R | Hardware solution | Master control: ESP32-S3; DAC: FIIO proprietary R2R DAC; USB decoding: XU316; Bluetooth decoding: QCC5181 |
| Working mode | USB DAC mode/Coaxial decoding mode/Optical decoding mode/Bluetooth receiving mode | Color | Black/Silver |
| Weight | About 760g | Dimensions | About 210x188x42mm (including feet) |
| Volume control | Knob/Remote control | Remote control | Supports IR remote control (only the one included in the accessory) |
| Drive-free mode (switch mode) | Supported | FIIO Control | Supported |
| Oversampling setting | OFF/96K/192K/384K | Bluetooth reception (5.4) | LC3/SBC/AAC/aptX/aptX HD/aptX Adaptive/LDAC/aptX Lossless |
| MQA | Supports MQA full decoding (PEQ=OFF) | PEQ | Supports 10-band PEQ |
| Display | 1.47-inch LCD | Knob indicator light | Supports customizing color, brightness, supports always-on indication or RGB pulsing |
| Max. supported sampling rate (PEQ=OFF) | USB decoding: 384kHz/32bit; DSD256 | Screen status indication | Sampling rate, volume, EQ, Bluetooth codec, working mode, etc. |
| Coaxial decoding: 192kHz/24bit; DSD64 | Firmware upgrade | MCU firmware: Upgrade through the front USB-C port | |
| Optical decoding: 192kHz/24bit; DSD64 | XMOS firmware: Upgrade through the front or rear USB-C port | ||
| Coaxial output: Up to 192kHz/24bit; DSD64 | Bluetooth firmware: Upgrade through the FIIO Control app | ||
| Optical output: Up to 192kHz/24bit; DSD64 | |||
| Buttons and Ports | |||
| Knob | Menu knob with button*1+Volume knob with button*1 | USB port | Type-C USB*2 (Data transmission port) |
| Digital coaxial input/output port | RCA port (shared input/output) | Digital optical input port | Optical port |
| Balanced line output port | XLR3 balanced port | Digital optical output port | Optical port |
| Single-ended line output port | RCA port*2 | Physical button | Power button |
| Power Supply Parameters | |||
| Power supply | AC 100-240V~50/60Hz; DC 5V/≥2A (either-or) | Battery capacity | No battery |
| Audio Parameters | |||
| Performance and parameters of single-ended line output (RCA out, USB DAC/Coaxial decoding/Optical decoding, oversampling 192K) | |||
| THD+N | About 0.017% (1kHz/0dB@10KΩ) | SNR | ≥116dB (A-weighted) |
| Crosstalk | ≥110dB | Noise floor | ＜3.3uV (A-weighted) |
| Frequency response | 20Hz~20kHz: attenuation＜0.2dB | Dynamic range | ≥110dB |
| 20Hz~65kHz: attenuation＜2.9dB | Line output level | 2.2Vrms (1kHz@10kΩ) | |
| Performance and parameters of balanced line output (XLR3 out, USB DAC/Coaxial decoding/Optical decoding, oversampling 192K) | |||
| THD+N | About 0.015% (1kHz/0dB@10KΩ) | SNR | ≥119dB (A-weighted) |
| Crosstalk | ≥112dB | Noise floor | ＜5.1uV (A-weighted) |
| Frequency response | 20Hz~20kHz: attenuation＜0.2dB | Dynamic range | ≥112dB |
| 20Hz~65kHz: attenuation＜2.9dB | Line output level | 4.4Vrms (1kHz@10kΩ) | |
