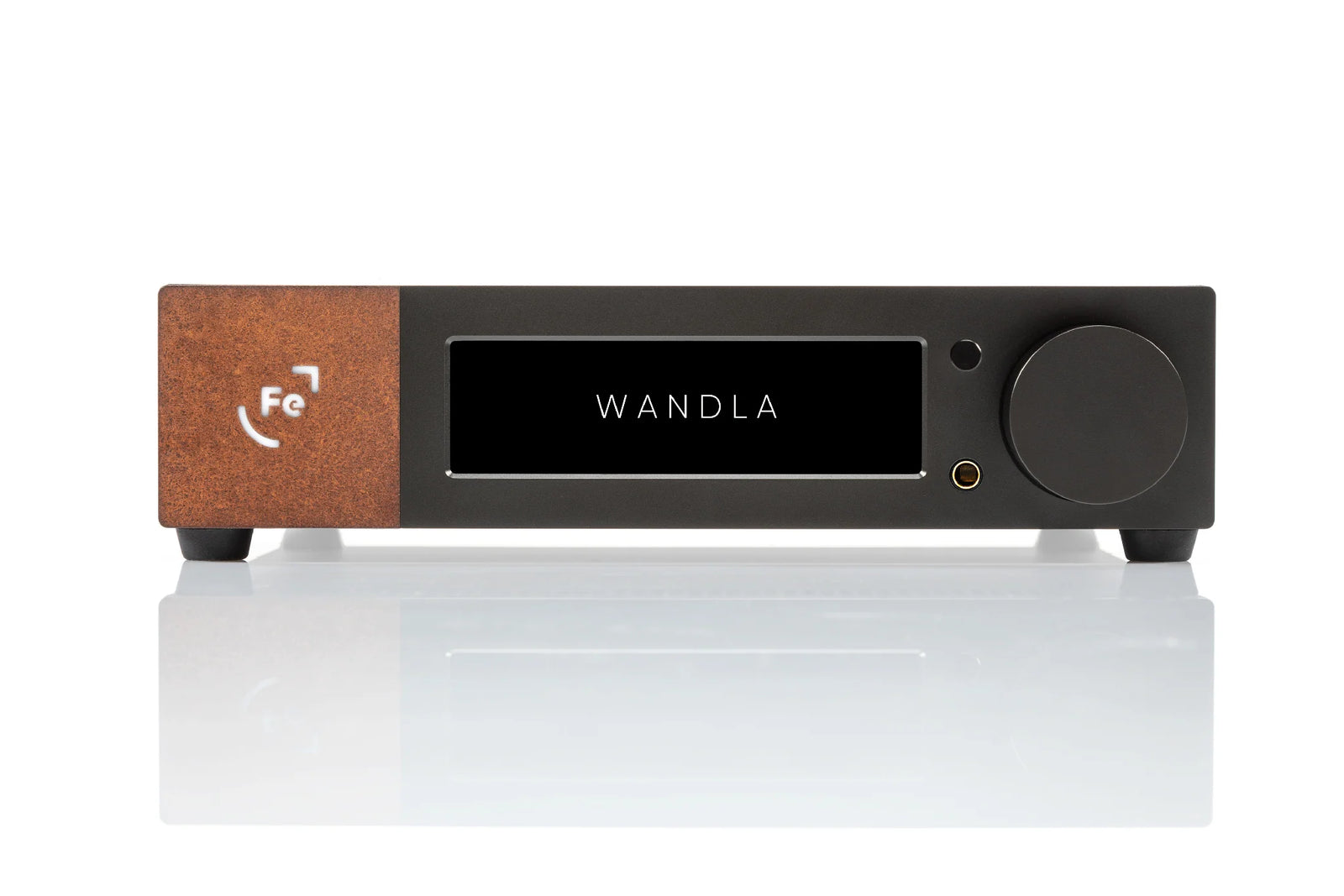

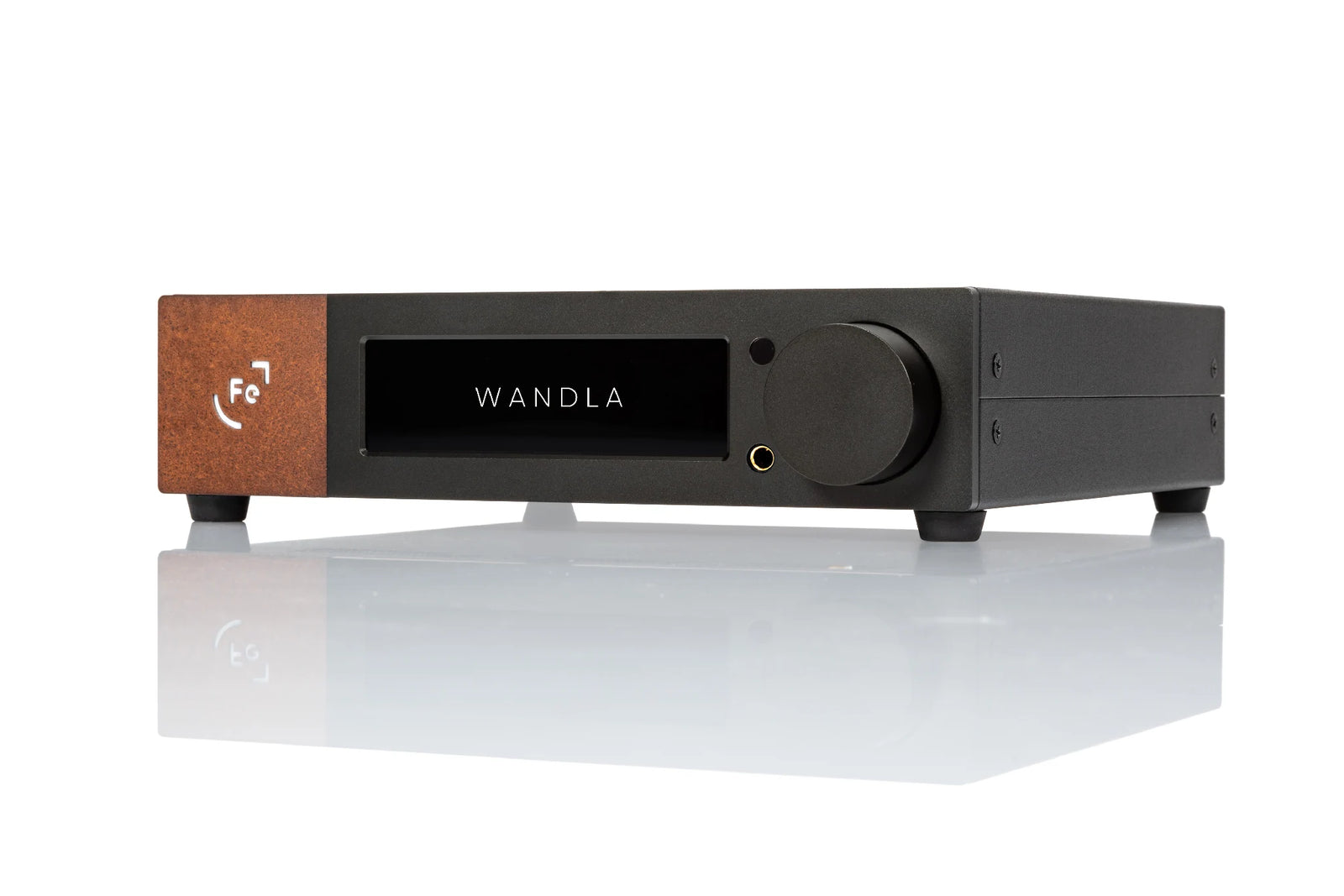

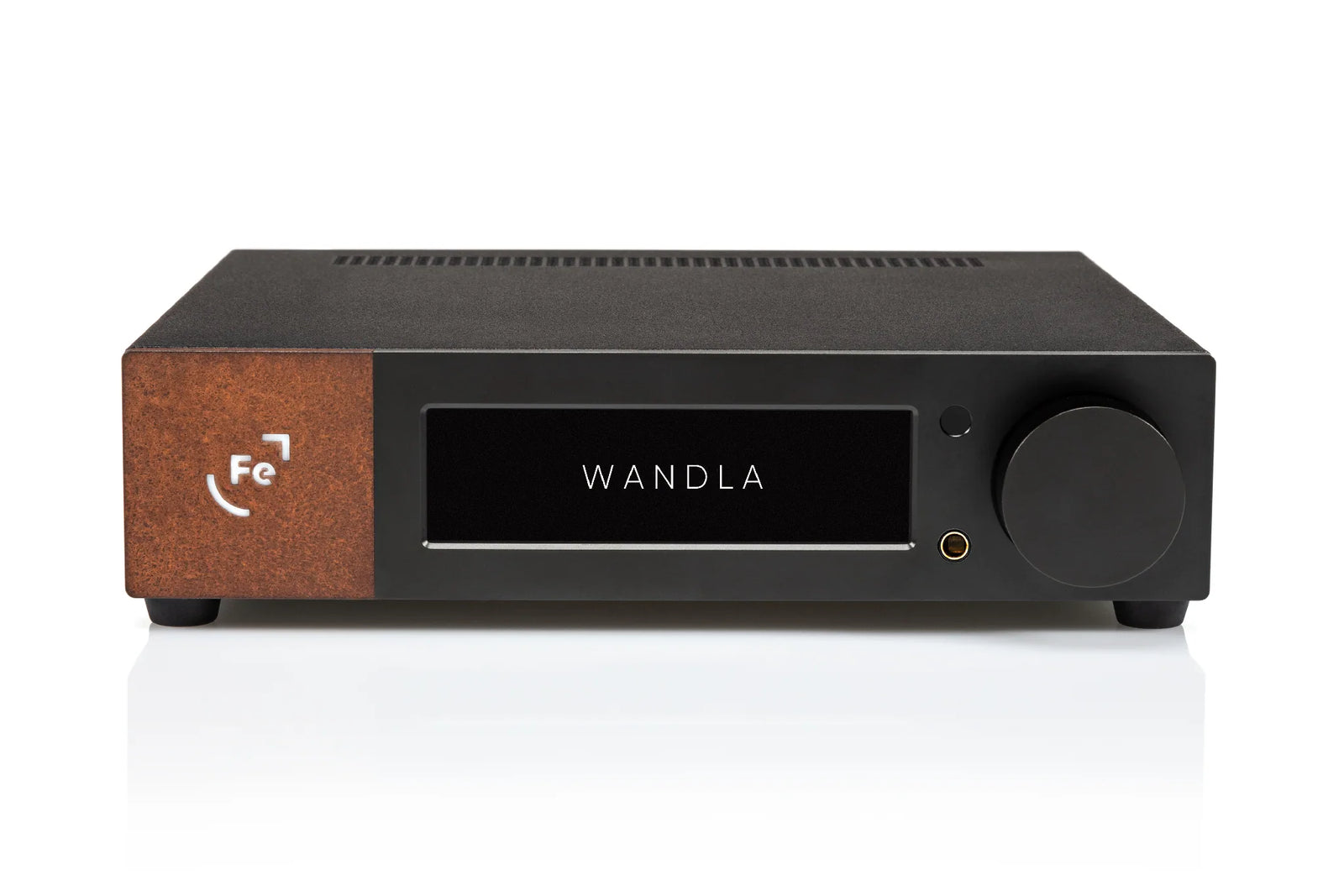

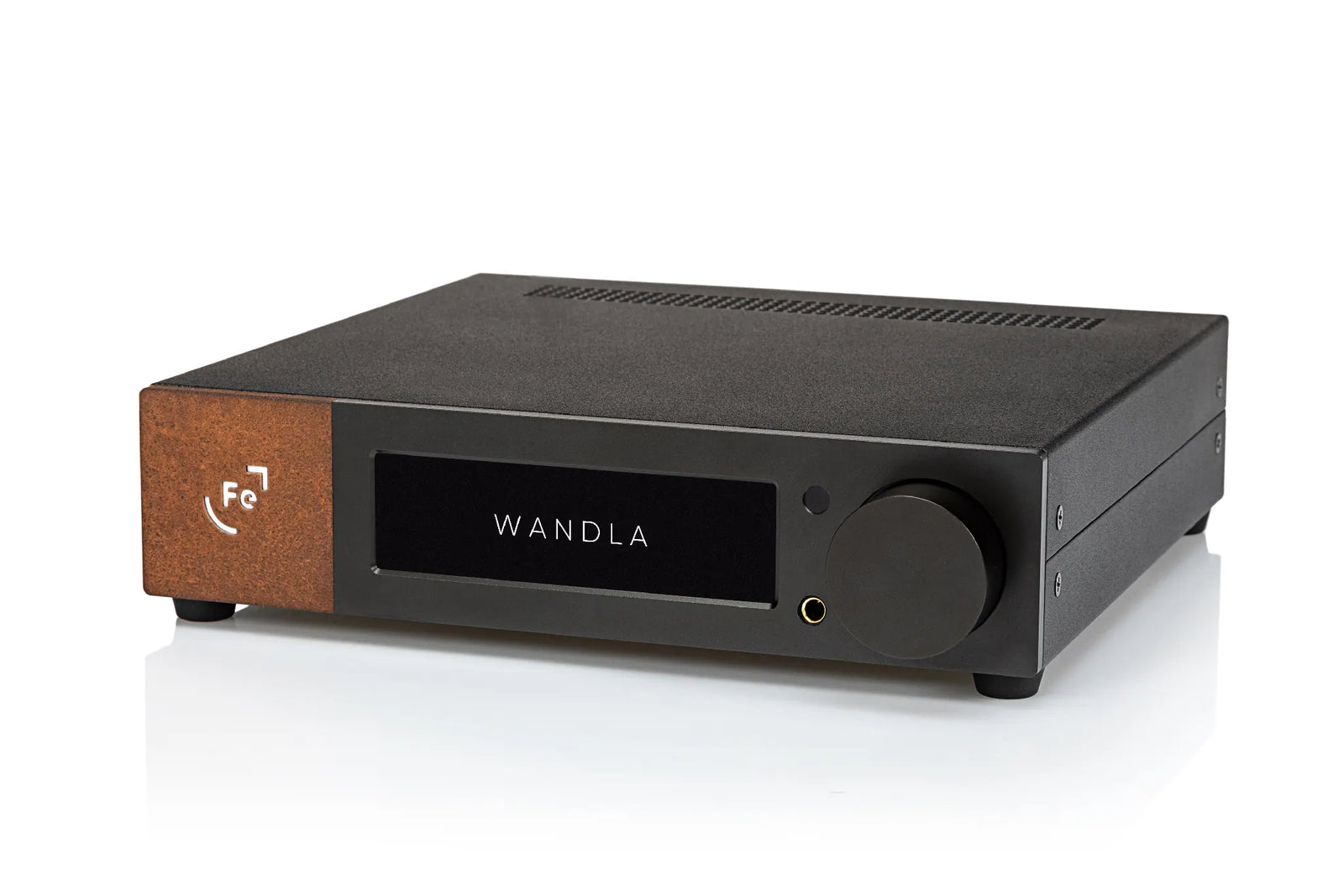

The Ferrum WANDLA HP combines a flagship‑grade DAC, premium preamplifier and a powerful fully balanced headphone amplifier in one compact, elegant unit. Built on the award‑winning WANDLA platform, it delivers exceptional transparency, dynamic range and musicality for both headphone and speaker listening. Designed for users who want more capability than ERCO offers but prefer a single‑box solution over pairing WANDLA with OOR, WANDLA HP brings tomorrow’s high‑end audio to a wider audience.
Key Features
-
Fully balanced composite IC headphone amplifier, fine‑tuned for WANDLA
-
Up to 3.5 W output power into 50 Ω (balanced) and 1 W single‑ended
-
122 dB headphone dynamic range
-
ESS Sabre ES9038PRO DAC with up to 768 kHz/32‑bit and DSD512 support
-
Dynamic Digital Filtering with filters created by HQ Player’s Jussi Laako
-
SERCE ARM‑based digital audio system replacing five separate chips
-
Optimised USB, coaxial, optical, AES, ARC and I2S digital inputs
-
Truly balanced signal path on XLR and balanced conversion from RCA
-
Analogue or digital volume control with bypass option
-
High‑resolution touchscreen with intuitive user interface and remote control
-
Designed to pair seamlessly with Ferrum HYPSOS for maximum performance
-
Enhanced transparency and low listening fatigue
-
Compact, modern design with a single 4.4 mm balanced headphone output
Description
WANDLA HP builds on the acclaimed WANDLA DAC/PREAMP by integrating a powerful, fully balanced headphone amplifier capable of delivering 3.5 W into 50 Ω. This makes it ideal for music lovers who want a single, elegant unit that handles both headphone and speaker listening without compromising on performance.
At the heart of WANDLA HP is Ferrum’s proprietary SERCE digital audio system. This ARM‑based platform processes all incoming digital data streams and replaces five separate chips, creating the shortest possible signal path for USB, ARC, I2S, coaxial and optical inputs. Combined with the ESS Sabre ES9038PRO DAC and Ferrum’s advanced current‑to‑voltage converter, the result is a level of transparency and musicality that rivals far more expensive systems.
Dynamic Digital Filtering, with filters specially prepared for WANDLA by Jussi Laako of HQ Player, gives users multiple high‑end filter options with more to come through future updates. The analogue stage benefits from Ferrum’s experience developing the acclaimed OOR amplifier, ensuring a balanced, fatigue‑free sound signature.

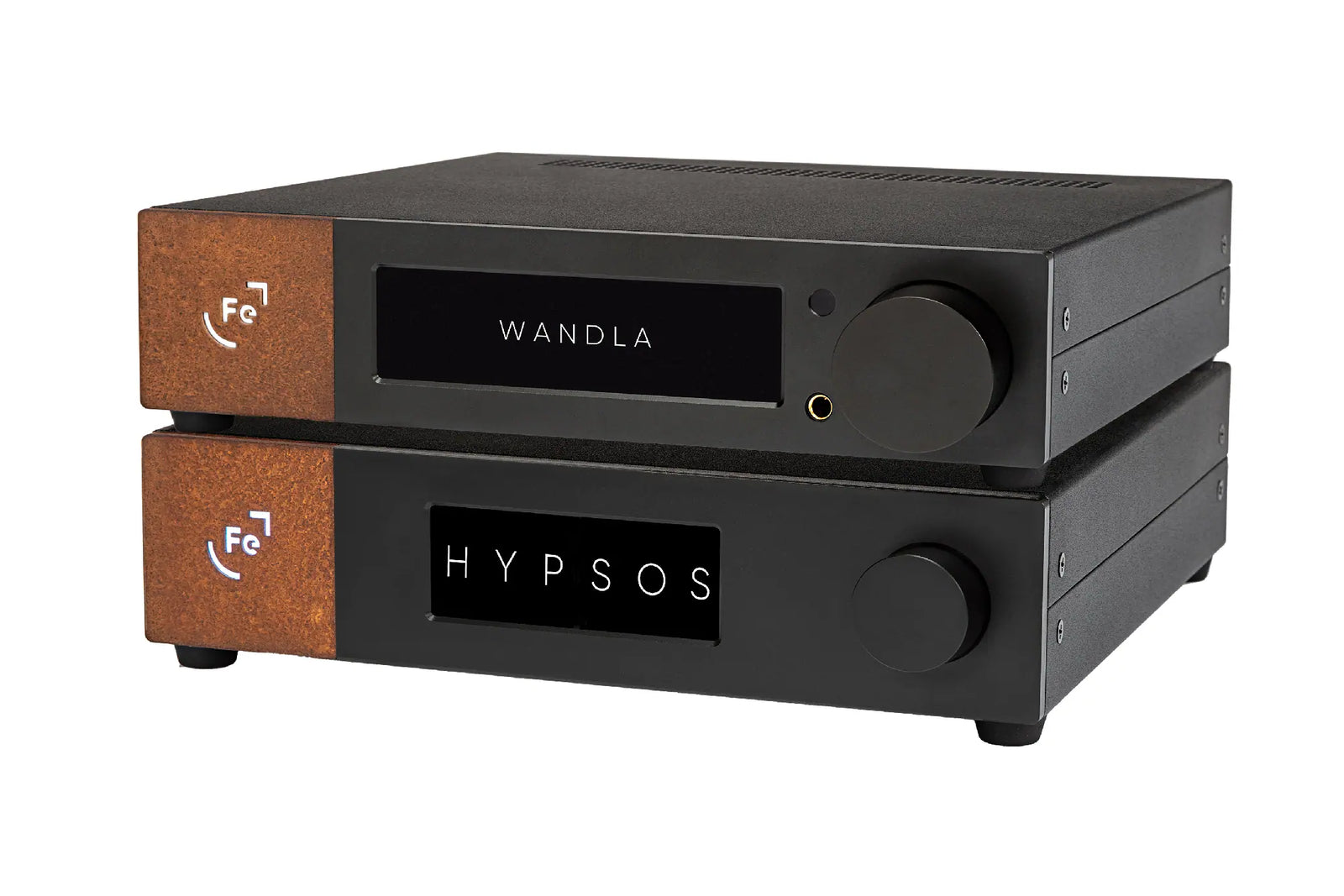

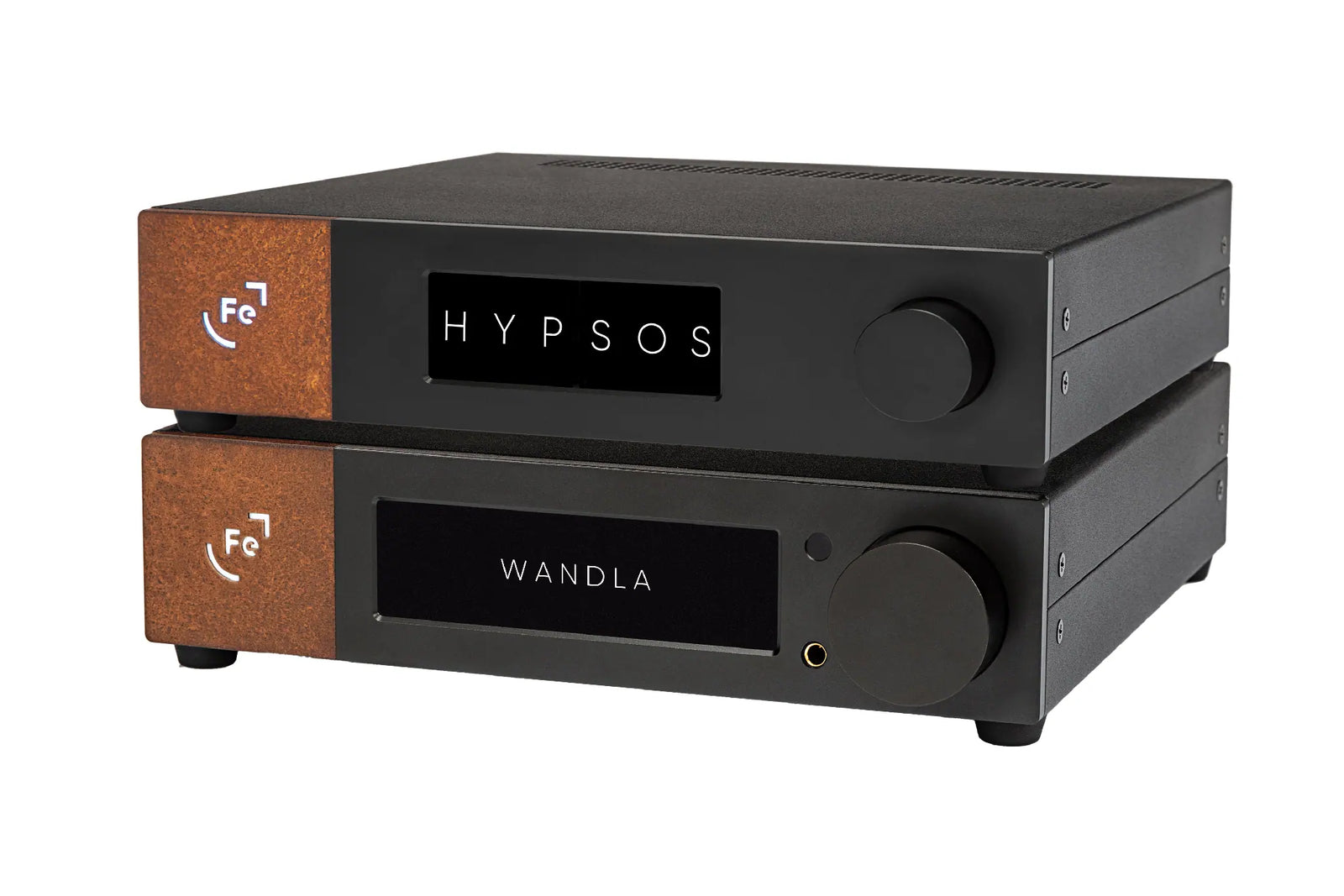

A newly developed high‑resolution touchscreen and intuitive interface make operation effortless. WANDLA HP includes six digital inputs, an unbalanced analogue input, balanced XLR and unbalanced RCA outputs, and dual DC power inputs. It performs beautifully with its included power supply, and reaches even higher levels when paired with Ferrum’s HYPSOS using the proprietary FPL connection.
Specifications
Specifications Ferrum WANDLA HP flagship DAC/PREAMP/HEADPHONE AMPLIFIER Headphone Section THD balanced: 0.00016 % / -116 dB, 10 mW into 50 Ω; 0.00020 % / -114 dB, 100 mW into 50 Ω THD unbalanced: 0.00022 % / -113 dB, 10 mW into 50 Ω; 0.00022 % / -113 dB, 100 mW into 50 Ω Output Power Single Ended: 1 W into 50 Ω Output Power Balanced: 3.5 W into 50 Ω Dyn. Range: 122 dB HP Output impedance: 0.5 Ω unbalanced HP Output impedance: 1 Ω balanced Other Operation: Fully balanced, proprietary IC power amp DAC chip: ESS Sabre ES9038PRO DAC resolution: 768k/32bit, DSD 512 Digital inputs: - AES/EBU (up to 196kHz/24bit, DoP 64) - Optical S/PDIF (up to 96kHz/24bit) - Coaxial S/PDIF (up to 192kHz/24bit, DoP 64) - USB-C (up to 768kHz/32bit, DSD 512, DoP 256) - ARC (up to 192kHz/24bit), TV input with CEC - I2S (up to 768kHz/32bit, DSD 512, DoP 256), PS Audio® compatible MQA: decoder and renderer (on all digital inputs) Analog inputs: RCA Analog input Vmax: 9.5V RMS (2 – 3.5V RMS recommended) Analogue input imp: 47kΩ Line outputs: balanced XLR; unbalanced RCA Volume control: analogue with bypass option / digital for DAC operation only Line Output level: @0 dBFS, 1kHz sine 10 V RMS balanced, 5 V RMS unbalanced Line Output level (RED): @0 dBFS, 1kHz sine 4 V RMS balanced, 2 V RMS unbalanced Frequency response on analog inputs: 10Hz - 200kHz +/- 0.1 dB DAC THD: -121 dB (0.00009 %); THD+N: -115dB (unweighted) Analog input THD: -123 dB @ 2V RMS output level Dyn. range analog: 127 dB (A-weighted) Dyn. range digital: 122 dB (A-weighted) DAC Output Crosstalk: -120 dB for 1kHz, better than -100 dB for 20Hz - 20kHz Line Output impedance: 22 Ω unbalanced Line Output impedance: 44 Ω balanced Power consumption: 13 W idle (with amp powered off) 18 W idle (with amp powered on) 35 W max Power inputs: 5.5/2.5 mm DC connector center positive proprietary FPL 4-pin DC connector (FPL) 22-30 VDC Power adapter: 100-240 VAC to 24 VDC Dimensions: 21.7 x 20.6 x 5 cm / 8.6 x 8.1 x 2.0 inch (WxDxH) Remote control: included Weight: 1.90 kg / 4.19 lbs
